GridPattern.GetItem(Int32, Int32) Метод

Определение

Пространство имен:

System.Windows.Automation

Сборка:

UIAutomationClient.dll

Извлекает элемент AutomationElement, который представляет заданную ячейку.

public:
 System::Windows::Automation::AutomationElement ^ GetItem(int row, int column);

public System.Windows.Automation.AutomationElement GetItem (int row, int column);

member this.GetItem : int * int -> System.Windows.Automation.AutomationElement

Public Function GetItem (row As Integer, column As Integer) As AutomationElement

Параметры

row

Int32

Порядковый номер требуемой строки.

column

Int32

Порядковый номер требуемого столбца.

Возвращаемое значение

AutomationElement

Элемент AutomationElement, который представляет извлеченную ячейку.

Исключения

ArgumentOutOfRangeException

Любая из запрошенных координат строки или столбца меньше нуля.

-или-

Запрошенная координата строки больше, чем RowCount, или координата столбца больше, чем ColumnCount.

Примеры

В следующем примере объявляется прослушиватель для AutomationFocusChangedEvent отслеживания обхода элементов сетки в контейнере сетки. Свойства элемента отображаются в консоли при каждом событии изменения фокуса.

///--------------------------------------------------------------------
/// <summary>
/// Set up grid item event listeners.
/// </summary>
/// <param name="targetControl">
/// The grid item container of interest.
/// </param>
///--------------------------------------------------------------------
private void SetGridItemEventListeners(AutomationElement targetControl)
{
    AutomationFocusChangedEventHandler gridItemFocusChangedListener =
        new AutomationFocusChangedEventHandler(OnGridItemFocusChange);
    Automation.AddAutomationFocusChangedEventHandler(
        gridItemFocusChangedListener);
}

'''--------------------------------------------------------------------
''' <summary>
''' Set up grid item event listeners.
''' </summary>
''' <param name="targetControl">
''' The grid item container of interest.
''' </param>
'''--------------------------------------------------------------------
Private Sub SetGridItemEventListeners( _
ByVal targetControl As AutomationElement)
    Dim gridItemFocusChangedListener As AutomationFocusChangedEventHandler = _
    AddressOf OnGridItemFocusChange
    Automation.AddAutomationFocusChangedEventHandler( _
    gridItemFocusChangedListener)
End Sub

///--------------------------------------------------------------------
/// <summary>
/// Event handler for grid item focus change.
/// Can be used to track traversal of individual grid items
/// within a grid.
/// </summary>
/// <param name="src">Object that raised the event.</param>
/// <param name="e">Event arguments.</param>
///--------------------------------------------------------------------
private void OnGridItemFocusChange(
    object src, AutomationFocusChangedEventArgs e)
{
    // Make sure the element still exists. Elements such as tooltips
    // can disappear before the event is processed.
    AutomationElement sourceElement;
    try
    {
        sourceElement = src as AutomationElement;
    }
    catch (ElementNotAvailableException)
    {
        return;
    }

    // Gets a GridItemPattern from the source of the event.
    GridItemPattern gridItemPattern =
        GetGridItemPattern(sourceElement);

    if (gridItemPattern == null)
    {
        return;
    }

    // Gets a GridPattern from the grid container.
    GridPattern gridPattern =
        GetGridPattern(gridItemPattern.Current.ContainingGrid);

    if (gridPattern == null)
    {
        return;
    }

    AutomationElement gridItem = null;
    try
    {
        gridItem = gridPattern.GetItem(
        gridItemPattern.Current.Row,
        gridItemPattern.Current.Column);
    }
    catch (ArgumentOutOfRangeException)
    {
        // If the requested row coordinate is larger than the RowCount
        // or the column coordinate is larger than the ColumnCount.
        // -- OR --
        // If either of the requested row or column coordinates
        // are less than zero.
        // TO DO: error handling.
    }

    // Further event processing can be done at this point.
    // For the purposes of this sample we just report item properties.
    StringBuilder gridItemReport = new StringBuilder();
    gridItemReport.AppendLine(
        gridItemPattern.Current.Row.ToString()).AppendLine(
        gridItemPattern.Current.Column.ToString()).AppendLine(
        gridItemPattern.Current.RowSpan.ToString()).AppendLine(
        gridItemPattern.Current.ColumnSpan.ToString()).AppendLine(
        gridItem.Current.AutomationId.ToString());
    Console.WriteLine(gridItemReport.ToString());
}

///--------------------------------------------------------------------
/// <summary>
/// Handles our application shutdown.
/// </summary>
/// <param name="args">Event arguments.</param>
///--------------------------------------------------------------------
protected override void OnExit(System.Windows.ExitEventArgs args)
{
    Automation.RemoveAllEventHandlers();
    base.OnExit(args);
}

'''--------------------------------------------------------------------
''' <summary>
''' Event handler for grid item focus change.
''' Can be used to track traversal of individual grid items
''' within a grid.
''' </summary>
''' <param name="src">Object that raised the event.</param>
''' <param name="e">Event arguments.</param>
'''--------------------------------------------------------------------
Private Sub OnGridItemFocusChange( _
ByVal src As Object, ByVal e As AutomationFocusChangedEventArgs)
    ' Make sure the element still exists. Elements such as tooltips
    ' can disappear before the event is processed.
    Dim sourceElement As AutomationElement
    Try
        sourceElement = DirectCast(src, AutomationElement)
    Catch exc As ElementNotAvailableException
        Return
    End Try

    ' Gets a GridItemPattern from the source of the event.
    Dim gridItemPattern As GridItemPattern = _
    GetGridItemPattern(sourceElement)

    If gridItemPattern Is Nothing Then
        Return
    End If

    ' Gets a GridPattern from the grid container.
    Dim gridPattern As GridPattern = _
    GetGridPattern(gridItemPattern.Current.ContainingGrid)

    If gridPattern Is Nothing Then
        Return
    End If

    Dim gridItem As AutomationElement = Nothing
    Try
        gridItem = gridPattern.GetItem( _
        gridItemPattern.Current.Row, gridItemPattern.Current.Column)
    Catch
        ' If the requested row coordinate is larger than the RowCount
        ' or the column coordinate is larger than the ColumnCount.
        ' -- OR --
        ' If either of the requested row or column coordinates
        ' are less than zero.
        ' TO DO: error handling.
    End Try

    ' Further event processing can be done at this point.
    ' For the purposes of this sample we just report item properties.
    Dim gridItemReport As New StringBuilder()
    gridItemReport.AppendLine( _
    gridItemPattern.Current.Row.ToString()).AppendLine( _
    gridItemPattern.Current.Column.ToString()).AppendLine( _
    gridItemPattern.Current.RowSpan.ToString()).AppendLine( _
    gridItemPattern.Current.ColumnSpan.ToString()).AppendLine( _
    gridItem.Current.AutomationId.ToString())
    Console.WriteLine(gridItemReport.ToString())

End Sub


'''--------------------------------------------------------------------
''' <summary>
''' Handles our application shutdown.
''' </summary>
''' <param name="args">Event arguments.</param>
'''--------------------------------------------------------------------
Protected Overrides Sub OnExit(ByVal args As System.Windows.ExitEventArgs)
    Automation.RemoveAllEventHandlers()
    MyBase.OnExit(args)

End Sub

Комментарии

Координаты сетки отсчитываются от нуля, при этом верхняя левая ячейка (или верхняя правая ячейка в зависимости от языкового стандарта) имеет координаты (0,0).

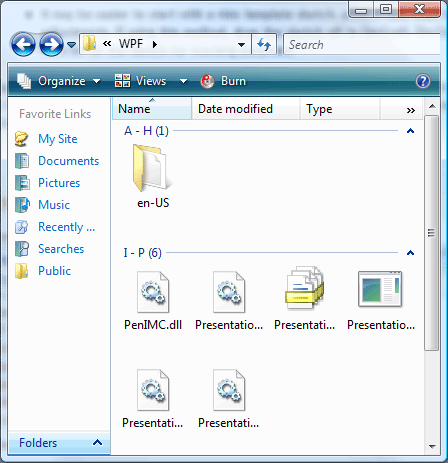

Если ячейка пуста, элемент автоматизации пользовательского интерфейса по-прежнему возвращается для поддержки ContainingGrid извлечения свойства для этой ячейки. Это возможно, если структура дочерних элементов в сетке похожа на неровный массив, как показано ниже.

Пример элемента управления "Сетка" с пустыми координатами
