Nasıl yapılır: Bir Kılavuzun Alt Öğelerini Konumlandırma

Bu örnekte, alt öğeleri konumlandırmak için üzerinde Grid tanımlanan get ve set yöntemlerinin nasıl kullanılacağı gösterilmektedir.

Örnek

Aşağıdaki örnek, üç sütunu ve üç satırı olan bir üst Grid öğeyi (grid1) tanımlar. Sütun konumu sıfır, satır konumu sıfır olarak bir alt Rectangle öğe (rect1) eklenir Grid . Button öğeleri içindeki öğesini yeniden konumlandırmak Rectangle için çağrılabilen yöntemleri temsil eder Grid. Kullanıcı bir düğmeye tıkladığında ilgili yöntem etkinleştirilir.

<Window
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    x:Class="grid_getset_methods.Window1"
    Title="Grid Methods Sample">
    <Border BorderBrush="Black" Background="White" BorderThickness="2">
    <DockPanel VerticalAlignment="Top" HorizontalAlignment="Left" Margin="10">
      <TextBlock FontSize="20" FontWeight="Bold" DockPanel.Dock="Top">Grid Methods Sample</TextBlock>
      <TextBlock DockPanel.Dock="Top">Click the buttons on the left to reposition the Rectangle below using methods defined on Grid.</TextBlock>
        <Grid Margin="0,10,15,0" DockPanel.Dock="Left">
          <Grid.ColumnDefinitions>
            <ColumnDefinition/>
            <ColumnDefinition/>
          </Grid.ColumnDefinitions>
          <Grid.RowDefinitions>
            <RowDefinition/>
          </Grid.RowDefinitions>
        <!-- <Snippet1> -->
          <StackPanel Grid.Column="0" Grid.Row="0" HorizontalAlignment="Left" Orientation="Vertical">
            <Button Click="setCol0">Move Rectangle to Column 0</Button>
            <Button Click="setCol1">Move Rectangle to Column 1</Button>
            <Button Click="setCol2" Margin="0,0,0,10">Move Rectangle to Column 2</Button>
            <Button Click="setRow0">Move Rectangle to Row 0</Button>
            <Button Click="setRow1">Move Rectangle to Row 1</Button>
            <Button Click="setRow2" Margin="0,0,0,10">Move Rectangle to Row 2</Button>
            <Button Click="setColspan">Span All Columns</Button>
            <Button Click="setRowspan">Span All Rows</Button>
            <Button Click="clearAll">Clear All</Button>
          </StackPanel>
        </Grid>
      <Grid DockPanel.Dock="Top" Margin="0,10,15,0" HorizontalAlignment="Left" Name="grid1" ShowGridLines="True" Width="400" Height="400" Background="LightSteelBlue">
        <Grid.ColumnDefinitions>
        <ColumnDefinition/>
        <ColumnDefinition/>
        <ColumnDefinition/>
      </Grid.ColumnDefinitions>
      <Grid.RowDefinitions>
        <RowDefinition/>
        <RowDefinition/>
        <RowDefinition/>
      </Grid.RowDefinitions>

        <Rectangle Name="rect1" Fill="Silver" Grid.Column="0" Grid.Row="0"/>
        <TextBlock FontSize="15" HorizontalAlignment="Right" VerticalAlignment="Bottom" Grid.Column="0" Grid.Row="0" Margin="5">Column 0, Row 0</TextBlock>
        <TextBlock FontSize="15" HorizontalAlignment="Right" VerticalAlignment="Bottom" Grid.Column="1" Grid.Row="0" Margin="5">Column 1, Row 0</TextBlock>
        <TextBlock FontSize="15" HorizontalAlignment="Right" VerticalAlignment="Bottom" Grid.Column="2" Grid.Row="0" Margin="5">Column 2, Row 0</TextBlock>
        <TextBlock FontSize="15" HorizontalAlignment="Right" VerticalAlignment="Bottom" Grid.Column="0" Grid.Row="1" Margin="5">Column 0, Row 1</TextBlock>
        <TextBlock FontSize="15" HorizontalAlignment="Right" VerticalAlignment="Bottom" Grid.Column="1" Grid.Row="1" Margin="5">Column 1, Row 1</TextBlock>
        <TextBlock FontSize="15" HorizontalAlignment="Right" VerticalAlignment="Bottom" Grid.Column="2" Grid.Row="1" Margin="5">Column 2, Row 1</TextBlock>
        <TextBlock FontSize="15" HorizontalAlignment="Right" VerticalAlignment="Bottom" Grid.Column="0" Grid.Row="2" Margin="5">Column 0, Row 2</TextBlock>
        <TextBlock FontSize="15" HorizontalAlignment="Right" VerticalAlignment="Bottom" Grid.Column="1" Grid.Row="2" Margin="5">Column 1, Row 2</TextBlock>
        <TextBlock FontSize="15" HorizontalAlignment="Right" VerticalAlignment="Bottom" Grid.Column="2" Grid.Row="2" Margin="5">Column 2, Row 2</TextBlock>
      </Grid>
        <!-- </Snippet1> -->

      <TextBlock DockPanel.Dock="Top" Name="txt1"/>
      <TextBlock DockPanel.Dock="Top" Name="txt2"/>
      <TextBlock DockPanel.Dock="Top" Name="txt3"/>
      <TextBlock DockPanel.Dock="Top" Name="txt4"/>
    </DockPanel>
    </Border>
</Window>

Aşağıdaki arka planda kod örneği, düğme Click olaylarının tetiklediği yöntemleri işler. Örnek, yeni özellik değerlerini dize olarak çıkarmak için TextBlock ilgili get yöntemlerini kullanan öğelere bu yöntem çağrılarını yazar.

private void setCol0(object sender, RoutedEventArgs e)
{
    Grid.SetColumn(rect1, 0);
    txt1.Text = "Rectangle is in Column " + Grid.GetColumn(rect1).ToString();
}
private void setCol1(object sender, RoutedEventArgs e)
{
    Grid.SetColumn(rect1, 1);
    txt1.Text = "Rectangle is in Column " + Grid.GetColumn(rect1).ToString();
}
private void setCol2(object sender, RoutedEventArgs e)
{
    Grid.SetColumn(rect1, 2);
    txt1.Text = "Rectangle is in Column " + Grid.GetColumn(rect1).ToString();
}
private void setRow0(object sender, RoutedEventArgs e)
{
    Grid.SetRow(rect1, 0);
    txt2.Text = "Rectangle is in Row " + Grid.GetRow(rect1).ToString();
}
private void setRow1(object sender, RoutedEventArgs e)
{
    Grid.SetRow(rect1, 1);
    txt2.Text = "Rectangle is in Row " + Grid.GetRow(rect1).ToString();
}
private void setRow2(object sender, RoutedEventArgs e)
{
    Grid.SetRow(rect1, 2);
    txt2.Text = "Rectangle is in Row " + Grid.GetRow(rect1).ToString();
}
private void setColspan(object sender, RoutedEventArgs e)
{
    Grid.SetColumnSpan(rect1, 3);
    txt3.Text = "ColumnSpan is set to " + Grid.GetColumnSpan(rect1).ToString();
}
private void setRowspan(object sender, RoutedEventArgs e)
{
    Grid.SetRowSpan(rect1, 3);
    txt4.Text = "RowSpan is set to " + Grid.GetRowSpan(rect1).ToString();
}

Private Sub setCol0(ByVal sender As Object, ByVal e As RoutedEventArgs)
    Grid.SetColumn(rect1, 0)
    txt1.Text = "Rectangle is in Column " + Grid.GetColumn(rect1).ToString()
End Sub

Private Sub setCol1(ByVal sender As Object, ByVal e As RoutedEventArgs)
    Grid.SetColumn(rect1, 1)
    txt1.Text = "Rectangle is in Column " + Grid.GetColumn(rect1).ToString()
End Sub

Private Sub setCol2(ByVal sender As Object, ByVal e As RoutedEventArgs)
    Grid.SetColumn(rect1, 2)
    txt1.Text = "Rectangle is in Column " + Grid.GetColumn(rect1).ToString()
End Sub

Private Sub setRow0(ByVal sender As Object, ByVal e As RoutedEventArgs)
    Grid.SetRow(rect1, 0)
    txt2.Text = "Rectangle is in Row " + Grid.GetRow(rect1).ToString()
End Sub

Private Sub setRow1(ByVal sender As Object, ByVal e As RoutedEventArgs)
    Grid.SetRow(rect1, 1)
    txt2.Text = "Rectangle is in Row " + Grid.GetRow(rect1).ToString()
End Sub

Private Sub setRow2(ByVal sender As Object, ByVal e As RoutedEventArgs)
    Grid.SetRow(rect1, 2)
    txt2.Text = "Rectangle is in Row " + Grid.GetRow(rect1).ToString()
End Sub

Private Sub setColspan(ByVal sender As Object, ByVal e As RoutedEventArgs)
    Grid.SetColumnSpan(rect1, 3)
    txt3.Text = "ColumnSpan is set to " + Grid.GetColumnSpan(rect1).ToString()
End Sub
Private Sub setRowspan(ByVal sender As Object, ByVal e As RoutedEventArgs)
    Grid.SetRowSpan(rect1, 3)
    txt4.Text = "RowSpan is set to " + Grid.GetRowSpan(rect1).ToString()
End Sub

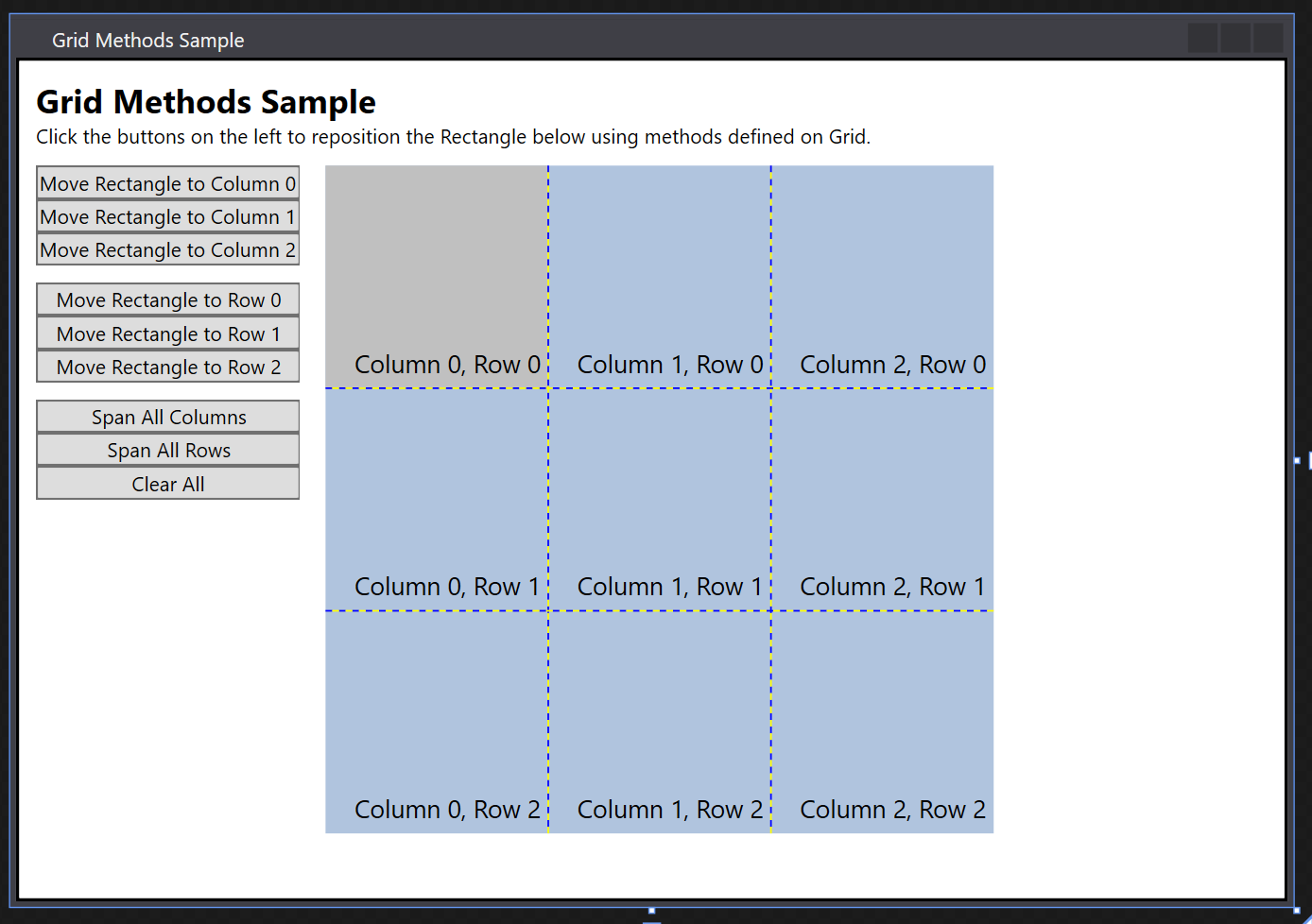

İşte tamamlanmış sonuç!
