Windows Authentication <windowsAuthentication>

  • Makale

Overview

The <windowsAuthentication> element defines configuration settings for the Internet Information Services (IIS) 7 Windows authentication module. You can use Windows authentication when your IIS 7 server runs on a corporate network that is using Microsoft Active Directory service domain identities or other Windows accounts to identify users. Because of this, you can use Windows authentication whether or not your server is a member of an Active Directory domain.

Windows authentication (formerly named NTLM, and also referred to as Windows NT Challenge/Response authentication) is a secure form of authentication because the user name and password are hashed before being sent across the network. When you enable Windows authentication, the client browser sends a strongly hashed version of the password in a cryptographic exchange with your Web server.

Windows authentication supports two authentication protocols, Kerberos and NTLM, which are defined in the <providers> element. When you install and enable Windows authentication on IIS 7, the default protocol is Kerberos. The <windowsAuthentication> element can also contain a useKernelMode attribute that configures whether to use the kernel mode authentication feature that is new to Windows Server 2008.

Windows authentication is best suited for an intranet environment for the following reasons:

  • Client computers and Web servers are in the same domain.
  • Administrators can make sure that every client browser is Internet Explorer 2.0 or later.
  • HTTP proxy connections, which are not supported by NTLM, are not required.
  • Kerberos version 5 requires a connection to Active Directory, which is not feasible in an Internet environment.

New in IIS 7.5

The <extendedProtection> element was introduced in IIS 7.5, which allows you to configure the settings for the new extended protection features that have been integrated into Windows authentication.

Compatibility

Version Notes
IIS 10.0 The <windowsAuthentication> element was not modified in IIS 10.0.
IIS 8.5 The <windowsAuthentication> element was not modified in IIS 8.5.
IIS 8.0 The <windowsAuthentication> element was not modified in IIS 8.0.
IIS 7.5 The <extendedProtection> element was added in IIS 7.5.
IIS 7.0 The <windowsAuthentication> element was introduced in IIS 7.0.
IIS 6.0 The <windowsAuthentication> element replaces portions of the IIS 6.0 AuthType and AuthFlags metabase properties.

Setup

The default installation of IIS 7 and later does not include the Windows authentication role service. To use Windows authentication on IIS, you must install the role service, disable Anonymous authentication for your Web site or application, and then enable Windows authentication for the site or application.

Note

After you install the role service, IIS 7 commits the following configuration settings to the ApplicationHost.config file.

<windowsAuthentication enabled="false" />

Windows Server 2012 or Windows Server 2012 R2

  1. On the taskbar, click Server Manager.
  2. In Server Manager, click the Manage menu, and then click Add Roles and Features.
  3. In the Add Roles and Features wizard, click Next. Select the installation type and click Next. Select the destination server and click Next.
  4. On the Server Roles page, expand Web Server (IIS), expand Web Server, expand Security, and then select Windows Authentication. Click Next.

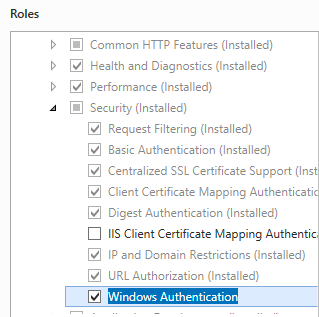

    Screenshot of the Server Roles page with the Windows Authentication option being highlighted. .
  5. On the Select features page, click Next.
  6. On the Confirm installation selections page, click Install.
  7. On the Results page, click Close.

Windows 8 or Windows 8.1

  1. On the Start screen, move the pointer all the way to the lower left corner, right-click the Start button, and then click Control Panel.
  2. In Control Panel, click Programs and Features, and then click Turn Windows features on or off.
  3. Expand Internet Information Services, expand World Wide Web Services, expand Security, and then select Windows Authentication.

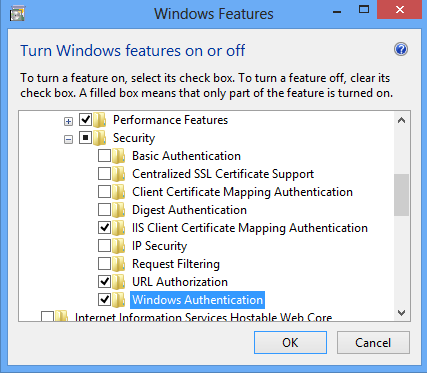

    Screenshot of the Internet Information Services folder's contained folders, with the Windows Authentication folder being highlighted.
  4. Click OK.
  5. Click Close.

Windows Server 2008 or Windows Server 2008 R2

  1. On the taskbar, click Start, point to Administrative Tools, and then click Server Manager.
  2. In the Server Manager hierarchy pane, expand Roles, and then click Web Server (IIS).
  3. In the Web Server (IIS) pane, scroll to the Role Services section, and then click Add Role Services.
  4. On the Select Role Services page of the Add Role Services Wizard, select Windows Authentication, and then click Next.
    Screenshot of the Select Role Services page with the Windows Authentication option being highlighted.
  5. On the Confirm Installation Selections page, click Install.
  6. On the Results page, click Close.

Windows Vista or Windows 7

  1. On the taskbar, click Start, and then click Control Panel.
  2. In Control Panel, click Programs and Features, and then click Turn Windows Features on or off.
  3. Expand Internet Information Services, then World Wide Web Services, then Security.
  4. Select Windows Authentication, and then click OK.

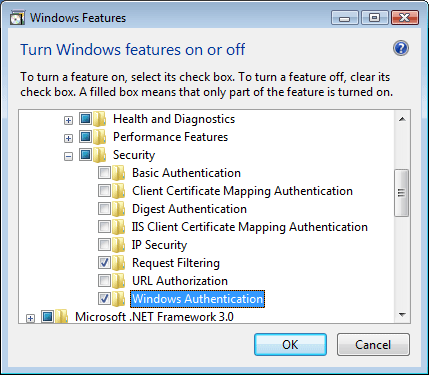

    Screenshot of the expandable Internet Information Services folder with the Windows Authentication folder being highlighted.

How To

How to enable Windows authentication for a Web site, Web application, or Web service

  1. Open Internet Information Services (IIS) Manager:

    • If you are using Windows Server 2012 or Windows Server 2012 R2:

      • On the taskbar, click Server Manager, click Tools, and then click Internet Information Services (IIS) Manager.

    • If you are using Windows 8 or Windows 8.1:

      • Hold down the Windows key, press the letter X, and then click Control Panel.
      • Click Administrative Tools, and then double-click Internet Information Services (IIS) Manager.

    • If you are using Windows Server 2008 or Windows Server 2008 R2:

      • On the taskbar, click Start, point to Administrative Tools, and then click Internet Information Services (IIS) Manager.

    • If you are using Windows Vista or Windows 7:

      • On the taskbar, click Start, and then click Control Panel.
      • Double-click Administrative Tools, and then double-click Internet Information Services (IIS) Manager.

  2. In the Connections pane, expand the server name, expand Sites, and then the site, application, or Web service for which you want to enable Windows authentication.

  3. Scroll to the Security section in the Home pane, and then double-click Authentication.

  4. In the Authentication pane, select Windows Authentication, and then click Enable in the Actions pane.

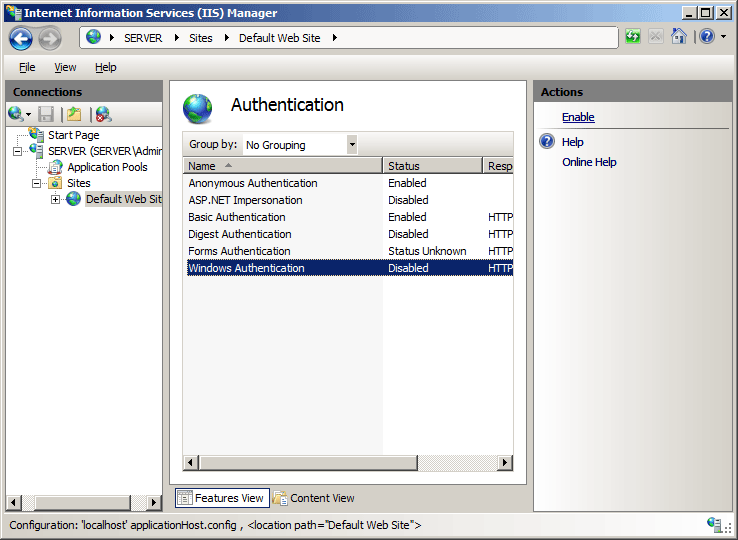

    Screenshot of the Authentication pane which contains the Name and Status fields.

How to enable Extended Protection for Windows authentication

  1. Open Internet Information Services (IIS) Manager:

    • If you are using Windows Server 2012 or Windows Server 2012 R2:

      • On the taskbar, click Server Manager, click Tools, and then click Internet Information Services (IIS) Manager.

    • If you are using Windows 8 or Windows 8.1:

      • Hold down the Windows key, press the letter X, and then click Control Panel.
      • Click Administrative Tools, and then double-click Internet Information Services (IIS) Manager.

    • If you are using Windows Server 2008 or Windows Server 2008 R2:

      • On the taskbar, click Start, point to Administrative Tools, and then click Internet Information Services (IIS) Manager.

    • If you are using Windows Vista or Windows 7:

      • On the taskbar, click Start, and then click Control Panel.
      • Double-click Administrative Tools, and then double-click Internet Information Services (IIS) Manager.

  2. In the Connections pane, expand the server name, expand Sites, and then the site, application, or Web service for which you want to enable Extended Protection for Windows authentication.

  3. Scroll to the Security section in the Home pane, and then double-click Authentication.

  4. In the Authentication pane, select Windows Authentication.

  5. Click Enable in the Actions pane.
    Screenshot of the Authentication pane and its Group by field.

  6. Click Advanced Settings in the Actions pane.

  7. When the Advanced Settings dialog box appears, select one of the following options in the Extended Protection drop-down menu:

    • Select Accept if you want to enable extended protection while providing down-level support for clients that do not support extended protection.
    • Select Required if you want to enable extended protection without providing down-level support.

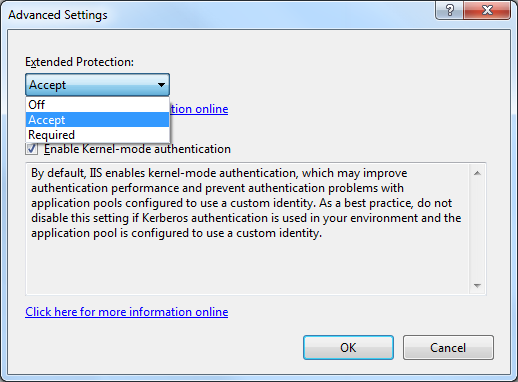

      Screenshot of the Advanced Settings dialog box with the Extended Protection field's Accept option being highlighted.

  8. Click OK to close the Advanced Settings dialog box.

Configuration

The <windowsAuthentication> element is configurable at the site, application, or virtual directory level in the ApplicationHost.config file.

Attributes

Attribute Description
authPersistNonNTLM Optional Boolean attribute.

Specifies whether IIS automatically reauthenticates every non-NTLM (for example, Kerberos) request, even those on the same connection. False enables multiple authentications for the same connections.

Note: A setting of true means that the client will be authenticated only once on the same connection. IIS will cache a token or ticket on the server for a TCP session that stays established.

The default is false.
authPersistSingleRequest Optional Boolean attribute.

Setting this flag to true specifies that authentication persists only for a single request on a connection. IIS resets the authentication at the end of each request, and forces reauthentication on the next request of the session.

The default value is false.
enabled Required Boolean attribute.

Specifies whether Windows authentication is enabled.

The default value is false.
useKernelMode Optional Boolean attribute.

Specifies whether Windows authentication is done in kernel mode. True specifies that Windows authentication uses kernel mode.

Kernel-mode authentication may improve authentication performance and prevent authentication problems with application pools that are configured to use a custom identity.

As a best practice, do not disable this setting if you use Kerberos authentication and have a custom identity on the application pool.

The default is true.

Child Elements

Element Description
extendedProtection Optional element.

Specifies extended protection options for Windows authentication.

Note: This element was added in IIS 7.5.
providers Optional element.

Specifies security support providers used for Windows authentication.

Configuration Sample

The following default <windowsAuthentication> element is configured at the root ApplicationHost.config file in IIS 7.0, and disables Windows authentication by default. It also defines the two Windows authentication providers for IIS 7.0.

<windowsAuthentication enabled="false">
   <providers>
      <add value="Negotiate" />
      <add value="NTLM" />
   </providers>
</windowsAuthentication>

The following example enables Windows authentication and disables Anonymous authentication for a Web site named Contoso.

<location path="Contoso">
   <system.webServer>
      <security>
         <authentication>
            <anonymousAuthentication enabled="false" />
            <windowsAuthentication enabled="true" />
         </authentication>
      </security>
   </system.webServer>
</location>

Sample Code

The following examples disable Anonymous authentication for a site named Contoso, then enable Windows authentication for the site.

AppCmd.exe

appcmd.exe set config "Contoso" -section:system.webServer/security/authentication/anonymousAuthentication /enabled:"False" /commit:apphost

appcmd.exe set config "Contoso" -section:system.webServer/security/authentication/windowsAuthentication /enabled:"True" /commit:apphost

Note

You must be sure to set the commit parameter to apphost when you use AppCmd.exe to configure these settings. This commits the configuration settings to the appropriate location section in the ApplicationHost.config file.

C#

using System;
using System.Text;
using Microsoft.Web.Administration;

internal static class Sample {

   private static void Main() {

      using(ServerManager serverManager = new ServerManager()) {
         Configuration config = serverManager.GetApplicationHostConfiguration();

         ConfigurationSection anonymousAuthenticationSection = config.GetSection("system.webServer/security/authentication/anonymousAuthentication", "Contoso");
         anonymousAuthenticationSection["enabled"] = false;

         ConfigurationSection windowsAuthenticationSection = config.GetSection("system.webServer/security/authentication/windowsAuthentication", "Contoso");
         windowsAuthenticationSection["enabled"] = true;

         serverManager.CommitChanges();
      }
   }
}

VB.NET

Imports System
Imports System.Text
Imports Microsoft.Web.Administration

Module Sample
   Sub Main()
      Dim serverManager As ServerManager = New ServerManager
      Dim config As Configuration = serverManager.GetApplicationHostConfiguration

      Dim anonymousAuthenticationSection As ConfigurationSection = config.GetSection("system.webServer/security/authentication/anonymousAuthentication", "Contoso")
      anonymousAuthenticationSection("enabled") = False

      Dim windowsAuthenticationSection As ConfigurationSection = config.GetSection("system.webServer/security/authentication/windowsAuthentication", "Contoso")
      windowsAuthenticationSection("enabled") = True

      serverManager.CommitChanges()
   End Sub
End Module

JavaScript

var adminManager = new ActiveXObject('Microsoft.ApplicationHost.WritableAdminManager');
adminManager.CommitPath = "MACHINE/WEBROOT/APPHOST";

var anonymousAuthenticationSection = adminManager.GetAdminSection("system.webServer/security/authentication/anonymousAuthentication", "MACHINE/WEBROOT/APPHOST/Contoso");
anonymousAuthenticationSection.Properties.Item("enabled").Value = false;

var windowsAuthenticationSection = adminManager.GetAdminSection("system.webServer/security/authentication/windowsAuthentication", "MACHINE/WEBROOT/APPHOST/Contoso");
windowsAuthenticationSection.Properties.Item("enabled").Value = true;

adminManager.CommitChanges();

VBScript

Set adminManager = CreateObject("Microsoft.ApplicationHost.WritableAdminManager")
adminManager.CommitPath = "MACHINE/WEBROOT/APPHOST"

Set anonymousAuthenticationSection = adminManager.GetAdminSection("system.webServer/security/authentication/anonymousAuthentication", "MACHINE/WEBROOT/APPHOST/Contoso")
anonymousAuthenticationSection.Properties.Item("enabled").Value = False

Set windowsAuthenticationSection = adminManager.GetAdminSection("system.webServer/security/authentication/windowsAuthentication", "MACHINE/WEBROOT/APPHOST/Contoso")
windowsAuthenticationSection.Properties.Item("enabled").Value = True

adminManager.CommitChanges()
