Creating a Windows Forms-Based Domain-Specific Language

Makale
11/15/2016

Note

This article applies to Visual Studio 2015. If you're looking for the latest Visual Studio documentation, see Visual Studio documentation. We recommend upgrading to the latest version of Visual Studio. Download it here

You can use Windows Forms to display the state of a domain-specific language (DSL) model, instead of using a DSL diagram. This topic walks you through binding a Windows Form to a DSL, using the Visual Studio Visualization and Modeling SDK.

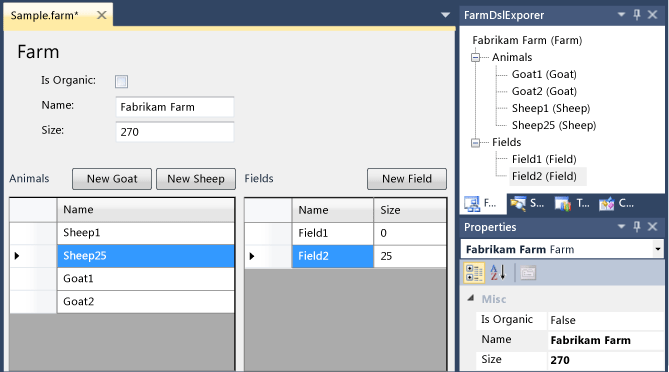

DSL-Wpf-2 A DSL instance, showing a Windows Form UI and the model explorer.

Creating a Windows Forms DSL

The Minimal WinForm Designer DSL template creates a minimal DSL that you can modify to suit your own requirements.

To create a minimal WinForms DSL

Create a DSL from the Minimal WinForm Designer template.

In this walkthrough, the following names are assumed:

Solution and DSL name FarmApp

Namespace Company.FarmApp
Experiment with the initial example that the template provides:
1. Transform All Templates.
2. Build and run the sample (CTRL+F5).
3. In the experimental instance of Visual Studio, open the Sample file in the debugging project.

  Notice that it is displayed in a Windows Forms control.

  You can also see the elements of the model displayed in the Explorer.

  Add some elements either in the form or the Explorer, and notice that they appear in the other display.
In the main instance of Visual Studio, notice the following points about the DSL solution:


Solution and DSL name	FarmApp
Namespace	Company.FarmApp

DslDefinition.dsl contains no diagram elements. This is because you will not use DSL diagrams to view instance models of this DSL. Instead, you will bind a Windows Form to the model, and the elements on the form will display the model.
In addition to the Dsl and DslPackage projects, the solution contains a third project named UI.UI project contains the definition of a Windows Forms control. DslPackage depends on UI, and UI depends on Dsl.
In the DslPackage project, UI\DocView.cs contains the code that displays the Windows Forms control that is defined in the UI project.
The UI project contains a working sample of a form control bound to the DSL. However, it will not work when you have changed the DSL Definition. The UI project contains:
- A Windows Forms class named ModelViewControl.
- A file named DataBinding.cs that contains an additional partial definition of ModelViewControl. To see its content, in Solution Explorer, open the shortcut menu for the file and choose View Code.

About the UI Project

When you update the DSL Definition file to define your own DSL, you will have to update the control in the UI project to display your DSL. Unlike the Dsl and DslPackage projects, the sample UI project is not generated from DslDefinitionl.dsl. You can add .tt files to generate the code if you want, although that is not covered in this walkthrough.

Updating the DSL Definition

The following the DSL definition is used in this walkthrough.

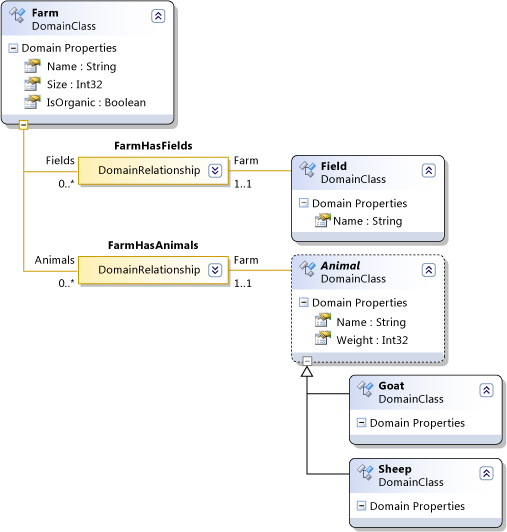

DSL-Wpf-1

To update the DSL definition

Open DslDefinition.dsl in the DSL designer.
Delete ExampleElement
Rename the ExampleModel domain class to Farm.

Give it additional domain properties named Size of type Int32, and IsOrganic of type Boolean.

Note

If you delete the root domain class and then create a new root, you will have to reset the Editor Root Class property. In DSL Explorer, select Editor. Then in the Properties window, set Root Class to Farm.
Use the Named Domain Class tool to create the following domain classes:
- Field – Give this an additional domain property named Size.
- Animal – In the Properties window, set Inheritance Modifier to Abstract.
Use the Domain Class tool to create the following classes:
- Sheep
- Goat
Use the Inheritance tool to make Goat and Sheep inherit from Animal.
Use the Embedding tool to embed Field and Animal under Farm.
You might want to tidy the diagram. To reduce the number of duplicate elements, use the Bring Subtree Here command on the shortcut menu of leaf elements.
Transform All Templates in the toolbar of Solution Explorer.
Build the Dsl project.

Note

At this stage, the other projects will not build without errors. However, we want to build the Dsl project so that its assembly is available to the Data Source Wizard.

Updating the UI Project

Now you can create a new user control that will display the information that is stored in the DSL model. The easiest way to connect the user control to the model is through data bindings. The data binding adaptor type named ModelingBindingSource is specifically designed to connect DSLs to non-VMSDK interfaces.

To define your DSL model as a data source

On the Data menu, choose Show Data Sources.

The Data Sources window opens.

Choose Add New Data Source. The Data Source Configuration Wizard opens.
Choose Object, Next.

Expand Dsl, Company.FarmApp, and select Farm, which is the root class of your model. Choose Finish.

In Solution Explorer, the UI project now contains Properties\DataSources\Farm.datasource

The properties and relationships of your model class appear in the Data Sources window.

To connect your model to a form

In the UI project, delete all the existing .cs files.
Add a new User Control file named FarmControl to the UI project.
In the Data Sources window, on the drop-down menu on Farm, choose Details.

Leave the default settings for the other properties.
Open FarmControl.cs in the design view.

Drag Farm from the Data Sources window onto FarmControl.

A set of controls appears, one for each property. The relationship properties do not generate controls.
Delete farmBindingNavigator. This is also automatically generated in the FarmControl designer, but it is not useful for this application.
Using the toolbox, create two instances of DataGridView, and name them AnimalGridView and FieldGridView.

Note

An alternative step is to drag the Animals and Fields items from the Data Sources window onto the control. This action automatically creates data grids and bindings between the grid view and the data source. However, this binding does not work correctly for DSLs. Therefore it is better to create the data grids and bindings manually.
If the Toolbox does not contain the ModelingBindingSource tool, add it. On the shortcut menu of the Data tab, choose Choose Items. In the Choose Toolbox Items dialog, select ModelingBindingSource from the .NET Framework Tab.
Using the Toolbox, create two instances of ModelingBindingSource, and name them AnimalBinding and FieldBinding.
Set the DataSource property of each ModelingBindingSource to farmBindingSource.

Set the DataMember property to Animals or Fields.
Set the DataSource properties of AnimalGridView to AnimalBinding, and of FieldGridView to FieldBinding.
Adjust the layout of the Farm control to your taste.

The ModelingBindingSource is an adapter that performs several functions that are specific to DSLs:

It wraps updates in a VMSDK Store Transaction.

For example, when the user deletes a row from the data view grid, a regular binding would result in a transaction exception.
It ensures that, when the user selects a row, the Properties window displays the properties of the corresponding model element, instead of the data grid row.

Schema of links between data sources and views.

To complete the bindings to the DSL

Add the following code in a separate code file in the UI project:

using System.ComponentModel;
using Microsoft.VisualStudio.Modeling;
using Microsoft.VisualStudio.Modeling.Design;

namespace Company.FarmApp
{
  partial class FarmControl
  {
    public IContainer Components { get { return components; } }

    /// <summary>Binds the WinForms data source to the DSL model.
    /// </summary>
    /// <param name="nodelRoot">The root element of the model.</param>
    public void DataBind(ModelElement modelRoot)
    {
      WinFormsDataBindingHelper.PreInitializeDataSources(this);
      this.farmBindingSource.DataSource = modelRoot;
      WinFormsDataBindingHelper.InitializeDataSources(this);
    }
  }
}

In the DslPackage project, edit DslPackage\DocView.tt to update the following variable definition:
```
string viewControlTypeName = "FarmControl";
```

Testing the DSL

The DSL solution can now build and run, although you might want to add further improvements later.

To test the DSL

Build and run the solution.
In the experimental instance of Visual Studio, open the Sample file.
In the FarmApp Explorer, open the shortcut menu on the Farm root node, and choose Add New Goat.

Goat1 appears in the Animals view.

Warning

You must use the shortcut menu on the Farm node, not the Animals node.
Select the Farm root node and view its properties.

In the form view, change the Name or Size of the farm.

When you navigate away from each field in the form, the corresponding property changes in the Properties window.

Enhancing the DSL

To make the properties update immediately

In the design view of FarmControl.cs, select a simple field such as Name, Size or IsOrganic.
In the Properties window, expand DataBindings and open (Advanced).

In the Formatting and Advanced Binding dialog, under Data Source Update Mode, choose OnPropertyChanged.
Build and run the solution.

Verify that when you change the content of the field, the corresponding property of the Farm model changes immediately.

To provide Add buttons

In the design view of FarmControl.cs, use the toolbox to create a button on the form.

Edit the name and text of the button, for example to New Sheep.

Open the code behind the button (for example by double-clicking it).

Edit it as follows:

private void NewSheepButton_Click(object sender, EventArgs e)
{
  using (Transaction t = farm.Store.TransactionManager.BeginTransaction("Add sheep"))
  {
    elementOperations.MergeElementGroup(farm,
      new ElementGroup(new Sheep(farm.Partition)));
    t.Commit();
  }
}

// The following code is shared with other add buttons:
private ElementOperations operationsCache = null;
private ElementOperations elementOperations
{
  get
  {
    if (operationsCache == null)
    {
      operationsCache = new ElementOperations(farm.Store, farm.Partition);
    }
    return operationsCache;
  }
}
private Farm farm
{
  get { return this.farmBindingSource.DataSource as Farm; }
}

You will also need to insert the following directive:


using Microsoft.VisualStudio.Modeling;

Add similar buttons for Goats and Fields.
Build and run the solution.
Verify that the new button adds an item. The new item should appear in both the FarmApp Explorer and in the appropriate data grid view.

You should be able to edit the name of the element in the data grid view. You can also delete it from there.

About the code to add an element

For the new element buttons, the following alternative code is slightly simpler.

private void NewSheepButton_Click(object sender, EventArgs e)
{
  using (Transaction t = farm.Store.TransactionManager.BeginTransaction("Add sheep"))
  {
    farm.Animals.Add(new Sheep(farm.Partition)); ;
    t.Commit();
  }
}

However, this code does not set a default name for the new item. It does not run any customized merge that you might have defined in the Element Merge Directives of the DSL, and it does not run any custom merge code that might have been defined.

Therefore we recommend that you use ElementOperations to create new elements. For more information, see Customizing Element Creation and Movement.
