Secure Shell (SSH)

Makale
03/31/2023

Secure Shell (SSH) allows you to remotely administer and configure your Windows IoT Core device

Using the Windows 10 OpenSSH client

Important

The Windows OpenSSH client requires that your SSH client host OS is Windows 10 version 1803(17134). Also, the Windows 10 IoT Core device must be running RS5 Windows Insider Preview release 17723 or greater.

The OpenSSH Client was added to Windows 10 in 1803 (build 17134) as an optional feature. To install the client, you can search for Manage Optional Features in Windows 10 settings. If the OpenSSH Client is not listed in the list of installed features, then choose Add a feature.

Add a feature

Next select OpenSSH Client in the list and click Install.

OpenSSH Client Install

To login with a username and password use the following command:

ssh administrator@host

Where host is either the IP address of the Windows IoT Core device or the device name.

The first time you connect you see a message like the following:

The authenticity of host 'hostname (192.168.0.12)' can't be established.
ECDSA key fingerprint is SHA256:RahZpBFpecRiPmw8NGSa+7VKs8mgqQi/j2i1Qr9lUNU.
Are you sure you want to continue connecting (yes/no)?

Type yes and press enter.

If you need to login as DefaultAccount rather than as administrator, you will need to generate a key and use the key to login. From the desktop that you intend to connect to your IoT Device from, open a PowerShell window and change to your personal data folder (e.g cd ~)

cd ~
ssh-keygen -t rsa -f id_rsa

Register the key with ssh-agent (optional, for single sign-on experience). Note that ssh-add must be performed from a folder that is ACL'd to you as the signed-in user (Builtin\Administrators and the NT_AUTHORITY\System user are also ok). By default cd ~ from PowerShell should be sufficient as shown below.

cd ~
net start ssh-agent
ssh-add id_rsa

Tip

If you receive a message that the ssh-agent service is disabled you can enable it with sc.exe config ssh-agent start=auto

To enable single sign, append the public key to the Windows IoT Core device authorized_keys file. Or if you only have one key you copy the public key file to the remote authorized_keys file.

net use X: \\host\c$ /user:host\administrator
if not exist x:\data\users\defaultaccount\.ssh md x:\data\users\defaultaccount\.ssh
copy .\id_rsa.pub x:\data\users\defaultaccount\.ssh\authorized_keys

If the key is not registered with ssh-agent, it must be specified on the command line to login:

ssh -i .\id_rsa DefaultAccount@host

If the private key is registered with ssh-agent, then you only need to specify DefaultAccount@host:

ssh DefaultAccount@host

The first time you connect you see a message like the following:

The authenticity of host 'hostname (192.168.0.12)' can't be established.
ECDSA key fingerprint is SHA256:RahZpBFpecRiPmw8NGSa+7VKs8mgqQi/j2i1Qr9lUNU.
Are you sure you want to continue connecting (yes/no)?

Type yes and press enter.

You should now be connected as DefaultAccount

To use single sign-on with the administrator account, append your public key to c:\data\ProgramData\ssh\administrators_authorized_keys on the Windows IoT Core device.

net use X: \\host\c$ /user:host\administrator
copy .\id_rsa.pub x:\data\ProgramData\ssh\administrators_authorized_keys
icacls x:\data\ProgramData\ssh\administrators_authorized_keys /remove "NT AUTHORITY\Authenticated Users"
icaclsx:\data\ProgramData\ssh\administrators_authorized_keys /inheritance:r

You will also need to set the ACL for administrators_authorized_keys to match the ACL of ssh_host_dsa_key in the same directory.

icacls x:\data\ProgramData\ssh\administrators_authorized_keys /remove "NT AUTHORITY\Authenticated Users"
icacls x:\data\ProgramData\ssh\administrators_authorized_keys /inheritance:r

To set the ACL using PowerShell

get-acl x:\data\ProgramData\ssh\ssh_host_dsa_key | set-acl x:\data\ProgramData\ssh\administrators_authorized_keys

Note

If you see a REMOTE HOST IDENTIFICATION CHANGED message after making changes to the Windows 10 IoT Core device, then edit C:\Users<username>.ssh\known_hosts and remove the host that has changed.

Using PuTTY

Download an SSH client

In order to connect to your device using SSH, you'll first need to download an SSH client, such as PuTTY.

Connect to your device

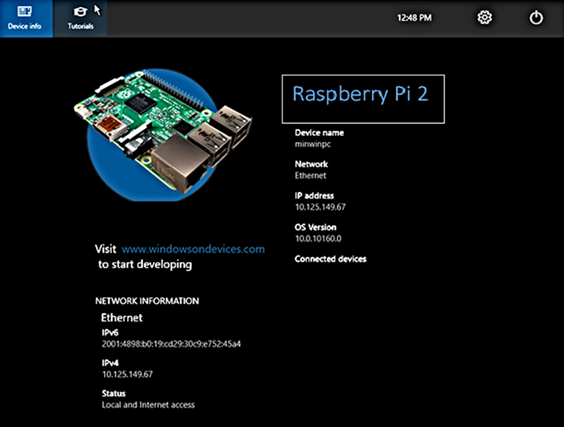

In order to connect to your device, you need to first get the IP address of the device. After booting your Windows IoT Core device, an IP address will be shown on the screen attached to the device:

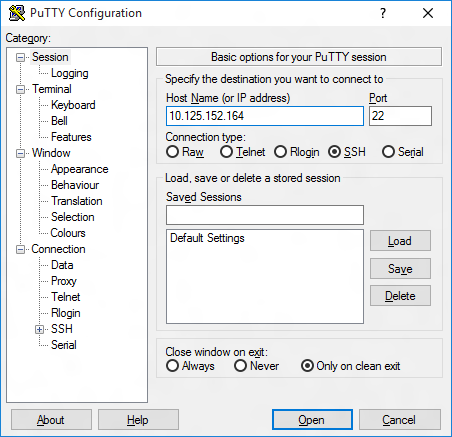

Now launch PuTTY and enter the IP address in the Host Name text box and make sure the SSH radio button is selected. Then click Open.

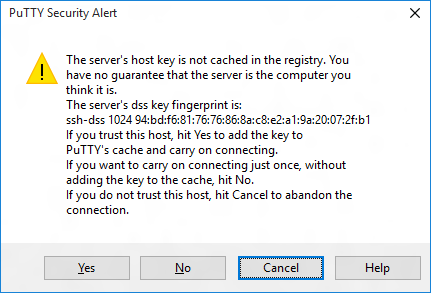

If you're connecting to your device for the first time from your computer, you may see the following security alert. Just click Yes to continue.

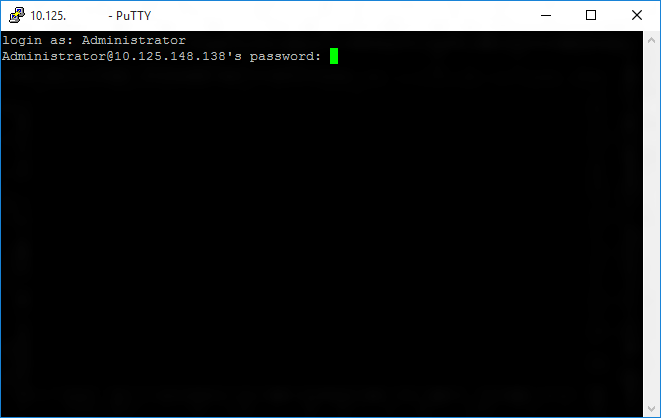

If the connection was successful, you should see login as: on the screen, prompting you to login.
Enter Administrator and press enter. Then enter the default password p@ssw0rd as the password and press enter.

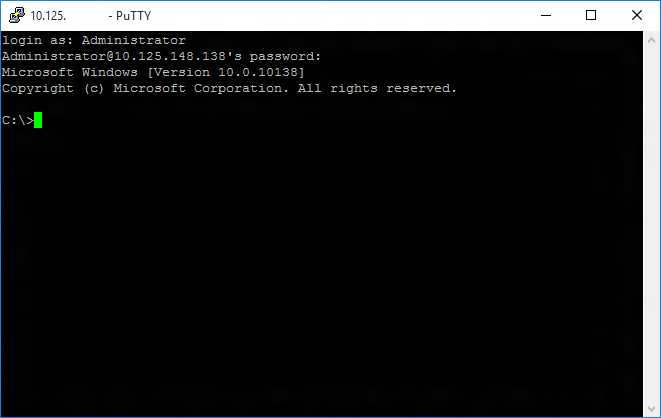

If you were able to login successfully, you should see something like this:

Update account password

It is highly recommended that you update the default password for the Administrator account.

To do this, enter the following command in the PuTTY console, replacing [new password] with a strong password:

    net user Administrator [new password]

Configure your Windows IoT Core device

To be able to deploy applications from Visual Studio 2017, you will need to make sure the Visual Studio Remote Debugger is running on your Windows IoT Core device. The remote debugger should launch automatically at machine boot time. To double check, use the tlist command to list all the running processes from PowerShell. There should be two instances of msvsmon.exe running on the device.
It is possible for the Visual Studio Remote Debugger to time out after long periods of inactivity. If Visual Studio cannot connect to your Windows IoT Core device, try rebooting the device.
If you want, you can also rename your device. To change the 'computer name', use the setcomputername utility:

        setcomputername <new-name>

You will need to reboot the device for the change to take effect. You can use the shutdown command as follows:

        shutdown /r /t 0

Commonly used utilities

See the Command Line Utils page for a list of commands and utilities you can use with SSH.
