Amazon RDS Multicloud Scanning Connector for Microsoft Purview (Public preview)

The Multicloud Scanning Connector for Microsoft Purview allows you to explore your organizational data across cloud providers, including Amazon Web Services, in addition to Azure storage services.

Important

This feature is currently in preview. The Supplemental Terms of Use for Microsoft Azure Previews include additional legal terms that apply to Azure features that are in beta, in preview, or otherwise not yet released into general availability.

This article describes how to use Microsoft Purview to scan your structured data currently stored in Amazon RDS, including both Microsoft SQL and PostgreSQL databases, and discover what types of sensitive information exist in your data. You'll also learn how to identify the Amazon RDS databases where the data is currently stored for easy information protection and data compliance.

Important

The Multicloud Scanning Connectors for Microsoft Purview are separate add-ons to Microsoft Purview. The terms and conditions for the Multicloud Scanning Connectors for Microsoft Purview are contained in the agreement under which you obtained Microsoft Azure Services. For more information, see Microsoft Azure Legal Information at https://azure.microsoft.com/support/legal/.

Microsoft Purview scope for Amazon RDS

  • Supported database engines: Amazon RDS structured data storage supports multiple database engines. Microsoft Purview supports Amazon RDS with/based on Microsoft SQL and PostgreSQL.

  • Supported regions: For private databases that use Kubernetes supported self-hosted integration runtime, there's no region limitation for Amazon RDS databases.

For public databases that use Amazon AutoResolveIntegrationRuntime, Microsoft Purview only supports Amazon RDS databases that are located in the following AWS regions:

  • US East (Ohio)
  • US East (N. Virginia)
  • US West (N. California)
  • US West (Oregon)
  • Canada (Central)
  • Africa (Cape Town)
  • Asia Pacific (Hong Kong Special Administrative Region)
  • Asia Pacific (Mumbai)
  • Asia Pacific (Osaka-Local)
  • Asia Pacific (Seoul)
  • Asia Pacific (Tokyo)
  • Asia Pacific (Singapore)
  • Asia Pacific (Sydney)
  • Europe (Frankfurt)
  • Europe (Ireland)
  • Europe (London)
  • Europe (Paris)
  • Europe (Milan)
  • Europe (Stockholm)
  • Middle East (Bahrain)
  • South America (São Paulo)

Known issues: The following functionality isn't currently supported:

  • The Test connection button. The scan status messages will indicate any errors related to connection setup.
  • Selecting specific tables in your database to scan.
  • Data lineage.

For more information, see:

Prerequisites

Ensure that you've performed the following prerequisites before adding your Amazon RDS database as Microsoft Purview data sources and scanning your RDS data.

Register an Amazon RDS data source

To add your Amazon RDS server as a Microsoft Purview data source:

  1. In Microsoft Purview, navigate to the Data Map page, and select Register Register icon..

  2. On the Sources page, select Register. On the Register sources page that appears on the right, select the Database tab, and then select Amazon RDS (PostgreSQL) or Amazon RDS (SQL).

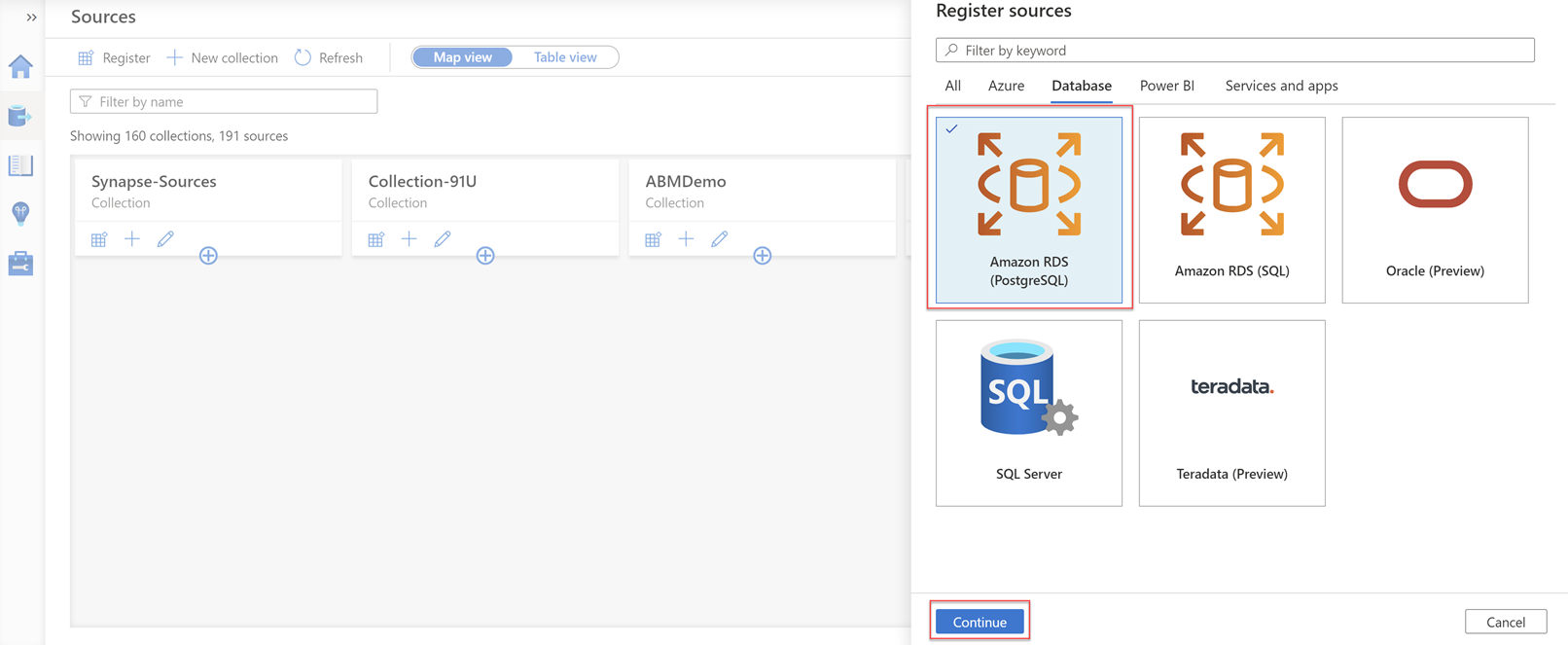

    Screenshot of the Register sources page to select Amazon RDS (PostgreSQL).

  3. Enter the details for your source:

    Field Description
    Name Enter a meaningful name for your source, such as AmazonPostgreSql-Ups
    Server name Enter the name of your RDS database in the following syntax: <instance identifier>.<xxxxxxxxxxxx>.<region>.rds.amazonaws.com

    We recommend that you copy this URL from the Amazon RDS portal, and make sure that the URL includes the AWS region.
    Port Enter the port used to connect to the RDS database:

    - PostgreSQL: 5432
    - Microsoft SQL: 1433

    Collection (optional) Select a collection to add your data source to. For more information, see Manage data sources in Microsoft Purview (Preview).
  4. Select Register when you’re ready to continue.

Note

You cannot register a data source with a name that already exists for a given server name. You must use a different name for the data source.

Your RDS data source appears in the Sources map or list. For example:

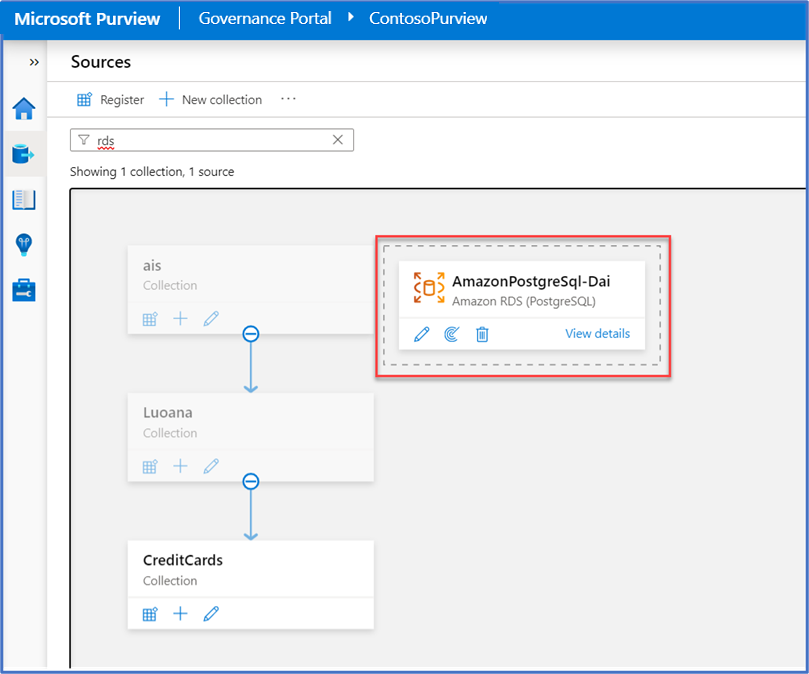

Screenshot of an Amazon RDS data source on the Sources page.

Create Microsoft Purview credentials for your RDS scan

Credentials supported for Amazon RDS data sources include username/password authentication only, with a password stored in an Azure KeyVault secret.

Create a secret for your RDS credentials to use in Microsoft Purview

  1. Add your password to an Azure KeyVault as a secret. For more information, see Set and retrieve a secret from Key Vault using Azure portal.

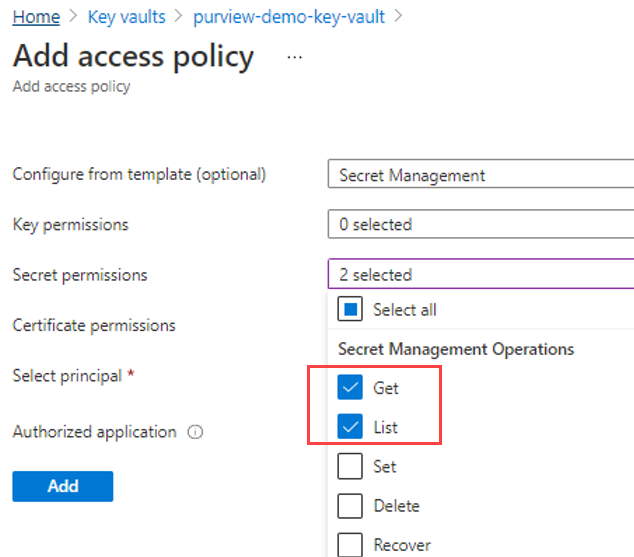

  2. Add an access policy to your KeyVault with Get and List permissions. For example:

    Screenshot of an access policy for RDS in Microsoft Purview.

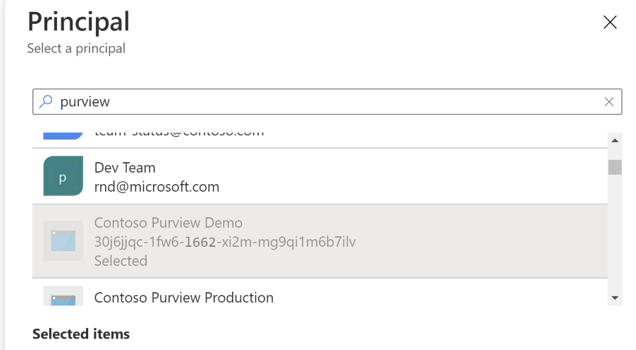

    When defining the principal for the policy, select your Microsoft Purview account. For example:

    Screenshot of selecting your Microsoft Purview account as Principal.

    Select Save to save your Access Policy update. For more information, see Assign an Azure Key Vault access policy.

  3. In Microsoft Purview, add a KeyVault connection to connect the KeyVault with your RDS secret to Microsoft Purview. For more information, see Credentials for source authentication in Microsoft Purview.

Create your Microsoft Purview credential object for RDS

In Microsoft Purview, create a credentials object to use when scanning your Amazon RDS account.

  1. In the Microsoft Purview Management area, select Security and access > Credentials > New.

  2. Select SQL authentication as the authentication method. Then, enter details for the Key Vault where your RDS credentials are stored, including the names of your Key Vault and secret.

    For example:

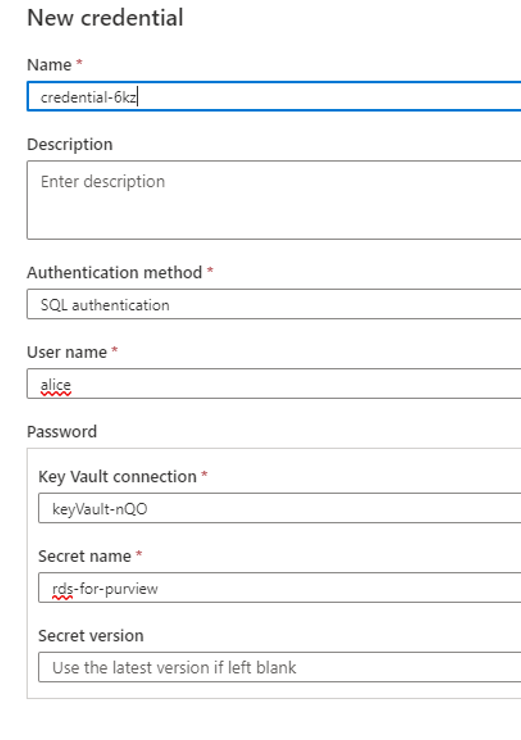

    Screenshot of a new credential for RDS.

For more information, see Credentials for source authentication in Microsoft Purview.

Scan an Amazon RDS database

To configure a Microsoft Purview scan for your RDS database:

  1. From the Microsoft Purview Sources page, select the Amazon RDS data source to scan.

  2. Select New scan to start defining your scan. In the pane that opens on the right, enter the following details, and then select Continue.

    • Name: Enter a meaningful name for your scan.
    • Connect with integration runtime: Choose an integration runtime based on your database type.
      • Amazon AutoResolveIntegrationRuntime: Select for a public database.
      • Self-Hosted Integration Runtime: Create new Kubernetes-based SHIR and use for a private database.
    • Database name: Enter the name of the database you want to scan. You’ll need to find the names available from outside Microsoft Purview, and create a separate scan for each database in the registered RDS server.
    • Credential: Select the credential you created earlier for the Multicloud Scanning Connectors for Microsoft Purview to access the RDS database.
  3. On the Select a scan rule set pane, select the scan rule set you want to use, or create a new one. For more information, see Create a scan rule set.

  4. On the Set a scan trigger pane, select whether you want to run the scan once, or at a recurring time, and then select Continue.

  5. On the Review your scan pane, review the details and then select Save and Run, or Save to run it later.

While you run your scan, select Refresh to monitor the scan progress.

Note

When working with Amazon RDS PostgreSQL databases, only full scans are supported. Incremental scans are not supported as PostgreSQL does not have a Last Modified Time value. 

Explore scanning results

After a Microsoft Purview scan is complete on your Amazon RDS databases, drill down in the Microsoft Purview Data Map area to view the scan history. Select a data source to view its details, and then select the Scans tab to view any currently running or completed scans.

Use the other areas of Microsoft Purview to find out details about the content in your data estate, including your Amazon RDS databases:

RDS errors

The following errors may appear in Microsoft Purview:

  • Unknown database. In this case, the database defined doesn't exist. Check to see that the configured database name is correct

  • Failed to login to the Sql data source. The given auth credential does not have permission on the target database. In this case, your username and password is incorrect. Check your credentials and update them as needed.

Legacy AWS RDS Scan Configuration

Note

The method described below will be deprecated soon and should only be used for reference. We strongly recommend using the new AWS RDS Scan configuration method.

Previously, configuring Microsoft Purview to connect to your RDS VPC involved setting up a direct connection using a VPN or other network configuration methods. This approach required following steps for setup of network peering, security groups, and routing configurations.

  1. Set Up VPN or Direct Connect: Establish a secure connection between your AWS VPC and the Microsoft Purview scanning infrastructure.
  2. Configure Network Peering: Create VPC peering connections between your VPC and the VPC used by Microsoft Purview.
  3. Security Group Adjustments: Modify security groups to allow traffic from Microsoft Purview IP ranges to your RDS instances.
  4. Route Table Updates: Update route tables to ensure proper routing of traffic between the VPCs.

By transitioning to the new AWS Kubernetes-based Integration Runtime configuration, you can achieve a more secure, reliable, and simpler connection setup, ensuring better integration with Microsoft Purview.
