Working with Hyper-V and Windows PowerShell

Makale
08/12/2024

Now that you have walked through the basics of deploying Hyper-V, creating virtual machines and managing these virtual machines, let’s explore how you can automate many of these activities with PowerShell.

Return a list of Hyper-V commands

Select the Windows start button, and then type PowerShell.
Run the following command to display a searchable list of PowerShell commands available with the Hyper-V PowerShell Module.

Get-Command -Module hyper-v | Out-GridView

You get something like this:

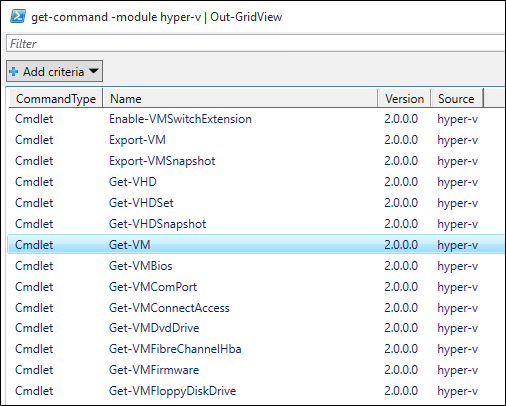

Screenshot of the Out Grid View showing the Command Type, Name, Version, and Source fields.

To learn more about a particular PowerShell command use Get-Help. For instance, running the following command returns information about the Get-VM Hyper-V command.
```
Get-Help Get-VM
```
The output shows you how to structure the command, what the required and optional parameters are, and the aliases that you can use.

Return a list of virtual machines

Use the Get-VM command to return a list of virtual machines.

In PowerShell, run the following command:
```
Get-VM
```
This displays something like this:
To return a list of only powered on virtual machines add a filter to the Get-VM command. A filter can be added by using the Where-Object command. For more information on filtering, see Using the Where-Object documentation.
```
Get-VM | where {$_.State -eq 'Running'}
```
To list all virtual machines in a powered off state, run the following command. This command is a copy of the command from step 2 with the filter changed from 'Running' to 'Off'.
```
Get-VM | where {$_.State -eq 'Off'}
```

Start and shut down virtual machines

To start a particular virtual machine, run the following command with name of the virtual machine:
```
Start-VM -Name <virtual machine name>
```
To start all currently powered off virtual machines, get a list of those machines and pipe the list to the Start-VM command:
```
Get-VM | where {$_.State -eq 'Off'} | Start-VM
```
To shut down all running virtual machines, run the following command:

Get-VM | where {$_.State -eq 'Running'} | Stop-VM

Create a virtual machine checkpoint

To create a checkpoint using PowerShell, select the virtual machine using the Get-VM command and pipe this to the Checkpoint-VM command. Finally give the checkpoint a name using -SnapshotName. The complete command looks like the following:

Get-VM -Name <VM Name> | Checkpoint-VM -SnapshotName <name for snapshot>

Create a new virtual machine

The following example shows how to create a new virtual machine in the PowerShell Integrated Scripting Environment (ISE). This is a simple example and could be expanded on to include additional PowerShell features and more advanced VM deployments.

To open the PowerShell ISE click on start, type PowerShell ISE.

Run the following code to create a virtual machine. See the New-VM documentation for detailed information on the New-VM command.

 $VMName = "VMNAME"

 $VM = @{
     Name = $VMName
     MemoryStartupBytes = 2147483648
     Generation = 2
     NewVHDPath = "C:\Virtual Machines\$VMName\$VMName.vhdx"
     NewVHDSizeBytes = 53687091200
     BootDevice = "VHD"
     Path = "C:\Virtual Machines\$VMName"
     SwitchName = (Get-VMSwitch).Name
 }

 New-VM @VM

Wrap up and References

This document has shown some simple steps to explore the Hyper-V PowerShell module as well as some sample scenarios. For more information on the Hyper-V PowerShell module, see the Hyper-V Cmdlets in Windows PowerShell reference.
