Compositor Transition

[The feature associated with this page, DirectShow, is a legacy feature. It has been superseded by MediaPlayer, IMFMediaEngine, and Audio/Video Capture in Media Foundation. Those features have been optimized for Windows 10 and Windows 11. Microsoft strongly recommends that new code use MediaPlayer, IMFMediaEngine and Audio/Video Capture in Media Foundation instead of DirectShow, when possible. Microsoft suggests that existing code that uses the legacy APIs be rewritten to use the new APIs if possible.]

Note

[Deprecated. This API may be removed from future releases of Windows.]



The Compositor transition composites a subrectangle from the foreground into a designated rectangle on the background, without altering the rest of the background. Use this transition to create split-screen or picture-in-picture effects.

The following image shows the compositor transition:

Class ID (CLSID): {BB44391D-6ABD-422f-9E2E-385C9DFF51FC}

CLSID Variable Name: CLSID_DxtCompositor

Friendly Name: "DxtCompositor"

Properties

Property	Type	Default	Description
Height	long	0	Height of the target rectangle, in pixels.
OffsetX	long	0	Horizontal offset of the target rectangle, in pixels.
OffsetY	long	0	Vertical offset of the target rectangle, in pixels.
SrcHeight	long	0	The height of the subrectangle on the source, in pixels.
SrcOffsetX	long	0	The x-coordinate of the subrectangle on the source, in pixels.
SrcOffsetY	long	0	The y-coordinate of the subrectangle on the source, in pixels.
SrcWidth	long	0	The width of the subrectangle on the source, in pixels.
Width	long	0	Width of the target rectangle, in pixels.

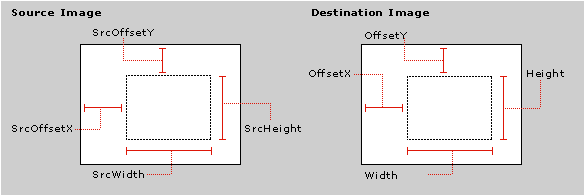

The following diagram illustrates these properties:
