Read values from an analog-to-digital converter

An analog-to-digital converter (ADC) is a device that can read an analog input voltage value and convert it into a digital value. ADCs are used for reading values from thermistors, potentiometers, and other devices that change resistance based on certain conditions.

In this topic, you will use .NET to read values from an ADC as you modulate the input voltage with a potentiometer.

Prerequisites

  • ARM-based (ARMv7 or greater) single-board computer (SBC)
  • MCP3008 analog-to-digital converter
  • Three-pin potentiometer
  • Breadboard
  • Jumper wires
  • Raspberry Pi GPIO breakout board (optional/recommended)
  • .NET SDK 8 or later

Note

This tutorial is written assuming the target device is Raspberry Pi. However, this tutorial can be used for any Linux-based SBC that supports .NET, such as Orange Pi, ODROID, and more.

Prepare the SBC

Ensure your SBC is configured to support the following services:

  • SSH
  • SPI

For many devices, no additional configuration is required. For Raspberry Pi, use the raspi-config command. For more information on raspi-config, refer to the Raspberry Pi documentation.

Prepare the hardware

Use the hardware components to build the circuit as depicted in the following diagram:

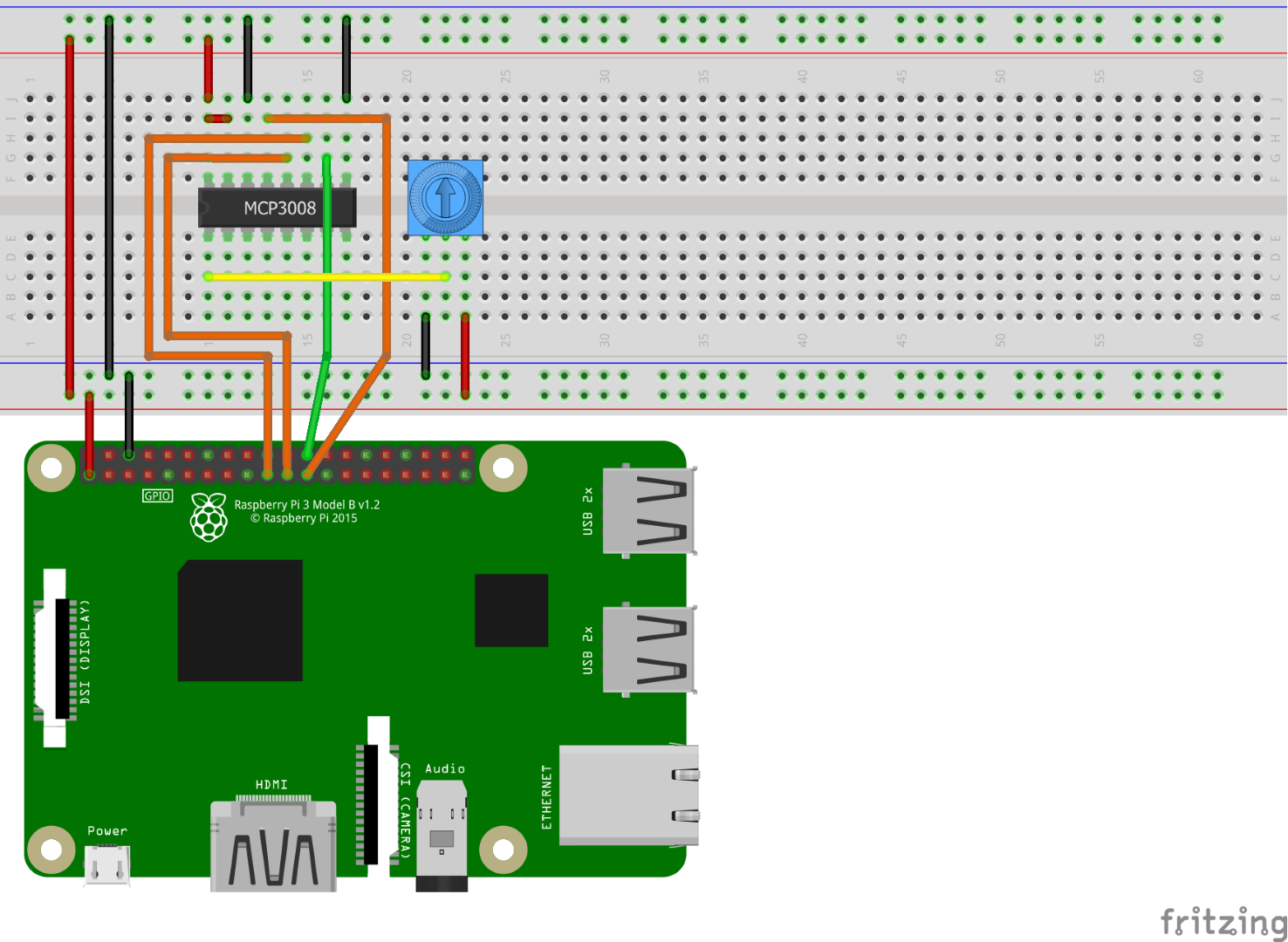

A Fritzing diagram showing a circuit with an MCP3008 ADC and a potentiometer

The MCP3008 uses Serial Peripheral Interface (SPI) to communicate. The following are the connections from the MCP3008 to the Raspberry Pi and potentiometer:

  • VDD to 3.3V (shown in red)
  • VREF to 3.3V (red)
  • AGND to ground (black)
  • CLK to SCLK (orange)
  • DOUT to MISO (orange)
  • DIN to MOSI (orange)
  • CS/SHDN to CE0 (green)
  • DGND to ground (black)
  • CH0 to variable (middle) pin on potentiometer (yellow)

Supply 3.3V and ground to the outer pins on the potentiometer. Order is unimportant.

Refer to the following pinout diagrams as needed:

MCP3008 Raspberry Pi GPIO

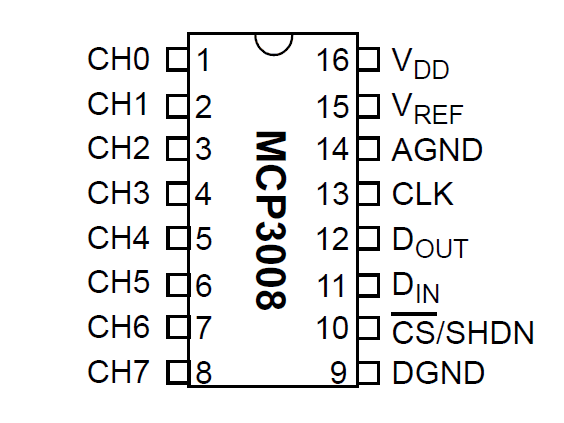

A diagram showing the pinout of the MCP3008 A diagram showing the pinout of the Raspberry Pi GPIO header. Image courtesy Raspberry Pi Foundation.
Image courtesy Raspberry Pi Foundation.

Tip

A GPIO breakout board in conjunction with a breadboard is recommended to streamline connections to the GPIO header.

Create the app

Complete the following steps in your preferred development environment:

  1. Create a new .NET Console App using either the .NET CLI or Visual Studio. Name it AdcTutorial.

    dotnet new console -o AdcTutorial
    cd AdcTutorial

  2. Add the Iot.Device.Bindings package to the project. Use either .NET CLI from the project directory or Visual Studio.

    dotnet add package Iot.Device.Bindings --version 3.2.0-*

  3. Replace the contents of Program.cs with the following code:

    using System;
    using System.Device.Spi;
    using System.Threading;
    using Iot.Device.Adc;

    var hardwareSpiSettings = new SpiConnectionSettings(0, 0);

    using SpiDevice spi = SpiDevice.Create(hardwareSpiSettings);
    using var mcp = new Mcp3008(spi);
    while (true)
    {
        Console.Clear();
        double value = mcp.Read(0);
        Console.WriteLine($"{value}");
        Console.WriteLine($"{Math.Round(value/10.23, 1)}%");
        Thread.Sleep(500);
    }


    In the preceding code:

    • hardwareSpiSettings is set to a new instance of SpiConnectionSettings. The constructor sets the busId parameter to 0 and the chipSelectLine parameter to 0.
    • A using declaration creates an instance of SpiDevice by calling SpiDevice.Create and passing in hardwareSpiSettings. This SpiDevice represents the SPI bus. The using declaration ensures the object is disposed and hardware resources are released properly.
    • Another using declaration creates an instance of Mcp3008 and passes the SpiDevice into the constructor.
    • A while loop runs indefinitely. Each iteration:
      1. Clears the console.
      2. Reads the value of CH0 on the ADC by calling mcp.Read(0).
      3. Writes the raw value to the console.
      4. Writes the value to the console formatted as a percentage.
        • To calculate the percentage, the value is divided by 10.23. The MCP3008 is a 10-bit ADC, which means it returns 1024 possible values ranging 0-1023. Dividing the value by 10.23 represents the value as a percentage.
        • The percentage is rounded to the nearest 0.1.
      5. Sleeps 500 ms.
  4. Build the app. If using the .NET CLI, run dotnet build. To build in Visual Studio, press Ctrl+Shift+B.

  5. Deploy the app to the SBC as a self-contained app. For instructions, see Deploy .NET apps to Raspberry Pi. Make sure to give the executable execute permission using chmod +x.

  6. Run the app on the Raspberry Pi by switching to the deployment directory and running the executable.

    ./AdcTutorial


    Observe the output as you rotate the potentiometer dial. This is due to the potentiometer varying the voltage supplied to CH0 on the ADC. The ADC compares the input voltage on CH0 to the reference voltage supplied to VREF to generate a value.

  7. Terminate the program by pressing Ctrl+C.

Congratulations! You've used SPI to read values from an analog-to-digital converter.

Get the source code

The source for this tutorial is available on GitHub.
