Tutorial: Microsoft Entra single sign-on (SSO) integration with CheckProof

In this tutorial, you'll learn how to integrate CheckProof with Microsoft Entra ID. When you integrate CheckProof with Microsoft Entra ID, you can:

• Control in Microsoft Entra ID who has access to CheckProof.
• Enable your users to be automatically signed-in to CheckProof with their Microsoft Entra accounts.
• Manage your accounts in one central location.

Prerequisites

To get started, you need the following items:

• A Microsoft Entra subscription. If you don't have a subscription, you can get a free account.
• CheckProof single sign-on (SSO) enabled subscription.

Scenario description

In this tutorial, you configure and test Microsoft Entra SSO in a test environment.

• CheckProof supports IDP initiated SSO.
• CheckProof supports Automated user provisioning.

Add CheckProof from the gallery

To configure the integration of CheckProof into Microsoft Entra ID, you need to add CheckProof from the gallery to your list of managed SaaS apps.

1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
2. Browse to Identity > Applications > Enterprise applications > New application.
3. In the Add from the gallery section, type CheckProof in the search box.
4. Select CheckProof from results panel and then add the app. Wait a few seconds while the app is added to your tenant.

Alternatively, you can also use the Enterprise App Configuration Wizard. In this wizard, you can add an application to your tenant, add users/groups to the app, assign roles, as well as walk through the SSO configuration as well. Learn more about Microsoft 365 wizards.

Configure and test Microsoft Entra SSO for CheckProof

Configure and test Microsoft Entra SSO with CheckProof using a test user called B.Simon. For SSO to work, you need to establish a link relationship between a Microsoft Entra user and the related user in CheckProof.

To configure and test Microsoft Entra SSO with CheckProof, perform the following steps:

1. Configure Microsoft Entra SSO - to enable your users to use this feature.
   1. Create a Microsoft Entra test user - to test Microsoft Entra single sign-on with B.Simon.
   2. Assign the Microsoft Entra test user - to enable B.Simon to use Microsoft Entra single sign-on.
2. Configure CheckProof SSO - to configure the single sign-on settings on application side.
   1. Create CheckProof test user - to have a counterpart of B.Simon in CheckProof that is linked to the Microsoft Entra representation of user.
3. Test SSO - to verify whether the configuration works.

Configure Microsoft Entra SSO

Follow these steps to enable Microsoft Entra SSO.

1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.

2. Browse to Identity > Applications > Enterprise applications > CheckProof > Single sign-on.

3. On the Select a single sign-on method page, select SAML.

4. On the Set up single sign-on with SAML page, click the pencil icon for Basic SAML Configuration to edit the settings.



5. On the Set up single sign-on with SAML page, perform the following steps:

   a. In the Identifier text box, type a URL using the following pattern: https://api.checkproof.com/api/v1/saml/<ID>/metadata

   b. In the Reply URL text box, type a URL using the following pattern: https://api.checkproof.com/api/v1/saml/<ID>/acs

   Note

   These values are not real. Update these values with the actual Identifier and Reply URL. Contact CheckProof Client support team to get these values. You can also refer to the patterns shown in the Basic SAML Configuration section.

6. On the Set up single sign-on with SAML page, in the SAML Signing Certificate section, find Federation Metadata XML and select Download to download the certificate and save it on your computer.



7. On the Set up CheckProof section, copy the appropriate URL(s) based on your requirement.



Create a Microsoft Entra test user

In this section, you'll create a test user called B.Simon.

1. Sign in to the Microsoft Entra admin center as at least a User Administrator.
2. Browse to Identity > Users > All users.
3. Select New user > Create new user, at the top of the screen.
4. In the User properties, follow these steps:
   1. In the Display name field, enter B.Simon.
   2. In the User principal name field, enter the username@companydomain.extension. For example, B.Simon@contoso.com.
   3. Select the Show password check box, and then write down the value that's displayed in the Password box.
   4. Select Review + create.
5. Select Create.

Assign the Microsoft Entra test user

In this section, you'll enable B.Simon to use single sign-on by granting access to CheckProof.

1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
2. Browse to Identity > Applications > Enterprise applications > CheckProof.
3. In the app's overview page, select Users and groups.
4. Select Add user/group, then select Users and groups in the Add Assignment dialog.
   1. In the Users and groups dialog, select B.Simon from the Users list, then click the Select button at the bottom of the screen.
   2. If you are expecting a role to be assigned to the users, you can select it from the Select a role dropdown. If no role has been set up for this app, you see "Default Access" role selected.
   3. In the Add Assignment dialog, click the Assign button.

Configure CheckProof SSO

1. In a different web browser window, sign into CheckProof website as an administrator.

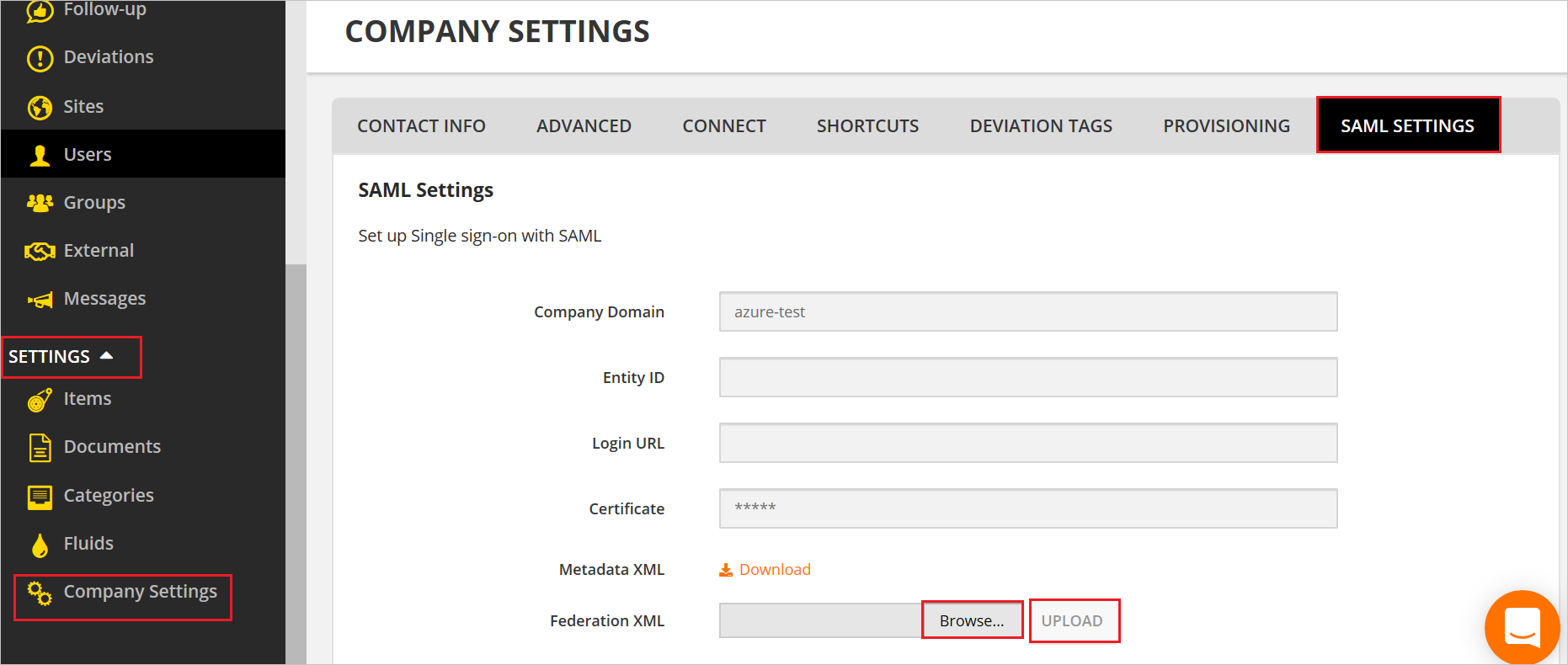

2. Go to the Settings > Company Settings > SAML SETTINGS page and Upload the Federation Metadata XML in Federation XML textbox.



Create CheckProof test user

1. In a different web browser window, sign into CheckProof website as an administrator.

2. Click on Profile and select My profile.

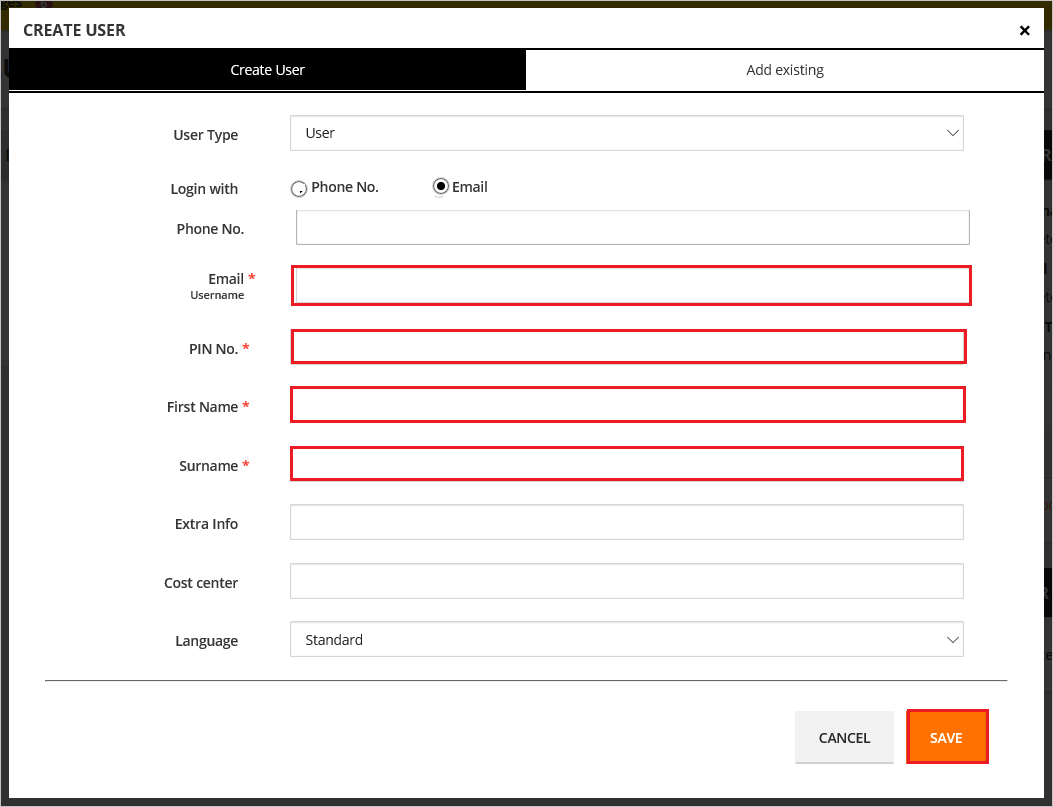

3. Click on CREATE USER.

4. In the CREATE USER page, fill the required fields and click on SAVE.



Note

CheckProof also supports automatic user provisioning, you can find more details here on how to configure automatic user provisioning.

Test SSO

In this section, you test your Microsoft Entra single sign-on configuration with following options.

• Click on Test this application, and you should be automatically signed in to the CheckProof for which you set up the SSO.

• You can use Microsoft My Apps. When you click the CheckProof tile in the My Apps, you should be automatically signed in to the CheckProof for which you set up the SSO. For more information about the My Apps, see Introduction to the My Apps.

Next steps

Once you configure CheckProof you can enforce session control, which protects exfiltration and infiltration of your organization’s sensitive data in real time. Session control extends from Conditional Access. Learn how to enforce session control with Microsoft Defender for Cloud Apps.
