Tutorial: Microsoft Entra integration with Deputy

In this tutorial, you'll learn how to integrate Deputy with Microsoft Entra ID. When you integrate Deputy with Microsoft Entra ID, you can:

• Control in Microsoft Entra ID who has access to Deputy.
• Enable your users to be automatically signed-in to Deputy with their Microsoft Entra accounts.
• Manage your accounts in one central location.

Prerequisites

To get started, you need the following items:

• A Microsoft Entra subscription. If you don't have a subscription, you can get a free account.
• Deputy single sign-on (SSO) enabled subscription.

Scenario description

In this tutorial, you configure and test Microsoft Entra SSO in a test environment.

• Deputy supports SP and IDP initiated SSO.
• Deputy supports Just In Time user provisioning.

Add Deputy from the gallery

To configure the integration of Deputy into Microsoft Entra ID, you need to add Deputy from the gallery to your list of managed SaaS apps.

1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
2. Browse to Identity > Applications > Enterprise applications > New application.
3. In the Add from the gallery section, type Deputy in the search box.
4. Select Deputy from results panel and then add the app. Wait a few seconds while the app is added to your tenant.

Alternatively, you can also use the Enterprise App Configuration Wizard. In this wizard, you can add an application to your tenant, add users/groups to the app, assign roles, as well as walk through the SSO configuration as well. Learn more about Microsoft 365 wizards.

Configure and test Microsoft Entra SSO for Deputy

Configure and test Microsoft Entra SSO with Deputy using a test user called B.Simon. For SSO to work, you need to establish a link relationship between a Microsoft Entra user and the related user in Deputy.

To configure and test Microsoft Entra SSO with Deputy, perform the following steps:

1. Configure Microsoft Entra SSO - to enable your users to use this feature.
   1. Create a Microsoft Entra test user - to test Microsoft Entra single sign-on with B.Simon.
   2. Assign the Microsoft Entra test user - to enable B.Simon to use Microsoft Entra single sign-on.
2. Configure Deputy SSO - to configure the single sign-on settings on application side.
   1. Create Deputy test user - to have a counterpart of B.Simon in Deputy that is linked to the Microsoft Entra representation of user.
3. Test SSO - to verify whether the configuration works.

Configure Microsoft Entra SSO

Follow these steps to enable Microsoft Entra SSO.

1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.

2. Browse to Identity > Applications > Enterprise applications > Deputy > Single sign-on.

3. On the Select a single sign-on method page, select SAML.

4. On the Set up single sign-on with SAML page, click the pencil icon for Basic SAML Configuration to edit the settings.



5. On the Basic SAML Configuration section, If you wish to configure the application in IDP initiated mode, perform the following steps:

   a. In the Identifier text box, type a URL using one of the following patterns:

   https://<subdomain>.<region>.au.deputy.com
   https://<subdomain>.<region>.ent-au.deputy.com
   https://<subdomain>.<region>.na.deputy.com
   https://<subdomain>.<region>.ent-na.deputy.com
   https://<subdomain>.<region>.eu.deputy.com
   https://<subdomain>.<region>.ent-eu.deputy.com
   https://<subdomain>.<region>.as.deputy.com
   https://<subdomain>.<region>.ent-as.deputy.com
   https://<subdomain>.<region>.la.deputy.com
   https://<subdomain>.<region>.ent-la.deputy.com
   https://<subdomain>.<region>.af.deputy.com
   https://<subdomain>.<region>.ent-af.deputy.com
   https://<subdomain>.<region>.an.deputy.com
   https://<subdomain>.<region>.ent-an.deputy.com
   https://<subdomain>.<region>.deputy.com


   b. In the Reply URL text box, type a URL using one of the following patterns:

   https://<subdomain>.<region>.au.deputy.com/exec/devapp/samlacs
   https://<subdomain>.<region>.ent-au.deputy.com/exec/devapp/samlacs
   https://<subdomain>.<region>.na.deputy.com/exec/devapp/samlacs
   https://<subdomain>.<region>.ent-na.deputy.com/exec/devapp/samlacs
   https://<subdomain>.<region>.eu.deputy.com/exec/devapp/samlacs
   https://<subdomain>.<region>.ent-eu.deputy.com/exec/devapp/samlacs
   https://<subdomain>.<region>.as.deputy.com/exec/devapp/samlacs.
   https://<subdomain>.<region>.ent-as.deputy.com/exec/devapp/samlacs
   https://<subdomain>.<region>.la.deputy.com/exec/devapp/samlacs
   https://<subdomain>.<region>.ent-la.deputy.com/exec/devapp/samlacs
   https://<subdomain>.<region>.af.deputy.com/exec/devapp/samlacs
   https://<subdomain>.<region>.ent-af.deputy.com/exec/devapp/samlacs
   https://<subdomain>.<region>.an.deputy.com/exec/devapp/samlacs
   https://<subdomain>.<region>.ent-an.deputy.com/exec/devapp/samlacs
   https://<subdomain>.<region>.deputy.com/exec/devapp/samlacs


6. Click Set additional URLs and perform the following step if you wish to configure the application in SP initiated mode:

   In the Sign-on URL text box, type a URL using the following pattern: https://<your-subdomain>.<region>.deputy.com

   Note

   Deputy region suffix is optional, or it should use one of these: au | na | eu |as |la |af |an |ent-au |ent-na |ent-eu |ent-as | ent-la | ent-af | ent-an

   Note

   These values are not real. Update these values with the actual Identifier, Reply URL and Sign-on URL. Contact Deputy Client support team to get these values. You can also refer to the patterns shown in the Basic SAML Configuration section.

7. Deputy application expects the SAML assertions in a specific format, which requires you to add custom attribute mappings to your SAML token attributes configuration. The following screenshot shows the list of default attributes.



8. In addition to above, Deputy application expects few more attributes to be passed back in SAML response, which are shown below. These attributes are also pre populated but you can review them as per your requirements.

   Name	Source Attribute
   First name	user.givenname
   Last name	user.surname

9. On the Set up Single Sign-On with SAML page, in the SAML Signing Certificate section, click Download to download the Certificate (Base64) from the given options as per your requirement and save it on your computer.



10. On the Set up Deputy section, copy the appropriate URL(s) as per your requirement.



Create a Microsoft Entra test user

In this section, you'll create a test user called B.Simon.

1. Sign in to the Microsoft Entra admin center as at least a User Administrator.
2. Browse to Identity > Users > All users.
3. Select New user > Create new user, at the top of the screen.
4. In the User properties, follow these steps:
   1. In the Display name field, enter B.Simon.
   2. In the User principal name field, enter the username@companydomain.extension. For example, B.Simon@contoso.com.
   3. Select the Show password check box, and then write down the value that's displayed in the Password box.
   4. Select Review + create.
5. Select Create.

Assign the Microsoft Entra test user

In this section, you'll enable B.Simon to use single sign-on by granting access to Deputy.

1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
2. Browse to Identity > Applications > Enterprise applications > Deputy.
3. In the app's overview page, select Users and groups.
4. Select Add user/group, then select Users and groups in the Add Assignment dialog.
   1. In the Users and groups dialog, select B.Simon from the Users list, then click the Select button at the bottom of the screen.
   2. If you are expecting a role to be assigned to the users, you can select it from the Select a role dropdown. If no role has been set up for this app, you see "Default Access" role selected.
   3. In the Add Assignment dialog, click the Assign button.

Configure Deputy SSO

1. Login to your Deputy account as an administrator.

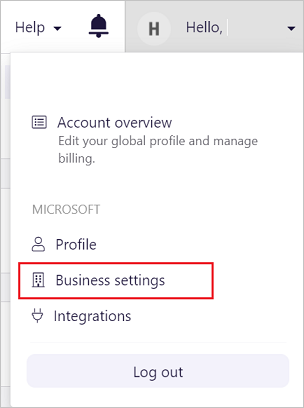

2. In the upper right corner, click on your account, select Business settings.



3. Then under the General tab, click Single Sign-On settings.

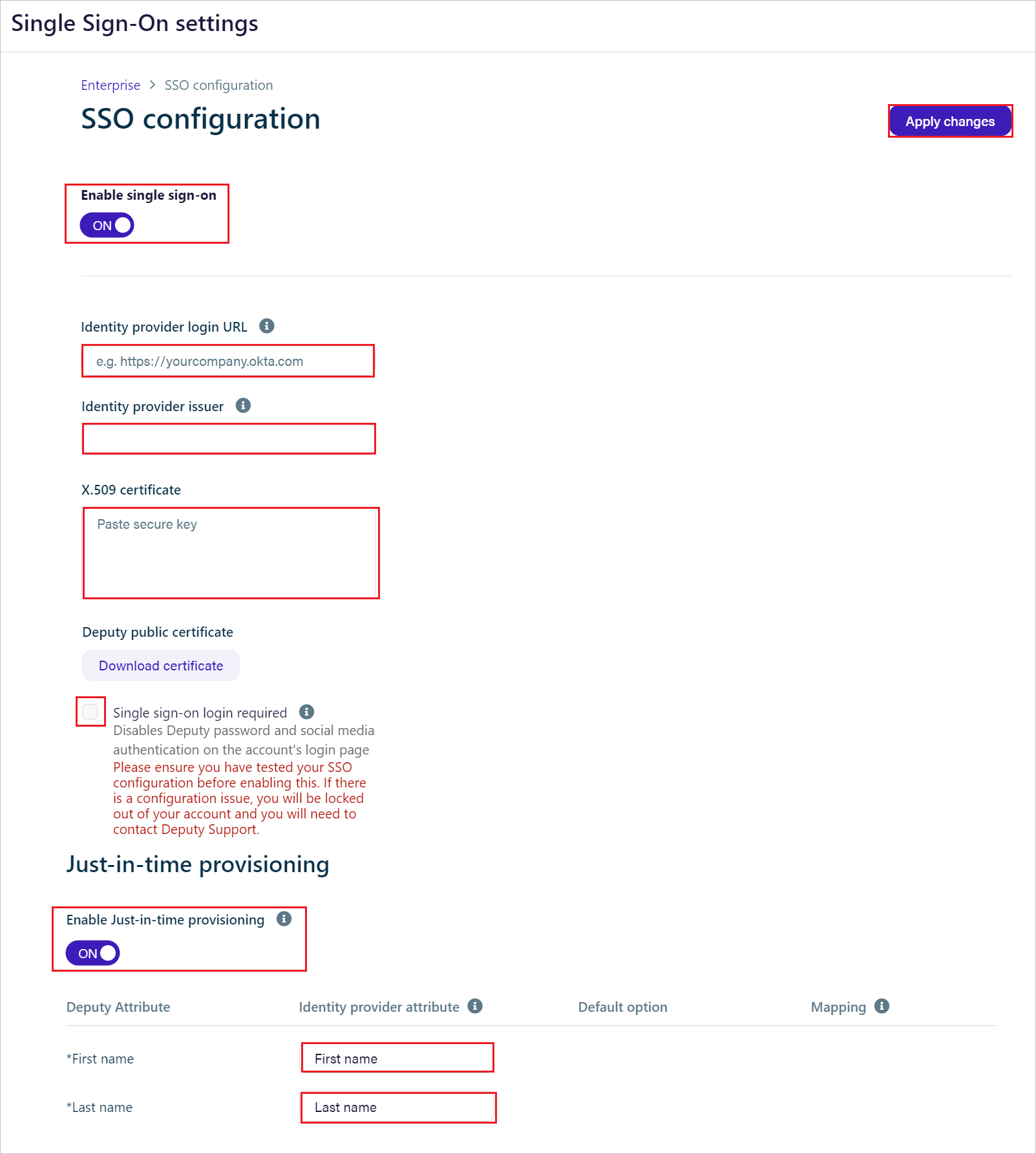

4. On this Single Sign-On settings page, perform the below steps.



   a. Click Enable single sign-on.

   b. In the Identity provider login URL textbox, paste the Login URL which you copied previously.

   c. In the Identity provider issuer textbox, paste the Identifier(Entity ID) which you copied previously.

   d. Open the downloaded Certificate (Base64) into Notepad and paste the content into the X.509 certificate textbox.

   e. Enable the Single sign-on login required, if you want to login with SSO.

   f. Enable the Just-in-time provisioning and in the First name and Last name fields, give the names of the attributes you have set up in User Attributes & Claims section, like First name and Last name.

   g. Click Apply changes.

Create Deputy test user

In this section, a user called Britta Simon is created in Deputy. Deputy supports just-in-time user provisioning, which is enabled by default. There is no action item for you in this section. If a user doesn't already exist in Deputy, a new one is created after authentication.

To add the user manually, perform the following steps:

1. Log in to your Deputy company site as an administrator.

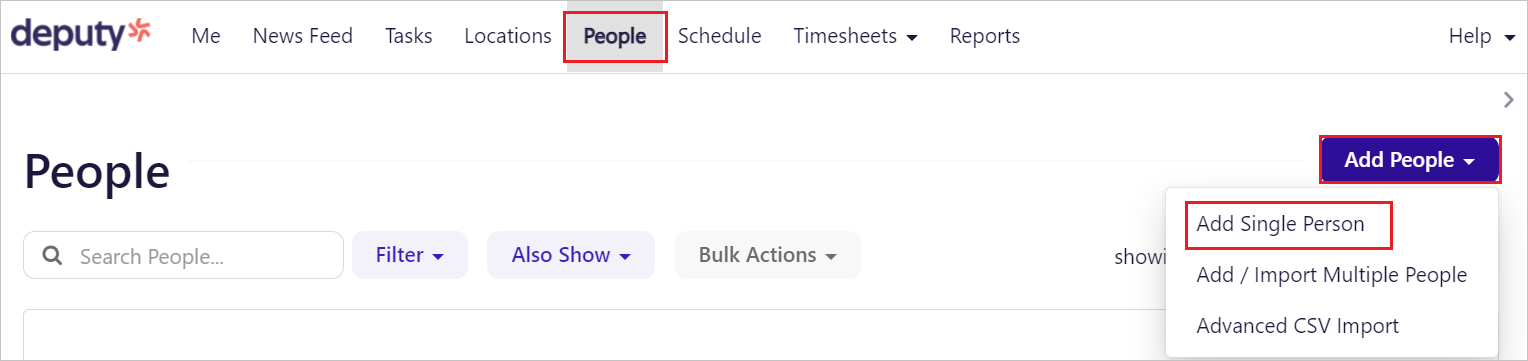

2. On the top navigation pane, click People.

3. Click the Add People button and click Add Single Person.



4. Perform the following steps in the General tab to add a user.



   a. In the First name and Last name textboxes, fill the fields like Britta and Simon.

   b. In the Work at textbox, type the business name.

   c. Click Save button.

Test SSO

In this section, you test your Microsoft Entra single sign-on configuration with following options.

SP initiated:

• Click on Test this application, this will redirect to TeamzSkill Sign on URL where you can initiate the login flow.

• Go to TeamzSkill Sign-on URL directly and initiate the login flow from there.

IDP initiated:

• Click on Test this application, and you should be automatically signed in to the TeamzSkill for which you set up the SSO

You can also use Microsoft My Apps to test the application in any mode. When you click the TeamzSkill tile in the My Apps, if configured in SP mode you would be redirected to the application sign on page for initiating the login flow and if configured in IDP mode, you should be automatically signed in to the TeamzSkill for which you set up the SSO. For more information about the My Apps, see Introduction to the My Apps.

Next steps

Once you configure Deputy you can enforce session control, which protects exfiltration and infiltration of your organization’s sensitive data in real time. Session control extends from Conditional Access. Learn how to enforce session control with Microsoft Defender for Cloud Apps.
