Tutorial: Microsoft Entra integration with TargetProcess

In this tutorial, you'll learn how to integrate TargetProcess with Microsoft Entra ID. When you integrate TargetProcess with Microsoft Entra ID, you can:

• Control in Microsoft Entra ID who has access to TargetProcess.
• Enable your users to be automatically signed-in to TargetProcess with their Microsoft Entra accounts.
• Manage your accounts in one central location.

Prerequisites

To get started, you need the following items:

• A Microsoft Entra subscription. If you don't have a subscription, you can get a free account.
• TargetProcess single sign-on (SSO) enabled subscription.

Scenario description

In this tutorial, you configure and test Microsoft Entra single sign-on in a test environment.

• TargetProcess supports SP initiated SSO.
• TargetProcess supports Just In Time user provisioning.

Add TargetProcess from the gallery

To configure the integration of TargetProcess into Microsoft Entra ID, you need to add TargetProcess from the gallery to your list of managed SaaS apps.

1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
2. Browse to Identity > Applications > Enterprise applications > New application.
3. In the Add from the gallery section, type TargetProcess in the search box.
4. Select TargetProcess from results panel and then add the app. Wait a few seconds while the app is added to your tenant.

Alternatively, you can also use the Enterprise App Configuration Wizard. In this wizard, you can add an application to your tenant, add users/groups to the app, assign roles, as well as walk through the SSO configuration as well. Learn more about Microsoft 365 wizards.

Configure and test Microsoft Entra SSO for TargetProcess

Configure and test Microsoft Entra SSO with TargetProcess using a test user called B.Simon. For SSO to work, you need to establish a link relationship between a Microsoft Entra user and the related user in TargetProcess.

To configure and test Microsoft Entra SSO with TargetProcess, perform the following steps:

1. Configure Microsoft Entra SSO - to enable your users to use this feature.
   1. Create a Microsoft Entra test user - to test Microsoft Entra single sign-on with B.Simon.
   2. Assign the Microsoft Entra test user - to enable B.Simon to use Microsoft Entra single sign-on.
2. Configure TargetProcess SSO - to configure the single sign-on settings on application side.
   1. Create TargetProcess test user - to have a counterpart of B.Simon in TargetProcess that is linked to the Microsoft Entra representation of user.
3. Test SSO - to verify whether the configuration works.

Configure Microsoft Entra SSO

Follow these steps to enable Microsoft Entra SSO.

1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.

2. Browse to Identity > Applications > Enterprise applications > TargetProcess > Single sign-on.

3. On the Select a single sign-on method page, select SAML.

4. On the Set up single sign-on with SAML page, click the pencil icon for Basic SAML Configuration to edit the settings.



5. On the Basic SAML Configuration section, perform the following steps:

   a. In the Identifier (Entity ID) text box, type a URL using the following pattern: https://<SUBDOMAIN>.tpondemand.com/

   b. In the Sign on URL text box, type a URL using the following pattern: https://<SUBDOMAIN>.tpondemand.com/

   Note

   These values are not real. Update these values with the actual Identifier and Sign on URL. Contact TargetProcess Client support team to get these values. You can also refer to the patterns shown in the Basic SAML Configuration section.

6. On the Set up Single Sign-On with SAML page, in the SAML Signing Certificate section, click Download to download the Certificate (Base64) from the given options as per your requirement and save it on your computer.



7. On the Set up TargetProcess section, copy the appropriate URL(s) as per your requirement.



Create a Microsoft Entra test user

In this section, you'll create a test user called B.Simon.

1. Sign in to the Microsoft Entra admin center as at least a User Administrator.
2. Browse to Identity > Users > All users.
3. Select New user > Create new user, at the top of the screen.
4. In the User properties, follow these steps:
   1. In the Display name field, enter B.Simon.
   2. In the User principal name field, enter the username@companydomain.extension. For example, B.Simon@contoso.com.
   3. Select the Show password check box, and then write down the value that's displayed in the Password box.
   4. Select Review + create.
5. Select Create.

Assign the Microsoft Entra test user

In this section, you'll enable B.Simon to use single sign-on by granting access to TargetProcess.

1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
2. Browse to Identity > Applications > Enterprise applications > TargetProcess.
3. In the app's overview page, select Users and groups.
4. Select Add user/group, then select Users and groups in the Add Assignment dialog.
   1. In the Users and groups dialog, select B.Simon from the Users list, then click the Select button at the bottom of the screen.
   2. If you are expecting a role to be assigned to the users, you can select it from the Select a role dropdown. If no role has been set up for this app, you see "Default Access" role selected.
   3. In the Add Assignment dialog, click the Assign button.

Configure TargetProcess SSO

1. Sign-on to your TargetProcess application as an administrator.

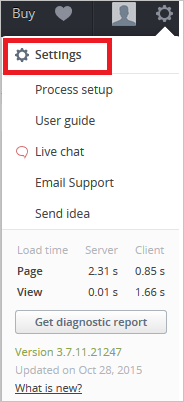

2. In the menu on the top, click Setup.



3. Click Settings tab.

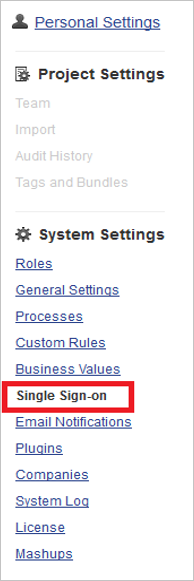

4. Click Single Sign-on tab.

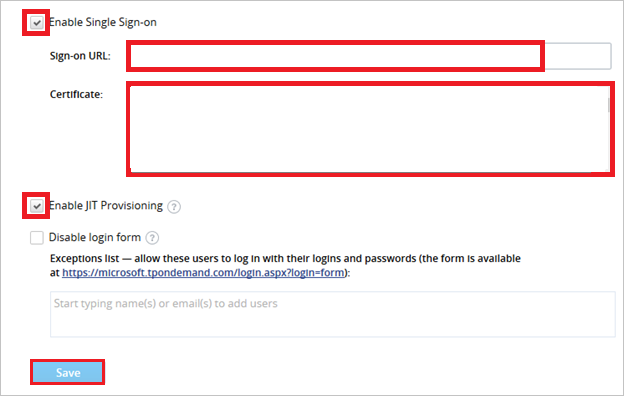

5. On the Single Sign-on settings dialog, perform the following steps:



   a. Click Enable Single Sign-on.

   b. In Sign-on URL textbox, paste the value of Login URL..

   c. Open your downloaded certificate in notepad, copy the content, and then paste it into the Certificate textbox.

   d. click Enable JIT Provisioning.

   e. Click Save.

Create TargetProcess test user

In this section, a user called Britta Simon is created in TargetProcess. TargetProcess supports just-in-time user provisioning, which is enabled by default. There is no action item for you in this section. If a user doesn't already exist in TargetProcess, a new one is created after authentication.

Note

If you need to create a user manually, contact TargetProcess support team.

Test SSO

In this section, you test your Microsoft Entra single sign-on configuration with following options.

• Click on Test this application, this will redirect to TargetProcess Sign-on URL where you can initiate the login flow.

• Go to TargetProcess Sign-on URL directly and initiate the login flow from there.

• You can use Microsoft My Apps. When you click the TargetProcess tile in the My Apps, this will redirect to TargetProcess Sign-on URL. For more information about the My Apps, see Introduction to the My Apps.

Next steps

Once you configure TargetProcess you can enforce session control, which protects exfiltration and infiltration of your organization’s sensitive data in real time. Session control extends from Conditional Access. Learn how to enforce session control with Microsoft Defender for Cloud Apps.
