Tutorial: Microsoft Entra SSO integration with TeamSlide

  • Стаття

In this tutorial, you'll learn how to integrate TeamSlide with Microsoft Entra ID. When you integrate TeamSlide with Microsoft Entra ID, you can:

  • Control in Microsoft Entra ID who has access to TeamSlide.
  • Enable your users to be automatically signed-in to TeamSlide with their Microsoft Entra accounts.
  • Manage your accounts in one central location.

Prerequisites

To get started, you need the following items:

  • A Microsoft Entra subscription. If you don't have a subscription, you can get a free account.
  • TeamSlide single sign-on (SSO) enabled subscription.
  • Along with Cloud Application Administrator, Application Administrator can also add or manage applications in Microsoft Entra ID. For more information, see Azure built-in roles.

Scenario description

In this tutorial, you configure and test Microsoft Entra SSO in a test environment.

  • TeamSlide supports SP initiated SSO.
  • TeamSlide supports Just In Time user provisioning.

Note

Identifier of this application is a fixed string value so only one instance can be configured in one tenant.

To configure the integration of TeamSlide into Microsoft Entra ID, you need to add TeamSlide from the gallery to your list of managed SaaS apps.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > New application.
  3. In the Add from the gallery section, type TeamSlide in the search box.
  4. Select TeamSlide from results panel and then add the app. Wait a few seconds while the app is added to your tenant.

Alternatively, you can also use the Enterprise App Configuration Wizard. In this wizard, you can add an application to your tenant, add users/groups to the app, assign roles, as well as walk through the SSO configuration as well. Learn more about Microsoft 365 wizards.

Configure and test Microsoft Entra SSO for TeamSlide

Configure and test Microsoft Entra SSO with TeamSlide using a test user called B.Simon. For SSO to work, you need to establish a link relationship between a Microsoft Entra user and the related user in TeamSlide.

To configure and test Microsoft Entra SSO with TeamSlide, perform the following steps:

  1. Configure Microsoft Entra SSO - to enable your users to use this feature.
    1. Create a Microsoft Entra test user - to test Microsoft Entra single sign-on with B.Simon.
    2. Assign the Microsoft Entra test user - to enable B.Simon to use Microsoft Entra single sign-on.
  2. Configure TeamSlide SSO - to configure the single sign-on settings on application side.
    1. Create TeamSlide test user - to have a counterpart of B.Simon in TeamSlide that is linked to the Microsoft Entra representation of user.
  3. Test SSO - to verify whether the configuration works.

Configure Microsoft Entra SSO

Follow these steps to enable Microsoft Entra SSO.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > TeamSlide > Single sign-on.
  3. On the Select a single sign-on method page, select SAML.
  4. On the Set up single sign-on with SAML page, click the pencil icon for Basic SAML Configuration to edit the settings.

Screenshot shows to edit Basic SAML Configuration.

  1. On the Basic SAML Configuration section, perform the following steps:

    a. In the Identifier textbox, type the URL: https://www.teamslide.io/AuthServices/

    b. In the Reply URL textbox, type the URL: https://www.teamslide.io/AuthServices/Acs

    c. In the Sign-on URL text box, type a URL using the following pattern: https://www.teamslide.io/ChooseSso?domain=<CustomerDomain>

    Note

    The Sign-on URL is not real. Update the value with the actual Sign-on URL. Contact TeamSlide Client support team to get these values. You can also refer to the patterns shown in the Basic SAML Configuration section.

  2. TeamSlide application expects the SAML assertions in a specific format, which requires you to add custom attribute mappings to your SAML token attributes configuration. The following screenshot shows the list of default attributes.

    Screenshot showing the list of default attributes.

  3. In addition to above, TeamSlide application expects few more attributes to be passed back in SAML response, which are shown below. These attributes are also pre populated but you can review them as per your requirements.

    Name Source Attribute
    displayname user.displayname
    groups user.groups [All]

  4. On the Set up single sign-on with SAML page, In the SAML Signing Certificate section, click copy button to copy App Federation Metadata Url and save it on your computer.

    Screenshot showing the Certificate download link

Create a Microsoft Entra test user

In this section, you'll create a test user called B.Simon.

  1. Sign in to the Microsoft Entra admin center as at least a User Administrator.
  2. Browse to Identity > Users > All users.
  3. Select New user > Create new user, at the top of the screen.
  4. In the User properties, follow these steps:
    1. In the Display name field, enter B.Simon.
    2. In the User principal name field, enter the username@companydomain.extension. For example, B.Simon@contoso.com.
    3. Select the Show password check box, and then write down the value that's displayed in the Password box.
    4. Select Review + create.
  5. Select Create.

Assign the Microsoft Entra test user

In this section, you'll enable B.Simon to use single sign-on by granting access to TeamSlide.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > TeamSlide.
  3. In the app's overview page, find the Manage section and select Users and groups.
  4. Select Add user, then select Users and groups in the Add Assignment dialog.
  5. In the Users and groups dialog, select B.Simon from the Users list, then click the Select button at the bottom of the screen.
  6. If you're expecting any role value in the SAML assertion, in the Select Role dialog, select the appropriate role for the user from the list and then click the Select button at the bottom of the screen.
  7. In the Add Assignment dialog, click the Assign button.

Configure TeamSlide SSO

  1. Log in to your TeamSlide company site as an administrator.

  2. Go to Global Settings > SSO Settings tab.

  3. In the Single sign-on settings page, perform the following steps:

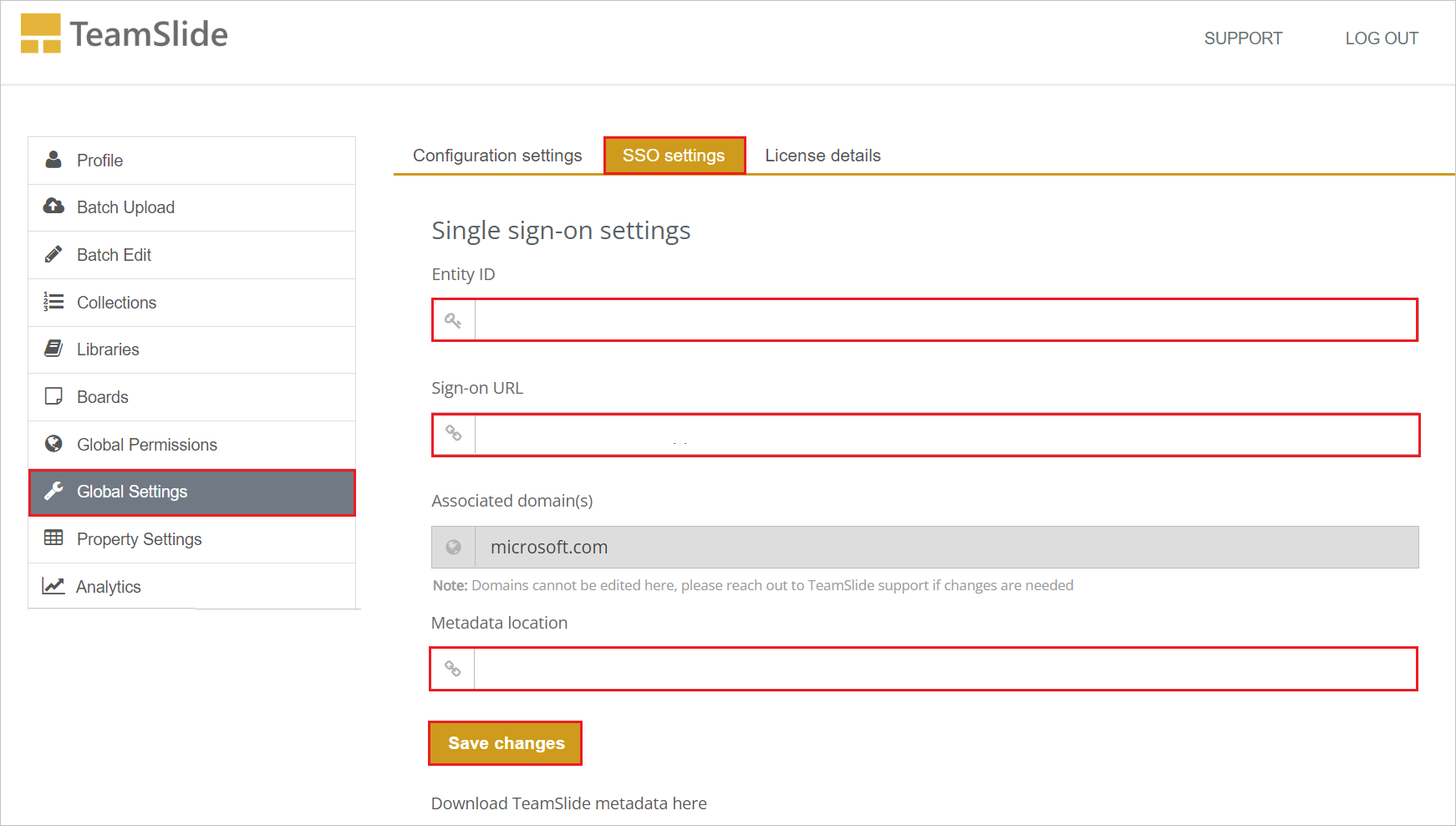

    Screenshot that shows the Configuration Settings.

    a. In the Entity ID textbox, paste the Microsoft Entra Identifier value which you copied previously.

    b. In the Sign-On URL textbox, paste the Login URL value which you copied previously.

    c. In the Metadata location textbox, paste the App Federation Metadata Url value which you copied previously.

    d. Click Save Changes.

Create TeamSlide test user

In this section, a user called B.Simon is created in TeamSlide. TeamSlide supports just-in-time user provisioning, which is enabled by default. There is no action item for you in this section. If a user doesn't already exist in TeamSlide, a new one is created after authentication.

Test SSO

In this section, you test your Microsoft Entra single sign-on configuration with following options.

  • Click on Test this application, this will redirect to TeamSlide Sign-on URL where you can initiate the login flow.

  • Go to TeamSlide Sign-on URL directly and initiate the login flow from there.

  • You can use Microsoft My Apps. When you click the TeamSlide tile in the My Apps, this will redirect to TeamSlide Sign-on URL. For more information, see Microsoft Entra My Apps.

Next steps

Once you configure TeamSlide you can enforce session control, which protects exfiltration and infiltration of your organization’s sensitive data in real time. Session control extends from Conditional Access. Learn how to enforce session control with Microsoft Cloud App Security.
