Walkthrough: Creating a Wizard Page

  • Стаття

In Dynamics NAV, you can use the NavigatePage page type to create a wizard page. A wizard page consists of a number of user input screens or steps linked together, enabling users to carry out infrequently performed tasks, such as configuration or specific business tasks. Examples of wizard pages in Dynamics NAV are Assisted Company Setup Wizard, page 1803 and Create Opportunity, page 5126.

In this walkthrough we will use and refer to the NavigatePage type as a wizard, but the NavigatePage type can also be used for other types of pages, for example, page 344, Navigate.

Important

When you design NavigatePage pages, there are a few things to be aware of. The ribbon is not displayed when it is run on Microsoft Dynamics NAV Web client, Microsoft Dynamics NAV Tablet client, or Microsoft Dynamics NAV Phone client.

To get the right styling for the Back, Next, and Finish buttons, you must use specific images and set the InFooterBar property to Yes. Additionally,

  • for the Back button, set the Image property to PreviousRecord.

    • for the Next button, set the Image property to NextRecord.
    • for the Finish button, set the Image property to Approve.

    The Back, Next, and Finish buttons are always displayed in this order and are always right-aligned.

About This Walkthrough

This walkthrough provides an overview of how to create the basic elements in a To-do wizard page using Page Designer.

This walkthrough illustrates the following tasks:

  • Creating a wizard page.

  • Adding steps to a wizard page.

  • Adding the attendee subpage.

  • Adding wizard buttons.

  • Running the page.

Prerequisites

To complete this walkthrough, you will need:

  • Microsoft Dynamics NAV 2018 installed with a developer license.

  • The CRONUS International Ltd. demonstration database.

Story

Simon is a partner working for CRONUS International Ltd. Benjamin, the marketing manager at CRONUS, wants Simon to create a page that will enable him to create To-dos for his team of salespeople. Simon must create a wizard page that makes it easy to link a To-do with a sales campaign or sales opportunity. Simon knows that he can do this successfully if he uses the NavigatePage page type to create a To-do wizard.

Creating a Wizard Page

Simon must first create a new page of the type NavigatePage in Page Designer.

Note

In this walkthrough, to learn about the properties and controls of a NavigatePage page, you will first create a blank page. Object Designer also includes a wizard that you can use to create a NavigatePage page that sets up many properties and controls for you. For more information about the wizard, see How to: Create a Page.

To create a wizard page

  1. In the Microsoft Dynamics NAV Development Environment, on the Tools menu, choose Object Designer.

  2. In Object Designer, choose Page, and then choose New. The New Page window opens.

  3. In the Table text box, choose the up arrow, select the table 5080, To-do, and then choose the OK button.

  4. Choose Create blank page, and then choose the OK button.

    The new page appears in Page Designer.

  5. On the first row, ensure that the Type column is set to Container and that the SubType column is set to ContentArea. In the Name column, type Ben's To-dos.

  6. Select a blank row, and on the View menu, choose Properties.

  7. In the PageType property, set the Value field to NavigatePage.

  8. Close the Properties window.

  9. Close the Page Designer window.

  10. In the Save As dialog box, in the Name text box, enter Ben's To-dos and enter a page ID, for example, 50015. Choose the OK button.

    You have successfully created and saved a NavigatePage page, which you will use to create a To-do wizard. Next you must add steps to the wizard.

Adding Steps to a Wizard Page

In a wizard page, steps are controls that you place on a NavigatePage to enable it to work like a wizard. These controls initially appear as tabs in the content area of the page. Simon can create steps in Page Designer by adding a different group element for each step that he wants to create. Each control is displayed as a separate step to the user. The following procedure shows how to create the first step in a To-do wizard that has four steps.

To add steps to a wizard page

  1. In Page Designer, select your new Ben’s To-dos wizard page, 50015, and choose Design to open it.

  2. On the second row, in the Name column, type Step1. Set Type to Group and SubType to Group.

  3. In the next empty row, leave the Name field blank and set Type to Field.

  4. On the View menu, choose Field Menu.

    In the Field Menu window, select fields from the table 5080, To-do.

  5. Make your selection by holding down the Ctrl key while you select the following fields:

    • Type

    • Date

    • Description

    • Start time

    • Duration

    • Team To-do

    • All Day Event

    • Ending Date

    • Ending Time

  6. Choose the OK button. A message box displays the following message, "Do you want to add the fields that are selected in the field menu?" Choose Yes.

  7. In the Caption column for each of the fields you added, type the following captions:

    Field Caption
    Type What is the type of the to-do?
    Date What is the starting date of the to-do?
    Description Describe your to-do
    Start time What is the start time of the to-do?
    Duration What is the duration of the to-do?
    Team To-do Team to-do
    All Day Event All Day Event
    Ending Date What is the end date of the to-do?
    Ending Time What is the end time of the to-do?

    All the fields that you add must be indented one space below Step 1. Remember to check indentation on all elements that you create, and adjust with the left and right arrows if necessary.

  8. When you have added all the necessary steps, close the Page Designer, and save your page.

    In the Microsoft Dynamics NAV Windows client, each step is displayed like a tab control until you add Back, Next, and Finish buttons to the lower part of the page. You will read about this in Adding Wizard Buttons.

Adding the Attendee Subform

When Ben opens his new wizard page for the first time, he wants to be able to choose a salesperson to create a To-do for. Simon must add a control to Step 1 of the wizard, which allows him to select attendees from table 5080, Attendees.

To add the attendee subform

  1. In Object Designer, select your new wizard page, 50015, and choose Design to open it.

  2. Insert a row right below the Step1 row.

  3. Type AttendeeSubForm in the Name column. This row should be indented to match the other field elements in the Step 1 group. Set Type to Part.

  4. On the View menu, choose Properties. Set the PagePartID property to Attendee Wizard Subform (5198). This will ensure that Ben can select attendees for his To-dos in the first step of the wizard.

  5. Close the Properties window, save your page, and in Page Designer, choose Preview to view your changes in the Microsoft Dynamics NAV Windows client and then close the Preview window.

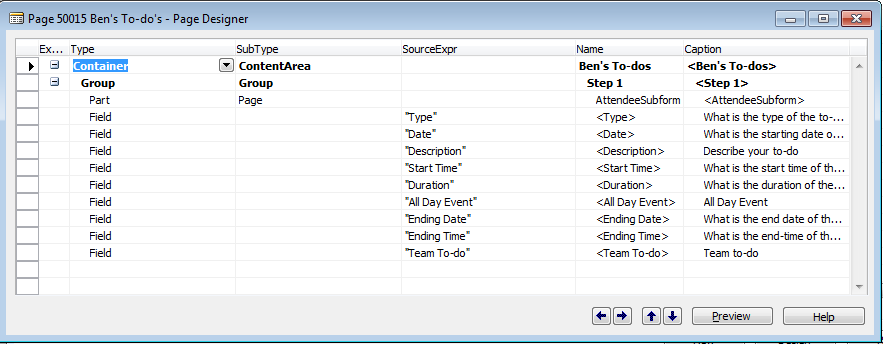

    The following illustration shows the indentation of elements on the wizard page after adding steps and the attendee subform.

    Wizard page in Object Designer

Adding Wizard Buttons

Simon has now successfully created a basic wizard page. To make his page appear more like a wizard he must add Next, Back, and Finish buttons. To do this, Simon must add a new set of actions to his wizard page using the Action Designer.

To add wizard buttons

  1. In Page Designer, select your Ben’s To-dos wizard page, 50015, and choose Design to open it.

  2. Select the first empty row below the steps that you have already created, and on the View menu, choose Control Actions to open Action Designer.

  3. On the first empty row in Action Designer, set Type to ActionContainer and SubType to ActionItems.

  4. In the next available row, type Back in the Name field, and set Type to Action. Do the same in the next two available rows except enter Next and Finish in the Name fields.

  5. When you have added all the buttons you need, select the row with the Back button control, and open the Properties window.

  6. In the Properties window, set the following properties on the Back button.

    Property Value
    Enabled BackEnable

    For the Next button, set NextEnable

    For the Finish button, set FinishEnable
    Visible True
    Caption &Back

    For the Next button, set &Next

    For the Finish button, set &Finish
    RunPageMode Edit
    InFooterBar Yes

  7. On the View menu, choose C/AL Globals, and on the Variables tab, declare the following variables:

    Variable DataType
    BackEnable Boolean
    NextEnable Boolean
    FinishEnable Boolean

  8. To make sure the controls are visible on the page, from the Action Designer window, open the C/AL Code window.

  9. In the OnAction() trigger for Back, enter the following line of code CurrPage.UPDATE(TRUE);

  10. Repeat this for the OnAction() triggers for Next and Finish.

  11. Close the C/AL Code window.

  12. Save and compile your page.

To enable the wizard buttons

  1. In Page Designer, select your Ben’s To-dos wizard page, 50015, and choose Design to open it.

  2. On the View menu, choose C/AL Globals, and on the Functions tab, create a new function named DoStep.

  3. Choose the Locals button, and then, on the Parameters tab, enter step in the Name field, and choose Integer in the DataType field.

  4. Close the C/AL Locals window and the C/AL Globals window.

  5. On the View menu, choose C/AL Code, and scroll down until you locate the DoStep function.

  6. In the DoStep function, insert the following lines of code:


BEGIN
CASE step OF
        0:
          BEGIN
            BackEnable := FALSE;
            NextEnable := TRUE;
            FinishEnable := FALSE;
          END;
        1:
          BEGIN
            BackEnable := TRUE;
            NextEnable := FALSE;
            FinishEnable := TRUE;
          END;
        2:
          BEGIN
            BackEnable := FALSE;
            NextEnable := FALSE;
            FinishEnable := FALSE;
          END
        ELSE
          ERROR('invalid button state/step, choose 0-2');
      END;

      CurrPage.UPDATE(TRUE);
END;

  7. Now scroll to the OnInit function and enter the following line of code:


BEGIN
  DoStep(0);
END;

  8. Close the C/AL Code window.

  9. Save and compile the page.

Running the Page

Test your new wizard page in the Microsoft Dynamics NAV Windows client.

To run the page

  1. In Object Designer, select page Ben's To-dos, and then choose Run.

    The Microsoft Dynamics NAV Windows client opens and displays the new wizard page.

Next Steps

Simon has now created a basic wizard page.

For more information about adding variables, constants, and functions, see Codeunits.
