Create Visual Studio dialogs

2025-06-06

Dialogs are a way to prompt a user for information or to allow for customizations of feature behavior. For example, the Tools > Options dialog has individual pages that let the user control the behavior for features like themes, editors, and document tabs.

Get started

To get started, follow the steps in Create your first Visual Studio extension.

Work with dialogs

This article covers the top user scenarios when you work with dialogs:

Create a dialog
Customize the dialog title
Customize the dialog buttons
Get the dialog result

Create a dialog

Creating a tool window with the new Extensibility model is as simple as calling the ShowDialogAsync method from the ShellExtensibility helpers and passing in your dialog content.

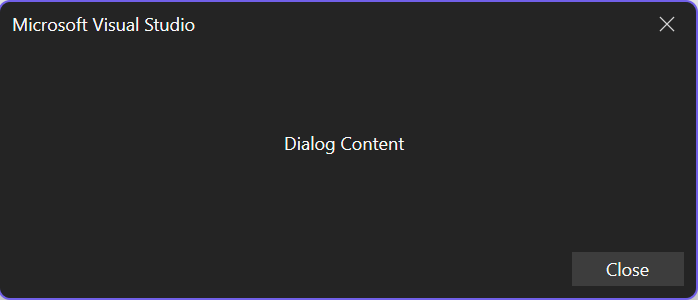

Screenshot that shows a dialog.

ShowDialogAsync

The ShowDialogAsync method has several overloads that you should become familiar with:

Overloads

Parameters

Name	Type	Description
`content`	Microsoft.VisualStudio.RpcContracts.RemoteUI.IRemoteUserControl	The content of the dialog.
`title`	System.String	The title of the dialog.
`options`	`Microsoft.VisualStudio.RpcContracts.Notifications.DialogOption`	The options for displaying the dialog.
`cancellationToken`	System.Threading.CancellationToken	A CancellationToken to cancel the dialog.

public override async Task ExecuteCommandAsync(IClientContext context, CancellationToken cancellationToken)
{
    // Ownership of the RemoteUserControl is transferred to Visual Studio, so it shouldn't be disposed by the extension
    #pragma warning disable CA2000 // Dispose objects before losing scope
    var control = new MyDialogControl(null);
    #pragma warning restore CA2000 // Dispose objects before losing scope

    await this.Extensibility.Shell().ShowDialogAsync(control, cancellationToken);
}

For more information on how to create a remote user control, see Remote UI.

Customize the dialog title

When your extension shows a dialog, you can provide a custom title string which is displayed in the dialog's caption region.

Screenshot that shows a dialog title.

public override async Task ExecuteCommandAsync(IClientContext context, CancellationToken cancellationToken)
{
    // Ownership of the RemoteUserControl is transferred to Visual Studio, so it shouldn't be disposed by the extension
    #pragma warning disable CA2000 // Dispose objects before losing scope
    var control = new MyDialogControl(null);
    #pragma warning restore CA2000 // Dispose objects before losing scope

    await this.Extensibility.Shell().ShowDialogAsync(control, "My Dialog Title", cancellationToken);
}

Customize the dialog buttons

When a dialog is shown in the integrated development environment, you can select certain combinations of predefined dialog buttons and default actions. You can find the predefined button and action combinations in Microsoft.VisualStudio.RpcContracts.Notifications.DialogOption.

You can also create your own combination of buttons and default actions from:

Microsoft.VisualStudio.RpcContracts.Notifications.DialogButton

public enum DialogButton
{
    // Hides all of the dialog buttons.
    None,
    // Shows a single close button.
    Close,
    // Shows a single OK button.
    OK,
    // Shows an OK and Cancel button.
    OKCancel
}

Microsoft.VisualStudio.RpcContracts.Notifications.DialogResult

public enum DialogResult
{
    // The dialog was closed via the System.Threading.CancellationToken or by using an
    // action provided by the Microsoft.Visual Studio.RpcContracts.RemoteUI.IRemoteUserControl
    // content.
    None,
    // The user pressed the Close button.
    Close,
    // The user pressed the OK button.
    OK,
    // The user pressed the Cancel button, or pressed the nonclient close button, or
    // pressed the Esc key.
    Cancel
}

Examples

Add a Cancel button:

public override async Task ExecuteCommandAsync(IClientContext context, CancellationToken cancellationToken)
{
    // Ownership of the RemoteUserControl is transferred to Visual Studio, so it shouldn't be disposed by the extension
    #pragma warning disable CA2000 // Dispose objects before losing scope
    var control = new MyDialogControl(null);
    #pragma warning restore CA2000 // Dispose objects before losing scope

    await this.Extensibility.Shell().ShowDialogAsync(control, DialogOption.OKCancel, cancellationToken);
}

No dialog buttons:

public override async Task ExecuteCommandAsync(IClientContext context, CancellationToken cancellationToken)
{
    // Ownership of the RemoteUserControl is transferred to Visual Studio, so it shouldn't be disposed by the extension
    #pragma warning disable CA2000 // Dispose objects before losing scope
    var control = new MyDialogControl(null);
    #pragma warning restore CA2000 // Dispose objects before losing scope

    await this.Extensibility.Shell().ShowDialogAsync(control, new DialogOption(DialogButton.None, DialogResult.None), cancellationToken);
}

Get the dialog result

If you need to know whether a user affirmatively closed a dialog or dismissed it, you can await the call to ShowDialogAsync. It returns Microsoft.VisualStudio.RpcContracts.Notifications.DialogResult, which represents the action taken by the user.

public override async Task ExecuteCommandAsync(IClientContext context, CancellationToken cancellationToken)
{
    // Ownership of the RemoteUserControl is transferred to Visual Studio, so it shouldn't be disposed by the extension
    #pragma warning disable CA2000 // Dispose objects before losing scope
    var control = new MyDialogControl(null);
    #pragma warning restore CA2000 // Dispose objects before losing scope

    DialogResult result = await this.Extensibility.Shell().ShowDialogAsync(control, "My Dialog Title", DialogOption.OKCancel, cancellationToken);

    if (result == DialogResult.OK)
    {
        // The user pressed the OK button.
    }
}

See DialogSample for a full example of how to create an extension with a dialog.
