Visual Studio Icon Visual Studio 2017 version 15.0 Release Notes


Developer Community | System Requirements | Compatibility | Distributable Code | License Terms | Blogs | Known Issues



Note

This is not the latest version of Visual Studio. To download the latest release, please visit the Visual Studio site.



Feedback & Suggestions

We would love to hear from you! For issues, let us know through the Report a Problem option in the upper right-hand corner of either the installer or the Visual Studio IDE itself. The Feedback Icon icon is located in the upper right-hand corner. You can track your issues in the Visual Studio Developer Community, where you can ask questions and find answers. You can get free installation help through our Live Chat support.

Support Timeframe

Enterprise and Professional users of Visual Studio 2017 version 15.0 are supported and will receive fixes to security vulnerabilities through January 2020. This timeframe was determined by the fact that in October 2018, Visual Studio 2017 version 15.9 was designated as the final servicing baseline to the Visual Studio 2017 product. You can acquire the latest most secure version of Visual Studio 2017 in the downloads section of my.visualstudio.com.  For more information about Visual Studio supported baselines, please review the support policy for Visual Studio 2017

Refer to the latest version of the release notes or visit the Visual Studio site to download the latest supported version of Visual Studio 2017.


Release History


Release Notes Icon Visual Studio 2017 version 15.0 (26228.102)

released December 11, 2019

Visual Studio 2017 version 15.0 Security Advisory Notice

CVE-2019-1349 Git for Visual Studio Remote Excecution Vulnerability due to too lax restrictions on submodule names

A remote code execution vulnerability exists when Git runs into collisions of submodule names for directories of sibling submodules. An attacker who successfully exploited this vulnerability could remote execute code on the target machine. The security update addresses the vulnerability by taking a new version of Git for Windows which requires the directory for the submodules’ clone to be empty.

CVE-2019-1350 Git for Visual Studio Remote Excecution Vulnerability due to incorrect quoting of command-line arguments

A remote code execution vulnerability exists when Git interprets command-line arguments with certain quoting during a recursive clone in conjunction with SSH URLs. An attacker who successfully exploited this vulnerability could remote execute code on the target machine. The security update addresses the vulnerability by taking a new version of Git for Windows which fixes the issue.

CVE-2019-1351 Git for Visual Studio Arbitrary File Overwrite Vulnerability due to usage of non-letter drive names during clone

An arbitrary file overwrite vulnerability exists in Git when non-letter drive names bypass safety checks in git clone. An attacker who successfully exploited this vulnerability could write to arbitrary files on the target machine. The security update addresses the vulnerability by taking a new version of Git for Windows which fixes the issue.

CVE-2019-1352 Git for Visual Studio Remote Excecution Vulnerability due to unawareness of NTFS Alternate Data Streams

A remote code execution vulnerability exists in Git when cloning and writing to .git/ directory via NTFS alternate data streams. An attacker who successfully exploited this vulnerability could remote execute code on the target machine. The security update addresses the vulnerability by taking a new version of Git for Windows which has been made aware of NTFS alternate data streams.

CVE-2019-1354 Git for Visual Studio Arbitrary File Overwrite Vulnerability due to not refusing to write out tracked files containing backslashes

An arbitrary file overwrite vulnerability exists in Git when tree entries with backslashes and malicious symlinks could break out of the work tree. An attacker who successfully exploited this vulnerability could write to arbitrary files on the target machine. The security update addresses the vulnerability by taking a new version of Git for Windows which does not allow this usage of backslashes.

CVE-2019-1387 Git for Visual Studio Remote Execution Vulnerability due to too lax validation of submodule names in recursive clones

A remote code execution vulnerability exists in Git when cloning recursively with submodules. An attacker who successfully exploited this vulnerability could remote execute code on the target machine. The security update addresses the vulnerability by taking a new version of Git for Windows which tightens validation of submodule names.


Release Notes Icon Visual Studio 2017 version 15.0 (26228.98)

released September 10, 2019

Visual Studio 2017 version 15.0 Security Advisory Notice

CVE-2019-1232 Diagnostics Hub Standard Collector Service Elevation of Privilege Vulnerability

An elevation of privilege vulnerability exists when the Diagnostics Hub Standard Collector Service improperly impersonates certain file operations. An attacker who successfully exploited this vulnerability could gain elevated privileges. An attacker with unprivileged access to a vulnerable system could exploit this vulnerability. The security update addresses the vulnerability by ensuring the Diagnostics Hub Standard Collector Service properly impersonates file operations.


Release Notes Icon Visual Studio 2017 version 15.0 (26228.96)

released August 13, 2019

Visual Studio 2017 version 15.0 Security Advisory Notice

CVE-2019-1211 Git for Visual Studio Elevation of Privilege Vulnerability

An elevation of privilege vulnerability exists in Git for Visual Studio when it improperly parses configuration files. An attacker who successfully exploited the vulnerability could execute code in the context of another local user. To exploit the vulnerability, an authenticated attacker would need to modify Git configuration files on a system prior to a full installation of the application. The attacker would then need to convince another user on the system to execute specific Git commands. The update addresses the issue by changing the permissions required to edit configuration files.


Release Notes Icon Visual Studio 2017 version 15.0 (26228.92)

released July 9, 2019

Visual Studio 2017 version 15.0 Security Advisory Notice

CVE-2019-1113 WorkflowDesigner XOML deserialization allows code execution

A XOML file referencing certain types could cause random code to be executed when the XOML file is opened in Visual Studio. There is now a restriction on what types are allowed to be used in XOML files. If a XOML file containing one of the newly unauthorized types is opened, a message is displayed explaining that the type is unauthorized.

For further information, please refer to the XOML article.


Release Notes Icon Visual Studio 2017 version 15.0 (26228.88)

released June 11, 2019

Issue Fixed in this Release


Release Notes Icon Visual Studio 2017 version 15.0 (26228.84)

released May 14, 2019

Visual Studio 2017 version 15.0 Security Advisory Notice

CVE-2019-0727 Diagnostics Hub Standard Collector Service Elevation of Privilege Vulnerability

An elevation of privilege vulnerability exists when the Diagnostics Hub Standard Collector Service improperly performs certain file operations. An attacker who successfully exploited this vulnerability could delete files in arbitrary locations. To exploit this vulnerability, an attacker would require unprivileged access to a vulnerable system. The security update addresses the vulnerability by securing locations the Diagnostics Hub Standard Collector performs file operations in.


Release Notes Icon Visual Studio 2017 version 15.0 (26228.76)

released March 12, 2019

Visual Studio 2017 version 15.0 Security Advisory Notice

CVE-2019-9197 Unity Editor Remote Code Execution Vulnerability

A remote code execution vulnerability exists in the Unity Editor, a 3rd party software that Visual Studio offers to install as part of the Game Development with Unity workload. If you've installed Unity from Visual Studio, please make sure to update the version of Unity you're using to a version that addresses the vulnerability as described in the CVE. The Visual Studio installer has been updated to offer to install a Unity Editor version which addresses the vulnerability.


Release Notes Icon Visual Studio 2017 version 15.0 (26228.73)

released February 12, 2019

Visual Studio 2017 version 15.0 Security Advisory Notices

CVE-2019-0613 WorkflowDesigner XOML deserialization allows code execution

A XOML file referencing certain types could cause random code to be executed when the XOML file is opened in Visual Studio. There is now a restriction on what types are allowed to be used in XOML files. If a XOML file containing one of the newly unauthorized types is opened, a message is displayed explaining that the type is unauthorized.

For further information, please refer to https://support.microsoft.com/help/4512190/remote-code-execution-vulnerability-if-types-are-specified-in-xoml.

CVE-2019-0657 .NET Framework and Visual Studio Spoofing Vulnerability

.NET Core updates have released today and are included in this Visual Studio update. This release addresses security and other important issues. Details can be found in the .NET Core release notes.


Release Notes Icon Visual Studio 2017 version 15.0 (26228.64)

released December 11, 2018

Issues Fixed in this Release

  • Azure DevOps users who have spaces in their project name or repository names will encounter errors when cloning or publishing in Team Explorer.

Visual Studio 2017 version 15.0 Security Advisory Notice

CVE-2018-8599 Diagnostics Hub Standard Collector Service Elevation of Privilege Vulnerability

An elevation of privilege vulnerability exists when the Diagnostics Hub Standard Collector Service improperly handles certain file operations. An attacker who successfully exploited this vulnerability could gain elevated privileges. To exploit this vulnerability, an attacker would require unprivileged access to a vulnerable system. The security update addresses the vulnerability by ensuring the Diagnostics Hub Standard Collector Services properly impersonates file operations.


Release Notes Icon Visual Studio 2017 version 15.0 (26228.57)

released October 10, 2018

Visual Studio 2017 version 15.0 Security Advisory Notice

CVE-2018-8292 .NET Core Information Disclosure Vulnerability

A security feature bypass vulnerability exists in .NET Core when HTTP authentication information is inadvertently exposed in an outbound request that encounters an HTTP redirect. An attacker who successfully exploited this vulnerability could use the information to further compromise the web application. The security update addresses the vulnerability by correcting how .NET Core applications handles HTTP redirects.


Release Notes Icon Visual Studio 2017 version 15.0 (26228.52)

released August 28, 2018

Issues Fixed in this Release


Release Notes Icon Visual Studio 2017 version 15.0 (26228.49)

released August 14, 2018

Visual Studio 2017 version 15.0 Security Advisory Notice

CVE-2018-0952 Diagnostic Hub Standard Collector Elevation Of Privilege Vulnerability

An elevation of privilege vulnerability exists in a visual studio service, which can lead to system privileges by a non-admin user when writing files. An attacker who took advantage of this could write files as system while only having user level access. This security update addresses this issue by impersonating the current user to validate access to the file location.


Release Notes Icon Visual Studio 2017 version 15.0 (26228.46)

released August 2, 2018

Summary of Updates in this Release

  • This release now installs Java™ Development Kit 8, Update 181 (JDK version 8u181).

Visual Studio 2017 version 15.0 Security Advisory Notice

CVE-2018-8356 .NET Core Security Feature Bypass Vulnerability

Microsoft is aware of a security feature bypass vulnerability that exists when .NET Core does not correctly validate certificates. An attacker who successfully exploited this vulnerability could present an expired certificate when challenged. The update addresses the vulnerability by correcting how .NET Core handles certificate validation.


Release Notes Icon Visual Studio 2017 version 15.0 (26228.43)

released July 10, 2018

Visual Studio 2017 version 15.0 Security Advisory Notices

CVE-2018-8172 Visual Studio Remote Code Execution Vulnerability

A remote code execution vulnerability that can lead to exploitation of a user's machine by opening a specially crafted project, or resource file. The security update addresses the vulnerability by correcting how Visual Studio checks the source markup of a file.

CVE-2018-8260 .NET Framework Remote Code Execution Vulnerability

A remote code execution vulnerability exists in .NET software which can lead to exploitation of a user's machine by allowing attackers to run arbitrary code in the context of the current user. The security update addresses the vulnerability by correcting how .NET checks the source markup of a file.

CVE-2018-8232 .NET Microsoft Macro Assembler Tampering Vulnerability

Tampering vulnerability related to the Microsoft Macro Assembler improperly validating code. The security update addresses the vulnerability by ensuring that Microsoft Macro Assembler properly validates code logic.

CVE-2018-8171 ASP.NET Core Security Feature Bypass Vulnerability

An ASP.NET Core Security Feature Bypass Vulnerability exists when the number of incorrect login attempts is not validated that can lead to an attacker trying infinite authentication attempts. The update addresses the vulnerability by validating the number of incorrect login attempts.


Release Notes Icon Visual Studio 2017 version 15.0 (26228.37)

released May 31, 2018

Visual Studio 2017 version 15.0 Security Advisory Notice

CVE-2018-11235 Microsoft Security Advisory for Git Security Vulnerability

We fixed a security vulnerability in Git that was disclosed by the Git community. The vulnerability can lead to arbitrary code execution when a user clones a malicious repository.


Release Notes Icon Visual Studio 2017 version 15.0 (26228.31)

released April 26, 2018

Summary of Updates in this Release

  • We have bumped up to Java™ Development Kit 8, Update 172 (JDK version 8u172).

Release Notes Icon Visual Studio 2017 version 15.0 (26228.30)

released April 10, 2018

Visual Studio 2017 version 15.0 Security Advisory Notice

CVE-2018-1037 Microsoft Security Advisories for Microsoft Visual Studio Information Disclosure Vulnerability

An information disclosure vulnerability exists when Visual Studio improperly discloses limited contents of uninitialized memory while compiling program database (PDB) files. An attacker who took advantage of this information disclosure could view uninitialized memory from the Visual Studio instance used to compile the PDB file.

To take advantage of the vulnerability, an attacker would require access to an affected PDB file created using a vulnerable version of Visual Studio. An attacker would have no way to force a developer to produce this information disclosure.

The security update addresses the vulnerability by correcting how PDB files are generated when a project is compiled.


Release Notes Icon Visual Studio 2017 version 15.0 (26228.29)

released March 13, 2018

Visual Studio 2017 version 15.0 Security Advisory Notice

CVE-2018-0875 Microsoft Security Advisories for .NET Core

Microsoft is aware of a security vulnerability in the public versions of .NET Core where a malicious file or web request could cause a denial of service (DoS) attack.

  • System administrators are advised to update their .NET Core runtimes to versions 1.0.10, 1.1.7 or 2.0.6. Developers are advised to update their .NET Core SDK to versions 1.1.8 or 2.1.101.

Release Notes Icon Visual Studio 2017 version 15.0 (26228.26)

released February 21, 2018

Summary of Updates in this Release

Team Explorer supports TLSv1.2. We have updated the Git and the Git Credential Manager components that ship in Visual Studio. The optional Git for Windows component has also been updated. This update allows Git to connect to services that have deprecated support for TLSv1 and TLSv1.1 in favor of TLSv1.2.


Release Notes Icon Visual Studio 2017 version 15.0 (26228.23)

released February 2, 2018

Summary of Updates in this Release

  • The MSVC compiler has been updated with support for the /Qspectre switch which will automatically insert a speculation barrier when the compiler detects instances of Spectre variant 1. For more information about /Qspectre please refer to the Visual C++ Team Blog.
  • The JDK was bumped to 8u161 to fix download errors.

Release Notes Icon Visual Studio 2017 version 15.0 (26228.21)

released January 9, 2018

Visual Studio 2017 version 15.0 Security Advisory Notices

CVE-2018-0786 Security Feature Bypass in X509 Certificate Validation

Microsoft is releasing this security advisory to provide information about a vulnerability in the public versions of .NET Core 1.0 and 1.1, and 2.0. This advisory also provides guidance on what developers can do to update their applications correctly. This security advisory is also applicable to .NET native for UWP.

Microsoft is aware of a security vulnerability in the public versions of .NET Core where an attacker could present a certificate that is marked invalid for a specific use, but a component uses it for that purpose. This action disregards the Enhanced Key Usage tagging.

The security update addresses the vulnerability by ensuring that .NET Core components completely validate certificates. System administrators are advised to update their .NET Core runtimes to versions 1.0.9, 1.1.6 and 2.0.5. Developers are advised to update their .NET Core SDK to version 2.1.4 or 1.1.7.

CVE-2018-0764 Denial of Service when parsing XML documents

Microsoft is releasing this security advisory to provide information about a vulnerability in the public versions of .NET Core 1.0 and 1.1, and 2.0. This advisory also provides guidance on what developers can do to update their applications correctly.

Microsoft is aware of a Denial of Service vulnerability in all public versions of .NET core due to improper processing of XML documents. An attacker who successfully exploited this vulnerability could cause a denial of service against a .NET application. A remote unauthenticated attacker could exploit this vulnerability by issuing specially crafted requests to a .NET Core application.

The update addresses the vulnerability by correcting how .NET core handles XML document processing. System administrators are advised to update their .NET Core runtimes to versions 1.0.9, 1.1.6 and 2.0.5. Developers are advised to update their .NET Core SDK to version 2.1.4 or 1.1.7.


Release Notes Icon Visual Studio 2017 version 15.0 (26228.18)

released December 6, 2017

Visual Studio 2017 version 15.0 Security Advisory Notice

Microsoft has released security advisories for ASP.NET Core. Details can be found in corresponding announcements in the ASP.NET Core repo. Please note the following information:

CVE-2017-8700 CORS bypass can enable Information Disclosure

There is a security vulnerability in ASP.NET Core 1.0 and 1.1 where Cross-Origin Resource Sharing (CORS) can be bypassed, leading to information disclosure. New projects created with ASP.NET Core 1.0 and ASP.NET Core 1.1 will now use package versions that include the above security update. For existing projects, users can update their packages to newer versions using the Manage NuGet Packages dialog.


Release Notes Icon Visual Studio 2017 version 15.0 (26228.17)

released November 14, 2017

Visual Studio 2017 version 15.0 Security Advisory Notices

Microsoft has released security advisories for .NET Core and ASP.NET Core. Details can be found in corresponding announcements in the .NET Core and ASP.NET Core repos. Please note the following information:

CVE-2017-8585 Malformed Certificate can cause Denial of Service

There is a security vulnerability in .NET Core 1.0, 1.1 and 2.0 where a malformed certificate or other ASN.1 formatted data could lead to a denial of service via an infinite loop on Linux and macOS. System administrators are advised to update their .NET Core runtimes to versions 1.0.8, 1.1.5 and 2.0.1. Developers are advised to update their .NET Core SDK to version 2.0.3 or 1.1.5.

CVE-2017-8700 CORS bypass can enable Information Disclosure

There is a security vulnerability in ASP.NET Core 1.0 and 1.1 where Cross-Origin Resource Sharing (CORS) can be bypassed, leading to information disclosure.

CVE-2017-11879 Open Redirect can cause Elevation Of Privilege

There is a security vulnerability in ASP.NET Core 2.0 where an Open Redirect exists, leading to Elevation Of Privilege.

CVE-2017-11770 Denial Of Service Vulnerability

There is a security vulnerability in ASP.NET Core 1.0, 1.1 and 2.0 when the application is hosted through Windows Http.Sys where a malformed request can lead to a Denial Of Service. New projects created with ASP.NET Core 1.0 and ASP.NET Core 1.1 will now use package versions that include the above security updates. For existing projects, users can update their packages to newer versions using the Manage NuGet Packages dialog.


Release Notes Icon Visual Studio 2017 version 15.0 (26228.16)

released September 18, 2017

Issues Fixed in this Release


Release Notes Icon Visual Studio 2017 version 15.0 (26228.13)

released May 23, 2017

Issues Fixed in this Release

Offline install scenarios no longer require internet access.


Release Notes Icon Visual Studio 2017 version 15.0 (26228.12)

released March 31, 2017

Summary of Updates in this Release

We now support Xcode 8.3, iOS 10.3, watchOS 3.2, and tvOS 10.2 tools and APIs in the Xamarin.VS Extension for Visual Studio 2017.


Release Notes Icon Visual Studio 2017 version 15.0 (26228.10)

released March 28, 2017

Issues Fixed in this Release

These are the customer-reported issues addressed in build 26228.10:


Release Notes Icon Visual Studio 2017 version 15.0 (26228.09)

released March 14, 2017

Issues Fixed in this Release

These are the customer-reported issues addressed in build 26228.09:


Release Notes Icon Visual Studio 2017 version 15.0 (26228.04)

released March 7, 2017

Summary of Updates in this Release

Develop: Navigate, write, and fix your code fast

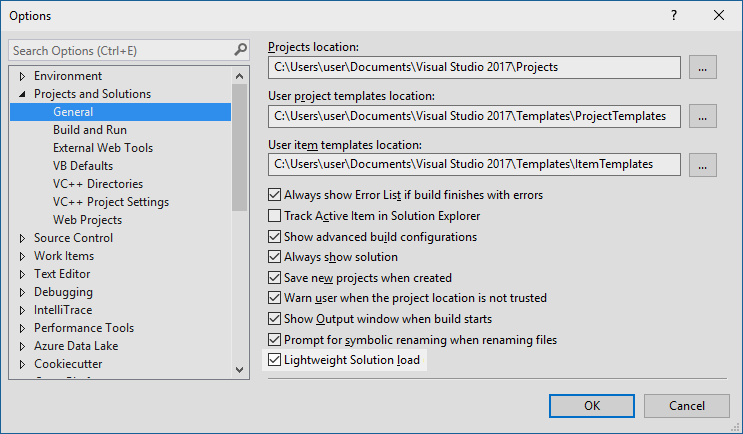

  • New Installation Experience has a reduced minimum footprint for faster and more customizable installations, as well as support for offline installs.
  • Visual Studio IDE provides a broad range of enhancements in Visual Studio 2017, including reduction in startup and solution load times, sign in and identity improvements, improved code navigation, open folder view, and connected services enable connections between your app and any service on-premises or in the cloud.
  • There are no breaking changes for Visual C++ between 2015 and 2017. Better C++14 conformance level, CMake support, build throughput, and productivity in the editor.

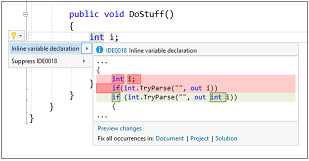

  • C# and Visual Basic extend support for new C# 7.0 and Visual Basic 15 language features, and introduces new refactorings that allow you to organize source code with one action.
  • F# support for F# 4.1 language features, improvements to the F# compiler and FSharp.Core, and a new editor based on Roslyn Workspaces.

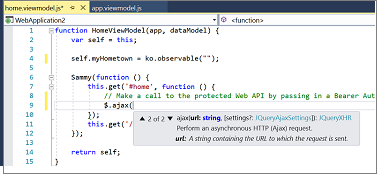

  • JavaScript and TypeScript has TypeScript 2.1 available for all TypeScript projects in Visual Studio. A new JavaScript language service is available and enabled by default.

Debug: Debug, profile, and diagnose with ease

Debugging and Diagnostics overhaul of the Exception Helper and faster code navigation with Run to Click. Plus, a new summary of your application events in the Diagnostic Tools window and several improvements to the CPU Tool.

Test: Write high-quality code with comprehensive testing tools

  • Live Unit Testing can now visualize unit testing results and code coverage live in the editor.

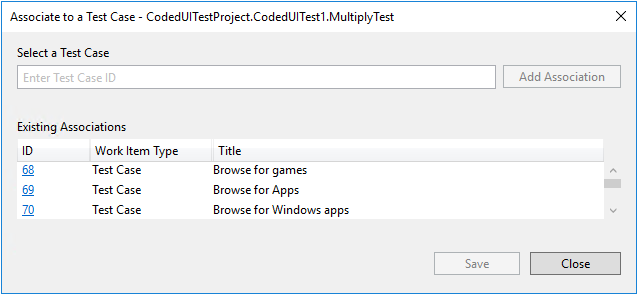

  • Testing Tools associate automation with test case work items using the Test Explorer.

Collaborate: Use version control, be agile, and collaborate efficiently

  • New Git features in Team Explorer and updated connect experience to do more with Git in Visual Studio 2017 and easily find the projects and repos to which you want to connect.
  • Enhanced Visual Studio Feedback Workflow has more collaborative Report-A-Problem. Search, follow, and vote to get latest updates on all feedback.

Extend: Customize to your liking by building your own extensions

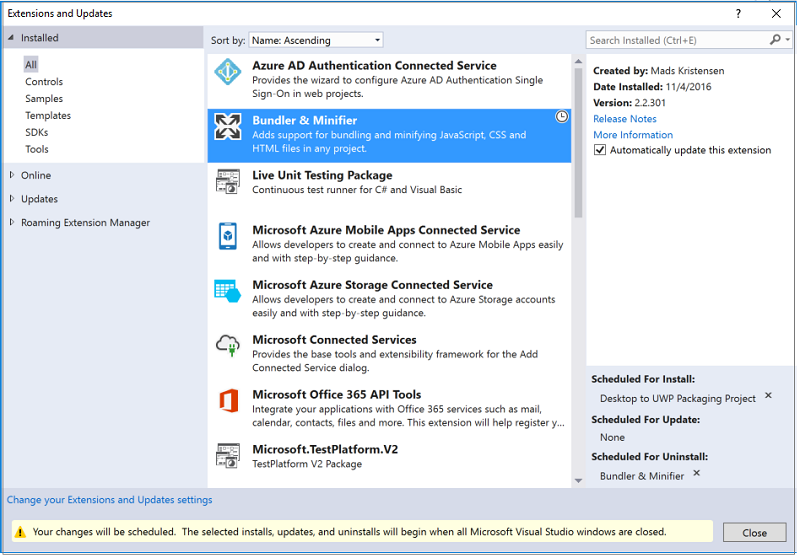

  • Visual Studio Extensions: Customize Visual Studio to your liking by building your own extensions.
  • Discoverability of Project and Item Templates: There is a breaking change with how Visual Studio consumes project and item templates to improve performance of template discovery.

Equip: Utilize tooling to increase productivity and explore new capabilities

  • .NET Core and ASP.NET Core: This contains the 1.0 final release of the new MSBuild based .NET Core Tools. Using Visual Studio 2017, you can create .NET Standard libraries, .NET Core apps/libraries, and ASP.NET web projects that use the new csproj format.
  • Tools for Universal Windows App Development: Updates include a new version of the .NET Native toolchain, .NET Core NuGet framework, new productivity tools, and support for the Windows 10 "Creators Update" SDK.
  • Xamarin: Xamarin 4.3 adds support for tvOS, while also improving iOS Assets Catalog support and the XML editing experience.

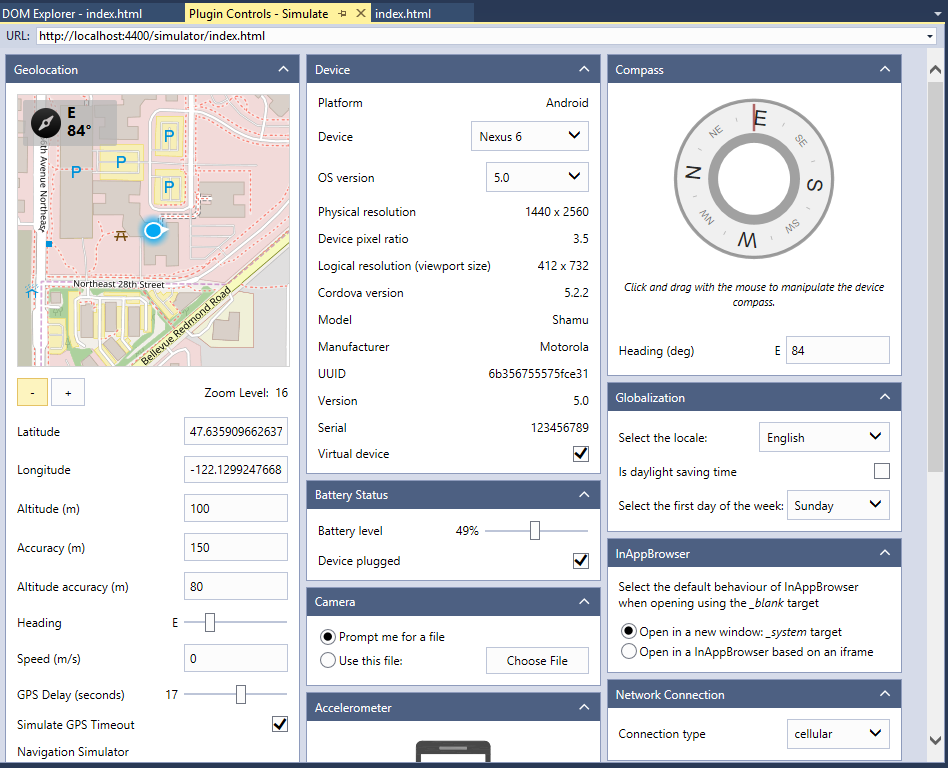

  • Visual Studio Tools for Apache Cordova: A new browser-based simulator enables you to code fast and see the results immediately.
  • Node.js Tools for Visual Studio: Updates focused on stability, performance, and overall product quality.
  • Visual Studio Tools for Unity: Visual Studio Tools for Unity 3 is now available with the "Game Development with Unity" workload from the new Visual Studio installer.
  • Redgate Data Tools: To extend DevOps capabilities to SQL database development, Visual Studio now includes Redgate Data Tools, comprising Redgate ReadyRoll Core, SQL Search, and SQL Prompt Core.
  • NuGet: NuGet now supports storing package dependency information directly in project files as package references, while maintaining the advances of transitive package references.
  • Tools for XAML Apps: The XAML runtime toolbar now lets you track focus. XAML productivity has been improved with XAML Edit & Continue, improvements to the XAML Editor, and performance optimizations.
  • Data Tools and SQL Server: The latest update of SQL Server Data Tools enables support for the newest features in Azure SQL Database and SQL Server 2016.
  • Developer Analytics Tools: Visual Studio 2017 includes Developer Analytics Tools v8.6 with many improvements to the Application Insights and HockeyApp features in Visual Studio.
  • Office Developer Tools for Visual Studio: Includes Office Developer Tools with the latest features and updates.
  • Live Architecture Dependency Validation: Real-time notifications of dependency validation diagrams (aka Layer diagrams).
  • Developer Command Prompt: Refactored scripts to support the new installation experience.
  • Azure SDK for .NET: Now available from the new Visual Studio installer.

Details of What's New in 15.0 (26228.04)

What's New in This Release Icon Visual Studio 2017 version 15.0 (26228.04) Details

released March 7, 2017

Installation Experience

We are delighted to introduce our new installer, which was designed from the ground up to:

  • Reduce the minimum footprint of Visual Studio.
  • Install more quickly, with less system impact, and uninstall cleanly.
  • Make it easier for you to select and install just the features you need.

When you first install Visual Studio 2017, you'll see the new experience (Figure 1):

The new installation experience in Visual Studio 2017
(Figure 1) The new installation experience in Visual Studio 2017

The smallest install is just a few hundred megabytes, yet still contains basic code editing support for more than twenty languages including source code control. Most users will want to install more. You can add one or more 'workloads' that represent common frameworks, languages, and platforms - covering everything from .NET desktop development to game development with Unity.

How to Update Visual Studio

To update Visual Studio, run the Visual Studio Installer and click the Update button.

Feedback on the New Installer

You can report problems or praise using the Report a Problem and Provide a Suggestion commands from the new installer client in the upper right corner of the title bar. We want to know if you experience errors installing, uninstalling, or modifying your installation, as well as abnormal installation times (e.g. hangs) or unexpected error messages.

Creating a Layout for Offline Installation and New Command-Line Installation Support

System administrators and other users can now create an offline layout of Visual Studio that contains all content needed to install the product without requiring internet access. This layout can be the full product, a subset of workloads and/or components, and one or more product locales. Note that creating the offline layout requires internet access. For more information, see Create an offline installation of Visual Studio 2017.

Installation Nickname

Visual Studio Enterprise and Community (among other products) can now be installed side-by-side on the same computer. To make identifying these installations simpler, you can specify a short name or "nickname". For example, if you were to install Visual Studio Enterprise, and then install Community, both would appear the same on the start menu. You can give the second one a nickname like "community", and the start menu items will appear with names such as "Visual Studio 2017 (community)" and "Developer Command Prompt for Visual Studio 2017 (community)".

Visual Studio IDE

IDE Improvements

  • Visual Studio has been optimized to reduce startup time and solution load time. The very first launch of Visual Studio is at least 50% faster.
  • Visual Studio will now monitor extension performance that impacts startup, solution load, or editing. You will receive alerts about poorly performing extensions through the Notification bar in the IDE. The new Performance Center (also available through Help > Manage Visual Studio Performance) lets you view not only extensions that are impacting performance, but also discover tool windows that are impacting your startup performance and change their startup load behavior.
  • The GitHub extension for Visual Studio can be selected in the new Visual Studio installer.
  • Reload All Projects has been replaced with Reload Solution to support better performance when switching branches external to Visual Studio. When using the Git command line to switch branches, choose Reload Solution after the branch has switched to achieve the maximum performance improvement.
  • File globbing capabilities for .NET Core and ASP.NET Core projects have been enhanced. See project file globbing for more details.
  • You are now automatically taken to the folder view of your repository after cloning. You can view files or open Solutions with the new Solution selection list in the Solution Explorer.
  • A new external service host is being introduced that will replace VSHub. This new service host is an external process and will appear in Task Manager as ServiceHub.Host.CLR.*.exe, as well as ServiceHub.Host.Node.x86.exe. This host will ultimately eliminate the localhost http traffic that was introduced with VSHub which should alleviate the noise Fiddler users reported.
  • Pre-release license expiration messages more clearly communicate the current license state.
  • The Account Settings dialog is now more accessible to screen readers.
  • Offline help is now available by installing the Help Viewer component from the Visual Studio installer.
  • You can now add and remove multiple user interface languages at any time using the Visual Studio installer on the Language Packs tab. You can select the current user interface language among those installed using Tools > Options > International Settings.
  • The version control status bar makes it easier to publish local repos to an SCC host and keep track of uncommitted (Figure 2) and un-pushed work (Figure 3).
Version Control - Unpublished commits example
(Figure 2) Version Control - Unpublished commits example
Version Control - No pending changes example
(Figure 3) Version Control - No pending changes example

Sign In and Identity Improvements

We introduced a new identity service that allows you to share user accounts across Microsoft developer tools. Within Visual Studio, this sharing includes features such as Team Explorer, Azure Tools, Windows Store publishing, and more. These features now share a common and consistent sign in experience.

Along with improvements to Visual Studio, we have completed the deployment of some improvements on the service side that allow users to safely stay signed in and eliminate the forced sign in every 12 hours. This addresses the most commonly reported sign in issue. Learn more about fewer Visual Studio prompts.

Start Page

The redesigned Start Page has new Open and Create facilities:

  • Acquire remote repos from VSTS or use our more prominent MRU to open local projects and solutions easily.
  • The Start Page MRU shows repos you've cloned on other machines so you can easily clone them on your current machine.
  • Create a new project directly from the Start Page with searchable templates and a list of recently used templates. Recently used templates will also roam across Visual Studio instances with a personalization account.
  • Quickly launch the new Clone from VSTS experience through the "Checkout from VSTS" option on the Start Page.
  • A dismissible "Get Started" section.
  • The News section is now collapsible:
    • Updated badge on newly added items in the News Feed.
    • Badge on News Feed expander if new items appear when the News Feed is collapsed.
  • Refined visual design to address feedback about truncated elements on smaller screens and utilization of empty space.

The new Start page is shown below (Figure 4):

Start Page with Get Started and News
(Figure 4) Start Page with Get Started and News

Improved Code Navigation

We made significant improvements to code navigation features in Visual Studio 2017:

  • Go To All (Ctrl+, or Ctrl+ T) lets you quickly find and go to files, types, methods, and other elements in your code. It allows you to locate items of any kind, even in large code bases. What's more, if you know what kind of item you're after, you can filter down easily. In C#, Visual Basic, and F#, we have also added "fuzzy" matching such that if you misspell a type name you will still get results. We've also modernized the Go To Line (Ctrl + G) experience. You can find the Go To family of commands at the top of the Edit Menu (Figure 5) and (Figure 6).
Go To Results Filtered
(Figure 5) Go To Results Filtered
Go To Line
(Figure 6) Go To Line
  • Find All References (Shift+F12) has been overhauled (currently for C#, Visual Basic, F#, and C++), providing advanced grouping, filtering, sorting, searching within reference results, and colorization for results (for C# and VB), so you can get a clear understanding of your references and get to the line of code you need with confidence. On mouse hover on a reference item, a tooltip is displayed with the context of the reference in source code (for C# and VB). By toggling on the Keep Results button in the toolbar, the next invocation of Find All References will populate reference results in a new window. This allows you to keep the current results in the existing window (Figure 7).
Find All Reference
(Figure 7) Find All Reference
  • Structure Guide Lines are now drawn in the editor so that you can easily visualize the structure of the code that you are working in. On mouse hover, a tooltip (Figure 8) is displayed containing the context of the current code block relative to its ancestor blocks. Structure Guide Lines are currently supported for C#, Visual Basic, F#, and XAML files, and for any files supported through TextMate grammars. This feature may be disabled in the Tools > Options dialog by unchecking the Show structure guide lines checkbox under the Text Editor > General category.
Structure Guide Lines
(Figure 8) Structure Guide Lines

Coding Convention Support through EditorConfig

The Visual Studio editor now supports EditorConfig, which allows developers to define and maintain consistent coding style conventions between different editors and IDEs. See documentation for more details, and .NET documentation for information on how to use .editorconfig files to govern your .NET code style.

Open Folder

Open Folder is a convenient way for you to work with code bases without projects and solutions. You can view the Open Folder functionality from the menu bar by clicking File > Open > Folder, and then select a folder to navigate. You can open and edit files using the Solution Explorer (Figure 9). Many popular languages have syntax highlighting and support for symbol navigation (GoTo).

The new Open Folder feature in Visual Studio IDE
(Figure 9) The new Open Folder feature in Visual Studio IDE

Additionally, some languages have advanced IntelliSense and debugging support directly from the folder:

  • C++ (CMake).
  • Node.js - JavaScript/TypeScript.
  • C# and VB.

You can build or debug by using F5 and the file context menu in the Solution Explorer. For the best experience, make sure you install the workload for the languages you are working with.

The folder view also supports the following:

  • Search across the code in your folder with GoTo (Ctrl+).
  • Scope the Solution Explorer folder view to subfolders.
  • Open folders in Explorer or the Command Prompt from the Solution Explorer.
  • Easily toggle between Solutions in the opened folder or repository with the Solution selection dropdown.
  • Configure debug and launch settings with launch.vs.json. Right-click on a file that can be debugged and select Debug and Launch Settings.
  • Configure tasks and customize build with tasks.vs.json. Right-click on any file and select Configure Task Settings.
  • Launch.vs.json and tasks.vs.json have IntelliSense in the JSON editor.

The performance of opening folders and toggling between folder view and solution view has been drastically improved.

Lightweight Solution Load

Lightweight Solution load enables faster loading of large Solutions. It can provide substantial improvements in Solution load time and memory usage for large Solutions. The feature is not enabled by default and can be enabled on a Solution-by-Solution basis or globally in the IDE. To enable globally, navigate to Tools > Options, select General under Projects and Solutions (Figure 10) or by searching for "Lightweight Solution load" with Quick Launch. The feature can be turned on and off for individual Solutions in the Solution properties pane.

The new Lightweight Solution load feature Visual Studio IDE
(Figure 10) The new Lightweight Solution load feature Visual Studio IDE

Lightweight Solution Load is best suited for large solutions that contain C# or a mix of C# and C++ projects. You may be prompted to enable the feature if we detect that you are working with large solutions.

Performance of full Solution builds has been improved substantially, now at parity with conventional Solution load.

Syntax Colorization, Autocomplete, Snippet, and "Navigate To" Search Support for More Languages

Building on the support we added in the Visual Studio 2015 updates, Visual Studio 2017 now supports syntax colorization and autocomplete for an increased range of languages. In addition, some of these languages also support navigation through "Navigate To" (Ctrl+), and/or Code Snippets.

Files for the languages noted below, support these features in the new Visual Studio Core Editor even when no workloads have been installed to explicitly support the language in question. If a workload that provides language support is installed (e.g., the .NET Desktop Application Development workload, the Windows Desktop App Development with C++ workload, etc.), then more extensive language support including IntelliSense and other advanced language features like Light Bulbs may be provided.

Language file types listed by support level:

  • Supports only Syntax Colorization and Autocomplete:
    • Bat, Clojure, CoffeeScript, CSS, Docker, F#, Groovy, INI, Jade, Javadoc, JSON, LESS, LUA, Make, Markdown ++, Objective-C, Perl, PowerShell, Python, Rust, ShaderLab, SQL, Visual Basic .NET, YAML.
  • Supports Code Snippets (in addition to Syntax Colorization and Autocomplete):
    • CMake, C++, C#, Go, Groovy, HTML, Java, Javadoc, JavaScript, Lua, Perl, PHP, R, Ruby, Shellscript, Swift, XML.
  • Supports Navigate To (in addition to Syntax Colorization and Autocomplete):
    • C++, C#, Go, Java, JavaScript, PHP, TypeScript, Visual Basic.

Getting Started with Project Overview Pages

We have introduced a completely new getting started experience for freshly created projects. We've replaced current getting started pages with an Overview tab in our new App Configuration Designer and focused the page on the actions that will get you up and running quickly! This has been enabled in ASP.NET 4.x ASP.NET Core, and Cordova projects (Figure 11).

(Figure 11) Project Overview
(Figure 11) Project Overview

Connecting to Services Using Connected Services

In a previous release, this feature was named Service Capabilities. We changed the name to Connected Services.

Connected Services is the modern "Add Connected Service" or "Add Service Reference" feature of Visual Studio 2017. The Connected Services feature makes it easier to connect your app to services. A new node called "Connected Services" is available in the Solution Explorer for Web and Mobile project types. Double-clicking this node will open a new full page tab in Visual Studio where you can discover popular Microsoft services you can connect to.

Selecting a service on the Connected Services page (Figure 12) will invoke the Connected Services Wizard that configures your project, and downloads the necessary NuGet packages to get you started coding against your service quickly and painlessly.

Connected Services
(Figure 12) Connected Services

In-Product Acquisition of Tools and Features

Visual Studio 2017 makes it easy to acquire additional workloads and components without leaving the IDE (Figure 13). Leverage Quick Launch to find and kick-off the Visual Studio Installer for any Workload or Individual component.

In-product acquisition through Quick Launch
(Figure 13) In-product acquisition through Quick Launch

If you can't find the templates you're looking for, the Visual Studio Installer can also be opened from within the New Project dialog (Figure 14).

In-product Quick Launch dialogue
(Figure 14) In-product Quick Launch dialogue

Visual C++

Visual Studio 2017 brings many updates and fixes to the Visual C++ environment. Thank you for reporting bugs! We've fixed over 250 bugs and reported issues in the compiler and tools, many submitted by customers through Microsoft Connect. In this release, we worked on performance improvement of the STL. The new SQLite-based database engine is now being used by default. This will speed up database operations like Go To Definition and Find All References, and will significantly improve initial solution parse time. We now provide a more granular installation experience for installing the original C++ workload. We have added selectable components that enable you to install just the tools that you need. CMake support in Visual Studio is ready for primetime! Load your CMake projects directly into Visual Studio and start coding now. "Open Folder" C++ experience has been improved – so bring your source code to Visual Studio without the need to create any Visual Studio solutions and projects. Navigate To is now known as Go To, an umbrella term for a set of new navigation filters. This will make it easier to find the right results, especially in larger code bases.

C++ Code Analysis

The C++ Core Checkers for enforcing the C++ Core Guidelines are now distributed with Visual Studio. Simply enable the checkers in the Code Analysis Extensions dialog in the project's property pages (Figure 15) and the extensions will be included when you run code analysis.

CppCoreCheck properties page
(Figure 15) CppCoreCheck properties page

C++ Compiler

We updated the C++ compiler and standard library with enhanced support for C++11 and C++14 features, as well as preliminary support for certain features expected to be in the C++17 standard. With support for generalized constexpr and NSDMI for aggregates, the compiler is complete for features added in the C++14 Standard. Note that the compiler still lacks a few features from the C++11 and C++98 Standards. Visual Studio 2017 allows using /sdl with /await. We removed /rtc limitation with Coroutines.

This release brings several improvements in optimization and code generation. Some notable improvements include:

  • Improved code generation of loops: support for automatic vectorization of division of constant integers, better identification of memset patterns.
  • Improved code security: improved emission of buffer overrun compiler diagnostics, and /guard:cf now guards switch statements that generate jump tables.
  • The /debug:fastlink option has been improved to provide 30% faster link times on large components than in Visual Studio 2015.
  • When using co-routines, the Experimental keyword "yield" (available under /await switch) has been removed. Your code should be updated to use the "co_yield” instead. For more information, see the Visual C++ Team blog.

C++ Libraries

  • [STL] Performance improvement of basic_string.
  • [STL] Added <any>, <string_view>, apply(), make_from_tuple().
  • [STL] std::vector has been overhauled for correctness and performance.
  • [STL] The STL now avoids dereferencing null fancy pointers.
  • [STL] Added <optional>, <variant>, shared_ptr::weak_type, and <cstdalign>.
  • [STL] Enabled C++14 constexpr in min/max/minmax(initializer_list) and min_element/max_element/minmax_element().
  • [STL]Improved the performance of std::string/std::wstring's move constructors by more than 3x.
  • [STL] For a complete list of STL improvements see: Visual C++ Team blog.
  • [ATL] Yet another set of name-lookup conformance fixes.
  • [ATL] Existing move constructors and move assignment operators are now properly marked as non-throwing.
  • [ATL] Un-suppress valid warning C4640 about thread safe init of local statics in atlstr.h.
  • [ATL] Thread Safe Initialization of local statics was automatically turned off in the XP toolset when [using ATL AND building a DLL]. This is no longer the case. You can add /Zc:threadSafeInit- in your Project settings if having thread safe initialization off is desired.
  • [AMP] Audited library and fixed typos.
  • [VCRuntime] New header 'cfguard.h' for Control Flow Guard symbols.

C++ IDE

Configuration change performance is now better for C++ native projects and much better for C++/CLI projects. When a solution configuration is activated for the first time it will now be faster and all subsequent activations of this solution configuration will be almost instantaneous.

The new SQLite-based database engine is now being used by default. This will speed up database operations like Go To Definition and Find All References, and will significantly improve initial solution parse time. The setting has been moved to Tools > Options > Text Editor > C/C++ > Advanced (it was formerly under ...C/C++ > Experimental).

We improved IntelliSense performance on projects and files not using precompiled headers – an Automatic Precompiled Header will be created for headers in the current file.

Other updates include:

  • We added error filtering and help for IntelliSense errors in the error list (Figure 16). Clicking on the error column now allows for filtering (Figure 17). Also, clicking on the specific errors or pressing F1 will launch an online search for the error message.
Error List
(Figure 16) Error List
Error List Filtered
(Figure 17) Error List Filtered
  • Added the ability to filter Member List items by kind (Figure 18).
Member List Filtered
(Figure 18) Member List Filtered
  • Added a new experimental Predictive IntelliSense feature that provides contextually-aware filtering of what appears in the Member List.

  • The new Find All References UI includes information about whether you are reading from or writing to a variable in the results for C++ code.

  • The Dot-to-Arrow IntelliSense feature has been moved from experimental to advanced, and is now enabled by default. The editor features Expand Scopes and Expand Precedence have also been moved from experimental to advanced.

  • The experimental refactoring features Change Signature and Extract Function are now available by default.

  • We enabled the new experimental feature for C++ projects 'Faster project load'. The next time you open a C++ project it will load faster, and the time after that it will load even faster!

  • Improvements to the Open Folder experience. Edit, build, and debug your non-MSBuild C++ project by loading your sources through "Open Folder". Customize the experience through these json files:

    • CppProperties.json to customize the IntelliSense and browsing experience.
    • Tasks.vs.json to customize the build steps.
    • Launch.vs.json to customize the debugging experience.
  • C++ IntelliSense will work without the need to create a CppProperties.json file in the root folder. Along with this, we've added a new dropdown to allow users to easily switch between configurations provided by CMake and CppProperties.json files. CMake support in Open Folder: opening CMake projects with "Open Folder" will automatically configure the environment for C++ editing, building and debugging.

  • Further configuration is supported through a CMakeSettings.json file that sits in the same folder as the CMakeLists.txt file (Figure 19).

CMake Open Folder
(Figure 19) CMake Open Folder

C++ Installation Workloads

  • Windows Desktop Development with C++:

    • We now provide a more granular installation experience for installing the original C++ workload. We have added selectable components that enable you to install just the tools that you need. Please note that the indicated installation sizes for the components listed in the installer UI are not accurate and underestimate the total size.

    • To successfully create Win32 projects in the C++ desktop workload, you must install both a toolset and a Windows SDK. Installing the recommended (selected) components "VC++ 2017 v141 toolset (x86, x64)" and "Windows 10 SDK (10.0.14393)" will ensure this will work. If the necessary tools are not installed, projects will not be created successfully and the wizard will hang.

  • Linux Development with C++:

    • The popular extension Visual C++ for Linux Development is now part of Visual Studio. This installation provides everything you need to develop and debug C++ applications running on a Linux environment.
  • Game Development with C++:

    • Use the full power of C++ to build professional games powered by DirectX or Cocos2d.
  • Mobile Development with C++ (Android and iOS):

    • You can now create and debug mobile apps using Visual Studio that can target Android and iOS.
  • Universal Windows Platform development:

    • C++ comes as an optional component for the Universal Windows Platform development workload. Upgrading C++ projects currently must be done manually. If you open a v140-targeted UWP project in Visual Studio 2017, you need to select the v141 platform toolset in the project property pages if you do not have Visual Studio 2015 installed.

Clang/C2 Platform Toolset

The Clang/C2 toolset that ships with Visual Studio 2017 now supports the /bigobj switch, which is crucial for building large projects. It also includes several important bug fixes, both in the front-end and the back-end of the compiler.

C# and Visual Basic

Language Extensions

This release introduces support for C# 7.0 and Visual Basic 15 language features, including:

For C#:

  • Task-like return types for async methods: this introduces the ability to return any task-like type from an async method. Previously these return types were constrained to Task<T> and Task.
  • Value tuples introduce language support for using tuples to temporarily group a set of typed values. To learn more, please review the design notes on GitHub.
  • Nested local functions extend the language to support declaration of functions in a block scope.
  • Pattern matching extensions enable many of the benefits of algebraic data types and pattern matching from functional languages.
  • Ref returns enable functions to return values by reference.

For Visual Basic:

  • Value tuples introduce language support for using tuples to temporarily group a set of typed values: Dim point As (x As Integer, y As Integer) = GetOffset().
  • ByRef return consumption extend the language to support consumption of functions and properties from libraries which have ByRef returns.
  • Binary literals and digit group separators allow native representation of binary numbers. This is super convenient for bitmasks and flags enumerations: &B1001_0011.

For more information, follow our language design on the CSharpLang GitHub and VBLang GitHub to learn more about these and other proposed language extensions.

Quick Actions and Refactorings

Visual Studio provides lots of refactorings to help you be productive and make your code more readable. Here are just a few:

  • Simplify object initialization with an initializer (Figure 20).
Use object initializer
(Figure 20) Use object initializer
  • Move out variable declarations inline, leveraging a new C#7 feature (Figure 21).
Move out variable inline
(Figure 21) Move out variable inline
  • Simplify null-checks and throw-expressions using null-coalescing operator, leveraging a new C#7 feature (Figure 22).
Use throw expression with null-coalescing operator
(Figure 22) Use throw expression with null-coalescing operator
  • Move type to matching file: Extract a type from one file and put it in another file with a matching name with one click through Ctrl+.
  • Sync file and type name: If your file and type name are out of sync, you can use Ctrl+.
  • Convert String.Format to string interpolation: take advantage of the C# 6 language feature with this Quick Action.
  • Add missing case(s) to a C# switch or a Visual Basic Select.
  • Convert property to a method, and vice versa.
  • Add Package Reference: Offers to auto-retrieve and install a NuGet package (and add the using/Import) for an unrecognized type. To enable this feature, go to Tools > Options > Text Editor > [C# / Basic] > Advanced > Suggest usings for types in reference assemblies / Suggest usings for types in NuGet packages.
  • Make async methods synchronous where applicable.
  • Support for "fuzzy" matching for misspelled types.
Coding Convention Configuration and Enforcement

Building on Visual Studio's support for EditorConfig, we worked with the community to add .NET code style settings to the file format. This means that you can configure your team's code style conventions, check them into source control, and have violations appear live in the editor as developers are typing. You can see all the code style options in the Roslyn repo's .editorconfig or in the documentation. You can continue to configure your machine-specific code style settings in Tools > Options > Text Editor > [C#/Basic] > Code Style and these rules are overridden when an EditorConfig is present and conflicts.

We also added and updated style analyzers to help you customize and enforce coding conventions on your team, including:

  • Naming style rules.
  • Use of var or explicit types.
  • Use of this. or Me. on member access.
  • Use expression-bodies or blocks.
  • Use pattern-matching for cast and null checks.
  • Use explicit tuple names.
  • Simplify null-checking with throw-expressions, conditional delegates, coalescing expressions, and null propagation.
  • Require braces.

Note: several of these code style rules are configured as Suggestions in the editor by default (Figure 23).

Configure code style preferences and enforcement from EditorConfig
(Figure 23) Configure code style preferences and enforcement from EditorConfig

IntelliSense Improvements

This release also introduces improvements to IntelliSense that will make you more productive when working in a large solution or an unfamiliar codebase. We have added an icon tray to IntelliSense that enables you to filter the member list by type (e.g., methods, properties, classes, etc.). Each filter toggle has an associated keyboard shortcut which you can discover by hovering over the icon. To enable this feature, go to Tools > Options > Text Editor > [C# / Basic] > IntelliSense and check the options for filtering and highlighting (Figure 24).

IntelliSense Completion Filtering
(Figure 24) IntelliSense Completion Filtering

Other Editor Improvements

  • You can now split a long string into multiple concatenated strings by positioning the cursor mid-string and pressing Enter.
  • We have done considerable work to improve responsiveness of the IDE in presence of background operations that compute diagnostics and CodeLens information.

F#

Support for F# 4.1 Language Features

  • Struct Tuples which interop with C# 7/VB 15 Tuples.
  • Byref returns which support consuming C# 7 ref returns.
  • Struct Record support with the [<Struct>] attribute (by Will Smith).
  • Struct Discriminated Union support with the [<Struct>] attribute.
  • A new Result<'TSuccess, 'TFailure> type, with supporting functions in FSharp.Core (by Oskar Gewalli).
  • The fixed keyword, which supports pinning a pointer-type local on the stack.
  • Underscores in numeric literals (by Avi Avni).
  • Caller Info Attribute Arguments (by Lincoln Atkinson and Avi Avni).
  • Mutually Referential Types and Modules within the same file through namespace rec and module rec.
  • Implicit "Module" suffix on modules which share the same name as a type.

Improvements to the F#  Compiler and FSharp.Core

(Many done by the F# community)

A New Editor Based on Roslyn Workspaces

(Many new IDE features contributed by the outstanding F# community)

Additional Contributions by the F#  Community

We would like to thank the entire F# community for dogfooding builds of F# tooling in Visual Studio 2017, filing bugs, driving discussions, and implementing bug fixes and features. The success of F# in Visual Studio 2017 truly would not have been possible without the F# community. Please see the full list of contributors.

JavaScript and TypeScript

TypeScript 2.1

TypeScript 2.1 is available for all TypeScript projects in Visual Studio. TypeScript 2.1 delivers down-level async/await, better type inference, local object expansion, and more! To read more about the release, check out the release blog post or the full change log.

JavaScript Language Service

A new JavaScript language service (Figure 25) is available and enabled by default. The new service provides richer IntelliSense and adds IntelliSense support for JSDoc comment annotations, ES6, and Common JS module formats. It also supports JSX syntax and features from ES2016, such as generators, modules, and decorators. For more information, see this blog post or the JavaScript IntelliSense documentation on GitHub.

Rich JavaScript IntelliSense for jQuery
(Figure 25) Rich JavaScript IntelliSense for jQuery

Performance Improvements

Improving performance was one of the greatest focuses of this release. Along with several optimizations to improve memory and responsiveness characteristics, the entire JavaScript/TypeScript language service has been moved to a satellite process outside of devenv.exe to provide memory relief to the largest Visual Studio projects. You will see lower memory consumption from the Visual Studio process and less out of memory crashes when working with huge JavaScript projects.

Debugging and Diagnostics

Run to Click

Simply click the icon next to a line of code while debugging to run to that line (Figure 26). No longer set temporary breakpoints or perform several steps to execute your code and stop on the line you want. Now while stopped at a break state under the debugger, the Run to Click icon subtly appears next to the line of code that your mouse is hovered over. Move your mouse to the icon and click the button, now your code will run and stop on that line the next time it is hit in your code path. You can turn it off from the main menu by clicking Debug > Options > Enable Run.

Run to Click Icon
(Figure 26) Run to Click Icon

Attach to Process Filter

Easily search in the Attach to Process dialog (Figure 27) to quickly find the process you want to attach the debugger to. The list of running processes will be filtered to items matching your search. The search filter is sticky and will remember your previous search when you reopen the dialog.

Attach to Process Filter
(Figure 27) Attach to Process Filter

Reattach to Process

You can now quickly reattach to processes you were previously debugging. Triggering the new Debug/Reattach to Process (Shift+Alt+P) command will immediately try to attach the debugger to the last processes from the previous debugging session that were invoked from the Attach to Process dialog. The debugger will reattach to processes by first attempting to match the previous process ID and then by matching to the previous process name. If no matches are found or there are multiple processes found with the same name, then the "Attach to Process" dialog will appear so you can select the intended process.

The New Exception Helper

Use the new Exception Helper (Figure 28) to view your exception information at a glance in a compact non-modal dialog with instant access to inner exceptions. While diagnosing your NullReferenceException, you can now quickly see what was null from right inside the Exception Helper. You can now exclude breaking on exception types thrown from specific modules by clicking the checkbox to add a condition while stopped at the thrown exception. Read this blog post for more detailed information on the new benefits of the Exception Helper.

The New Exception Helper dialog
(Figure 28) The New Exception Helper dialog

Add Conditions to Exception Settings

When you configure the debugger to break on thrown exceptions, you can add conditions so that the debugger will only break when exceptions are thrown in specified modules (Figure 29).

Edit Conditions dialog box
(Figure 29) Edit Conditions dialog box

Debugger Accessibility Improvements

You can now more effectively use several of the Debugger windows (Call Stack, Locals, Autos, Watch, and Quickwatch) with screen readers and for other accessibility needs.

IntelliTrace Events for .NET Core

IntelliTrace now supports MVC, ADO.NET, and HttpClient events for ASP.NET Core apps. These will appear in the Events tab in the Diagnostic Tools Window.

Diagnostic Tools Window Updates

When you start a debugging session, you will see a new Summary view (Figure 30) of your application in the Diagnostic Tools Window. From here, you will be able to:

Summary tab in Diagnostics Tools Window
(Figure 30) Summary tab in Diagnostics Tools Window

Performance Profiler Updates

The Performance Profiler can now attach to a running process. The CPU Usage tool, GPU Usage tool, and Performance Wizard now support attaching to a running process.

CPU Usage Tool Updates

Several improvements have been made to the CPU Usage Tool:

  • Better External Code support - The CPU Tool now gives you better insights into the costs of library and framework functions when called by user code.
  • Functions view (Figure 31) - A view that ranks functions by their CPU cost.
Functions List
(Figure 31) Functions List
  • Caller/Callee View (Figure 32) allows you to investigate costs of function calls made to and from a selected function.
Caller / Callee View
(Figure 32) Caller / Callee View
  • Source View shows a function's source code when the function is selected in the CPU Tool.

Chrome Debugging Support

When you start debugging ASP.NET projects and choose Google Chrome as your browser, Visual Studio will debug your JavaScript running in Chrome. If you prefer to use the in-browser development tools instead, you can disable this feature under Tools > Options > Debugging.

Live Unit Testing

Live Unit Testing (Figure 33) is a capability in the Visual Studio 2017 Enterprise edition that displays unit test results and code coverage live in the editor. It supports MSTest, xUnit, and Nunit for C# and VB projects targeting .NET Framework.

Live Unit Testing
(Figure 33) Live Unit Testing

See the Live Unit Testing blog for more details.

Testing Tools

Associate automation with test case work items using Test Explorer

You can now associate automation with test case work items (Figure 34) by selecting a test method in the Test Explorer. This new experience also allows you to view any existing associations for the chosen test method.

Simply right click a test in the Test Explorer...

Test Explorer Associate Automation
(Figure 34) Test Explorer Associate Automation

...and provide a test case ID to create an association (Figure 35).

Associate Automation
(Figure 35) Associate Automation

In previous versions of Visual Studio, this could be done using the work item form. The work-item form based experience can be enabled by turning on the compatibility mode using Tools | Options (Figure 36).

Work Item Form Compatibility mode
(Figure 36) Work Item Form Compatibility mode

Team Explorer

New Git Features

We've added new Git features to Visual Studio 2017 that allow you to do more of your end-to-end workflow without leaving the IDE. You can easily view the diff for outgoing commits, perform a force push to complete a rebase or push an amended commit, unset your upstream branch, and continue a patch rebase from Visual Studio. Additionally, we have moved to git.exe. This allows us to provide the most up-to-date features. We support SSH, respect your config options, and show in Team Explorer exactly what you see in the command line. To learn more about these features, check out the blog post.

Connect to VSTS/TFS

On the Visual Studio start page and in Team Explorer, the process for connecting to projects and cloning repos in VSTS/TFS has been personalized and streamlined, making it faster and easier to find the projects and repos to connect to. Our brand new Connect page shows only the projects and repos that you have mapped and cloned across all your VSTS/TFS servers (rather than every repo for every project). Additionally, you no longer need to connect to a project before cloning repos.

When you launch the dialog to connect to VSTS and TFS, you will see the redesigned UX. You will see any TFS servers you've added followed by all VSTS servers, projects, and repos for your selected user account. The results are listed in a tree to allow for improved navigation. You can connect to collections or projects in addition to repos.

Work Item Forms

When you connect to Visual Studio Team Services from Visual Studio 2017 and open a work item, the work item form will appear in your web browser (Figure 37). However, if you connect to Team Foundation Server 2015 or earlier, you will see the legacy work item forms.

Work Item Form in Team Explorer
(Figure 37) Work Item Form in Team Explorer

Enhanced Visual Studio Feedback Workflow

Visual Studio 2017 includes an upgraded feedback experience for better follow-up and collaboration. As part of this upgrade, you will notice a more collaborative Report-a-Problem experience in Visual Studio supplemented by a comprehensive web portal for a complete end-to-end feedback solution. You can now search, follow, vote, and get the latest updates on all feedback you have provided through Visual Studio IDE's Report a Problem feature. These enhanced experiences address much of the feedback we received from you and enable bidirectional communication between our teams and you.

Visual Studio Extensibility

New Extensibility Format

The new installer technology in Visual Studio 2017 gives you greater control over the tools that are installed. Some users may install just the core Visual Studio editor while others may install several workloads. To ensure that the prerequisite features and extensions required are installed, extension authors will now be able to specify the individual components required by their extension in the manifest.

Users will be warned when trying to install an extension that was not built using the new VSIX format. The old VSIX format does not specify prerequisites needed and may fail to work if those prerequisites are unavailable in Visual Studio 2017. The new VSIX format is backwards compatible and can target past versions of Visual Studio up until Visual Studio 2012.

The VSIX manifest designer has been updated to reflect the changes to the manifest. In the prerequisite tab (Figure 38), extension developers can find a list of installed components to specify as a prerequisite for their extension.

Prerequisite tab
(Figure 38) Prerequisite tab

During the installation of the extension, the VSIX installer (Figure 39) will indicate which components are missing and will install them alongside the extension.

VSIXInstaller
(Figure 39) VSIXInstaller

Modify Extensions in Bulk

In the Extensions and Updates dialog (Figure 40), you can now schedule multiple extensions for installation, update, and uninstallation before needing to restart Visual Studio. In the lower right corner, there is a summary of the scheduled tasks. To remove a scheduled modification, click the X next to an extension that is currently scheduled to install.

Extensions and Updates Dialog
(Figure 40) Extensions and Updates Dialog

Once the VSIX Installer has detected that all Visual Studio windows are closed, it will start to complete the scheduled modifications (Figure 41).

Batched Modification Installer
(Figure 41) Batched Modification Installer

Ngen Support

You can now choose to install assemblies using Ngen (Figure 42).

NGEN Properties
(Figure 42) NGEN Properties
  • Ngen - Whether or not to use Ngen on the assembly.
  • Ngen Application - The application to pass into Ngen through the /ExeConfig switch.
  • Ngen Architecture - The target architecture for the native image. Options are: x86, x64, and all.
  • Ngen Priority - Ngen priority level.

Install Files Outside of Extension Directory

You can now choose to install files to a select list of folders that are outside of the extension directory (Figure 43).

VSIX Properties
(Figure 43) VSIX Properties
  • Include in VSIX - Include the file in your VSIX.
  • Install Root - The root directory to install the file. Options are: Default (install inside the extension directory), PublicAssemblies, ReferenceAssemblies, MSBuild, Schemas, Licenses, RemoteDebugger, and VSTargets.
  • Target Path - The name of the file to be installed on the user's machine.
  • VSIX Sub Path - The sub path under the Install Root where the file will be installed.

Roaming Extension Manager

New in Visual Studio 2017, the Roaming Extension Manager helps you keep track of your favorite extensions across all of your development environments. Roaming your extensions keeps track of the extensions you have installed by creating a synchronized list in the cloud.

When you sign into Visual Studio, you can quickly see a list of your extensions from Tools > Extensions and Updates, and click Roaming Extension Manager (Figure 44). It tracks which extensions you have installed and lets you choose which ones are added to your Roaming list. With new extensions appearing in the gallery every day, this tool makes it quick and easy to set up each dev environment with your favorite extensions.

The new Roaming Extension Manager in the Visual Studio IDE
(Figure 44) The new Roaming Extension Manager in the Visual Studio IDE

When using this feature, you will notice 3 icon types:

  • Roamed Icon Roamed Icon - Denotes an extension that is part of your Roaming List, but not installed on this machine. You can install these through the "Download" button.
  • Roamed and Installed Icon Roamed and Installed Icon - Denotes all extensions that are part of your Roaming List and installed in this environment. If you decide you do not want to roam, you can remove these through the "Stop Roaming" button.
  • Installed Icon Installed Icon - Denotes all extensions that are installed in this environment, but are not part of your Roaming List. Extensions can be added to roaming list through the "Start Roaming" button.

These icons will show you the current status of your list. You can have any extension in any state, so customize to your heart's content! Or let us do it for you! Any extension downloaded while you are signed in will be added to your list as Roamed and Installed and will therefore be part of your Roaming list, giving you access to it from any machine!

Discovery of Project and Item Templates

Starting in Visual Studio 2017, there is a breaking change with how Visual Studio consumes project and item templates to improve the performance of template discovery. The new discovery mechanism now requires all item and project templates following "vstemplate" schema to be defined in template manifest files. Visual Studio templates that you do not define in a template manifest file will no longer be visible in New Project or New Item dialogs. While the new extensibility tooling will generate a manifest during VSIX build time, if you have Visual Studio templates released as part of an MSI package, you must manually generate template manifest files for those templates. For more information, see the Upgrading Custom Project and Item Templates for Visual Studio 2017 MSDN page.

.NET Core and ASP.NET Core

This contains the 1.0 final release of the new MSBuild based .NET Core Tools. Using Visual Studio 2017, you can create .NET Standard libraries, .NET Core apps/libraries and ASP.NET web projects that use the new csproj format.

.NET Core tooling is automatically included in the "ASP.NET and web development" workload and an optional component in the ".NET desktop development" workload in the installer. If you only want to develop .NET Core applications for cross platform use, you can install just the .NET Core and ASP.NET Core tools using the ".NET Core cross-platform development" workload from the "Other Toolsets" section of the installer.

High-level features in this release include the following:

  • MSBuild support for .NET Core projects, with a simplified csproj project format that makes it easier to edit by hand, without the need to unload the project.
  • Editing .NET Core .csproj file is as simple as a right click on project in Solution Explorer and choosing "Edit".
  • Support for file wildcards in project file, where you do not have to enumerate all the source code file names, which keeps the csproj file compact in size.
  • NuGet package references are now part of the csproj file, consolidating all project references in one file.
  • Interop between .NET Core, .NET Standard and .NET Framework projects. For example, a .NET Core project can add a project-to-project reference to a .NET Standard project.
  • Cross-target multiple target frameworks in one project.
  • Existing project.json .NET Core projects will automatically migrate to csproj when opened in Visual Studio, or you can manually migrate them using the .NET Command Line Interface (CLI).
  • Easily configure continuous build integration for your ASP.NET Core application with Docker support and continuous build delivery to your Azure Container Services from within the Visual Studio IDE.

See the .NET blog for more details.

Tools for Universal Windows App Development

Updated .NET Native Toolchain

This updated .NET Native toolchain adds several optimizations to improve runtime performance for managed UWP apps in Visual Studio. The release includes more than 600 bug fixes and features to address key customer feedback and improve the overall quality of the toolchain.

5.3.0 Microsoft.NETCore.UniversalWindowsPlatform Package

This update to the .NET Core NuGet framework libraries addresses a number of key issues reported by customers. Existing UWP projects can use the NuGet reference manager to update to this new version. In addition, the new .NET Core package includes the .NET Native toolchain.

Windows 10 Anniversary Update SDK and Emulator

The Windows SDK and Windows Phone emulator for the Windows 10 Anniversary Update are included in this release.

  • UI Elements created from the Toolbox will now be created with fewer XAML Tags, resulting in cleaner, more readable XAML.
  • A new options tool on the XAML Designer allows the developer to select the UI theme and High Contrast settings to be previewed on the design surface.
  • The value editors in the Properties window now accept simple mathematical equations, such as "60+20". The equations will be immediately evaluated (in this case, 80) and their resulting value put into the XAML.

Manifest Designer Capability for Creating Visual Assets

The Manifest Designer (Figure 45) has undergone a visual refresh, and now has the added capability of generating visual assets for your UWP apps. You can now use a single source image to create tiles, logos, icons, and splash screens at any or all scales to fit every type of device your app targets.

Manifest Visual Asset Generator
(Figure 45) Manifest Visual Asset Generator

UI Analysis

The Universal Windows platform tooling now has the ability to detect common accessibility and performance related issues. By enabling the "UI Analysis" tool in the Select Tools menu of the Diagnostic Tools window, these issues will be reported along with links to helpful articles explaining how and why the issues should be addressed. Developing with UI Analysis enabled brings UI performance and accessibility to the forefront of your application development.

Xamarin

Xamarin 4.4 is included in Visual Studio 2017. For more information, see the Xamarin release notes.

This Xamarin for Visual Studio 4.4 release updates Xamarin.iOS 10.8 and Xamarin.Android 7.2 releases.

Bug fixes for Xamarin

This release includes the following fixes:

  • iOS Extension apps fail to build with error "cannot read Entitlements data".(4.4.0.31)
  • Includes symbols for Watson reports.(4.4.0.6)
  • Android deployment fails if solution also contains a Wix project.(4.3.1.39)
  • Deadlock opening some iOS projects.(4.3.1.39)
  • Breakpoints won't hit on second-level PCL references.(4.3.1.39)
  • Fixes iOS issue due to missing CodeSignNativeLibraries task.(4.3.1.39)
  • Error opening storyboard after connecting to Mac server.(4.3.1.39)
  • Android class library project should only include "Compile using Android Version" on Property page.(4.3.1.39)
  • Visual Studio hangs when going to the "Tools->Options->Xamarin->Other" tab.(4.3.1.39)
  • Visual Studio hangs loading a cross-platform solution in some environments.(4.3.1.1)
  • Microsoft.Csharp not referenced in Visual Studio Project Templates.(4.3.1.1)
  • Cannot connect to Mac server if configured User Shell doesn't use bash syntax.(4.3.1.1)
  • Submit to Test Cloud option missing (fixed on Visual Studio 2013 and Visual Studio 2015).(4.3.1.1)
  • Debugger gets confused when Variable/Property name is same as Class name of something else.(4.3.1.1)
  • Image set from asset catalog can't be renamed.(4.3.1.1)
  • The 'Resources' folder is being forcibly hidden in watch extension projects.(4.3.1.1)
  • "Assets.xcasset" folder within "Resources" is not being hidden for tvOS projects.(4.3.1.1)

Visual Studio Tools for Apache Cordova

This Visual Studio 2017 release includes the following improvements:

  • Cordova simulate - A new browser-based simulator enables you to code fast and see the results immediately in the browser (Figure 46). Live reload, plugin simulation, and support for Ionic Framework give Visual Studio the fastest developer workflow on the market.
Cordova simulate
(Figure 46) Cordova simulate
  • Support for iOS 10 & XCode 8 - An update of the remotebuild server agent for iOS development now includes support for XCode 8.

  • Error colorization - Because diagnosing build failures often requires developers to read through build output, we have started to colorize errors in the build output pane for easier reading (Figure 47). Moreover, we have added headers to delineate steps in the build process to help developers identify where in the build process the failure occurred.

Colorized Errors
(Figure 47) Colorized Errors
  • In-product acquisition - In addition to the new light-weight installation to get you building Cordova apps faster, we have now added pathways from within Visual Studio to acquire additional build pieces as your development continues (Figure 48). If you have not installed Android or Windows components, you can get them through the deploy bar, which will launch Visual Studio setup and guide you through the installation process.
In-product acquisition
(Figure 48) In-product acquisition
  • Fast, reliable builds - The new Visual Studio Installer, combined with offline installation of a fully validated toolchain of 3rd party components, provides for faster builds that are also easier to troubleshoot and fix.

Important

Build tools and emulators for Android and Windows are now optional. You can acquire them dynamically through the build/deploy menu bar. This release of Visual Studio does not support Windows Store 8.1 projects. We recommend that you update your Cordova projects to target Windows 10. Minimum supported Cordova version is raised to 6.0.0. Projects targeting a Cordova version lower than 6.0.0 will need to upgrade their project in config.xml to build and deploy in Visual Studio 2017.

Node.js Tools for Visual Studio

Node.js Tools for Visual Studio turns Visual Studio into a powerful Node.js development environment. This release focuses on stability, performance, and overall product quality, including:

  • Better integration with the new Salsa JavaScript language service.
  • Reduced memory and CPU usage, and shorter project load times.
  • Support for Pug template files.
  • More up-to-date project templates.
  • Support for Mocha 3.x test framework.
  • Numerous bug fixes.

Thank you to all the amazing contributors who made this release of Node.js Tools for Visual Studio possible. For more information, check out the open source Node.js Tools project on GitHub.

Visual Studio Tools for Unity

Use Visual Studio to write and debug Unity games for all platforms. Visual Studio Tools for Unity 3 (Figure 49) is now available to be installed with the "Game Development with Unity" workload in the new Visual Studio 2017 installer. Visual Studio Tools for Unity 3 focuses on improving the code editing and debugging experience for Unity developers as well as overall product quality, including:

  • IntelliSense support for Unity messages.
  • Code colorization of Unity messages.
  • Improved expression evaluation in the Unity debugger.
  • Improved Unity message wizards to support all Unity types able to receive messages.
  • Numerous bug fixes and optimizations.
Code completion session for Unity messages
(Figure 49) Code completion session for Unity messages

Redgate

Redgate Data Tools Included with Visual Studio

To extend Visual Studio 2017 DevOps capabilities to SQL Server database development, Redgate Data Tools, comprising Redgate SQL Prompt Core, Redgate SQL Search, and Redgate ReadyRoll Core, are now available in the Data Storage and Processing workload.

  • Redgate ReadyRoll Core, included with Visual Studio Enterprise 2017, helps you develop migration scripts, manage database changes using source control, and safely automate deployments of SQL Server database changes alongside applications changes.
  • Redgate SQL Prompt Core, included with Visual Studio Enterprise 2017, helps you write SQL more quickly and accurately with the help of intelligent code completion. SQL Prompt autocompletes database and system objects and keywords, and offers column suggestions as you type. This results in cleaner code and fewer errors because you do not need to remember every column name or alias.
  • Redgate SQL Search, included with all editions of Visual Studio 2017, increases your productivity by helping you quickly find SQL fragments and objects across multiple databases.

NuGet

Visual Studio 2017 includes NuGet 4.0. This release is focused on supporting package reference for the majority project types, quality improvements, and performance improvements:

  • In WPF, WindowsForms, and UWP projects, packages can now be managed using package references.
  • NuGet restore support has been improved for Lightweight Solution Restore. Restores can now be performed without needing to load any projects.
  • In .NET Core and ASP.NET Core projects, packages are now managed using package references.
  • In Visual Studio 2017 and above, the machine-wide NuGet.config is now located at %PROGRAMFILES(X86)%\NuGet\Config\NuGet.config. Going forward, nuget.exe v4.0.0 + will also consider the new location for the machine-wide configuration. NuGet.config in program data will no longer be implicitly referenced or considered for the hierarchical merging of nuget.config.

Tools for XAML Apps

XAML Edit & Continue

Visual Studio now allows you to edit XAML while your WPF or Universal Windows App is running. While debugging your app in Visual Studio, you can make a change to the markup in the XAML code editor and the change will be reflected in the running app without having to recompile.

XAML Editor Productivity Enhancements

  • IntelliSense filtering - When typing XAML, the completion list will only display types that match and the closest match will be selected.
  • IntelliSense for x:Bind - We have enabled IntelliSense completion for x:Bind when binding to Path and Events.
  • Namespace completion - If the reference to the namespace does not exist (Figure 50), you will not get IntelliSense support while typing. When you have finished typing, you will get light bulb suggestion support to generate and insert the prefix for the type and add the namespace definition in your XAML document.
Code completion session for IntelliSense_without_namespace
(Figure 50) IntelliSense_without namespace
  • For types that require a prefix, IntelliSense will offer to auto-complete the prefix if the reference to the namespace already exists.

  • Namespace prefix rename refactoring - You can invoke the rename action (Figure 51) from the context menu or using the keyboard shortcut Ctrl+R+R when the cursor is on the prefix. You can also preview changes before applying them.
Namespace prefix rename
(Figure 51) Namespace prefix rename

  • Remove and sort namespaces - You can now remove unnecessary namespaces (Figure 52) and sort them from the context menu or by using the keyboard shortcut Ctrl+R+G. If your XAML document has unnecessary namespaces, you will also see a light bulb that will give you the option to remove them.
lightbulb_remove unnecessary namespace
(Figure 52) lightbulb_remove unnecessary namespace

  • .editorconfig support for XAML editor - You can define settings for indent_style, indent_size, and tab_width in the .editorconfig file which will be used instead of the settings defined in Tools > Options.

  • Structure Visualizer for XAML editor - The structure visualizer (i.e. indent guides) (Figure 53) is now built into Visual Studio, and a separate extension is not required. This feature provides the context of the block of code you are working on at a glance, without scrolling.

Structure Visualizer for XAML editor
(Figure 53) Structure Visualizer for XAML editor

XAML Performance Improvements

  • Improved XAML Tab Switch performance - XAML Tab Switch performance has improved significantly. In sample customer projects, we have seen switching time reduce by over 90%.
  • Addressing XAML editor typing delays - XAML typing is now faster than ever. We have made several investments to reduce XAML editor typing delays, and most developers should find the XAML editor and XAML IntelliSense to be more responsive. This will be most apparent when editing a XAML file in projects that consume third party controls or large control libraries.

Data Tools and SQL Server

SQL Server Data Tools

The latest update of SQL Server Data Tools has been included in Visual Studio 2017, which enables support for the latest features in Azure SQL Database and SQL Server 2016.

This release brings together the ease of developing, testing, and deploying a database on all supported versions of SQL Server and database platforms - both on-premises and cloud - by using Visual Studio. The release also includes database programmability surface area enhancements, and it improves the SQL connection experience in SQL Server Data Tools, which now automatically discovers SQL Server and Azure SQL Databases that you can connect to with a simple click.

Additionally, Visual Studio 2017 addresses new Azure SQL Database authentication types, as well as Azure Active Directory Integrated and Password authentication.

Developer Analytics Tools

Visual Studio 2017 includes Developer Analytics Tools v8.6, with the following improvements:

  • CodeLens now shows both debug and live telemetry data in projects that send data to an Application Insights resource.
  • CodeLens for exceptions links to Application Analytics to show user impact of an exception.
  • CodeLens shows requests from local debug sessions, in projects with the Application Insights SDK.
  • CodeLens for requests and exceptions are now available from Visual Basic projects.
  • Live Metrics are now shown in a toast notification after you publish your app from Visual Studio.
  • Application Insights pricing information is now shown in the Configuration window.
  • Availability events are now shown in the Search and Trends tools.
  • Events in the Search and Diagnostic Tools now show counts for how often they occurred based on adaptive sampling in the SDK.
  • CodeLens shows exceptions that have occurred during local debug sessions for projects with the Application Insights SDK.
  • New design for the Application Insights Configuration window.
  • CodeLens for exceptions now has a link to Application Analytics to see the impact an exception has had on users.
  • The Application Insights JavaScript SDK for collecting page view telemetry is now added when Application Insights is added to a project.
  • Publish annotations are now sent to your Application Insights resource when you publish your app from Visual Studio.
  • Scrollbar markers are now shown for red and yellow Application Insights CodeLens indicators.

Learn more about Application Insights in the Microsoft Azure documentation.

Office Developer Tools for Visual Studio

This release includes Office Developer Tools with the latest features and updates, as follows:

  • New Office Add-in templates specific to Excel, Word, PowerPoint, and Outlook.
  • Support for new Office Add-in features such as add-in commands, Fabric UI, and a new version of Office.js.
  • New starter code in the templates that will showcase how to get started with new Office Add-in features.
  • Support for SharePoint 2016 in SharePoint solutions and add-in templates.

Live Architecture Dependency Validation

If you have setup Dependency Validation diagrams (aka Layer diagrams) in Visual Studio Enterprise, you now get real-time notifications (Figure 54) of any violations of the architectural dependency rules as you type your code in the Code Editor. Errors appear in the Error List and squiggles will appear in the text editor showing you the precise location of the violation. You are now less likely to introduce unwanted dependencies.

Live Architecture Dependency validation
(Figure 54) Live Architecture Dependency validation

Developer Command Prompt

The Visual Studio 2017 Developer Command Prompt scripts have been refactored to support the new installation experience:

  • Environment variables will reflect installed workloads only.
  • The Visual Studio Developer Command Prompt shortcut should be compatible with previous releases.
  • You can now configure Developer Command Prompt scripts through command line arguments:
    • In a command prompt, call common7\tools\vsdevcmd.bat -help (from the Visual Studio installation directory) for details.

Azure SDK for .NET

The Azure SDK for .NET Visual Studio is now available to be installed with the new Visual Studio installer. If you previously installed the Azure SDK for .NET using the Web Platform Installer, you can now get the same components by installing the Azure workload using the new Visual Studio Installer. The packages that are installed are at the same feature level as the 2.9.5 version of the SDK. For this version of Visual Studio and all future versions, the Azure SDK for .NET will only be available from the Visual Studio installer.


Release Notes Icon Visual Studio 2017 version 15.0.1

released March 14, 2017

Top Issues Fixed in 15.0.1

These are the customer-reported issues addressed in 15.0.1:


Release Notes Icon Visual Studio 2017 version 15.0.2

released March 28, 2017

Top Issues Fixed in 15.0.2

These are the customer-reported issues addressed in 15.0.2:


Release Notes Icon Visual Studio 2017 version 15.0.3

released March 31, 2017

Summary of Updates in 15.0.3

We now support Xcode 8.3, iOS 10.3, watchOS 3.2, and tvOS 10.2 tools and APIs in the Xamarin.VS Extension for Visual Studio 2017.


Release Notes Icon Visual Studio 2017 version 15.0.4

released May 23, 2017

Top Issues Fixed in 15.0.4

Offline install scenarios no longer require internet access.


Release Notes Icon Visual Studio 2017 version 15.0.5

released September 18, 2017

Top Issues Fixed in 15.0.5

These are the customer-reported issues addressed in 15.0.5:


Release Notes Icon Visual Studio 2017 version 15.0.6

released November 14, 2017

Summary of Updates in 15.0.6

Visual Studio 2017 version 15.0 Security Advisory Notices

Microsoft has released security advisories for .NET Core and ASP.NET Core. Details can be found in corresponding announcements in the .NET Core and ASP.NET Core repos. Please note the following information:

CVE-2017-8585 Malformed Certificate can cause Denial of Service

There is a security vulnerability in .NET Core 1.0, 1.1 and 2.0 where a malformed certificate or other ASN.1 formatted data could lead to a denial of service through an infinite loop on Linux and macOS. System administrators are advised to update their .NET Core runtimes to versions 1.0.8, 1.1.5 and 2.0.1. Developers are advised to update their .NET Core SDK to version 2.0.3 or 1.1.5.

CVE-2017-8700 CORS bypass can enable Information Disclosure

There is a security vulnerability in ASP.NET Core 1.0 and 1.1 where Cross-Origin Resource Sharing (CORS) can be bypassed, leading to information disclosure.

CVE-2017-11879 Open Redirect can cause Elevation Of Privilege

There is a security vulnerability in ASP.NET Core 2.0 where an Open Redirect exists, leading to Elevation Of Privilege.

CVE-2017-11770 Denial Of Service Vulnerability

There is a security vulnerability in ASP.NET Core 1.0, 1.1 and 2.0 when the application is hosted through Windows Http.Sys where a malformed request can lead to a Denial Of Service. New projects created with ASP.NET Core 1.0 and ASP.NET Core 1.1 will now use package versions that include the above security updates. For existing projects, users can update their packages to newer versions using the Manage NuGet Packages dialog.


Release Notes Icon Visual Studio 2017 version 15.0.7

released December 6, 2017

Summary of Updates in 15.0.7

Visual Studio 2017 version 15.0 Security Advisory Notice

Microsoft has released security advisories for ASP.NET Core. Details can be found in corresponding announcements in the ASP.NET Core repo. Please note the following information:

CVE-2017-8700 CORS bypass can enable Information Disclosure

There is a security vulnerability in ASP.NET Core 1.0 and 1.1 where Cross-Origin Resource Sharing (CORS) can be bypassed, leading to information disclosure. New projects created with ASP.NET Core 1.0 and ASP.NET Core 1.1 will now use package versions that include the above security update. For existing projects, users can update their packages to newer versions using the Manage NuGet Packages dialog.


Release Notes Icon Visual Studio 2017 version 15.0.8

released January 9, 2018

Summary of Updates in 15.0.8

Visual Studio 2017 version 15.0 Security Advisory Notices

CVE-2018-0786 Security Feature Bypass in X509 Certificate Validation

Microsoft is releasing this security advisory to provide information about a vulnerability in the public versions of .NET Core 1.0 and 1.1, and 2.0. This advisory also provides guidance on what developers can do to update their applications correctly. This security advisory is also applicable to .NET native for UWP.

Microsoft is aware of a security vulnerability in the public versions of .NET Core where an attacker could present a certificate that is marked invalid for a specific use, but a component uses it for that purpose. This action disregards the Enhanced Key Usage tagging.

The security update addresses the vulnerability by ensuring that .NET Core components completely validate certificates. System administrators are advised to update their .NET Core runtimes to versions 1.0.9, 1.1.6 and 2.0.5. Developers are advised to update their .NET Core SDK to version 2.1.4 or 1.1.7.

CVE-2018-0764 Denial of Service when parsing XML documents

Microsoft is releasing this security advisory to provide information about a vulnerability in the public versions of .NET Core 1.0 and 1.1, and 2.0. This advisory also provides guidance on what developers can do to update their applications correctly.

Microsoft is aware of a Denial of Service vulnerability in all public versions of .NET core due to improper processing of XML documents. An attacker who successfully exploited this vulnerability could cause a denial of service against a .NET application. A remote unauthenticated attacker could exploit this vulnerability by issuing specially crafted requests to a .NET Core application.

The update addresses the vulnerability by correcting how .NET core handles XML document processing. System administrators are advised to update their .NET Core runtimes to versions 1.0.9, 1.1.6 and 2.0.5. Developers are advised to update their .NET Core SDK to version 2.1.4 or 1.1.7.


Release Notes Icon Visual Studio 2017 version 15.0.9

released February 2, 2018

Summary of Updates in 15.0.9

  • The MSVC compiler has been updated with support for the /Qspectre switch which will automatically insert a speculation barrier when the compiler detects instances of Spectre variant 1. For more information about /Qspectre please refer to the Visual C++ Team Blog.
  • We have updated to Java™ Development Kit 8, Update 161 (JDK version 8u161) to fix download errors.

Release Notes Icon Visual Studio 2017 version 15.0.10

released February 21, 2018

Summary of Updates in 15.0.10

Team Explorer supports TLSv1.2. We have updated the Git and the Git Credential Manager components that ship in Visual Studio. The optional Git for Windows component has also been updated. This update allows Git to connect to services that have deprecated support for TLSv1 and TLSv1.1 in favor of TLSv1.2.


Release Notes Icon Visual Studio 2017 version 15.0.11

released March 13, 2018

Summary of Updates in 15.0.11

Visual Studio 2017 version 15.0 Security Advisory Notice

CVE-2018-0875 Microsoft Security Advisories for .NET Core

Microsoft is aware of a security vulnerability in the public versions of .NET Core where a malicious file or web request could cause a denial of service (DoS) attack.

  • System administrators are advised to update their .NET Core runtimes to versions 1.0.10, 1.1.7 or 2.0.6. Developers are advised to update their .NET Core SDK to versions 1.1.8 or 2.1.101.

Release Notes Icon Visual Studio 2017 version 15.0.12

released April 10, 2018

Summary of Updates in 15.0.12

Visual Studio 2017 version 15.0 Security Advisory Notice

CVE-2018-1037 Microsoft Security Advisories for Microsoft Visual Studio Information Disclosure Vulnerability

An information disclosure vulnerability exists when Visual Studio improperly discloses limited contents of uninitialized memory while compiling program database (PDB) files. An attacker who took advantage of this information disclosure could view uninitialized memory from the Visual Studio instance used to compile the PDB file.

To take advantage of the vulnerability, an attacker would require access to an affected PDB file created using a vulnerable version of Visual Studio. An attacker would have no way to force a developer to produce this information disclosure.

The security update addresses the vulnerability by correcting how PDB files are generated when a project is compiled.


Release Notes Icon Visual Studio 2017 version 15.0.13

released April 26, 2018

Summary of Updates in 15.0.13

  • We updated to Java™ Development Kit 8, Update 172 (JDK version 8u172).

Release Notes Icon Visual Studio 2017 version 15.0.14

released May 31, 2018

Summary of Updates in 15.0.14

Visual Studio 2017 version 15.0 Security Advisory Notice

CVE-2018-11235 Microsoft Security Advisory for Git Security Vulnerability

We fixed a security vulnerability in Git that was disclosed by the Git community. The vulnerability can lead to arbitrary code execution when a user clones a malicious repository.


Release Notes Icon Visual Studio 2017 version 15.0.15

released July 10, 2018

Summary of Updates in 15.0.15

Visual Studio 2017 version 15.0 Security Advisory Notices

CVE-2018-8172 Visual Studio Remote Code Execution Vulnerability

A remote code execution vulnerability that can lead to exploitation of a user's machine by opening a specially crafted project, or resource file. The security update addresses the vulnerability by correcting how Visual Studio checks the source markup of a file.

CVE-2018-8260 .NET Framework Remote Code Execution Vulnerability

A remote code execution vulnerability exists in .NET software which can lead to exploitation of a user's machine by allowing attackers to run arbitrary code in the context of the current user. The security update addresses the vulnerability by correcting how .NET checks the source markup of a file.

CVE-2018-8232 .NET Microsoft Macro Assembler Tampering Vulnerability

Tampering vulnerability related to the Microsoft Macro Assembler improperly validating code. The security update addresses the vulnerability by ensuring that Microsoft Macro Assembler properly validates code logic.

CVE-2018-8171 ASP.NET Core Security Feature Bypass Vulnerability

An ASP.NET Core Security Feature Bypass Vulnerability exists when the number of incorrect login attempts is not validated that can lead to an attacker trying infinite authentication attempts. The update addresses the vulnerability by validating the number of incorrect login attempts.


Release Notes Icon Visual Studio 2017 version 15.0.16

released August 2, 2018

Summary of Updates in 15.0.16

  • This release now installs Java™ Development Kit 8, Update 181 (JDK version 8u181).

Visual Studio 2017 version 15.0 Security Advisory Notice

CVE-2018-8356 .NET Core Security Feature Bypass Vulnerability

Microsoft is aware of a security feature bypass vulnerability that exists when .NET Core does not correctly validate certificates. An attacker who successfully exploited this vulnerability could present an expired certificate when challenged. The update addresses the vulnerability by correcting how .NET Core handles certificate validation.


Release Notes Icon Visual Studio 2017 version 15.0.17

released August 14, 2018

Summary of Updates in 15.0.17

Visual Studio 2017 version 15.0 Security Advisory Notice

CVE-2018-0952 Diagnostic Hub Standard Collector Elevation Of Privilege Vulnerability

An elevation of privilege vulnerability exists in a visual studio service, which can lead to system privileges by a non-admin user when writing files. An attacker who took advantage of this could write files as system while only having user level access. This security update addresses this issue by impersonating the current user to validate access to the file location.


Release Notes Icon Visual Studio 2017 version 15.0.18

released August 28, 2018

Top Issues Fixed in 15.0.18


Known Issues

We are fully committed to listening to your feedback. Visit the Developer Community site to find the latest issues, log new issues, and upvote existing issues.


Feedback & Suggestions

We would love to hear from you! For issues, let us know through the Report a Problem option in the upper right-hand corner of either the installer or the Visual Studio IDE itself. The Report a Problem Icon icon is located in the upper right-hand corner. You can make a product suggestion or track your issues in the Visual Studio Developer Community, where you can ask questions, find answers, and propose new features. You can also get free installation help through our Live Chat support.


Blogs

Take advantage of the insights and recommendations available in the Developer Tools Blogs site to keep you up-to-date on all new releases and include deep dive posts on a broad range of features.

Developer Tools Blogs


Visual Studio 2017 Release Notes History

For more information relating to past versions of Visual Studio 2017, see the Visual Studio 2017 Release Notes History page.


Top of Page
