攻略：在 Windows 表單應用程式中使用資料流程

本文示範如何在 Windows 表單應用程式中建立一個資料流區塊網路，進行影像處理。

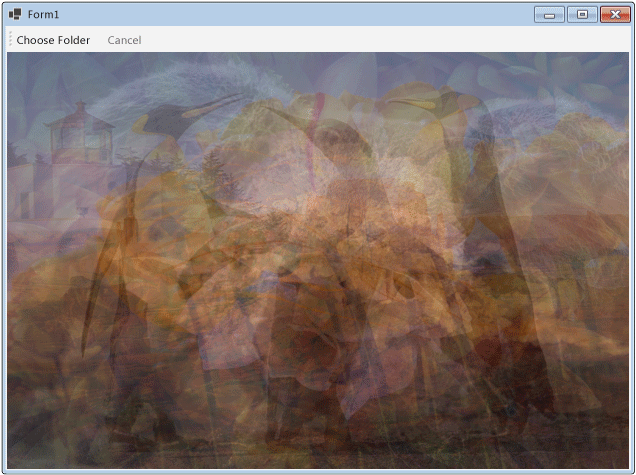

此範例會從指定的資料夾載入影像檔案，建立合成影像，並顯示結果。範例使用資料流模型將影像路由至網路中。在資料流程模型中，程式的獨立元件會透過傳送訊息，彼此進行通訊。當元件收到訊息時，會執行某些動作，然後將結果傳遞給另一個元件。與控制流程模型相比，後者應用程式使用控制結構，例如條件語句、迴圈等，來控制程式中操作的順序。

先決條件

在開始這個攻略之前，先先閱讀 Dataflow 。

備註

TPL 資料流函式庫（命名 System.Threading.Tasks.Dataflow 空間）包含在 .NET 6 及更新版本中。對於 .NET Framework 和 .NET Standard 專案，你需要安裝 📦 System.Threading.Tasks.Dataflow NuGet 套件。

章節

本逐步解說包含下列各節：

建立 Windows 表單應用程式
建立資料流網路
將資料流網路與使用者介面連接
完整範例

建立 Windows 表單應用程式

本節說明如何建立基本的 Windows 表單應用程式，並在主表單中新增控制項。

建立 Windows 表單應用程式

在 Visual Studio 中，建立一個 Visual C# 或 Visual Basic Windows Forms 應用程式 專案。在本文件中，專案名稱為 CompositeImages。
在主表單的表單設計器中，Form1.cs（Visual Basic 的 Form1.vb）新增一個 ToolStrip 控制項。
在控制項ToolStripButton上加一個ToolStrip控制項。將屬性設 DisplayStyle 為， Text 屬性 Text 設定為 選擇資料夾。
在ToolStrip控制上再加一個ToolStripButton控制。將屬性設DisplayStyle為 Text，Text，Enabled屬性設為 False。
在主表單中新增物件 PictureBox 。將 Dock 屬性設定為 Fill。

建立資料流網路

本節說明如何建立執行影像處理的資料流網路。

建立資料流網路

在你的專案中加入對 System.Threading.Tasks.Dataflow.dll 的參考。

請確保 Form1.cs（Visual Basic 的 Form1.vb）包含以下 using （Using Visual Basic 中的）語句：

using System;
using System.Collections.Generic;
using System.Drawing;
using System.Drawing.Imaging;
using System.IO;
using System.Linq;
using System.Threading;
using System.Threading.Tasks;
using System.Threading.Tasks.Dataflow;
using System.Windows.Forms;

新增以下資料成員至類別 Form1 ：

// The head of the dataflow network.
ITargetBlock<string> headBlock = null;

// Enables the user interface to signal cancellation to the network.
CancellationTokenSource cancellationTokenSource;

將以下方法 CreateImageProcessingNetwork，加入 Form1 類別。此方法建立影像處理網路。

// Creates the image processing dataflow network and returns the
// head node of the network.
ITargetBlock<string> CreateImageProcessingNetwork()
{
   //
   // Create the dataflow blocks that form the network.
   //

   // Create a dataflow block that takes a folder path as input
   // and returns a collection of Bitmap objects.
   var loadBitmaps = new TransformBlock<string, IEnumerable<Bitmap>>(path =>
      {
         try
         {
            return LoadBitmaps(path);
         }
         catch (OperationCanceledException)
         {
            // Handle cancellation by passing the empty collection
            // to the next stage of the network.
            return Enumerable.Empty<Bitmap>();
         }
      });

   // Create a dataflow block that takes a collection of Bitmap objects
   // and returns a single composite bitmap.
   var createCompositeBitmap = new TransformBlock<IEnumerable<Bitmap>, Bitmap>(bitmaps =>
      {
         try
         {
            return CreateCompositeBitmap(bitmaps);
         }
         catch (OperationCanceledException)
         {
            // Handle cancellation by passing null to the next stage
            // of the network.
            return null;
         }
      });

   // Create a dataflow block that displays the provided bitmap on the form.
   var displayCompositeBitmap = new ActionBlock<Bitmap>(bitmap =>
      {
         // Display the bitmap.
         pictureBox1.SizeMode = PictureBoxSizeMode.StretchImage;
         pictureBox1.Image = bitmap;

         // Enable the user to select another folder.
         toolStripButton1.Enabled = true;
         toolStripButton2.Enabled = false;
         Cursor = DefaultCursor;
      },
      // Specify a task scheduler from the current synchronization context
      // so that the action runs on the UI thread.
      new ExecutionDataflowBlockOptions
      {
          TaskScheduler = TaskScheduler.FromCurrentSynchronizationContext()
      });

   // Create a dataflow block that responds to a cancellation request by
   // displaying an image to indicate that the operation is cancelled and
   // enables the user to select another folder.
   var operationCancelled = new ActionBlock<object>(delegate
      {
         // Display the error image to indicate that the operation
         // was cancelled.
         pictureBox1.SizeMode = PictureBoxSizeMode.CenterImage;
         pictureBox1.Image = pictureBox1.ErrorImage;

         // Enable the user to select another folder.
         toolStripButton1.Enabled = true;
         toolStripButton2.Enabled = false;
         Cursor = DefaultCursor;
      },
      // Specify a task scheduler from the current synchronization context
      // so that the action runs on the UI thread.
      new ExecutionDataflowBlockOptions
      {
         TaskScheduler = TaskScheduler.FromCurrentSynchronizationContext()
      });

   //
   // Connect the network.
   //

   // Link loadBitmaps to createCompositeBitmap.
   // The provided predicate ensures that createCompositeBitmap accepts the
   // collection of bitmaps only if that collection has at least one member.
   loadBitmaps.LinkTo(createCompositeBitmap, bitmaps => bitmaps.Count() > 0);

   // Also link loadBitmaps to operationCancelled.
   // When createCompositeBitmap rejects the message, loadBitmaps
   // offers the message to operationCancelled.
   // operationCancelled accepts all messages because we do not provide a
   // predicate.
   loadBitmaps.LinkTo(operationCancelled);

   // Link createCompositeBitmap to displayCompositeBitmap.
   // The provided predicate ensures that displayCompositeBitmap accepts the
   // bitmap only if it is non-null.
   createCompositeBitmap.LinkTo(displayCompositeBitmap, bitmap => bitmap != null);

   // Also link createCompositeBitmap to operationCancelled.
   // When displayCompositeBitmap rejects the message, createCompositeBitmap
   // offers the message to operationCancelled.
   // operationCancelled accepts all messages because we do not provide a
   // predicate.
   createCompositeBitmap.LinkTo(operationCancelled);

   // Return the head of the network.
   return loadBitmaps;
}

實作 LoadBitmaps 方法。

// Loads all bitmap files that exist at the provided path.
IEnumerable<Bitmap> LoadBitmaps(string path)
{
   List<Bitmap> bitmaps = new List<Bitmap>();

   // Load a variety of image types.
   foreach (string bitmapType in
      new string[] { "*.bmp", "*.gif", "*.jpg", "*.png", "*.tif" })
   {
      // Load each bitmap for the current extension.
      foreach (string fileName in Directory.GetFiles(path, bitmapType))
      {
         // Throw OperationCanceledException if cancellation is requested.
         cancellationTokenSource.Token.ThrowIfCancellationRequested();

         try
         {
            // Add the Bitmap object to the collection.
            bitmaps.Add(new Bitmap(fileName));
         }
         catch (Exception)
         {
            // TODO: A complete application might handle the error.
         }
      }
   }
   return bitmaps;
}

實作 CreateCompositeBitmap 方法。

// Creates a composite bitmap from the provided collection of Bitmap objects.
// This method computes the average color of each pixel among all bitmaps
// to create the composite image.
Bitmap CreateCompositeBitmap(IEnumerable<Bitmap> bitmaps)
{
   Bitmap[] bitmapArray = bitmaps.ToArray();

   // Compute the maximum width and height components of all
   // bitmaps in the collection.
   Rectangle largest = new Rectangle();
   foreach (var bitmap in bitmapArray)
   {
      if (bitmap.Width > largest.Width)
         largest.Width = bitmap.Width;
      if (bitmap.Height > largest.Height)
         largest.Height = bitmap.Height;
   }

   // Create a 32-bit Bitmap object with the greatest dimensions.
   Bitmap result = new Bitmap(largest.Width, largest.Height,
      PixelFormat.Format32bppArgb);

   // Lock the result Bitmap.
   var resultBitmapData = result.LockBits(
      new Rectangle(new Point(), result.Size), ImageLockMode.WriteOnly,
      result.PixelFormat);

   // Lock each source bitmap to create a parallel list of BitmapData objects.
   var bitmapDataList = (from bitmap in bitmapArray
                         select bitmap.LockBits(
                           new Rectangle(new Point(), bitmap.Size),
                           ImageLockMode.ReadOnly, PixelFormat.Format32bppArgb))
                        .ToList();

   // Compute each column in parallel.
   Parallel.For(0, largest.Width, new ParallelOptions
   {
      CancellationToken = cancellationTokenSource.Token
   },
   i =>
   {
      // Compute each row.
      for (int j = 0; j < largest.Height; j++)
      {
         // Counts the number of bitmaps whose dimensions
         // contain the current location.
         int count = 0;

         // The sum of all alpha, red, green, and blue components.
         int a = 0, r = 0, g = 0, b = 0;

         // For each bitmap, compute the sum of all color components.
         foreach (var bitmapData in bitmapDataList)
         {
            // Ensure that we stay within the bounds of the image.
            if (bitmapData.Width > i && bitmapData.Height > j)
            {
               unsafe
               {
                  byte* row = (byte*)(bitmapData.Scan0 + (j * bitmapData.Stride));
                  byte* pix = (byte*)(row + (4 * i));
                  a += *pix; pix++;
                  r += *pix; pix++;
                  g += *pix; pix++;
                  b += *pix;
               }
               count++;
            }
         }

         //prevent divide by zero in bottom right pixelless corner
         if (count == 0)
             break;

         unsafe
         {
            // Compute the average of each color component.
            a /= count;
            r /= count;
            g /= count;
            b /= count;

            // Set the result pixel.
            byte* row = (byte*)(resultBitmapData.Scan0 + (j * resultBitmapData.Stride));
            byte* pix = (byte*)(row + (4 * i));
            *pix = (byte)a; pix++;
            *pix = (byte)r; pix++;
            *pix = (byte)g; pix++;
            *pix = (byte)b;
         }
      }
   });

   // Unlock the source bitmaps.
   for (int i = 0; i < bitmapArray.Length; i++)
   {
      bitmapArray[i].UnlockBits(bitmapDataList[i]);
   }

   // Unlock the result bitmap.
   result.UnlockBits(resultBitmapData);

   // Return the result.
   return result;
}

備註

C# 版本中的CreateCompositeBitmap方法使用指標來高效處理System.Drawing.Bitmap物件。因此，您必須在您的專案中啟用 「允許不安全程式碼 」選項，才能使用 unsafe 關鍵字。欲了解更多如何在 Visual C# 專案中啟用不安全程式碼的資訊，請參閱建置頁面，專案設計器（C#））。

下表描述網路的成員。

會員	類型	Description
`loadBitmaps`	TransformBlock<TInput,TOutput>	輸入一個資料夾路徑，輸出一組 Bitmap 物件。
`createCompositeBitmap`	TransformBlock<TInput,TOutput>	輸入一組 Bitmap 物件，輸出為複合點陣圖。
`displayCompositeBitmap`	ActionBlock<TInput>	在表單上顯示複合點陣圖。
`operationCancelled`	ActionBlock<TInput>	顯示圖片以表示操作已取消，並允許使用者選擇其他資料夾。

為了連接資料流區塊形成網路，本範例使用了該 LinkTo 方法。此 LinkTo 方法包含一個過載版本，該 Predicate<T> 物件可決定目標區塊是否接受或拒絕訊息。此過濾機制使訊息區塊只能接收特定值。在這個例子中，網路可以有兩種分支方式之一。主分支會從磁碟載入映像檔，建立複合影像，並在表單上顯示該影像。替代分支取消目前的操作。這些 Predicate<T> 物件使主分支的資料流區塊能透過拒絕特定訊息切換到替代分支。例如，如果使用者取消操作，資料流區塊 createCompositeBitmap 會產生 null （Nothing 在 Visual Basic 中）作為輸出。資料流區塊 displayCompositeBitmap 拒絕 null 輸入值，因此訊息會提供給 operationCancelled。資料流區塊 operationCancelled 接受所有訊息，因此會顯示影像以表示操作已被取消。

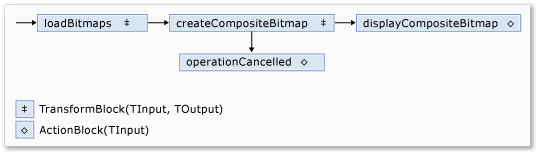

下圖顯示影像處理網路：

展示影像處理網路的插圖。

由於 displayCompositeBitmap 和 operationCancelled 資料流區塊作用於使用者介面，因此這些動作必須發生在使用者介面執行緒上。為達成此目的，這些物件在構造過程中各自提供一個ExecutionDataflowBlockOptions物件，其屬性TaskScheduler已設定為TaskScheduler.FromCurrentSynchronizationContext。此 TaskScheduler.FromCurrentSynchronizationContext 方法會建立 TaskScheduler 一個物件，在目前的同步上下文中執行運算。由於該 CreateImageProcessingNetwork 方法是從 選擇資料夾 按鈕的處理器呼叫，該按鈕執行於使用者介面執行緒，因此和 displayCompositeBitmapoperationCancelled dataflow 區塊的動作也會在使用者介面執行緒上執行。

此範例使用共享消除標記代替設定屬性 CancellationToken ，因為該 CancellationToken 屬性會永久取消資料流區塊的執行。取消令牌使此範例能多次重複使用同一資料流網路，即使使用者取消了一次或多項操作。關於一個用 CancellationToken 來永久取消資料流區塊執行的範例，請參見《如何取消資料流區塊》。

將資料流網路與使用者介面連接

本節說明如何將資料流網路與使用者介面連接。合成影像的建立與操作取消皆由 「選擇資料夾 」與 「取消 」按鈕啟動。當使用者選擇這些按鈕任一時，會以非同步方式啟動相應的動作。

將資料流網路連接到使用者介面

在主表單的表單設計器中，為Click事件建立事件處理器，並用於選擇資料夾按鈕。

實施 Click 事件以選擇 資料夾 按鈕。

// Event handler for the Choose Folder button.
private void toolStripButton1_Click(object sender, EventArgs e)
{
   // Create a FolderBrowserDialog object to enable the user to
   // select a folder.
   FolderBrowserDialog dlg = new FolderBrowserDialog
   {
      ShowNewFolderButton = false
   };

   // Set the selected path to the common Sample Pictures folder
   // if it exists.
   string initialDirectory = Path.Combine(
      Environment.GetFolderPath(Environment.SpecialFolder.CommonPictures),
      "Sample Pictures");
   if (Directory.Exists(initialDirectory))
   {
      dlg.SelectedPath = initialDirectory;
   }

   // Show the dialog and process the dataflow network.
   if (dlg.ShowDialog() == DialogResult.OK)
   {
      // Create a new CancellationTokenSource object to enable
      // cancellation.
      cancellationTokenSource = new CancellationTokenSource();

      // Create the image processing network if needed.
      headBlock ??= CreateImageProcessingNetwork();

      // Post the selected path to the network.
      headBlock.Post(dlg.SelectedPath);

      // Enable the Cancel button and disable the Choose Folder button.
      toolStripButton1.Enabled = false;
      toolStripButton2.Enabled = true;

      // Show a wait cursor.
      Cursor = Cursors.WaitCursor;
   }
}

在主表單的表單設計器中，為Click事件建立取消按鈕的事件處理器。

實作Click事件給取消按鈕。

// Event handler for the Cancel button.
private void toolStripButton2_Click(object sender, EventArgs e)
{
   // Signal the request for cancellation. The current component of
   // the dataflow network will respond to the cancellation request.
   cancellationTokenSource.Cancel();
}

完整範例

以下範例展示了本次攻略的完整程式碼。

using System;
using System.Collections.Generic;
using System.Drawing;
using System.Drawing.Imaging;
using System.IO;
using System.Linq;
using System.Threading;
using System.Threading.Tasks;
using System.Threading.Tasks.Dataflow;
using System.Windows.Forms;

namespace CompositeImages
{
   public partial class Form1 : Form
   {
      // The head of the dataflow network.
      ITargetBlock<string> headBlock = null;

      // Enables the user interface to signal cancellation to the network.
      CancellationTokenSource cancellationTokenSource;

      public Form1()
      {
         InitializeComponent();
      }

      // Creates the image processing dataflow network and returns the
      // head node of the network.
      ITargetBlock<string> CreateImageProcessingNetwork()
      {
         //
         // Create the dataflow blocks that form the network.
         //

         // Create a dataflow block that takes a folder path as input
         // and returns a collection of Bitmap objects.
         var loadBitmaps = new TransformBlock<string, IEnumerable<Bitmap>>(path =>
            {
               try
               {
                  return LoadBitmaps(path);
               }
               catch (OperationCanceledException)
               {
                  // Handle cancellation by passing the empty collection
                  // to the next stage of the network.
                  return Enumerable.Empty<Bitmap>();
               }
            });

         // Create a dataflow block that takes a collection of Bitmap objects
         // and returns a single composite bitmap.
         var createCompositeBitmap = new TransformBlock<IEnumerable<Bitmap>, Bitmap>(bitmaps =>
            {
               try
               {
                  return CreateCompositeBitmap(bitmaps);
               }
               catch (OperationCanceledException)
               {
                  // Handle cancellation by passing null to the next stage
                  // of the network.
                  return null;
               }
            });

         // Create a dataflow block that displays the provided bitmap on the form.
         var displayCompositeBitmap = new ActionBlock<Bitmap>(bitmap =>
            {
               // Display the bitmap.
               pictureBox1.SizeMode = PictureBoxSizeMode.StretchImage;
               pictureBox1.Image = bitmap;

               // Enable the user to select another folder.
               toolStripButton1.Enabled = true;
               toolStripButton2.Enabled = false;
               Cursor = DefaultCursor;
            },
            // Specify a task scheduler from the current synchronization context
            // so that the action runs on the UI thread.
            new ExecutionDataflowBlockOptions
            {
                TaskScheduler = TaskScheduler.FromCurrentSynchronizationContext()
            });

         // Create a dataflow block that responds to a cancellation request by
         // displaying an image to indicate that the operation is cancelled and
         // enables the user to select another folder.
         var operationCancelled = new ActionBlock<object>(delegate
            {
               // Display the error image to indicate that the operation
               // was cancelled.
               pictureBox1.SizeMode = PictureBoxSizeMode.CenterImage;
               pictureBox1.Image = pictureBox1.ErrorImage;

               // Enable the user to select another folder.
               toolStripButton1.Enabled = true;
               toolStripButton2.Enabled = false;
               Cursor = DefaultCursor;
            },
            // Specify a task scheduler from the current synchronization context
            // so that the action runs on the UI thread.
            new ExecutionDataflowBlockOptions
            {
               TaskScheduler = TaskScheduler.FromCurrentSynchronizationContext()
            });

         //
         // Connect the network.
         //

         // Link loadBitmaps to createCompositeBitmap.
         // The provided predicate ensures that createCompositeBitmap accepts the
         // collection of bitmaps only if that collection has at least one member.
         loadBitmaps.LinkTo(createCompositeBitmap, bitmaps => bitmaps.Count() > 0);

         // Also link loadBitmaps to operationCancelled.
         // When createCompositeBitmap rejects the message, loadBitmaps
         // offers the message to operationCancelled.
         // operationCancelled accepts all messages because we do not provide a
         // predicate.
         loadBitmaps.LinkTo(operationCancelled);

         // Link createCompositeBitmap to displayCompositeBitmap.
         // The provided predicate ensures that displayCompositeBitmap accepts the
         // bitmap only if it is non-null.
         createCompositeBitmap.LinkTo(displayCompositeBitmap, bitmap => bitmap != null);

         // Also link createCompositeBitmap to operationCancelled.
         // When displayCompositeBitmap rejects the message, createCompositeBitmap
         // offers the message to operationCancelled.
         // operationCancelled accepts all messages because we do not provide a
         // predicate.
         createCompositeBitmap.LinkTo(operationCancelled);

         // Return the head of the network.
         return loadBitmaps;
      }

      // Loads all bitmap files that exist at the provided path.
      IEnumerable<Bitmap> LoadBitmaps(string path)
      {
         List<Bitmap> bitmaps = new List<Bitmap>();

         // Load a variety of image types.
         foreach (string bitmapType in
            new string[] { "*.bmp", "*.gif", "*.jpg", "*.png", "*.tif" })
         {
            // Load each bitmap for the current extension.
            foreach (string fileName in Directory.GetFiles(path, bitmapType))
            {
               // Throw OperationCanceledException if cancellation is requested.
               cancellationTokenSource.Token.ThrowIfCancellationRequested();

               try
               {
                  // Add the Bitmap object to the collection.
                  bitmaps.Add(new Bitmap(fileName));
               }
               catch (Exception)
               {
                  // TODO: A complete application might handle the error.
               }
            }
         }
         return bitmaps;
      }

      // Creates a composite bitmap from the provided collection of Bitmap objects.
      // This method computes the average color of each pixel among all bitmaps
      // to create the composite image.
      Bitmap CreateCompositeBitmap(IEnumerable<Bitmap> bitmaps)
      {
         Bitmap[] bitmapArray = bitmaps.ToArray();

         // Compute the maximum width and height components of all
         // bitmaps in the collection.
         Rectangle largest = new Rectangle();
         foreach (var bitmap in bitmapArray)
         {
            if (bitmap.Width > largest.Width)
               largest.Width = bitmap.Width;
            if (bitmap.Height > largest.Height)
               largest.Height = bitmap.Height;
         }

         // Create a 32-bit Bitmap object with the greatest dimensions.
         Bitmap result = new Bitmap(largest.Width, largest.Height,
            PixelFormat.Format32bppArgb);

         // Lock the result Bitmap.
         var resultBitmapData = result.LockBits(
            new Rectangle(new Point(), result.Size), ImageLockMode.WriteOnly,
            result.PixelFormat);

         // Lock each source bitmap to create a parallel list of BitmapData objects.
         var bitmapDataList = (from bitmap in bitmapArray
                               select bitmap.LockBits(
                                 new Rectangle(new Point(), bitmap.Size),
                                 ImageLockMode.ReadOnly, PixelFormat.Format32bppArgb))
                              .ToList();

         // Compute each column in parallel.
         Parallel.For(0, largest.Width, new ParallelOptions
         {
            CancellationToken = cancellationTokenSource.Token
         },
         i =>
         {
            // Compute each row.
            for (int j = 0; j < largest.Height; j++)
            {
               // Counts the number of bitmaps whose dimensions
               // contain the current location.
               int count = 0;

               // The sum of all alpha, red, green, and blue components.
               int a = 0, r = 0, g = 0, b = 0;

               // For each bitmap, compute the sum of all color components.
               foreach (var bitmapData in bitmapDataList)
               {
                  // Ensure that we stay within the bounds of the image.
                  if (bitmapData.Width > i && bitmapData.Height > j)
                  {
                     unsafe
                     {
                        byte* row = (byte*)(bitmapData.Scan0 + (j * bitmapData.Stride));
                        byte* pix = (byte*)(row + (4 * i));
                        a += *pix; pix++;
                        r += *pix; pix++;
                        g += *pix; pix++;
                        b += *pix;
                     }
                     count++;
                  }
               }

               //prevent divide by zero in bottom right pixelless corner
               if (count == 0)
                   break;

               unsafe
               {
                  // Compute the average of each color component.
                  a /= count;
                  r /= count;
                  g /= count;
                  b /= count;

                  // Set the result pixel.
                  byte* row = (byte*)(resultBitmapData.Scan0 + (j * resultBitmapData.Stride));
                  byte* pix = (byte*)(row + (4 * i));
                  *pix = (byte)a; pix++;
                  *pix = (byte)r; pix++;
                  *pix = (byte)g; pix++;
                  *pix = (byte)b;
               }
            }
         });

         // Unlock the source bitmaps.
         for (int i = 0; i < bitmapArray.Length; i++)
         {
            bitmapArray[i].UnlockBits(bitmapDataList[i]);
         }

         // Unlock the result bitmap.
         result.UnlockBits(resultBitmapData);

         // Return the result.
         return result;
      }

      // Event handler for the Choose Folder button.
      private void toolStripButton1_Click(object sender, EventArgs e)
      {
         // Create a FolderBrowserDialog object to enable the user to
         // select a folder.
         FolderBrowserDialog dlg = new FolderBrowserDialog
         {
            ShowNewFolderButton = false
         };

         // Set the selected path to the common Sample Pictures folder
         // if it exists.
         string initialDirectory = Path.Combine(
            Environment.GetFolderPath(Environment.SpecialFolder.CommonPictures),
            "Sample Pictures");
         if (Directory.Exists(initialDirectory))
         {
            dlg.SelectedPath = initialDirectory;
         }

         // Show the dialog and process the dataflow network.
         if (dlg.ShowDialog() == DialogResult.OK)
         {
            // Create a new CancellationTokenSource object to enable
            // cancellation.
            cancellationTokenSource = new CancellationTokenSource();

            // Create the image processing network if needed.
            headBlock ??= CreateImageProcessingNetwork();

            // Post the selected path to the network.
            headBlock.Post(dlg.SelectedPath);

            // Enable the Cancel button and disable the Choose Folder button.
            toolStripButton1.Enabled = false;
            toolStripButton2.Enabled = true;

            // Show a wait cursor.
            Cursor = Cursors.WaitCursor;
         }
      }

      // Event handler for the Cancel button.
      private void toolStripButton2_Click(object sender, EventArgs e)
      {
         // Signal the request for cancellation. The current component of
         // the dataflow network will respond to the cancellation request.
         cancellationTokenSource.Cancel();
      }

      ~Form1()
      {
         cancellationTokenSource.Dispose();
      }
   }
}

下圖顯示了常見 \Sample Pictures\ 資料夾的典型輸出。

「Windows 表單應用程式」TPLDataflow_CompositeImages

另請參閱

Dataflow

反饋

呢頁幫到你嗎？

Last updated on 2026-01-08

分享方式

攻略：在 Windows 表單應用程式中使用資料流程

先決條件

章節

建立 Windows 表單應用程式

建立 Windows 表單應用程式

建立資料流網路

建立資料流網路

將資料流網路與使用者介面連接

將資料流網路連接到使用者介面

完整範例

另請參閱

反饋

其他資源
