Predicates 與 PredicateValidations
注意
在 Azure Active Directory B2C 中,自訂原則的主要用途為處理複雜的案例。 在大部分情況下,我們建議使用內建的使用者流程。 若尚未執行此操作,請從開始使用 Active Directory B2C 中的自訂原則了解自訂原則入門套件。
Predicates 與 PredicateValidations 元素可讓您執行驗證程序,以確保只有格式正確的資料才會輸入您的 Azure Active Directory B2C (Azure AD B2C) 租用戶中。

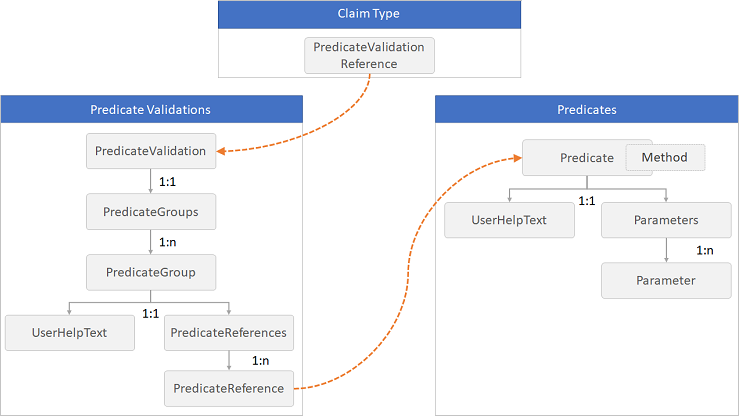

下圖顯示元素之間的關聯性:
述詞
Predicate 元素會定義基本驗證來檢查宣告類型的值,並傳回 true
或 false
。 您可以使用指定的 Method 元素及與該方法相關聯的一組 Parameter 元素來完成驗證。 例如,述詞可以檢查字串宣告值的長度是否介於所指定 Minimum 和 Maximum 參數的範圍內,或者字串宣告值是否包含字元集。 UserHelpText 元素會在檢查失敗時,為使用者提供錯誤訊息。 UserHelpText 元素的值可以使用語言自訂進行當地語系化。
Predicates 元素必須直接顯示在 BuildingBlocks 元素中的 ClaimsSchema 元素之後。
Predicates 元素包含下列元素:
元素 | 發生次數 | Description |
---|---|---|
Predicate | 1:n | 述詞清單。 |
Predicate 元素包含下列屬性:
屬性 | 必要 | 描述 |
---|---|---|
識別碼 | Yes | 要用於述詞的識別碼。 其他元素可以在原則中使用這個識別碼。 |
方法 | Yes | 要用於驗證的方法類型。 可能的值:IsLengthRange、MatchesRegex、IncludesCharacters 或 IsDateRange。 |
HelpText | No | 檢查失敗時提供給使用者的錯誤訊息。 此字串可以使用語言自訂進行當地語系化。 |
Predicate 元素包含下列元素:
元素 | 發生次數 | Description |
---|---|---|
UserHelpText | 0:1 | (已淘汰) 檢查失敗時提供給使用者的錯誤訊息。 |
參數 | 1:1 | 適用於字串驗證方法類型的參數。 |
Parameters 元素包含下列元素:
元素 | 發生次數 | Description |
---|---|---|
參數 | 1:n | 適用於字串驗證方法類型的參數。 |
Parameter 元素包含下列屬性:
元素 | 發生次數 | 描述 |
---|---|---|
識別碼 | 1:1 | 參數的識別碼。 |
述詞方法
IsLengthRange
IsLengthRange 方法會檢查字串宣告值的長度是否位於所指定參數下限與上限的範圍內。 查看此述詞方法的即時示範。 述詞元素支援下列參數:
參數 | 必要 | 描述 |
---|---|---|
最大值 | Yes | 可輸入的字元數上限。 |
最小值 | Yes | 必須輸入的字元數下限。 |
下列範例以可指定字串長度範圍的參數 Minimum
與 Maximum
,顯示 IsLengthRange 方法:
<Predicate Id="IsLengthBetween8And64" Method="IsLengthRange" HelpText="The password must be between 8 and 64 characters.">
<Parameters>
<Parameter Id="Minimum">8</Parameter>
<Parameter Id="Maximum">64</Parameter>
</Parameters>
</Predicate>
MatchesRegex
MatchesRegex 方法會檢查字串宣告值是否符合規則運算式。 查看此述詞方法的即時示範。 述詞元素支援下列參數:
參數 | 必要 | 描述 |
---|---|---|
RegularExpression | Yes | 要比對的規則運算式模式。 |
下列範例顯示 MatchesRegex
方法,以及可指定規則運算式的 RegularExpression
參數:
<Predicate Id="PIN" Method="MatchesRegex" HelpText="The password must be numbers only.">
<Parameters>
<Parameter Id="RegularExpression">^[0-9]+$</Parameter>
</Parameters>
</Predicate>
IncludesCharacters
IncludesCharacters 方法會檢查字串宣告值是否包含字元集。 查看此述詞方法的即時示範。 述詞元素支援下列參數:
參數 | 必要 | 描述 |
---|---|---|
CharacterSet | Yes | 可輸入的字元組。 例如,小寫字元 a-z 、大寫字元 A-Z 、數字 0-9 或符號清單,例如 @#$%^&*\-_+=[]{}|\\:',?/~"();! 。 |
下列範例顯示 IncludesCharacters
方法,以及可指定字元集的 CharacterSet
參數:
<Predicate Id="Lowercase" Method="IncludesCharacters" HelpText="a lowercase letter">
<Parameters>
<Parameter Id="CharacterSet">a-z</Parameter>
</Parameters>
</Predicate>
IsDateRange
IsDateRange 值會檢查日期宣告值是否介於所指定參數下限與上限的範圍之間。 查看此述詞方法的即時示範。 述詞元素支援下列參數:
參數 | 必要 | 描述 |
---|---|---|
最大值 | Yes | 可以輸入的最後可能日期。 日期格式遵循 yyyy-mm-dd 慣例或 Today 。 |
最小值 | Yes | 可以輸入的最早可能日期。 日期格式遵循 yyyy-mm-dd 慣例或 Today 。 |
下列範例顯示 IsDateRange
方法,以及可使用 yyyy-mm-dd
和 Today
格式來指定日期範圍的 Minimum
和 Maximum
參數。
<Predicate Id="DateRange" Method="IsDateRange" HelpText="The date must be between 1970-01-01 and today.">
<Parameters>
<Parameter Id="Minimum">1970-01-01</Parameter>
<Parameter Id="Maximum">Today</Parameter>
</Parameters>
</Predicate>
PredicateValidations
當述詞定義驗證以針對宣告類型進行檢查時,PredicateValidations 會群組一組述詞,以形成可套用至宣告類型的使用者輸入驗證。 每個 PredicateValidation 元素均包含一組 PredicateGroup 元素,其中包含一組指向 Predicate 的 PredicateReference 元素。 若要通過驗證,宣告的值應該在所有的 PredicateGroup 下方,使用它們的 PredicateReference 元素組來傳遞任何述詞的所有測試。
PredicateValidations 元素必須直接顯示在 BuildingBlocks 元素中的 Predicates 元素之後。
<PredicateValidations>
<PredicateValidation Id="">
<PredicateGroups>
<PredicateGroup Id="">
<UserHelpText></UserHelpText>
<PredicateReferences MatchAtLeast="">
<PredicateReference Id="" />
...
</PredicateReferences>
</PredicateGroup>
...
</PredicateGroups>
</PredicateValidation>
...
</PredicateValidations>
PredicateValidations 元素包含下列元素:
元素 | 發生次數 | Description |
---|---|---|
PredicateValidation | 1:n | 述詞驗證清單。 |
PredicateValidation 元素包含下列屬性:
屬性 | 必要 | 描述 |
---|---|---|
識別碼 | Yes | 要用於述詞驗證的識別碼。 ClaimType 元素可以在原則中使用這個識別碼。 |
PredicateValidation 元素包含下列元素:
元素 | 發生次數 | Description |
---|---|---|
PredicateGroups | 1:n | 述詞群組清單。 |
PredicateGroups 元素包含下列元素:
元素 | 發生次數 | Description |
---|---|---|
PredicateGroup | 1:n | 述詞清單。 |
PredicateGroup 元素包含下列屬性:
屬性 | 必要 | 描述 |
---|---|---|
識別碼 | Yes | 要用於述詞群組的識別碼。 |
PredicateGroup 元素包含下列元素:
元素 | 發生次數 | Description |
---|---|---|
UserHelpText | 0:1 | 述詞的說明,有助於使用者了解他們應輸入的值。 |
PredicateReferences | 1:n | 述詞參考清單。 |
PredicateReferences 元素包含下列屬性:
屬性 | 必要 | 描述 |
---|---|---|
MatchAtLeast | No | 指定值至少必須符合許多述詞定義,以用於要接受的輸入。 若未指定,則該值必須符合所有述詞定義。 |
PredicateReferences 元素包含下列元素:
元素 | 發生次數 | Description |
---|---|---|
PredicateReference | 1:n | 對述詞的參考。 |
PredicateReference 元素包含下列屬性:
屬性 | 必要 | 描述 |
---|---|---|
識別碼 | Yes | 要用於述詞驗證的識別碼。 |
設定密碼複雜度
利用 Predicates 和 PredicateValidationsInput,您可以控制使用者在建立帳戶時所提供密碼的複雜度需求。 根據預設,Azure AD B2C 會使用強式密碼。 Azure AD B2C 也支援組態選項,可控制客戶可以使用的密碼複雜度。 您可以使用這些述詞元素來定義密碼複雜度:
- 使用
IsLengthRange
方法的 IsLengthBetween8And64,驗證密碼長度必須介於 8 到 64 個字元之間。 - 使用
IncludesCharacters
方法的 Lowercase,驗證密碼包含小寫字母。 - 使用
IncludesCharacters
方法的 Uppercase,驗證密碼包含大寫字母。 - 使用
IncludesCharacters
方法的 Number,驗證密碼包含數字。 - 使用
IncludesCharacters
方法的符號,會驗證包含其中一個符號的密碼。 - 使用
MatchesRegex
方法的 PIN,驗證密碼只包含數字。 - 使用
MatchesRegex
方法的 AllowedAADCharacters,驗證提供了只對密碼無效的字元。 - 使用
MatchesRegex
方法的 DisallowedWhitespace,驗證密碼不是以空白字元開始或結尾。
<Predicates>
<Predicate Id="IsLengthBetween8And64" Method="IsLengthRange" HelpText="The password must be between 8 and 64 characters.">
<Parameters>
<Parameter Id="Minimum">8</Parameter>
<Parameter Id="Maximum">64</Parameter>
</Parameters>
</Predicate>
<Predicate Id="Lowercase" Method="IncludesCharacters" HelpText="a lowercase letter">
<Parameters>
<Parameter Id="CharacterSet">a-z</Parameter>
</Parameters>
</Predicate>
<Predicate Id="Uppercase" Method="IncludesCharacters" HelpText="an uppercase letter">
<Parameters>
<Parameter Id="CharacterSet">A-Z</Parameter>
</Parameters>
</Predicate>
<Predicate Id="Number" Method="IncludesCharacters" HelpText="a digit">
<Parameters>
<Parameter Id="CharacterSet">0-9</Parameter>
</Parameters>
</Predicate>
<Predicate Id="Symbol" Method="IncludesCharacters" HelpText="a symbol">
<Parameters>
<Parameter Id="CharacterSet">@#$%^&*\-_+=[]{}|\\:',.?/`~"();!</Parameter>
</Parameters>
</Predicate>
<Predicate Id="PIN" Method="MatchesRegex" HelpText="The password must be numbers only.">
<Parameters>
<Parameter Id="RegularExpression">^[0-9]+$</Parameter>
</Parameters>
</Predicate>
<Predicate Id="AllowedAADCharacters" Method="MatchesRegex" HelpText="An invalid character was provided.">
<Parameters>
<Parameter Id="RegularExpression">(^([0-9A-Za-z\d@#$%^&*\-_+=[\]{}|\\:',?/`~"();! ]|(\.(?!@)))+$)|(^$)</Parameter>
</Parameters>
</Predicate>
<Predicate Id="DisallowedWhitespace" Method="MatchesRegex" HelpText="The password must not begin or end with a whitespace character.">
<Parameters>
<Parameter Id="RegularExpression">(^\S.*\S$)|(^\S+$)|(^$)</Parameter>
</Parameters>
</Predicate>
當您定義基本驗證之後,可將它們組合在一起,然後建立一組您可在原則中使用的密碼原則:
- SimplePassword 會驗證 DisallowedWhitespace、AllowedAADCharacters 及 IsLengthBetween8And64
- StrongPassword 會驗證 DisallowedWhitespace、AllowedAADCharacters、IsLengthBetween8And64。 最後一個群組
CharacterClasses
會搭配設定為 3 的MatchAtLeast
來執行一組額外的述詞。 使用者密碼長度必須介於 8 到 16 個字元之間,並具備下列其中三個字元:小寫、大寫、數字或符號。 - CustomPassword 只會驗證 DisallowedWhitespace、AllowedAADCharacters。 因此,只要字元有效,使用者就能提供任意長度的任何密碼。
<PredicateValidations>
<PredicateValidation Id="SimplePassword">
<PredicateGroups>
<PredicateGroup Id="DisallowedWhitespaceGroup">
<PredicateReferences>
<PredicateReference Id="DisallowedWhitespace" />
</PredicateReferences>
</PredicateGroup>
<PredicateGroup Id="AllowedAADCharactersGroup">
<PredicateReferences>
<PredicateReference Id="AllowedAADCharacters" />
</PredicateReferences>
</PredicateGroup>
<PredicateGroup Id="LengthGroup">
<PredicateReferences>
<PredicateReference Id="IsLengthBetween8And64" />
</PredicateReferences>
</PredicateGroup>
</PredicateGroups>
</PredicateValidation>
<PredicateValidation Id="StrongPassword">
<PredicateGroups>
<PredicateGroup Id="DisallowedWhitespaceGroup">
<PredicateReferences>
<PredicateReference Id="DisallowedWhitespace" />
</PredicateReferences>
</PredicateGroup>
<PredicateGroup Id="AllowedAADCharactersGroup">
<PredicateReferences>
<PredicateReference Id="AllowedAADCharacters" />
</PredicateReferences>
</PredicateGroup>
<PredicateGroup Id="LengthGroup">
<PredicateReferences>
<PredicateReference Id="IsLengthBetween8And64" />
</PredicateReferences>
</PredicateGroup>
<PredicateGroup Id="CharacterClasses">
<UserHelpText>The password must have at least 3 of the following:</UserHelpText>
<PredicateReferences MatchAtLeast="3">
<PredicateReference Id="Lowercase" />
<PredicateReference Id="Uppercase" />
<PredicateReference Id="Number" />
<PredicateReference Id="Symbol" />
</PredicateReferences>
</PredicateGroup>
</PredicateGroups>
</PredicateValidation>
<PredicateValidation Id="CustomPassword">
<PredicateGroups>
<PredicateGroup Id="DisallowedWhitespaceGroup">
<PredicateReferences>
<PredicateReference Id="DisallowedWhitespace" />
</PredicateReferences>
</PredicateGroup>
<PredicateGroup Id="AllowedAADCharactersGroup">
<PredicateReferences>
<PredicateReference Id="AllowedAADCharacters" />
</PredicateReferences>
</PredicateGroup>
</PredicateGroups>
</PredicateValidation>
</PredicateValidations>
在您的宣告類型中,新增 PredicateValidationReference 元素,並指定識別碼作為其中一個述詞驗證,例如 SimplePassword、StrongPassword 或 CustomPassword。
<ClaimType Id="password">
<DisplayName>Password</DisplayName>
<DataType>string</DataType>
<AdminHelpText>Enter password</AdminHelpText>
<UserHelpText>Enter password</UserHelpText>
<UserInputType>Password</UserInputType>
<PredicateValidationReference Id="StrongPassword" />
</ClaimType>

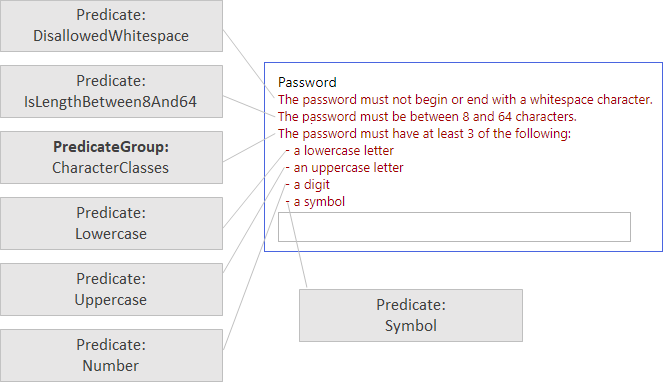

以下顯示當 Azure AD B2C 顯示錯誤訊息時組織元素的方式:
設定日期範圍
利用 Predicates 和 PredicateValidations 元素,您可以使用 DateTimeDropdown
來控制 UserInputType 的最小和最大日期值。 若要這樣做,請使用 IsDateRange
方法來建立 Predicate,並提供 Minimum 和 Maximum 參數。
<Predicates>
<Predicate Id="DateRange" Method="IsDateRange" HelpText="The date must be between 01-01-1980 and today.">
<Parameters>
<Parameter Id="Minimum">1980-01-01</Parameter>
<Parameter Id="Maximum">Today</Parameter>
</Parameters>
</Predicate>
</Predicates>
使用對 DateRange
述詞的參考來新增 PredicateValidation。
<PredicateValidations>
<PredicateValidation Id="CustomDateRange">
<PredicateGroups>
<PredicateGroup Id="DateRangeGroup">
<PredicateReferences>
<PredicateReference Id="DateRange" />
</PredicateReferences>
</PredicateGroup>
</PredicateGroups>
</PredicateValidation>
</PredicateValidations>
在您的宣告類型中,新增 PredicateValidationReference 元素,並將識別碼指定為 CustomDateRange
。
<ClaimType Id="dateOfBirth">
<DisplayName>Date of Birth</DisplayName>
<DataType>date</DataType>
<AdminHelpText>The user's date of birth.</AdminHelpText>
<UserHelpText>Your date of birth.</UserHelpText>
<UserInputType>DateTimeDropdown</UserInputType>
<PredicateValidationReference Id="CustomDateRange" />
</ClaimType>
後續步驟
- 了解如何使用述詞驗證,在 Azure Active Directory B2C 中使用自訂原則設定密碼複雜性。
