使用 JAVA 建立第一個耐久函式
Durable Functions 是 Azure Functions 的擴充功能,可讓您在無伺服器環境中撰寫具狀態函式。 此擴充功能會為您管理狀態、設定檢查點和重新啟動。
在本快速入門中,您將了解如何使用 JAVA 來建立及測試 "Hello World" Durable Functions 應用程式。 最基本的 Durable Functions 應用程式會包含下列三個函式:
- 協調器函式 - 描述用於協調其他函式的工作流程。
- 活動函式 - 由協調器函式呼叫,可執行工作並選擇性地傳回值。
- 用戶端函式 - 可啟動協調器函式的一般 Azure 函式。 此範例會使用 HTTP 觸發的函式。
本快速入門將示範如何以不同的方式建立這個 "Hello World" 應用程式。 使用上述選取器來選擇您慣用的方法。
必要條件
若要完成本教學課程,您需要:
Java Developer Kit 第 8 版或更新版本。
Apache Maven 3.0 版或更新版本。
最新版的 Azure Functions Core Tools。
- 若為 Azure Functions 4.x,則需要 Core Tools v4.0.4915 或更新版本。
一個 Azure 儲存體帳戶,需要您擁有 Azure 訂用帳戶。
如果您沒有 Azure 訂用帳戶,請在開始之前先建立 Azure 免費帳戶。
將必要的相依性和外掛程式新增至專案
在您的 pom.xml
中新增下列內容:
<properties>
<azure.functions.maven.plugin.version>1.18.0</azure.functions.maven.plugin.version>
<azure.functions.java.library.version>3.0.0</azure.functions.java.library.version>
<durabletask.azure.functions>1.0.0</durabletask.azure.functions>
<functionAppName>your-unique-app-name</functionAppName>
</properties>
<dependencies>
<dependency>
<groupId>com.microsoft.azure.functions</groupId>
<artifactId>azure-functions-java-library</artifactId>
<version>${azure.functions.java.library.version}</version>
</dependency>
<dependency>
<groupId>com.microsoft</groupId>
<artifactId>durabletask-azure-functions</artifactId>
<version>${durabletask.azure.functions}</version>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId>
<version>3.8.1</version>
</plugin>
<plugin>
<groupId>com.microsoft.azure</groupId>
<artifactId>azure-functions-maven-plugin</artifactId>
<version>${azure.functions.maven.plugin.version}</version>
<configuration>
<appName>${functionAppName}</appName>
<resourceGroup>java-functions-group</resourceGroup>
<appServicePlanName>java-functions-app-service-plan</appServicePlanName>
<region>westus</region>
<runtime>
<os>windows</os>
<javaVersion>11</javaVersion>
</runtime>
<appSettings>
<property>
<name>FUNCTIONS_EXTENSION_VERSION</name>
<value>~4</value>
</property>
</appSettings>
</configuration>
<executions>
<execution>
<id>package-functions</id>
<goals>
<goal>package</goal>
</goals>
</execution>
</executions>
</plugin>
<plugin>
<artifactId>maven-clean-plugin</artifactId>
<version>3.1.0</version>
</plugin>
</plugins>
</build>
新增必要的 JSON 檔案
將 host.json
檔案新增至專案目錄。 看起來應類似下列範例:
{
"version": "2.0",
"logging": {
"logLevel": {
"DurableTask.AzureStorage": "Warning",
"DurableTask.Core": "Warning"
}
},
"extensions": {
"durableTask": {
"hubName": "JavaTestHub"
}
},
"extensionBundle": {
"id": "Microsoft.Azure.Functions.ExtensionBundle",
"version": "[4.*, 5.0.0)"
}
}
注意
請務必注意,只有 Azure Functions v4 延伸模組套件組合目前針對適用於 Java 的 Durable Functions 提供必要支援。 v3 和早期延伸模組套件組合不支援適用於 Java 的 Durable Functions。 如需延伸模組套件組合的詳細資訊,請參閱延伸模組套件組合文件。
Durable Functions 需要儲存體提供者來儲存執行階段狀態。 將 local.settings.json
檔案新增至專案目錄,以設定儲存體提供者。 若要使用 Azure 儲存體作為提供者,請將 AzureWebJobsStorage
的值設定為 Azure 儲存體帳戶的連接字串:
{
"IsEncrypted": false,
"Values": {
"AzureWebJobsStorage": "<your storage account connection string>",
"FUNCTIONS_WORKER_RUNTIME": "java"
}
}
建立您的函式
下方範例程式碼顯示每個項目的簡單範例:
import com.microsoft.azure.functions.annotation.*;
import com.microsoft.azure.functions.*;
import java.util.*;
import com.microsoft.durabletask.*;
import com.microsoft.durabletask.azurefunctions.DurableActivityTrigger;
import com.microsoft.durabletask.azurefunctions.DurableClientContext;
import com.microsoft.durabletask.azurefunctions.DurableClientInput;
import com.microsoft.durabletask.azurefunctions.DurableOrchestrationTrigger;
public class DurableFunctionsSample {
/**
* This HTTP-triggered function starts the orchestration.
*/
@FunctionName("StartOrchestration")
public HttpResponseMessage startOrchestration(
@HttpTrigger(name = "req", methods = {HttpMethod.GET, HttpMethod.POST}, authLevel = AuthorizationLevel.ANONYMOUS) HttpRequestMessage<Optional<String>> request,
@DurableClientInput(name = "durableContext") DurableClientContext durableContext,
final ExecutionContext context) {
context.getLogger().info("Java HTTP trigger processed a request.");
DurableTaskClient client = durableContext.getClient();
String instanceId = client.scheduleNewOrchestrationInstance("Cities");
context.getLogger().info("Created new Java orchestration with instance ID = " + instanceId);
return durableContext.createCheckStatusResponse(request, instanceId);
}
/**
* This is the orchestrator function, which can schedule activity functions, create durable timers,
* or wait for external events in a way that's completely fault-tolerant.
*/
@FunctionName("Cities")
public String citiesOrchestrator(
@DurableOrchestrationTrigger(name = "taskOrchestrationContext") TaskOrchestrationContext ctx) {
String result = "";
result += ctx.callActivity("Capitalize", "Tokyo", String.class).await() + ", ";
result += ctx.callActivity("Capitalize", "London", String.class).await() + ", ";
result += ctx.callActivity("Capitalize", "Seattle", String.class).await() + ", ";
result += ctx.callActivity("Capitalize", "Austin", String.class).await();
return result;
}
/**
* This is the activity function that gets invoked by the orchestrator function.
*/
@FunctionName("Capitalize")
public String capitalize(@DurableActivityTrigger(name = "name") String name, final ExecutionContext context) {
context.getLogger().info("Capitalizing: " + name);
return name.toUpperCase();
}
}
使用 Maven 命令建立本機專案
- 執行下列命令來產生具有 Durable Functions 應用程式基本函式的專案:
mvn archetype:generate -DarchetypeGroupId=com.microsoft.azure -DarchetypeArtifactId=azure-functions-archetype -DarchetypeVersion=1.51 -Dtrigger=durablefunctions
- 依照提示操作並提供下列資訊:
提示 | 值 |
---|---|
groupId | com.function |
artifactId | myDurableFunction |
version | 1.0-SNAPSHOT |
套件 | com.function |
Y | 點擊 Enter 確認 |
現在您已使用基本 Durable Functions 應用程式所需的三個函式產生本機專案。
請檢查以確定您的 pom.xml
中有 com.microsoft:durabletask-azure-functions
作為相依性。
設定後端儲存體提供者
Durable Functions 需要儲存體提供者來儲存執行階段狀態。 您可以將您的 Azure 儲存體帳戶連接字串當成值提供給 AzureWebJobsStorage
,藉此在 local.settings.json
中設定使用 Azure 儲存體作為儲存體提供者:
{
"IsEncrypted": false,
"Values": {
"AzureWebJobsStorage": "<your storage account connection string>",
"FUNCTIONS_WORKER_RUNTIME": "java"
}
}
建立本機專案
在 Visual Studio Code 中,按 F1 (或 Ctrl/Cmd+Shift+P) 以開啟命令選擇區。 在命令選擇區中,搜尋並選取
Azure Functions: Create New Project...
。為您的專案選擇空白資料夾位置,然後選擇 [選取]。
依照提示操作並提供下列資訊:
提示 值 選取語言 選擇 Java
。選取 JAVA 的版本 選擇您的函式在 Azure 中執行的 Java 版本 Java 8
或更新版本。 選擇您已在本機驗證的 Java 版本。提供群組識別碼 com.function
.提供成品識別碼 myDurableFunction
.提供版本 1.0-SNAPSHOT
.提供套件名稱 com.function
.提供應用程式名稱 myDurableFunction
.選取 JAVA 專案的建置工具 選擇 Maven
。選取您開啟專案的方式 選擇 Open in new window
。
您現在已擁有含有範例 HTTP 函式的專案。 如果您想要移除此函式,則可逕行移除,因為我們將在下一個步驟中新增 Durable Functions 應用程式的基本函式。
將函式新增至專案
在命令選擇區中,搜尋並選取
Azure Functions: Create Function...
。將
Change template filter
選擇為All
。依照提示操作並提供下列資訊:
提示 值 選取函式的範本 DurableFunctionsOrchestration 提供套件名稱 com.function
提供函式名稱 DurableFunctionsOrchestrator
選擇快顯視窗上的
Select storage account
,要求設定儲存體帳戶資訊並遵循提示。
現在在產生的 Durable Functions 應用程式中應該有三個基本函式。
設定 pom.xml 和 host.json
將下列相依性新增至 pom.xml
:
<dependency>
<groupId>com.microsoft</groupId>
<artifactId>durabletask-azure-functions</artifactId>
<version>1.0.0</version>
</dependency>
將 extensions
屬性新增至您的 host.json
:
"extensions": { "durableTask": { "hubName": "JavaTestHub" }}
在本機測試函式
Azure Functions Core Tools 可讓您在本機開發電腦上執行 Azure Functions 專案。
注意
適用於 Java 的 Durable Functions 需要 Azure Functions Core Tools v4.0.4915 或更新版本。 您可以從終端機執行 func --version
命令,以查看安裝的版本。
如果您使用 Visual Studio Code,請開啟新的終端機視窗,然後執行下列命令來建置專案:
mvn clean package
然後執行耐久函式:
mvn azure-functions:run

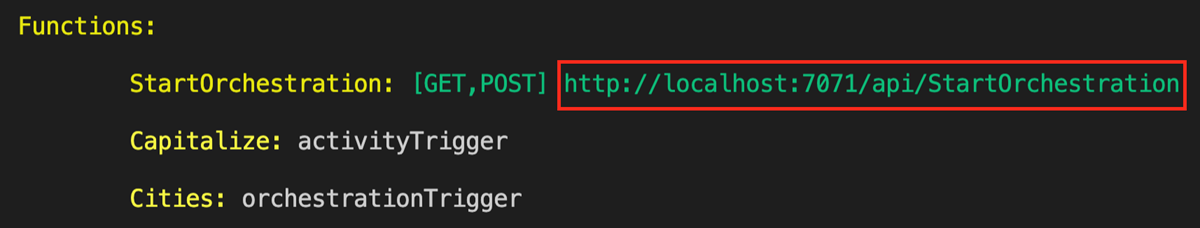

在終端機面板中,複製 HTTP 觸發函式的 URL 端點。
使用 Postman 或 cURL 之類的工具,將 HTTP POST 要求傳送至 URL 端點。 您應該會看到如下所示的回應:
{ "id": "d1b33a60-333f-4d6e-9ade-17a7020562a9", "purgeHistoryDeleteUri": "http://localhost:7071/runtime/webhooks/durabletask/instances/d1b33a60-333f-4d6e-9ade-17a7020562a9?code=ACCupah_QfGKoFXydcOHH9ffcnYPqjkddSawzRjpp1PQAzFueJ2tDw==", "sendEventPostUri": "http://localhost:7071/runtime/webhooks/durabletask/instances/d1b33a60-333f-4d6e-9ade-17a7020562a9/raiseEvent/{eventName}?code=ACCupah_QfGKoFXydcOHH9ffcnYPqjkddSawzRjpp1PQAzFueJ2tDw==", "statusQueryGetUri": "http://localhost:7071/runtime/webhooks/durabletask/instances/d1b33a60-333f-4d6e-9ade-17a7020562a9?code=ACCupah_QfGKoFXydcOHH9ffcnYPqjkddSawzRjpp1PQAzFueJ2tDw==", "terminatePostUri": "http://localhost:7071/runtime/webhooks/durabletask/instances/d1b33a60-333f-4d6e-9ade-17a7020562a9/terminate?reason={text}&code=ACCupah_QfGKoFXydcOHH9ffcnYPqjkddSawzRjpp1PQAzFueJ2tDw==" }
回應是 HTTP 函式的初始結果,讓您知道耐久協調流程已成功啟動。 這還不是協調流程的最終結果。 回應包含一些實用的 URL。 讓現在我們查詢協調流程的狀態。
複製
statusQueryGetUri
的 URL 值並將它貼在瀏覽器的網址列中,然後執行要求。 或者,您也可以繼續使用 Postman 或 cRUL 來發出 GET 要求。此要求會查詢協調流程執行個體的狀態。 您應該會取得最終回應,內容指出執行個體已完成,並包含耐久函式的輸出或結果。 如下所示:
{ "name": "Cities", "instanceId": "d1b33a60-333f-4d6e-9ade-17a7020562a9", "runtimeStatus": "Completed", "input": null, "customStatus": "", "output":"TOKYO, LONDON, SEATTLE, AUSTIN", "createdTime": "2022-12-12T05:00:02Z", "lastUpdatedTime": "2022-12-12T05:00:06Z" }
