使用 Azure Resource Graph (ARG) 來查詢您的備份

  • 發行項

您可以使用 Azure Resource Graph (ARG) 來查詢 Azure 資源的備份資訊，而不需額外付費。 ARG 是一項 Azure 服務，其設計目的是要延伸 Azure 資源管理。 它的目標是提供有效率的資源探索，讓您能夠在一組指定的訂用帳戶中大規模查詢。 以下是使用 ARG 來查詢您的備份中繼資料的主要優點：

  • 能夠根據資源屬性，使用複雜篩選、群組和排序來大規模查詢資源。
  • 能夠取得備份即時資訊，包括進行中的備份工作。
  • 能夠聯結備份相關資料與相關 Azure 資源 (例如 Azure 虛擬機器和儲存體帳戶) 的實用資訊。

開始使用

若要開始使用 ARG 來查詢您的備份，請遵循下列步驟：

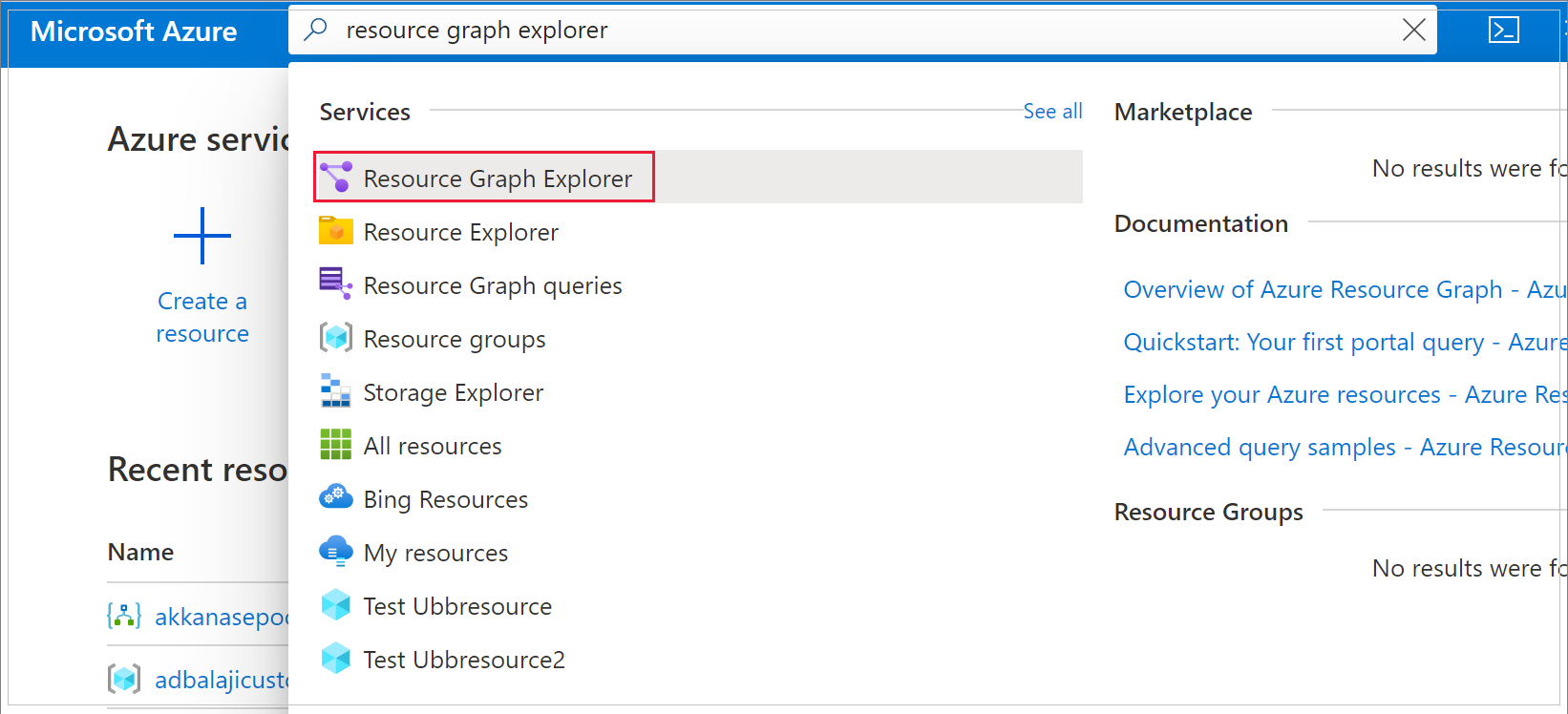

  1. 在 Azure 入口網站中，搜尋 Resource Graph Explorer。 選取相同的項目，以重新導向至 ARG 查詢編輯器。

    Search Azure Resource Group

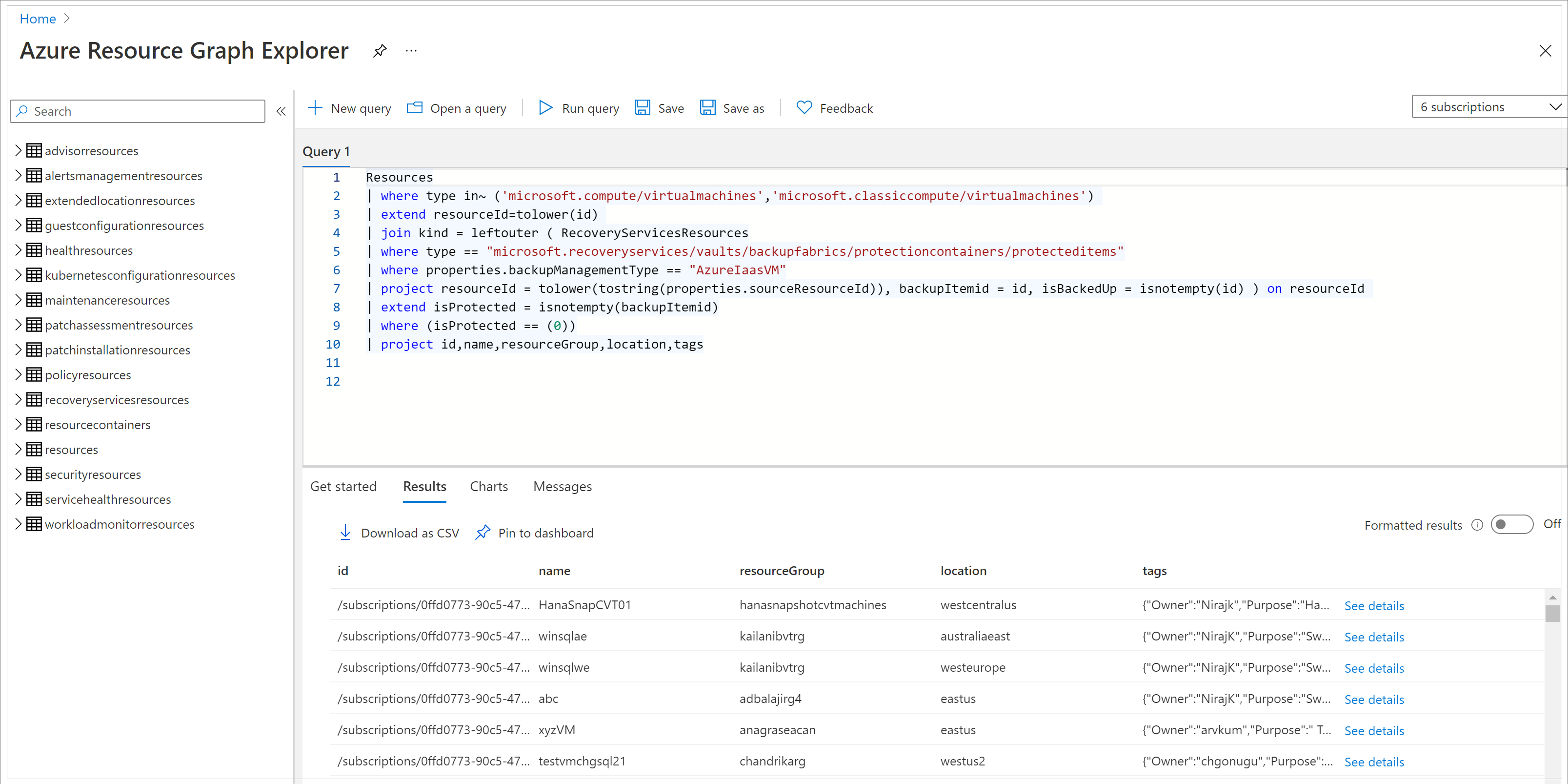

    左窗格會顯示可供查詢的所有資料表 (和其相關聯結構描述)。

    • RecoveryServicesResources 資料表包含大部分的備份相關記錄，例如工作詳細資料、備份執行個體詳細資料。 依此類推。
    • Resources 資料表包含所有最上層 Azure 資源的資訊，例如復原服務保存庫、Azure 虛擬機器、儲存體帳戶等。

    Available tables and associated schemas for query

  2. 若要探索所有這些資料表中的資料，請在查詢編輯器中撰寫 Kusto 查詢，然後按一下 [執行查詢]。

    您可以從 Resource Graph Explorer 將這些查詢的輸出下載為 CSV。 您也可以使用 ARG 所支援的任何自動用戶端 (例如 PowerShell、CLI 或 SDK)，在自訂自動化中使用這些查詢。 您也可以使用 ARG 作為資料來源，在 Azure 入口網站中建立自訂活頁簿。

注意

  • 最多有 14 天的備份/還原工作可用於 ARG 以進行查詢。 如果您想要查詢歷程記錄，則建議您使用 Azure 監視器記錄。
  • ARG 可讓您查詢您具有適當 RBAC 權限的資源。

範例查詢

下列一些範例 ARG 查詢是針對您可以在自訂儀表板和自動化中使用的備份資料。

列出所有已設定要進行備份的 Azure VM

RecoveryServicesResources
| where type in~ ('Microsoft.RecoveryServices/vaults/backupFabrics/protectionContainers/protectedItems')
| extend vaultName = case(type =~ 'microsoft.dataprotection/backupVaults/backupInstances',split(split(id, '/Microsoft.DataProtection/backupVaults/')[1],'/')[0],type =~ 'Microsoft.RecoveryServices/vaults/backupFabrics/protectionContainers/protectedItems',split(split(id, '/Microsoft.RecoveryServices/vaults/')[1],'/')[0],'--')
| extend dataSourceType = case(type=~'Microsoft.RecoveryServices/vaults/backupFabrics/protectionContainers/protectedItems',properties.backupManagementType,type =~ 'microsoft.dataprotection/backupVaults/backupInstances',properties.dataSourceSetInfo.datasourceType,'--')
| extend friendlyName = properties.friendlyName
| extend dsResourceGroup = split(split(properties.dataSourceInfo.resourceID, '/resourceGroups/')[1],'/')[0]
| extend dsSubscription = split(split(properties.dataSourceInfo.resourceID, '/subscriptions/')[1],'/')[0]
| extend lastRestorePoint = properties.lastRecoveryPoint
| extend primaryLocation = properties.dataSourceInfo.resourceLocation
| extend policyName = case(type =~ 'Microsoft.RecoveryServices/vaults/backupFabrics/protectionContainers/protectedItems',properties.policyName, type =~ 'microsoft.dataprotection/backupVaults/backupInstances', properties.policyInfo.name, '--')
| extend protectionState = properties.currentProtectionState
| where protectionState in~ ('ConfiguringProtection','ProtectionConfigured','ConfiguringProtectionFailed','ProtectionStopped','SoftDeleted','ProtectionError')

列出過去一周內適用於 PostgreSQL 伺服器的 Azure 資料庫上的所有備份工作

RecoveryServicesResources
| where type in~ ('Microsoft.DataProtection/backupVaults/backupJobs')
| extend vaultName = case(type =~ 'microsoft.dataprotection/backupVaults/backupJobs',properties.vaultName,type =~ 'Microsoft.RecoveryServices/vaults/backupJobs',split(split(id, '/Microsoft.RecoveryServices/vaults/')[1],'/')[0],'--')
| extend friendlyName = case(type =~ 'microsoft.dataprotection/backupVaults/backupJobs',strcat(properties.dataSourceSetName , '/', properties.dataSourceName),type =~ 'Microsoft.RecoveryServices/vaults/backupJobs', properties.entityFriendlyName, '--')
| extend dataSourceType = case(type =~ 'Microsoft.RecoveryServices/vaults/backupJobs',properties.backupManagementType,type =~ 'microsoft.dataprotection/backupVaults/backupJobs',properties.dataSourceType,'--')
| extend backupInstanceName = properties.backupInstanceId
| extend dsResourceGroup = split(split(properties.dataSourceId, '/resourceGroups/')[1],'/')[0]| extend dsSubscription = split(split(properties.dataSourceId, '/subscriptions/')[1],'/')[0]
| extend status = properties.status
| extend dataSourceId = properties.dataSourceId
| extend primaryLocation = properties.dataSourceLocation
| extend jobStatus = case (properties.status == 'Completed' or properties.status == 'CompletedWithWarnings','Succeeded',properties.status == 'Failed','Failed',properties.status == 'InProgress', 'Started', properties.status), operation = case(type =~ 'microsoft.dataprotection/backupVaults/backupJobs' and tolower(properties.operationCategory) =~ 'backup' and properties.isUserTriggered == 'true',strcat('adhoc',properties.operationCategory),type =~ 'microsoft.dataprotection/backupVaults/backupJobs', tolower(properties.operationCategory), type =~ 'Microsoft.RecoveryServices/vaults/backupJobs' and tolower(properties.operation) =~ 'backup' and properties.isUserTriggered == 'true',strcat('adhoc',properties.operation),type =~ 'Microsoft.RecoveryServices/vaults/backupJobs',tolower(properties.operation), '--'),startTime = todatetime(properties.startTime),endTime = properties.endTime, duration = properties.duration
| project id, name, friendlyName, resourceGroup, vaultName, dataSourceType, operation, jobStatus, startTime, duration, backupInstanceName, dsResourceGroup, dsSubscription, status, primaryLocation, dataSourceId
| where (startTime >= ago(7d))

列出所有尚未設定要進行備份的 Azure VM

Resources
| where type in~ ('microsoft.compute/virtualmachines','microsoft.classiccompute/virtualmachines')
| extend resourceId=tolower(id)
| join kind = leftouter ( RecoveryServicesResources
| where type == "microsoft.recoveryservices/vaults/backupfabrics/protectioncontainers/protecteditems"
| where properties.backupManagementType == "AzureIaasVM"
| project resourceId = tolower(tostring(properties.sourceResourceId)), backupItemid = id, isBackedUp = isnotempty(id) ) on resourceId
| extend isProtected = isnotempty(backupItemid)
| where (isProtected == (0))
| project id,name,resourceGroup,location,tags

列出用於 Azure VM 的所有備份原則

RecoveryServicesResources
| where type == 'microsoft.recoveryservices/vaults/backuppolicies'
| extend vaultName = case(type == 'microsoft.recoveryservices/vaults/backuppolicies', split(split(id, 'microsoft.recoveryservices/vaults/')[1],'/')[0],type == 'microsoft.recoveryservices/vaults/backuppolicies', split(split(id, 'microsoft.recoveryservices/vaults/')[1],'/')[0],'--')
| extend datasourceType = case(type == 'microsoft.recoveryservices/vaults/backuppolicies', properties.backupManagementType,type == 'microsoft.dataprotection/backupVaults/backupPolicies',properties.datasourceTypes[0],'--')
| project id,name,vaultName,resourceGroup,properties,datasourceType
| where datasourceType == 'AzureIaasVM'

列出與所指定備份原則相關聯的所有 VM

RecoveryServicesResources
| where type == "microsoft.recoveryservices/vaults/backupfabrics/protectioncontainers/protecteditems"
| project propertiesJSON = parse_json(properties)
| where propertiesJSON.backupManagementType == "AzureIaasVM"
| project VMID=propertiesJSON.sourceResourceId, PolicyID=propertiesJSON.policyId
| where PolicyID == "<ARM ID of the given policy>"

列出適用於 PostgreSQL 伺服器的 Azure 資料庫所使用的所有備份原則

RecoveryServicesResources
| where type in~ ('Microsoft.DataProtection/BackupVaults/backupPolicies')
| extend vaultName = case(type =~ 'microsoft.dataprotection/backupVaults/backupPolicies', split(split(id, '/Microsoft.DataProtection/backupVaults/')[1],'/')[0],type =~ 'microsoft.recoveryservices/vaults/backupPolicies', split(split(id, '/Microsoft.RecoveryServices/vaults/')[1],'/')[0],'--')
| extend datasourceType = case(type =~ 'Microsoft.RecoveryServices/vaults/backupPolicies', properties.backupManagementType,type =~ 'microsoft.dataprotection/backupVaults/backupPolicies',properties.datasourceTypes[0],'--')
| project id,name,vaultName,resourceGroup,properties,datasourceType
| where (datasourceType in~ ('Microsoft.DBforPostgreSQL/servers/databases'))

下一步

深入了解 Azure Resource Graph
