BaselineAlignment 列舉

定義

命名空間:

System.Windows

組件:

PresentationCore.dll

描述文字型項目的基準如何放置在垂直軸上，相對於文字的已建立基準。

public enum class BaselineAlignment

public enum BaselineAlignment

type BaselineAlignment =

Public Enum BaselineAlignment

繼承

Object

ValueType

Enum

BaselineAlignment

欄位

名稱	值	Description
Top	0	一個與包含盒子上緣對齊的基線。
Center	1	一條基線與包含方框的中心對齊。
Bottom	2	一個基準線，對齊於包含盒子的下緣。
Baseline	3	基線與實際包含盒子的基線對齊。
TextTop	4	一個對齊在文字基線上緣的基線。
TextBottom	5	基線對齊於文字基線的下緣。
Subscript	6	一個基準線，對齊於包含方框的下標位置。
Superscript	7	一個基準線，對齊於包含方框的上標位置。

範例

以下範例說明如何利用該 BaselineAlignment 屬性在包含的方框內對齊文字（此例 Paragraph為 ）。

<Page xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
  xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml">
  <FlowDocumentReader>
    <FlowDocument ColumnWidth="800">
      <Paragraph Background="Blue">

        <!-- The large text forces a large containing box size for the paragraph.
             The smaller text fragments align themselves vertically within this
             box according to their BaselineAlignment values. -->
        <Span FontSize="40">Baseline:</Span>
        <Span BaselineAlignment="Baseline">Baseline</Span>
        <Span BaselineAlignment="Top">Top</Span>
        <Span BaselineAlignment="Bottom">Bottom</Span>
        <Span BaselineAlignment="Center">Center</Span>
      </Paragraph>
      <Paragraph Background="Green">

        <!-- The BaselineAlignment values of Subscript and Superscript below
             force the containing box to be larger then it normally would be. -->
        <Span FontSize="40">Baseline:</Span>
        <Span BaselineAlignment="Subscript">Subscript</Span>
        <Span BaselineAlignment="Baseline">Baseline</Span>
        <Span BaselineAlignment="Superscript">Superscript</Span>
      </Paragraph>
      <Paragraph Background="Yellow" LineHeight="60" LineStackingStrategy="BlockLineHeight">

        <!-- A deliberate BlockLineHeight stacking strategy change, to show the difference between Top/TextTop
        and Bottom/TextBottom-->
        <Span FontSize="40" BaselineAlignment="Baseline">Baseline:</Span>
        <Span BaselineAlignment="Top">Top</Span>
        <Span BaselineAlignment="TextTop">TextTop</Span>
        <Span BaselineAlignment="Bottom">Bottom</Span>
        <Span BaselineAlignment="TextBottom">TextBottom</Span>
      </Paragraph>
    </FlowDocument>
  </FlowDocumentReader>
</Page>

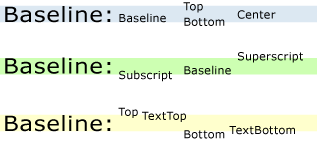

以下圖示展示了上述程式碼的結果。
