內部網路不安全的客戶端和服務

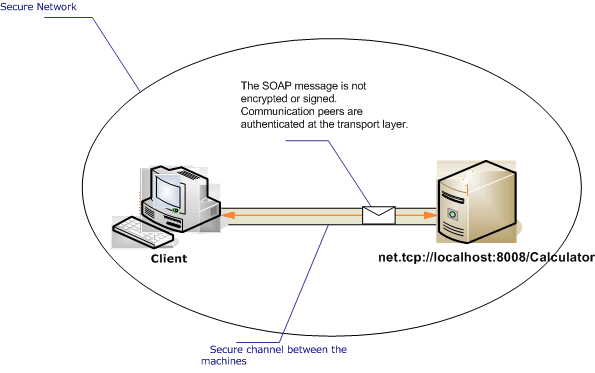

下圖描述一個簡單的 Windows Communication Foundation (WCF) 服務,該服務是針對 WCF 應用程式提供安全專用網的相關信息所開發。 安全性並非必要,因為數據的重要性很低、網路預期原本就安全,或由WCF基礎結構下方的層提供安全性。

內部網路不安全的客戶端和服務案例。

特徵 說明
安全性模式 沒有
運輸 TCP
捆綁 NetTcpBinding
互操作性 僅限 WCF
認證 沒有
廉正 沒有
保密性 沒有

服務

下列程式代碼和組態是要獨立執行。 請執行下列其中一項動作:

  • 使用不含組態的程式代碼建立獨立服務。

  • 使用提供的組態建立服務,但不定義任何端點。

程式碼

下列程式代碼示範如何建立沒有安全性的端點:

Uri tcpUri = new Uri("net.tcp://localhost:8008/Calculator");

// Create the ServiceHost.
ServiceHost sh = new ServiceHost(typeof(Calculator), tcpUri);

// Create a binding that uses TCP and set the security mode to none.
NetTcpBinding b = new NetTcpBinding();
b.Security.Mode = SecurityMode.None;

// Add an endpoint to the service.
sh.AddServiceEndpoint(typeof(ICalculator), b, "");
// Open the service and wait for calls.
sh.Open();

string listenUri = sh.Description.Endpoints[0].ListenUri.AbsoluteUri;
Console.WriteLine($"Listening on: {listenUri}");
Console.Write("Press Enter to end the service");
Console.ReadLine();
// Close the service when a key is pressed.

Dim tcpUri As New Uri("net.tcp://localhost:8008/Calculator")

' Create the ServiceHost.
Dim sh As New ServiceHost(GetType(Calculator), tcpUri)

' Create a binding that uses TCP and set the security mode to none.
Dim b As New NetTcpBinding()
b.Security.Mode = SecurityMode.None

' Add an endpoint to the service.
sh.AddServiceEndpoint(GetType(ICalculator), b, "")
' Open the service and wait for calls.
sh.Open()

Dim listenUri As String = sh.Description.Endpoints(0).ListenUri.AbsoluteUri
Console.WriteLine("Listening on: {0}", listenUri)
Console.Write("Press Enter to end the service")
Console.ReadLine()
' Close the service when a key is pressed.

設定

下列程式代碼會使用組態來設定相同的端點:

<?xml version="1.0" encoding="utf-8"?>
<configuration>
  <system.serviceModel>
    <behaviors />
    <services>
      <service behaviorConfiguration=""
               name="ServiceModel.Calculator">
        <endpoint address="net.tcp://localhost:8008/Calculator"
                  binding="netTcpBinding"
                  bindingConfiguration="tcp_Unsecured"
                  name="netTcp_ICalculator"
                  contract="ServiceModel.ICalculator" />
      </service>
    </services>
    <bindings>
      <netTcpBinding>
        <binding name="tcp_Unsecured">
          <security mode="None" />
        </binding>
      </netTcpBinding>
    </bindings>
    <client />
  </system.serviceModel>
</configuration>

客戶

下列程式代碼和組態是要獨立執行。 請執行下列其中一項動作:

  • 使用程式代碼和客戶端代碼來建立獨立的用戶端。

  • 建立未定義任何端點位址的用戶端。 請改用採用組態名稱作為自變數的用戶端建構函式。 例如:

    CalculatorClient cc = new CalculatorClient("EndpointConfigurationName");

    Dim cc As New CalculatorClient("EndpointConfigurationName")


程式碼

下列程式代碼顯示使用 TCP 通訊協定存取不安全端點的基本 WCF 用戶端。

// Create an instance of the NetTcpBinding and set the
// security mode to none.
NetTcpBinding myBinding = new NetTcpBinding();
myBinding.Security.Mode = SecurityMode.None;

// Create the address string, or get it from configuration.
string tcpUri = "net.tcp://machineName:8008/Calculator";

// Create an endpoint address with the address.
EndpointAddress myEndpointAddress = new EndpointAddress(tcpUri);

// Create an instance of the WCF client. The client
// code was generated using the Svcutil.exe tool.
CalculatorClient cc = new CalculatorClient(myBinding, myEndpointAddress);
try
{
    cc.Open();
' Create an instance of the NetTcpBinding and set the
' security mode to none.
Dim myBinding As New NetTcpBinding()
myBinding.Security.Mode = SecurityMode.None

' Create the address string, or get it from configuration.
Dim tcpUri As String = "net.tcp://machineName:8008/Calculator"

' Create an endpoint address with the address.
Dim myEndpointAddress As New EndpointAddress(tcpUri)

' Create an instance of the WCF client. The client
' code was generated using the Svcutil.exe tool.
Dim cc As New CalculatorClient(myBinding, myEndpointAddress)
Try
    cc.Open()

設定

下列組態程式代碼適用於用戶端:

<?xml version="1.0" encoding="utf-8"?>
<configuration>
  <system.serviceModel>
    <bindings>
      <netTcpBinding>
        <binding name="NetTcpBinding_ICalculator" >
          <security mode="None">
          </security>
        </binding>
      </netTcpBinding>
    </bindings>
    <client>
      <endpoint address="net.tcp://machineName:8008/Calculator "
                binding="netTcpBinding"
                bindingConfiguration="NetTcpBinding_ICalculator"
                contract="ICalculator"
                name="NetTcpBinding_ICalculator" />
    </client>
  </system.serviceModel>
</configuration>
