如何：置放工具提示

此範例示範如何在畫面上指定工具提示的位置。

範例

您可以使用 和 類別中 ToolTipToolTipService 定義的五個屬性集合來定位工具提示。 下表顯示這兩組五個屬性，並根據類別提供其參考檔的連結。

根據類別對應的工具提示屬性

System.Windows.Controls.ToolTip 類別屬性	System.Windows.Controls.ToolTipService 類別屬性
ToolTip.Placement	ToolTipService.Placement
ToolTip.PlacementTarget	ToolTipService.PlacementTarget
ToolTip.PlacementRectangle	ToolTipService.PlacementRectangle
ToolTip.HorizontalOffset	ToolTipService.HorizontalOffset
ToolTip.VerticalOffset	ToolTipService.VerticalOffset

如果您使用 物件來定義工具提示 ToolTip 的內容，則可以使用任一類別的屬性;不過， ToolTipService 屬性會優先使用。 針對 ToolTipService 未定義為 ToolTip 物件的工具提示使用屬性。

下圖顯示如何使用這些屬性來定位工具提示。 雖然這些圖例中的 Extensible Application Markup Language （XAML） 範例示範如何設定 類別所 ToolTip 定義的屬性，但 類別的 ToolTipService 對應屬性會遵循相同的配置規則。 如需 Placement 屬性可能值的詳細資訊，請參閱 快顯放置行為 。

下圖顯示使用 Placement 屬性的工具提示位置：

下圖顯示使用 Placement 和 PlacementRectangle 屬性的工具提示位置：

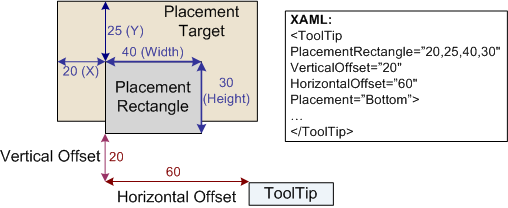

下圖顯示使用 Placement、PlacementRectangle 和 Offset 屬性的工具提示位置：

下列範例示範如何使用 ToolTip 屬性來指定其內容為 ToolTip 物件之工具提示的位置。

<Ellipse Height="25" Width="50"
         Fill="Gray"
         HorizontalAlignment="Left"
         ToolTipService.InitialShowDelay="1000"
         ToolTipService.ShowDuration="7000"
         ToolTipService.BetweenShowDelay="2000">
  <Ellipse.ToolTip>
    <ToolTip Placement="Right"
             PlacementRectangle="50,0,0,0"
             HorizontalOffset="10"
             VerticalOffset="20"
             HasDropShadow="false"
             Opened="whenToolTipOpens"
             Closed="whenToolTipCloses"
             >
      <BulletDecorator>
        <BulletDecorator.Bullet>
          <Ellipse Height="10" Width="20" Fill="Blue"/>
        </BulletDecorator.Bullet>
        <TextBlock>Uses the ToolTip Class</TextBlock>
      </BulletDecorator>
    </ToolTip>
  </Ellipse.ToolTip>
</Ellipse>

//Create an ellipse that will have a
//ToolTip control.
Ellipse ellipse1 = new Ellipse();
ellipse1.Height = 25;
ellipse1.Width = 50;
ellipse1.Fill = Brushes.Gray;
ellipse1.HorizontalAlignment = HorizontalAlignment.Left;

//Create a tooltip and set its position.
ToolTip tooltip = new ToolTip();
tooltip.Placement = PlacementMode.Right;
tooltip.PlacementRectangle = new Rect(50, 0, 0, 0);
tooltip.HorizontalOffset = 10;
tooltip.VerticalOffset = 20;

//Create BulletDecorator and set it
//as the tooltip content.
BulletDecorator bdec = new BulletDecorator();
Ellipse littleEllipse = new Ellipse();
littleEllipse.Height = 10;
littleEllipse.Width = 20;
littleEllipse.Fill = Brushes.Blue;
bdec.Bullet = littleEllipse;
TextBlock tipText = new TextBlock();
tipText.Text = "Uses the ToolTip class";
bdec.Child = tipText;
tooltip.Content = bdec;

//set tooltip on ellipse
ellipse1.ToolTip = tooltip;

'Create an ellipse that will have a
'ToolTip control.
Dim ellipse1 As New Ellipse()
ellipse1.Height = 25
ellipse1.Width = 50
ellipse1.Fill = Brushes.Gray
ellipse1.HorizontalAlignment = HorizontalAlignment.Left

'Create a tooltip and set its position.
Dim tooltip As New ToolTip()
tooltip.Placement = PlacementMode.Right
tooltip.PlacementRectangle = New Rect(50, 0, 0, 0)
tooltip.HorizontalOffset = 10
tooltip.VerticalOffset = 20

'Create BulletDecorator and set it
'as the tooltip content.
Dim bdec As New BulletDecorator()
Dim littleEllipse As New Ellipse()
littleEllipse.Height = 10
littleEllipse.Width = 20
littleEllipse.Fill = Brushes.Blue
bdec.Bullet = littleEllipse
Dim tipText As New TextBlock()
tipText.Text = "Uses the ToolTip class"
bdec.Child = tipText
tooltip.Content = bdec

'set tooltip on ellipse
ellipse1.ToolTip = tooltip

下列範例示範如何使用 ToolTipService 屬性來指定其內容不是 ToolTip 物件之工具提示的位置。

<Ellipse Height="25" Width="50"
      Fill="Gray"
      HorizontalAlignment="Left"
      ToolTipService.InitialShowDelay="1000"
      ToolTipService.ShowDuration="7000"
      ToolTipService.BetweenShowDelay="2000"
      ToolTipService.Placement="Right"
      ToolTipService.PlacementRectangle="50,0,0,0"
      ToolTipService.HorizontalOffset="10"
      ToolTipService.VerticalOffset="20"
      ToolTipService.HasDropShadow="false"
      ToolTipService.ShowOnDisabled="true"
      ToolTipService.IsEnabled="true"
      ToolTipOpening="whenToolTipOpens"
      ToolTipClosing="whenToolTipCloses"
      >
  <Ellipse.ToolTip>
    <BulletDecorator>
      <BulletDecorator.Bullet>
        <Ellipse Height="10" Width="20" Fill="Blue"/>
      </BulletDecorator.Bullet>
      <TextBlock>Uses the ToolTipService class</TextBlock>
    </BulletDecorator>
  </Ellipse.ToolTip>
</Ellipse>

//Create and Ellipse with the BulletDecorator as
//the tooltip
Ellipse ellipse2 = new Ellipse();
ellipse2.Name = "ellipse2";
this.RegisterName(ellipse2.Name, ellipse2);
ellipse2.Height = 25;
ellipse2.Width = 50;
ellipse2.Fill = Brushes.Gray;
ellipse2.HorizontalAlignment = HorizontalAlignment.Left;

//set tooltip timing
ToolTipService.SetInitialShowDelay(ellipse2, 1000);
ToolTipService.SetBetweenShowDelay(ellipse2, 2000);
ToolTipService.SetShowDuration(ellipse2, 7000);

//set tooltip placement

ToolTipService.SetPlacement(ellipse2, PlacementMode.Right);

ToolTipService.SetPlacementRectangle(ellipse2,
    new Rect(50, 0, 0, 0));

ToolTipService.SetHorizontalOffset(ellipse2, 10.0);

ToolTipService.SetVerticalOffset(ellipse2, 20.0);


ToolTipService.SetHasDropShadow(ellipse2, false);

ToolTipService.SetIsEnabled(ellipse2, true);

ToolTipService.SetShowOnDisabled(ellipse2, true);

ellipse2.AddHandler(ToolTipService.ToolTipOpeningEvent,
    new RoutedEventHandler(whenToolTipOpens));
ellipse2.AddHandler(ToolTipService.ToolTipClosingEvent,
    new RoutedEventHandler(whenToolTipCloses));

//define tooltip content
BulletDecorator bdec2 = new BulletDecorator();
Ellipse littleEllipse2 = new Ellipse();
littleEllipse2.Height = 10;
littleEllipse2.Width = 20;
littleEllipse2.Fill = Brushes.Blue;
bdec2.Bullet = littleEllipse2;
TextBlock tipText2 = new TextBlock();
tipText2.Text = "Uses the ToolTipService class";
bdec2.Child = tipText2;
ToolTipService.SetToolTip(ellipse2, bdec2);
stackPanel_1_2.Children.Add(ellipse2);

'Create and Ellipse with the BulletDecorator as
'the tooltip
Dim ellipse2 As New Ellipse()
ellipse2.Name = "ellipse2"
Me.RegisterName(ellipse2.Name, ellipse2)
ellipse2.Height = 25
ellipse2.Width = 50
ellipse2.Fill = Brushes.Gray
ellipse2.HorizontalAlignment = HorizontalAlignment.Left

'set tooltip timing
ToolTipService.SetInitialShowDelay(ellipse2, 1000)
ToolTipService.SetBetweenShowDelay(ellipse2, 2000)
ToolTipService.SetShowDuration(ellipse2, 7000)

'set tooltip placement

ToolTipService.SetPlacement(ellipse2, PlacementMode.Right)

ToolTipService.SetPlacementRectangle(ellipse2, New Rect(50, 0, 0, 0))

ToolTipService.SetHorizontalOffset(ellipse2, 10.0)

ToolTipService.SetVerticalOffset(ellipse2, 20.0)


ToolTipService.SetHasDropShadow(ellipse2, False)

ToolTipService.SetIsEnabled(ellipse2, True)

ToolTipService.SetShowOnDisabled(ellipse2, True)

ellipse2.AddHandler(ToolTipService.ToolTipOpeningEvent, New RoutedEventHandler(AddressOf whenToolTipOpens))
ellipse2.AddHandler(ToolTipService.ToolTipClosingEvent, New RoutedEventHandler(AddressOf whenToolTipCloses))

'define tooltip content
Dim bdec2 As New BulletDecorator()
Dim littleEllipse2 As New Ellipse()
littleEllipse2.Height = 10
littleEllipse2.Width = 20
littleEllipse2.Fill = Brushes.Blue
bdec2.Bullet = littleEllipse2
Dim tipText2 As New TextBlock()
tipText2.Text = "Uses the ToolTipService class"
bdec2.Child = tipText2
ToolTipService.SetToolTip(ellipse2, bdec2)
stackPanel_1_2.Children.Add(ellipse2)
