Debug your Teams app locally

Microsoft Teams Toolkit helps you to debug and preview your Microsoft Teams app locally. During the debug process, Teams Toolkit automatically starts app services, launches debuggers, and uploads Teams app. You can preview your Teams app in Teams web client locally after debugging.

Debug your Teams app locally for Visual Studio Code

Teams Toolkit in Microsoft Visual Studio Code gives you the features to automate debugging of your Teams app locally. Visual Studio Code allows you to debug tab, bot, and message extension. You need to set up Teams Toolkit before you debug your app.

Note

Your old Teams Toolkit project gets upgraded to use new tasks, for more information, see tasks doc.

Set up your Teams Toolkit for debugging

The following steps help you set up your Teams Toolkit before you initiate the debug process:

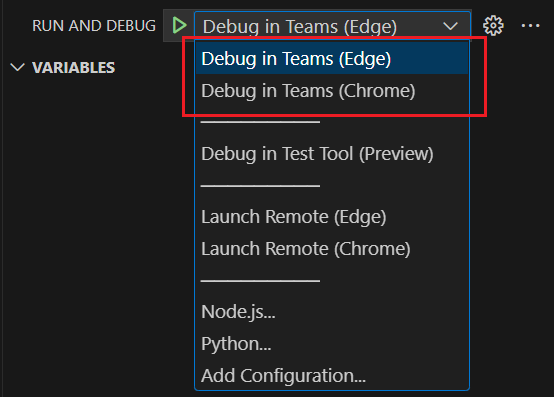

  1. Select Debug in Teams (Edge) or Debug in Teams (Chrome) from the RUN AND DEBUG ▷ dropdown.

    Screenshot shows the Browser option.

  2. Select Run > Start Debugging (F5).

    Screenshot shows the Start debugging option.

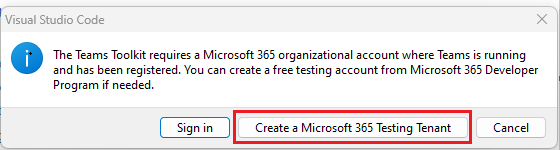

  3. Select Create a Microsoft 365 Testing Tenant to Microsoft 365 account.

    Screenshot shows the Sign in option highlighted.

    Tip

    You can select Create a Microsoft 365 Testing Tenant to learn about Microsoft 365 Developer Program. Your default web browser opens to let you sign in to your Microsoft 365 account with your credentials.

  4. Select Install to install the development certificate for localhost.

    Screenshot shows the certificate to install.

    Tip

    You can select Learn More to know about the development certificate.

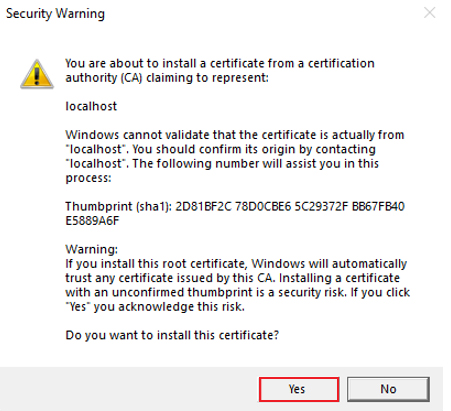

  5. Select Yes in the Security Warning dialog.

    Screenshot shows the certification authority to install the certificate.

Toolkit launches a new Microsoft Edge or Chrome browser instance based on your selection and opens a web page to load Teams client.

Debug your app

After the initial setup process, Teams Toolkit starts the following processes:

Starts app services

Runs tasks as defined in .vscode/tasks.json. By default, the task name is "Start application". If your project contains more than one component, there'll be more dependent tasks.

// .vscode/tasks.json
{
    "label": "Start application",
    "dependsOn": [
        "Start Frontend", // Tab
        "Start Backend", // Azure Functions
        "Start Bot" // Bot or message extensions
    ]
}

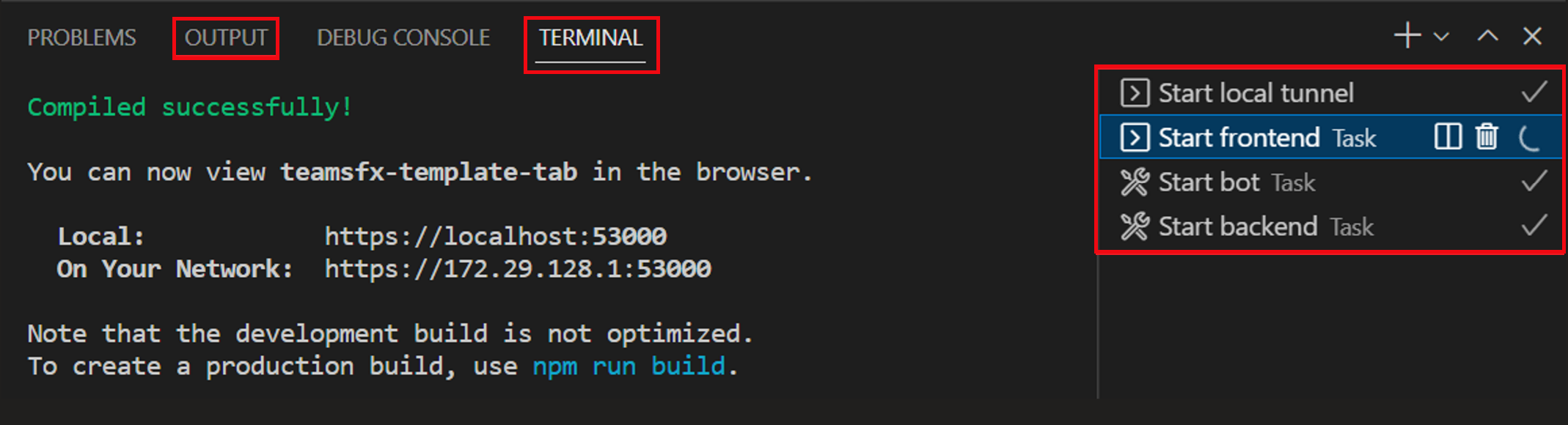

The following image displays task names in the OUTPUT and TERMINAL tabs of the Visual Studio Code while running tab, bot or message extension, and Azure Functions.

Screenshot shows the Start app services.

Start local tunnel

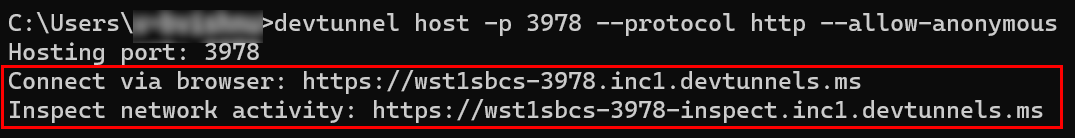

Use dev tunnel as a local tunnel service to make your local bot message endpoint public.

Dev tunnel

To manually migrate your local tunnel task from a v4 project, update the following code in the .vscode/tasks.json file:

{
      "label": "Start local tunnel",
      "type": "teamsfx",
      "command": "debug-start-local-tunnel",
      "args": {
          "type": "dev-tunnel",
          "ports": [
              {
                  "portNumber": 3978,
                  "protocol": "http",
                  "access": "public",
                  "writeToEnvironmentFile": {
                      "endpoint": "BOT_ENDPOINT",
                      "domain": "BOT_DOMAIN"
                  }
              }
        ],
          "env": "local"
      },
      "isBackground": true,
      "problemMatcher": "$teamsfx-local-tunnel-watch"
    },

To use another port for local bot service, change the portNumber in the .vscode/tasks.json file and also change the portNumber in the index.js or index.ts file.

The following table lists the required arguments:

Arguments Type Required Description
type string required The type of tunnel service to use. This argument must be set to dev-tunnel.
env string optional The environment name. Teams Toolkit writes the environment variables defined in output to .env.<env> file.
ports array required An array of port configurations, each specifying the local port number, protocol, and access control settings.

The ports argument must be an array of objects, with each object specifying the configuration for a particular port. Each object must contain the following fields:

Port Type Required Description
portNumber number required The local port number of the tunnel.
protocol string required The protocol of the tunnel.
access string optional The access control setting for the tunnel. This value can be set to private or public. If not specified, the default value is private.
writeToEnvironmentFile object optional The key of tunnel endpoint and tunnel domain environment variables that are written to .env file.

The writeToEnvironmentFile object contains two fields:

WriteToEnvironmentFile Type Required Description
endpoint string optional The key of tunnel endpoint environment variable.
domain string optional The key of tunnel domain environment variable.

When writeToEnvironmentFile is included, the specified environment variables are written to the .env file. When the field is omitted, no environment variables are written to the file.

Launches debug configurations

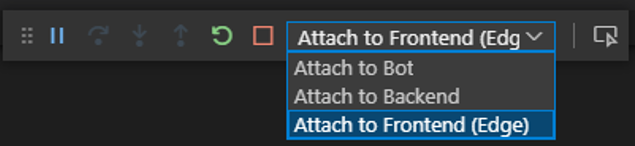

Launches the debug configurations as defined in .vscode/launch.json.

Screenshot shows the Launch debugger.

The following table lists the debug configuration names and types for project with tab, bot or message extension app, and Azure Functions:

Component Debug configuration name Debug configuration type
Tab Attach to Frontend (Edge) or Attach to Frontend (Chrome) msedge or chrome
Bot or message extensions Attach to Bot node
Azure Functions Attach to Backend node

The following table lists the debug configuration names and types for project with bot app, Azure Functions, and without tab app:

Component Debug configuration name Debug configuration type
Bot or message extension Launch Bot (Edge) or Launch Bot (Chrome) msedge or chrome
Bot or message extension Attach to Bot node
Azure Functions Attach to Backend node

Uploads the Teams app

The configuration Attach to Frontend or Launch App launches Microsoft Edge or Chrome browser instance to load Teams client in web page. After the Teams client is loaded, upload Teams app that is controlled by the uploading URL defined in the launch configurations Microsoft Teams. When Teams client loads in the web browser, select Add or select an option from the dropdown as per your requirement.

Screenshot shows the Add local debug.

Your app is added to Teams!
