Set up Azure DevOps Services for a Java project

TFS 2018 | TFS 2017

This exercise will walk you through the steps to creating your Azure DevOps account and create a new project.

Prerequisites

Note

These Hands-On Labs use a virtual machine with a Java environment configured by our partner, Northwest Cadence.

Learn how to connect to the Java VM environment here.

  1. Sign in to your organization - https://{your account name}.visualstudio.com. If you do not have an organization, sign up for a free one.

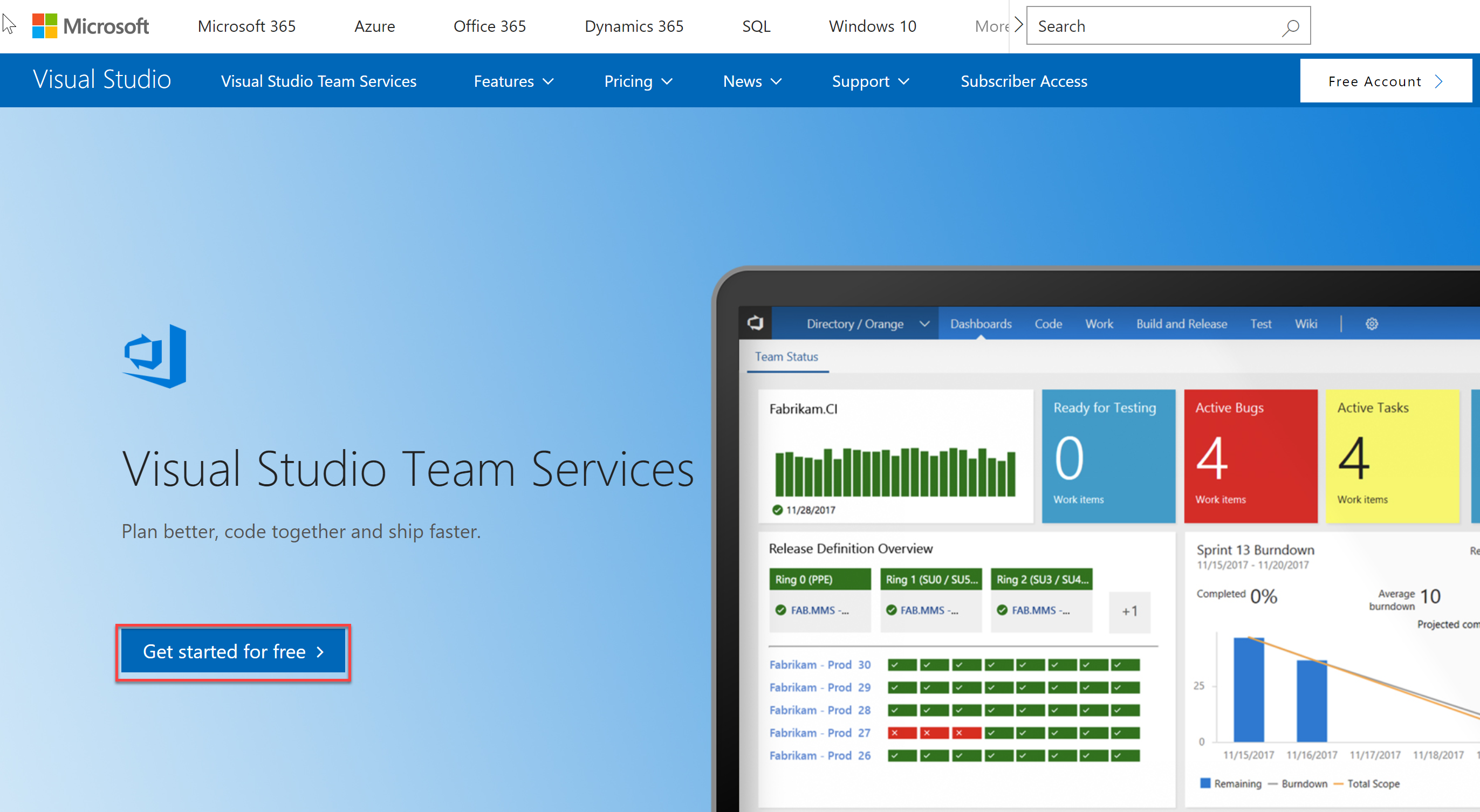

    Sign up for an organization

(Optional) Generate an Azure DevOps Services Personal Access Token (PAT)

In this task you will generate a personal access token for yourself. PATs essentially are alternate passwords. You need them to integrate Azure DevOps Services with non-Microsoft tools such as Git, XCode, etc. You will need PAT to provision your project using the demo generator or to connect a self-hosted agent to your organization.

Tip

If you already have a PAT, you can skip this step and use your existing PAT (assuming it has the correct scopes).

  1. On your Azure DevOps Services page, in the upper right, click on your profile image and click Security.

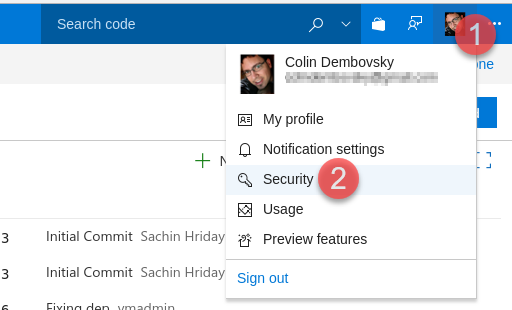

    The location of your account's Security settings

  2. On the Personal access tokens page, click Add. Enter "java" (or whatever you want) for the Description. Scroll to the bottom of the page and click Create token.

  3. When the token is created, make a note of it as it cannot be viewed again. Copy it from the browser into the clipboard.

  4. Click on the Visual Studio Code icon in the toolbar to open Visual Studio Code.

    The location of VS Code in the Java VM environment

  5. Press Ctrl-N (or use File -> New File) to create a new file. Paste in your PAT. Save this file (File->Save or Ctrl+S) to /home/vmadmin/pat.txt.

Create a new project with Azure DevOps Services Demo Generator...

Next, you need to create a team project. You can create the team project manually or by using Azure DevOps Services Demo Generator, a tool that helps you create team projects on your organization with sample content that include source code, work items, iterations, service connections, build and release pipelines based on the template you choose during the configuration.

The steps below use Azure DevOps Services Demo Generator to provision a demo Java project for you.

  1. Open Azure DevOps Services Demo Generator.

  2. Enter your account name and the PAT you saved earlier. Click Verify and Continue.

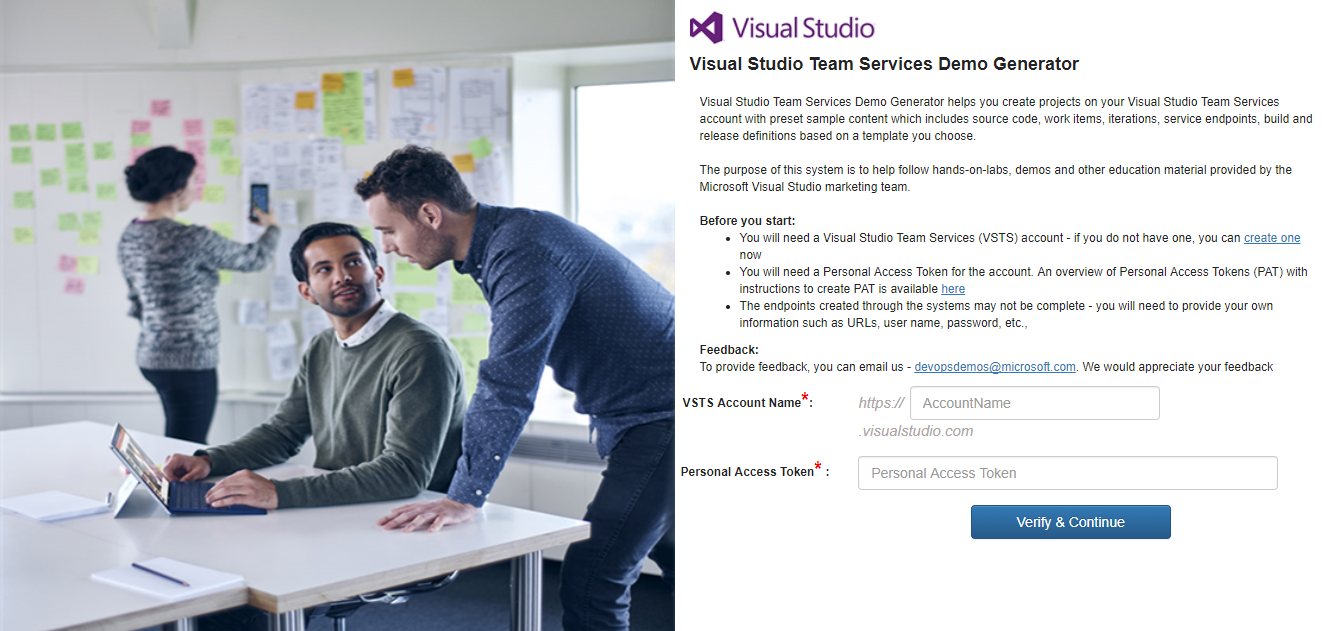

    The Azure DevOps Services Demo Generator login page

  3. Use MyShuttle2 for the template. Use jdev-labs for the Project Name. Select Create Project.

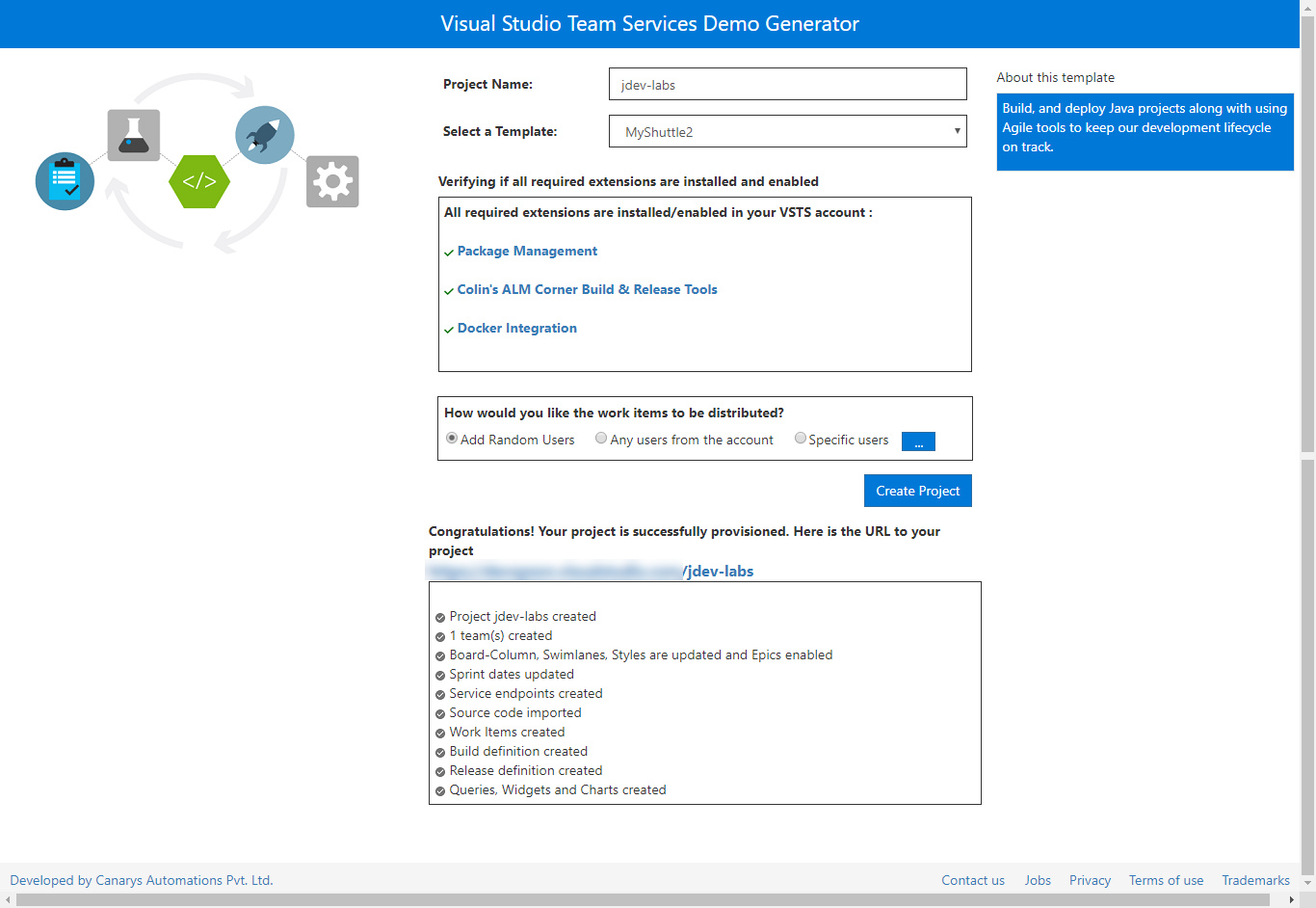

    The Azure DevOps Services Demo Generator project configuration page

  4. After the project is provisioned, click the URL to navigate to the project.

...or import a Github Repo into Azure DevOps Services

If you have not provisioned the team project using the Azure DevOps Services demo generator in the previous exercise, you can follow the steps in this exercise to manually create a team project and import code from a GitHub repository.

  1. From your Azure DevOps organization home page, select New Project.

  2. Use jdev-labs for the new Project Name. Select Scrum as the Work item process. Click Create.

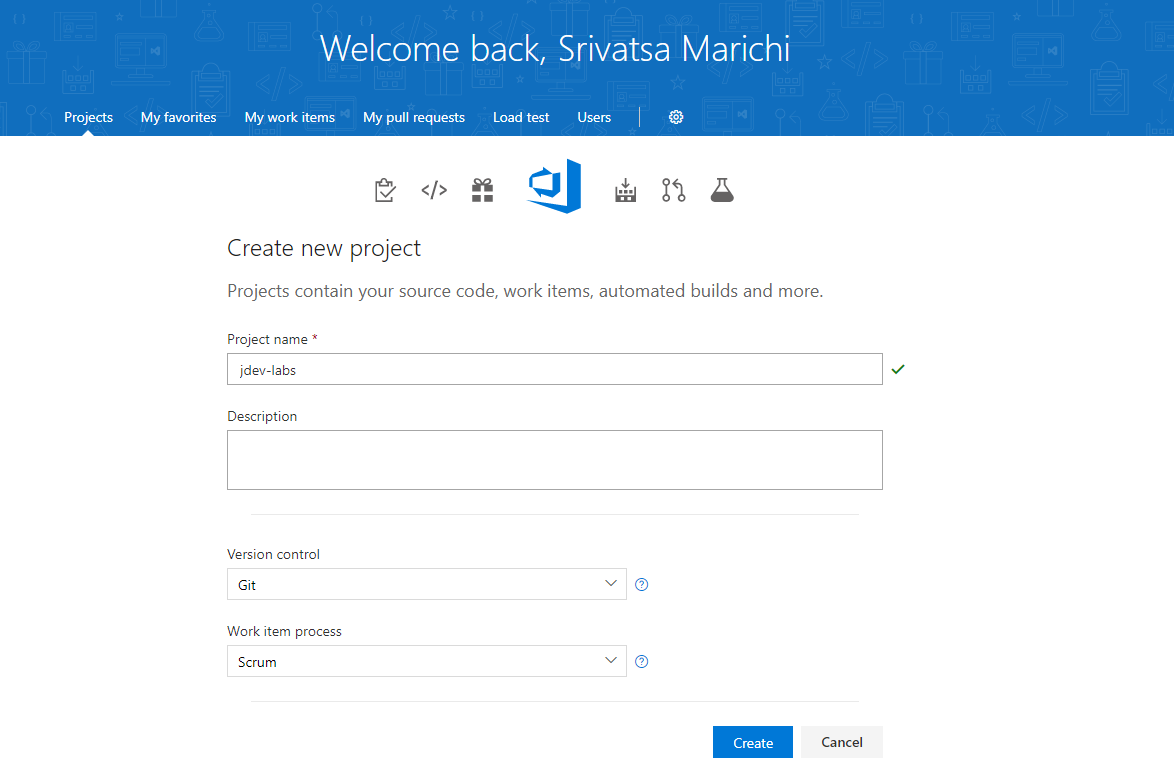

    Azure DevOps Services new project configuration page

  3. Click on the repo drop-down in the upper-left (in the grey toolbar) and select "Import repository".

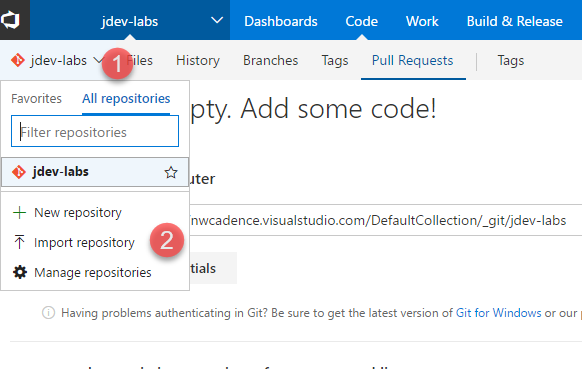

    Import a repository in the Code Hub

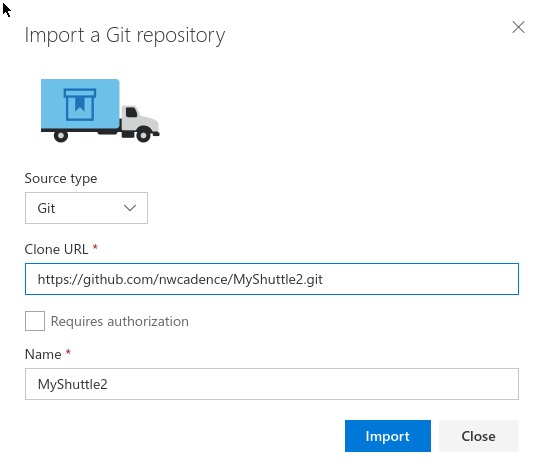

  4. Enter the following url: https://github.com/nwcadence/MyShuttle2.git and click Import.

    Enter the URL.

  5. After a few moments, the code will be imported.

Import the MyShuttleCalc code from Github into Azure DevOps Services

In this task you will import the MyShuttleCalc code from GitHub into Azure DevOps Services. If you have already done so, skip this step.

  1. Click on the jdev-labs team project to navigate to it. Click on Code in the blue toolbar at the top to open the Code Hub.

  2. Click on the repo drop-down in the upper left (in the grey toolbar) and select "Import repository". (This will be the second time you import a repo if you create the project manually.)

    Import a repository.

  3. Enter the following url: https://github.com/nwcadence/MyShuttleCalc.git and click Import.

    Enter the URL

  4. After a few moments, the code will be imported.

    Note

    It is not necessary to clone GitHub repos into Azure DevOps Services. Azure DevOps Services will work just fine with GitHub (or other hosted Git) repos. However, some links from source code to other aspects of the DevOps pipeline (such as work items, builds, or releases) work best if the code is in Azure DevOps Services.
