DAB Visualize extension

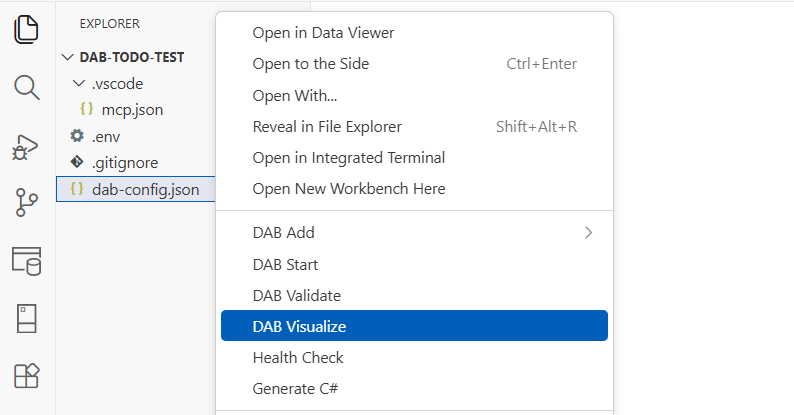

Use the DAB Visualize extension to generate a Mermaid ER diagram from your configuration file.

Command

Command	Command ID
DAB Visualize	dabExtension.visualizeDab

Installation

Every extension for Data API builder (DAB) is included in the Omnibus extension, which itself has no functionality other than delivering each subextension in a single package.

Related content

Note

DAB Visual Studio Code (VS Code) extensions only support Microsoft SQL (mssql).
