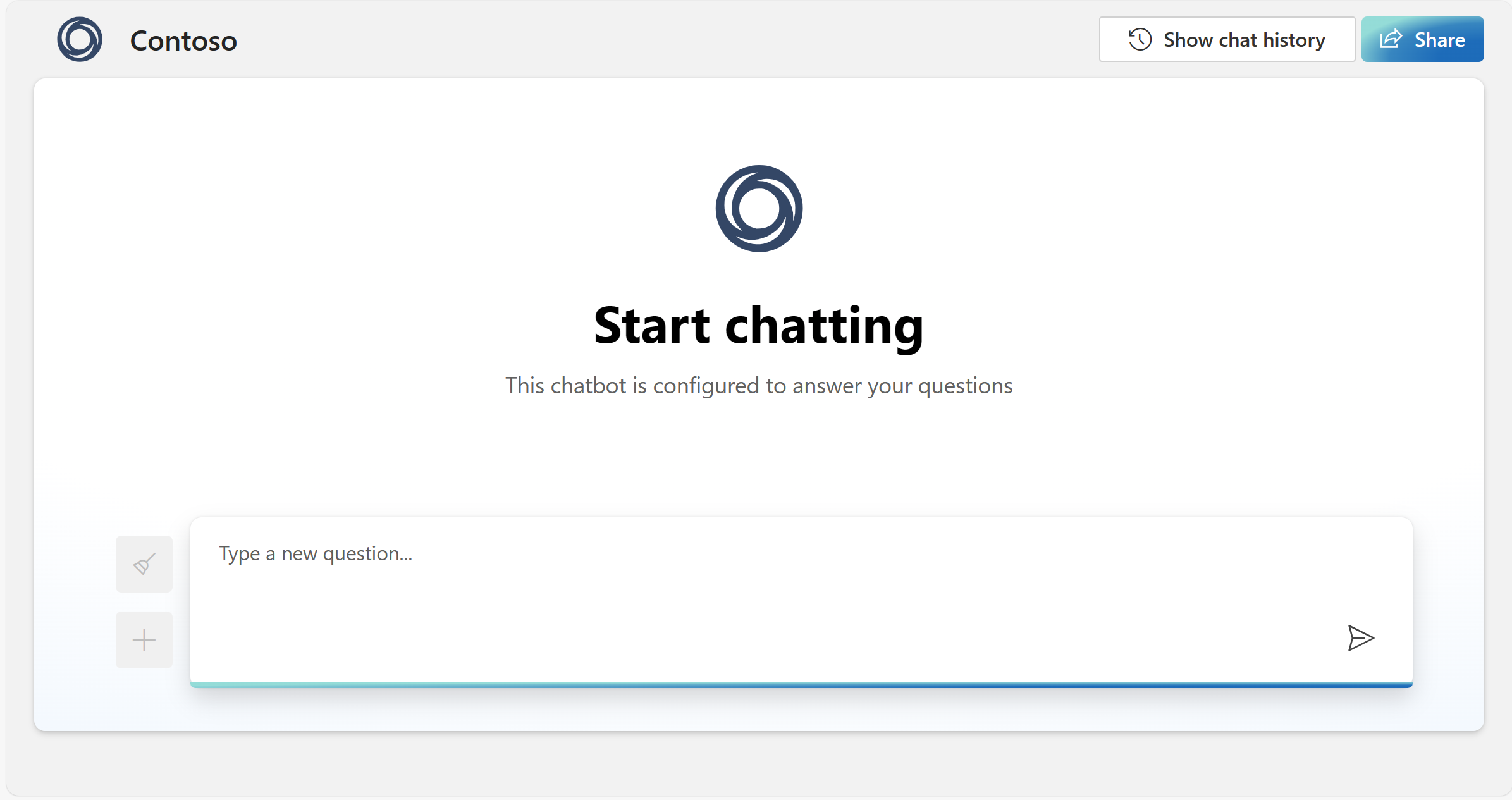

Use the Azure OpenAI web app

Along with Azure AI Studio, Azure OpenAI Studio, APIs, and SDKs, you can use the customizable standalone web app to interact with Azure OpenAI models by using a graphical user interface. Key features include:

• Connectivity with multiple data sources to support rich querying and retrieval-augmented generation, including Azure AI Search, Prompt Flow, and more.
• Conversation history and user feedback collection through Cosmos DB.
• Authentication with role-based access control via Microsoft Entra ID.
• Customization of the user interface, data sources, and features using environment variables (no-code via Azure portal).
• Support for modifying the underlying web application source code as an open-source repository.

You can deploy the app by using either Azure AI Studio or Azure OpenAI Studio, or through a manual deployment through the Azure portal or the Azure Developer CLI via your local machine (instructions available at the repository here). Depending on your deployment channel, you can preload a data source to chat with via the web application, but this can be changed after deployment.

For Azure OpenAI beginners aspiring to chat with their data through the web application, Azure AI Studio is the recommended medium for initial deployment and data source configuration.

Important considerations

• This web application and many of its features are in preview, meaning that bugs might occur and that not all features might be complete. If you find a bug or require assistance, raise an issue in the associated GitHub repository.
• Publishing a web app creates an Azure App Service instance in your subscription. It might incur costs depending on the pricing plan that you select. When you're done with your app, you can delete it and any associated resources from the Azure portal.
• GPT-4 Turbo with Vision models are not currently supported.
• By default, the app is deployed with the Microsoft identity provider already configured. The identity provider restricts access to the app to members of your Azure tenant. To add or modify authentication:

  1. Go to the Azure portal and search for the app name that you specified during publishing. Select the web app, and then select Authentication on the left menu. Then select Add identity provider.



  2. Select Microsoft as the identity provider. The default settings on this page restrict the app to your tenant only, so you don't need to change anything else here. Select Add.

Now users will be asked to sign in with their Microsoft Entra account to access your app. You can follow a similar process to add another identity provider if you prefer. The app doesn't use the user's sign-in information in any way other than verifying that the user is a member of your tenant. For more information on managing authentication, view this quickstart on authentication for web apps on Azure App Service.

Customizing the application using environment variables

You can customize the app's front-end and back-end logic. The app provides several environment variables for common customization scenarios such as changing the icon in the app.

These environment variables can be modified through the Azure portal after deploying the web application.

1. In the Azure portal, search for and select the App Services page.
2. Select the web app that you have just deployed.
3. In the left menu of the app, select Settings > Environment variables.
4. To modify an existing environment variable, click on its name.
5. To add a single new environment variable, click on Add in the panel's top menu bar.
6. To use the JSON-based editor to manage environment variables, click Advanced edit.

When you're customizing the app, we recommend:

• Clearly communicating how each setting that you implement affects the user experience.

• Updating the app settings for each of your deployed apps to use new API keys after you rotate keys for your Azure OpenAI or Azure AI Search resource.

Sample source code for the web app is available on GitHub. Source code is provided "as is" and as a sample only. Customers are responsible for all customization and implementation of their web apps.

Modifying the application user interface

The environment variables relevant to user interface customization are:

• UI_CHAT_DESCRIPTION: This is the smaller paragraph text shown below the UI_CHAT_TITLE in the center of the page upon loading.
  • Data type: text
• UI_CHAT_LOGO: This is the large image shown in the center of the page upon loading.
  • Data type: URL to image
• UI_CHAT_TITLE: This is the large text shown in the center of the page upon loading.
  • Data type: text
• UI_FAVICON: This is the favicon shown on the browser window/tab.
  • Data type: URL to image
• UI_LOGO: This is logo appears in the top left of the page and to the left of the title.
  • Data type: URL to image
• UI_TITLE: This is the title shown on the browser window/tab. It also appears in the top left of the page by the logo.
  • Data type: text
• UI_SHOW_SHARE_BUTTON: This button appears on the top right of the page, and allows users to share a URL linking to the web app.
  • Data type: Boolean, must enter either True or False, defaults to True if left blank or unspecified.
• UI_SHOW_CHAT_HISTORY_BUTTON: This appears on the top right of the page and to the left of the UI_SHOW_SHARE_BUTTON.
  • Data type: Boolean, must enter either True or False, defaults to True if left blank or unspecified.

To modify the application user interface, follow the instructions in the previous step to open the environment variables page for your web app. Then, use Advanced edit to open the JSON-based editor. At the top of the JSON (after the [ character), paste the below code block and customize the values accordingly:

  {
    "name": "UI_CHAT_DESCRIPTION",
    "value": "This is an example of a UI Chat Description. Chatbots can make mistakes. Check important info and sensitive info.",
    "slotSetting": false
  },
  {
    "name": "UI_CHAT_LOGO",
    "value": "https://learn-bot.azurewebsites.net/assets/Contoso-ff70ad88.svg",
    "slotSetting": false
  },
  {
    "name": "UI_CHAT_TITLE",
    "value": "This is an example of a UI Chat Title. Start chatting",
    "slotSetting": false
  },
  {
    "name": "UI_FAVICON",
    "value": "https://learn-bot.azurewebsites.net/assets/Contoso-ff70ad88.svg",
    "slotSetting": false
  },
  {
    "name": "UI_LOGO",
    "value": "https://learn-bot.azurewebsites.net/assets/Contoso-ff70ad88.svg",
    "slotSetting": false
  },
  {
    "name": "UI_TITLE",
    "value": "This is an example of a UI Title",
    "slotSetting": false
  },

Enabling chat history using Cosmos DB

You can turn on chat history for your users of the web app. When you turn on the feature, users have access to their individual previous queries and responses.

To turn on chat history, deploy or redeploy your model as a web app by using Azure OpenAI Studio or Azure AI Studio and select Enable chat history and user feedback in the web app.

Important

Turning on chat history creates an Azure Cosmos DB instance in your resource group, and it incurs additional charges for the storage that you use beyond any free tiers.

After you turn on chat history, your users can show and hide it in the upper-right corner of the app. When users show chat history, they can rename or delete conversations. You can modify whether users can access this function using the environment variable UI_SHOW_CHAT_HISTORY_BUTTON as specified in the previous section. Because the users are signed in to the app, conversations are automatically ordered from newest to oldest. Conversations are named based on the first query in the conversation.

Note

Popular Azure regions such as East US can experience periods of high-demand where it might not be possible to deploy a new instance of Cosmos DB. In that case, opt to deploy to alternative region such as East US 2 or retry your deployment until it succeeds. Should the deployment of Cosmos DB fail, your app will be available at its specified URL, but chat history will not be available. Enabling conversation history will also enable the view conversation history button in the top-right.

Deploying with the chat history option selected will automatically populate the following environment variables, so there is no need to modify them unless you wish to switch Cosmos DB instances. They are:

• AZURE_COSMOSDB_ACCOUNT: This is the name of the Cosmos DB account that is deployed along with your web app.
  • Data type: text
• AZURE_COSMOSDB_ACCOUNT_KEY: This is an alternative environment variable that is used only when permissions are not granted via Microsoft Entra ID and key-based authentication is used instead.
  • Data type: text. Is normally not present or populated.
• AZURE_COSMOSDB_DATABASE: This is the name of the database object within Cosmos DB that is deployed along with your web app.
  • Data type: text, should be db_conversation_history
• AZURE_COSMOSDB_CONTAINER: This is the name of the database container object within Cosmos DB that is deployed along with your web app.
  • Data type: text, should be conversations
• AZURE_COSMOSDB_ACCOUNT: This is the name of the Cosmos DB account that is deployed along with your web app.
  • Data type: text

Collecting user feedback

To collect user feedback, you can enable a set of 'thumbs up' and 'thumbs down' icons that appear on each of the chatbot's responses. This will allow users to evaluate a response's quality, and indicate where errors occur using a 'provide negative feedback' modal window.

To enable this feature, set the following environment variable to True:

• AZURE_COSMOSDB_ENABLE_FEEDBACK: This is the name of the Cosmos DB account that is deployed along with your web app.
  • Data type: Data type: Boolean, must enter either True or False

This can be accomplished using the Advanced edit or simple Edit options as previously explained. The JSON to paste in the Advanced edit JSON editor is:

  {
    "name": "AZURE_COSMOSDB_ENABLE_FEEDBACK",
    "value": "True",
    "slotSetting": false
  },

Connecting to Azure AI Search and uploaded files as a data source

Using Azure AI Studio

Follow this tutorial on integrating Azure AI Search with AI Studio and redeploy your application.

Using Azure OpenAI Studio

Follow this tutorial on integrating Azure AI Search with OpenAI Studio and redeploy your application.

Using environment variables

To connect to Azure AI Search without redeploying your app, you can modify the following mandatory environment variables using any of the editing options as previously described.

• DATASOURCE_TYPE: This determines which data source to use when answering a user's queries.
  • Data type: text. Should be set to AzureCognitiveSearch (former name for Azure AI Search)
• AZURE_SEARCH_SERVICE: This is the name of your Azure AI Search instance.
  • Data type: text
• AZURE_SEARCH_INDEX: This is the name of your Azure AI Search instance's index name.
  • Data type: text
• AZURE_SEARCH_KEY: This is the authentication key of your Azure AI Search instance. Optional if using Microsoft Entra ID for authentication.
  • Data type: text

Further customization scenarios using environment variables

• AZURE_SEARCH_USE_SEMANTIC_SEARCH: Indicates whether to use semantic search in Azure AI Search.
  • Data type: boolean, should be set to False if not using semantic search.
• AZURE_SEARCH_SEMANTIC_SEARCH_CONFIG: Specifies the name of the semantic search configuration to use if semantic search is enabled.
  • Data type: text, defaults to azureml-default.
• AZURE_SEARCH_INDEX_TOP_K: Defines the number of top documents to retrieve from Azure AI Search.
  • Data type: integer, should be set to 5.
• AZURE_SEARCH_ENABLE_IN_DOMAIN: Limits responses to queries related only to your data.
  • Data type: boolean, should be set to True.
• AZURE_SEARCH_CONTENT_COLUMNS: Specifies the list of fields in your Azure AI Search index that contain the text content of your documents, used when formulating a bot response.
  • Data type: text, defaults to content if deployed from Azure AI Studio or Azure OpenAI Studio,
• AZURE_SEARCH_FILENAME_COLUMN: Specifies the field from your Azure AI Search index that provides a unique identifier of the source data to display in the UI.
  • Data type: text, defaults to filepath if deployed from Azure AI Studio or Azure OpenAI Studio,
• AZURE_SEARCH_TITLE_COLUMN: Specifies the field from your Azure AI Search index that provides a relevant title or header for your data content to display in the UI.
  • Data type: text, defaults to title if deployed from Azure AI Studio or Azure OpenAI Studio,
• AZURE_SEARCH_URL_COLUMN: Specifies the field from your Azure AI Search index that contains a URL for the document.
  • Data type: text, defaults to url if deployed from Azure AI Studio or Azure OpenAI Studio,
• AZURE_SEARCH_VECTOR_COLUMNS: Specifies the list of fields in your Azure AI Search index that contain vector embeddings of your documents, used when formulating a bot response.
  • Data type: text, defaults to contentVector if deployed from Azure AI Studio or Azure OpenAI Studio,
• AZURE_SEARCH_QUERY_TYPE: Specifies the query type to use: simple, semantic, vector, vectorSimpleHybrid, or vectorSemanticHybrid. This setting takes precedence over AZURE_SEARCH_USE_SEMANTIC_SEARCH.
  • Data type: text, we recommend testing with vectorSemanticHybrid.
• AZURE_SEARCH_PERMITTED_GROUPS_COLUMN: Specifies the field from your Azure AI Search index that contains Microsoft Entra group IDs, determining document-level access control.
  • Data type: text
• AZURE_SEARCH_STRICTNESS: Specifies the strictness level for the model limiting responses to your data.
  • Data type: integer, should be set between 1 and 5, with 3 being recommended.
• AZURE_OPENAI_EMBEDDING_NAME: Specifies the name of your embedding model deployment if using vector search.
  • Data type: text

The JSON to paste in the Advanced edit JSON editor is:

{
    "name": "AZURE_SEARCH_CONTENT_COLUMNS",
    "value": "",
    "slotSetting": false
  },
  {
    "name": "AZURE_SEARCH_ENABLE_IN_DOMAIN",
    "value": "true",
    "slotSetting": false
  },
  {
    "name": "AZURE_SEARCH_FILENAME_COLUMN",
    "value": "",
    "slotSetting": false
  },
  {
    "name": "AZURE_SEARCH_INDEX",
    "value": "",
    "slotSetting": false
  },
  {
    "name": "AZURE_SEARCH_KEY",
    "value": "",
    "slotSetting": false
  },
  {
    "name": "AZURE_SEARCH_PERMITTED_GROUPS_COLUMN",
    "value": "",
    "slotSetting": false
  },
  {
    "name": "AZURE_SEARCH_QUERY_TYPE",
    "value": "vectorSemanticHybrid",
    "slotSetting": false
  },
  {
    "name": "AZURE_SEARCH_SEMANTIC_SEARCH_CONFIG",
    "value": "azureml-default",
    "slotSetting": false
  },
  {
    "name": "AZURE_SEARCH_SERVICE",
    "value": "",
    "slotSetting": false
  },
  {
    "name": "AZURE_SEARCH_STRICTNESS",
    "value": "3",
    "slotSetting": false
  },
  {
    "name": "AZURE_SEARCH_TITLE_COLUMN",
    "value": "",
    "slotSetting": false
  },
  {
    "name": "AZURE_SEARCH_TOP_K",
    "value": "5",
    "slotSetting": false
  },
  {
    "name": "AZURE_SEARCH_URL_COLUMN",
    "value": "",
    "slotSetting": false
  },
  {
    "name": "AZURE_SEARCH_USE_SEMANTIC_SEARCH",
    "value": "true",
    "slotSetting": false
  },
  {
    "name": "AZURE_SEARCH_VECTOR_COLUMNS",
    "value": "contentVector",
    "slotSetting": false
  },

Connecting to Prompt Flow as a data source

Prompt flows allow you to define highly customizable RAG and processing logic on a user's queries.

Creating and deploying your prompt flow in Azure AI Studio

Follow this tutorial to create, test, and deploy an inferencing endpoint for your prompt flow in Azure AI Studio.

Enable underlying citations from your prompt flow

When configuring your prompt flow to display citations when integrated this web application, it must return two key outputs: one called documents (your citations), and one called reply (your natural language answer).

1. documents is a JSON object, which should contain the following elements. citations is a list that can contain multiple items following the same schema. the documents object should be generated and populated based on your selected RAG pattern.

{
    "citations": [
        {
                "content": "string",
                "id": 12345,
                "title": "string",
                "filepath": "string",
                "url": "string",
                "metadata": "string",
                "chunk_id": None,
                "reindex_id": None,
                "part_index": None
        }
    ],
    "intent": "Your_string_here"
}

2. reply consists of a returned string that represents the final natural language to a given user query. Your reply must contain references to each of the documents (sources) in the following format: [doc1], [doc2], etc. The web application will parse reply and process the references, replacing all instances of [doc1] with small superscript numeric indicators that link directly to the ordered documents that are returned. Hence, you must prompt your LLM that generates the final natural language to include these references, which should also be passed in your LLM call to ensure that they align correctly. For example:

system:
You are a helpful chat assistant that answers a user's question based on the information retrieved from a data source.

YOU MUST ALWAYS USE CITATIONS FOR ALL FACTUAL RESPONSES. YOU MUST INCLUDE CITATIONS IN YOUR ANSWER IN THE FORMAT [doc1], [doc2], ... AND SO FORTH WHEN YOU ARE USING INFORMATION RELATING TO SAID SOURCE. THIS MUST BE RETURNED IN YOUR ANSWER.

Provide sort and concise answers with details directly related to the query.

## Conversation history for context
{% for item in chat_history %}
user:
{{item.inputs.query}}

assistant:
{{item.outputs.reply}}
{% endfor %}

## Current question
user:
### HERE ARE SOME CITED SOURCE INFORMATION FROM A MOCKED API TO ASSIST WITH ANSWERING THE QUESTION BELOW. ANSWER ONLY BASED ON THE TRUTHS PRESENTED HERE.
{{your_input_name_for_documents}}
FOR EACH OF THE CITATIONS ABOVE, YOU MUST INCLUDE IN YOUR ANSWER [doc1], [doc2], ... AND SO FORTH WHEN YOU ARE USING INFORMATION RELATING TO SAID SOURCE. THIS MUST BE RETURNED IN YOUR ANSWER.
### HERE IS THE QUESTION TO ANSWER.
{{question}}


Configuring environment variables to integrate prompt flow

The environment variables to modify are:

• AZURE_OPENAI_STREAM: This determines whether the answer is loaded in a streaming (incremental load) format. This is not supported for prompt flow and thus must be set to False to use this feature.
  • Data type: boolean, set to True if not using prompt flow, False if using prompt flow
• USE_PROMPTFLOW: Indicates whether to use an existing Prompt flow deployed endpoint. If set to True, both PROMPTFLOW_ENDPOINT and PROMPTFLOW_API_KEY must be set.
  • Data type: boolean, should be set to False if not using Prompt flow.
• PROMPTFLOW_ENDPOINT: Specifies the URL of the deployed Prompt flow endpoint.
  • Data type: text, for example https://pf-deployment-name.region.inference.ml.azure.com/score
• PROMPTFLOW_API_KEY: The authentication key for the deployed Prompt flow endpoint. Note: only Key-based authentication is supported.
  • Data type: text
• PROMPTFLOW_RESPONSE_TIMEOUT: Defines the timeout value in seconds for the Prompt flow endpoint to respond.
  • Data type: integer, should be set to 120.
• PROMPTFLOW_REQUEST_FIELD_NAME: The default field name to construct the Prompt flow request. Note: chat_history is automatically constructed based on the interaction. If your API expects other mandatory fields, you will need to change the request parameters under the promptflow_request function.
  • Data type: text, should be set to query.
• PROMPTFLOW_RESPONSE_FIELD_NAME: The default field name to process the response from the Prompt flow request.
  • Data type: text, should be set to reply.
• PROMPTFLOW_CITATIONS_FIELD_NAME: The default field name to process the citations output from the Prompt flow request.
  • Data type: text, should be set to documents.

Connecting to other data sources

Other data sources are supported, including:

• Azure Cosmos DB
• Elasticsearch
• Azure SQL Server
• Pinecone
• Azure Machine Learning Index

For further instructions on enabling these data sources, see the GitHub repository.

Updating the web app to include the latest changes

Note

As of February 1, 2024, the web app requires the app startup command to be set to python3 -m gunicorn app:app. When you're updating an app that was published before February 1, 2024, you need to manually add the startup command from the App Service Configuration page.

We recommend pulling changes from the main branch for the web app's source code frequently to ensure that you have the latest bug fixes, API version, and improvements. Additionally, the web app must be synchronized every time the API version that you're using is retired. Consider selecting either the Watch or the Star button on the web app's GitHub repo to be notified about changes and updates to the source code.

If you haven't customized the web app, you can use these steps to synchronize it:

1. Go to your web app in the Azure portal.

2. On the left menu, under Deployment, select Deployment Center.

3. Select Sync at the top of the pane, and confirm that the app will be redeployed.



If you customized or changed the app's source code, you need to update your app's source code manually and redeploy it:

• If your app is hosted on GitHub, push your code changes to your repo, and then use the preceding synchronization steps.
• If you're redeploying the app manually (for example, by using the Azure CLI), follow the steps for your deployment strategy.

Deleting your Cosmos DB instance

Deleting your web app doesn't delete your Cosmos DB instance automatically. To delete your Cosmos DB instance along with all stored chats, you need to go to the associated resource in the Azure portal and delete it. If you delete the Cosmos DB resource but keep the chat history option selected on subsequent updates from the Azure OpenAI Studio, the application notifies the user of a connection error. However, the user can continue to use the web app without access to the chat history.

Enabling Microsoft Entra ID authentication between services

To enable Microsoft Entra ID for intra-service authentication for your web app, follow these steps.

Enable managed identity on your Azure OpenAI resource and Azure App Service

You can enable managed identity for the Azure OpenAI resource and the Azure App Service by navigating to "Identity" and turning on the system assigned managed identity in the Azure portal for each resource.

Note

If you're using an embedding model deployed to the same resource used for inference, you only need to enable managed identity on one Azure OpenAI resource. If using an embedding model deployed to a different resource from the one used for inference, you also need to enable managed identity on the Azure OpenAI resource used to deploy your embedding model.

Enable role-based access control (RBAC) on your Azure Search resource (optional)

If using On Your Data with Azure Search, you should follow this step.

To enable your Azure OpenAI resource to access your Azure Search resource, you need to enable role-based access control on your Azure Search resource. Learn more about enabling RBAC roles for your resources.

Assign RBAC roles to enable intra-service communication

The following table summarizes the RBAC role assignments needed for all Azure resources associated with your application.

Role	Assignee	Resource
Search Index Data Reader	Azure OpenAI (Inference)	Azure AI Search
Search Service Contributor	Azure OpenAI (Inference)	Azure AI Search
Cognitive Services OpenAI User	Web app	Azure OpenAI (Inference)
Cognitive Services OpenAI User	Azure OpenAI (Inference)	Azure OpenAI (Embeddings)

To assign these roles, follow these instructions to create the needed role assignments.

App Settings Changes

In the webapp application settings, navigate to "Environment Variables" and make the following changes:

• Remove the environment variable AZURE_OPENAI_KEY, as it's no longer needed.
• If using On Your Data with Azure Search and are using Microsoft Entra ID authentication between Azure OpenAI and Azure Search, you should also delete the AZURE_SEARCH_KEY environment variables for the data source access keys as well.

If using an embedding model deployed to the same resource as your model used for inference, there are no other settings changes required.

However, if you're using an embedding model deployed to a different resource, make the following extra changes to your app's environment variables:

• Set AZURE_OPENAI_EMBEDDING_ENDPOINT variable to the full API path of the embedding API for the resource you're using for embeddings, for example, https://<your embedding AOAI resource name>.openai.azure.com/openai/deployments/<your embedding deployment name>/embeddings
• Delete the AZURE_OPENAI_EMBEDDING_KEY variable to use Microsoft Entra ID authentication.

Once all of the environment variable changes are completed, restart the webapp to begin using Microsoft Entra ID authentication between services in the webapp. It will take a few minutes after restarting for any settings changes to take effect.

Related content

• Prompt engineering
• Azure OpenAI On Your Data
