Quickstart: Deploy an Azure Kubernetes Service (AKS) cluster using Azure portal
Azure Kubernetes Service (AKS) is a managed Kubernetes service that lets you quickly deploy and manage clusters. In this quickstart, you:
- Deploy an AKS cluster using the Azure portal.
- Run a sample multi-container application with a group of microservices and web front ends simulating a retail scenario.
This sample application is just for demo purposes and doesn't represent all the best practices for Kubernetes applications.
Before you begin
- This quickstart assumes a basic understanding of Kubernetes concepts. For more information, see Kubernetes core concepts for Azure Kubernetes Service (AKS).
- You need an Azure account with an active subscription. If you don't have one, create an account for free.
- If you're unfamiliar with the Azure Cloud Shell, review Overview of Azure Cloud Shell.
- To learn more about creating a Windows Server node pool, see Create an AKS cluster that supports Windows Server containers.
- The identity you use to create your cluster has the appropriate minimum permissions. For more details on access and identity for AKS, see Access and identity options for Azure Kubernetes Service (AKS).
The Azure Linux node pool is now generally available (GA). To learn about the benefits and deployment steps, see the Introduction to the Azure Linux Container Host for AKS.
Create an AKS cluster
Sign in to the Azure portal.
On the Azure portal menu or from the Home page, select Create a resource.
In the Categories section, select Containers > Azure Kubernetes Service (AKS).

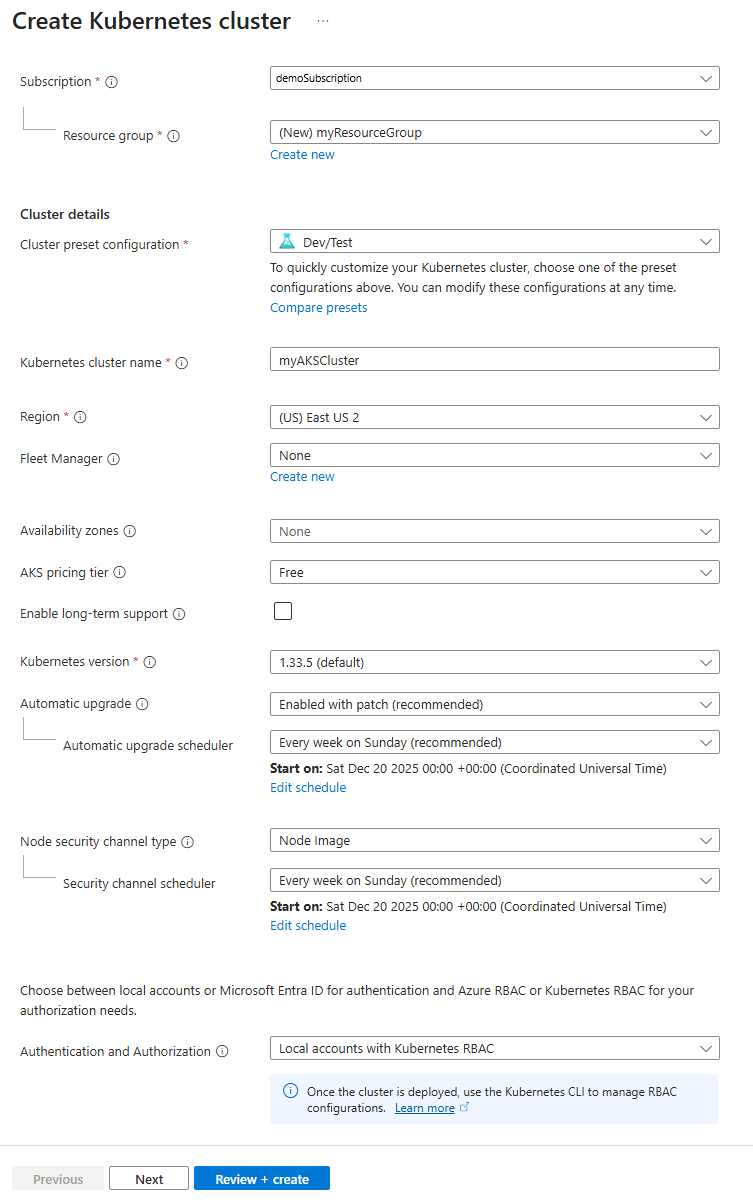

On the Basics page, configure the following options:
- Project details:
- Select an Azure Subscription.
- Create an Azure Resource group, such as myResourceGroup. While you can select an existing resource group, for testing or evaluation purposes, we recommend creating a resource group to temporarily host these resources and avoid impacting your production or development workloads.
- Cluster details:

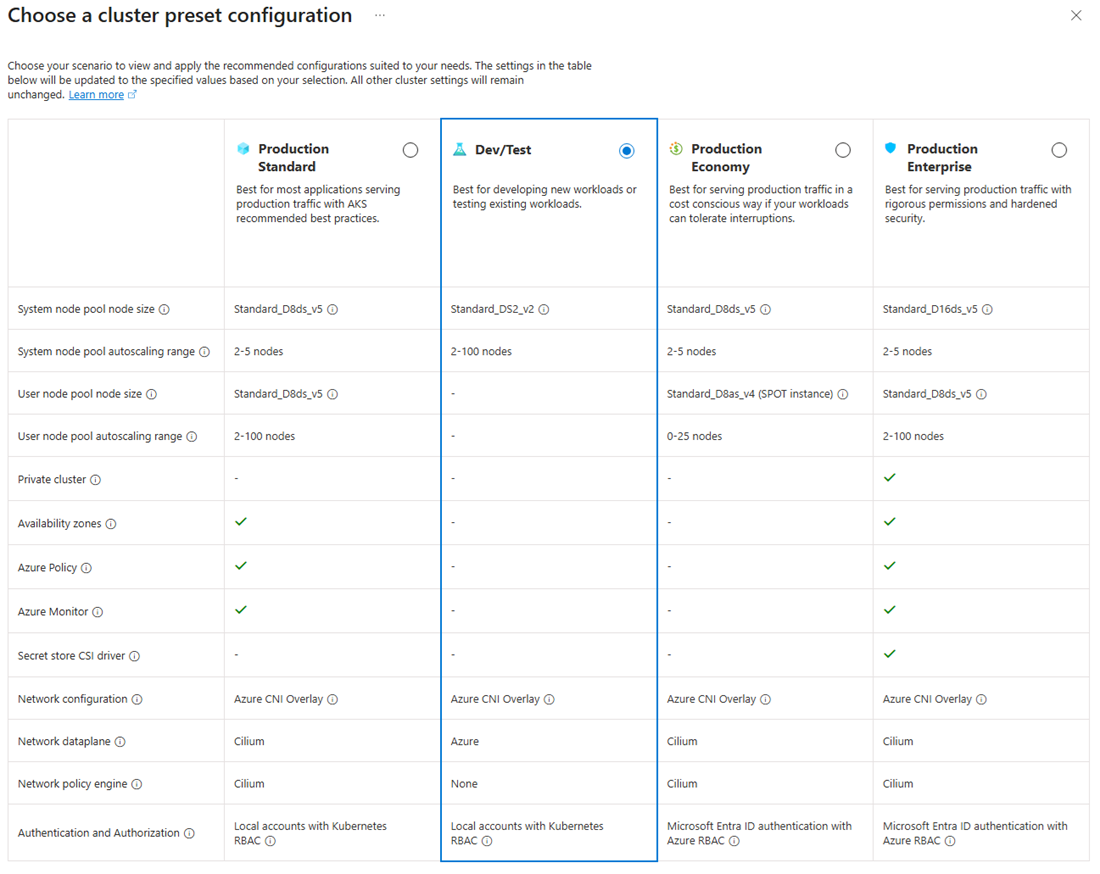

- Ensure that the Preset configuration is Standard ($$). For more details on preset configurations, see Cluster configuration presets in the Azure portal.
- Enter a Kubernetes cluster name, such as myAKSCluster.
- Select a Region for the AKS cluster, and leave the default value selected for Kubernetes version.
- Primary node pool:
- Leave the default values selected.
- Project details:
Select Next: Node pools when complete.

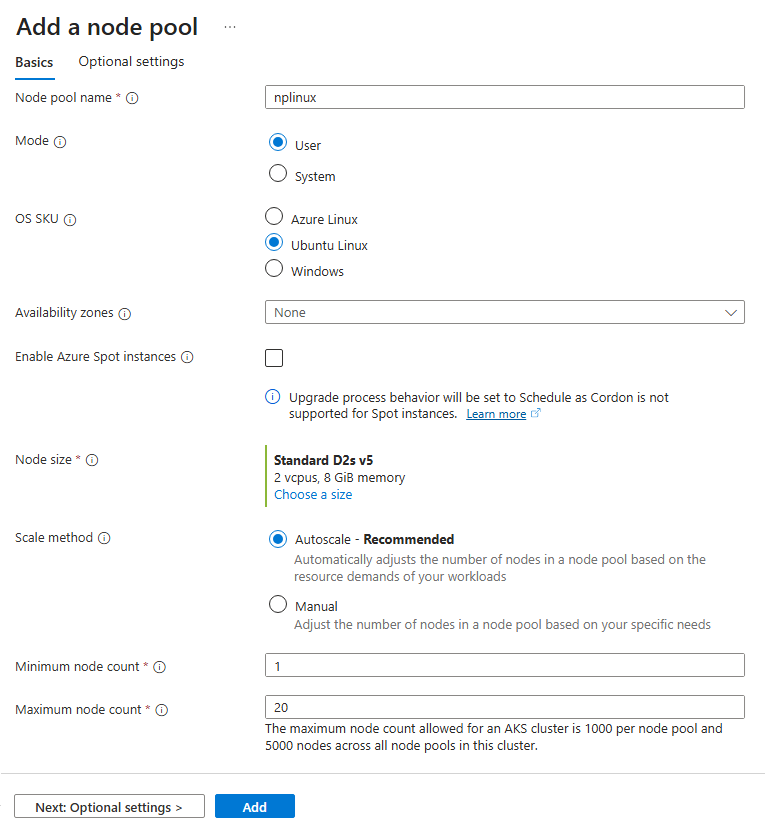

On the Node pools page, leave the default options and then select Next: Access.
On the Access page, configure the following options:
- The default value for Resource identity is System-assigned managed identity. Managed identities provide an identity for applications to use when connecting to resources that support Microsoft Entra authentication. For more details about managed identities, see What are managed identities for Azure resources?.
- The Kubernetes role-based access control (RBAC) option is the default value to provide more fine-grained control over access to the Kubernetes resources deployed in your AKS cluster.
Select Next: Networking when complete.
Keep the default Networking options, which uses the kubenet networking plug-in, and then select Next: Integrations.
Keep the default Integrations options and then select Next: Advanced.
Keep the default Advanced options and then select Next: Tags.
On the tags page, leave the default option and then select Next: Review + create.
When you navigate to the Review + create tab, Azure runs validation on the settings that you have chosen. If validation passes, you can proceed to create the AKS cluster by selecting Create. If validation fails, then it indicates which settings need to be modified.
It takes a few minutes to create the AKS cluster. When your deployment is complete, navigate to your resource by either:
- Selecting Go to resource, or
- Browsing to the AKS cluster resource group and selecting the AKS resource. In this example you browse for myResourceGroup and select the resource myAKSCluster.
Connect to the cluster
To manage a Kubernetes cluster, use the Kubernetes command-line client, kubectl.
kubectl is already installed if you use Azure Cloud Shell. If you're unfamiliar with the Cloud Shell, review Overview of Azure Cloud Shell.
Open Cloud Shell using the
>_button on the top of the Azure portal.
To perform these operations in a local shell installation:
- Verify Azure CLI or Azure PowerShell is installed.
- Connect to Azure via the
kubectlto connect to your Kubernetes cluster using the
az aks get-credentialscommand. This command downloads credentials and configures the Kubernetes CLI to use them.
az aks get-credentials --resource-group myResourceGroup --name myAKSCluster
Verify the connection to your cluster using
kubectl getto return a list of the cluster nodes.
kubectl get nodes
The following example output shows the single node created in the previous steps. Make sure the node status is Ready.
NAME STATUS ROLES AGE VERSION aks-nodepool1-31718369-0 Ready agent 6m44s v1.15.10
Deploy the application
To deploy the application, you use a manifest file to create all the objects required to run the AKS Store application. A Kubernetes manifest file defines a cluster's desired state, such as which container images to run. The manifest includes the following Kubernetes deployments and services:
- Store front: Web application for customers to view products and place orders.
- Product service: Shows product information.
- Order service: Places orders.
- Rabbit MQ: Message queue for an order queue.
We don't recommend running stateful containers, such as Rabbit MQ, without persistent storage for production. These are used here for simplicity, but we recommend using managed services, such as Azure CosmosDB or Azure Service Bus.
In the Cloud Shell, open an editor and create a file named
Paste the following manifest into the editor:
apiVersion: apps/v1 kind: Deployment metadata: name: rabbitmq spec: replicas: 1 selector: matchLabels: app: rabbitmq template: metadata: labels: app: rabbitmq spec: nodeSelector: "kubernetes.io/os": linux containers: - name: rabbitmq image: mcr.microsoft.com/mirror/docker/library/rabbitmq:3.10-management-alpine ports: - containerPort: 5672 name: rabbitmq-amqp - containerPort: 15672 name: rabbitmq-http env: - name: RABBITMQ_DEFAULT_USER value: "username" - name: RABBITMQ_DEFAULT_PASS value: "password" resources: requests: cpu: 10m memory: 128Mi limits: cpu: 250m memory: 256Mi volumeMounts: - name: rabbitmq-enabled-plugins mountPath: /etc/rabbitmq/enabled_plugins subPath: enabled_plugins volumes: - name: rabbitmq-enabled-plugins configMap: name: rabbitmq-enabled-plugins items: - key: rabbitmq_enabled_plugins path: enabled_plugins --- apiVersion: v1 data: rabbitmq_enabled_plugins: | [rabbitmq_management,rabbitmq_prometheus,rabbitmq_amqp1_0]. kind: ConfigMap metadata: name: rabbitmq-enabled-plugins --- apiVersion: v1 kind: Service metadata: name: rabbitmq spec: selector: app: rabbitmq ports: - name: rabbitmq-amqp port: 5672 targetPort: 5672 - name: rabbitmq-http port: 15672 targetPort: 15672 type: ClusterIP --- apiVersion: apps/v1 kind: Deployment metadata: name: order-service spec: replicas: 1 selector: matchLabels: app: order-service template: metadata: labels: app: order-service spec: nodeSelector: "kubernetes.io/os": linux containers: - name: order-service image: ghcr.io/azure-samples/aks-store-demo/order-service:latest ports: - containerPort: 3000 env: - name: ORDER_QUEUE_HOSTNAME value: "rabbitmq" - name: ORDER_QUEUE_PORT value: "5672" - name: ORDER_QUEUE_USERNAME value: "username" - name: ORDER_QUEUE_PASSWORD value: "password" - name: ORDER_QUEUE_NAME value: "orders" - name: FASTIFY_ADDRESS value: "0.0.0.0" resources: requests: cpu: 1m memory: 50Mi limits: cpu: 75m memory: 128Mi initContainers: - name: wait-for-rabbitmq image: busybox command: ['sh', '-c', 'until nc -zv rabbitmq 5672; do echo waiting for rabbitmq; sleep 2; done;'] resources: requests: cpu: 1m memory: 50Mi limits: cpu: 75m memory: 128Mi --- apiVersion: v1 kind: Service metadata: name: order-service spec: type: ClusterIP ports: - name: http port: 3000 targetPort: 3000 selector: app: order-service --- apiVersion: apps/v1 kind: Deployment metadata: name: product-service spec: replicas: 1 selector: matchLabels: app: product-service template: metadata: labels: app: product-service spec: nodeSelector: "kubernetes.io/os": linux containers: - name: product-service image: ghcr.io/azure-samples/aks-store-demo/product-service:latest ports: - containerPort: 3002 resources: requests: cpu: 1m memory: 1Mi limits: cpu: 1m memory: 7Mi --- apiVersion: v1 kind: Service metadata: name: product-service spec: type: ClusterIP ports: - name: http port: 3002 targetPort: 3002 selector: app: product-service --- apiVersion: apps/v1 kind: Deployment metadata: name: store-front spec: replicas: 1 selector: matchLabels: app: store-front template: metadata: labels: app: store-front spec: nodeSelector: "kubernetes.io/os": linux containers: - name: store-front image: ghcr.io/azure-samples/aks-store-demo/store-front:latest ports: - containerPort: 8080 name: store-front env: - name: VUE_APP_ORDER_SERVICE_URL value: "http://order-service:3000/" - name: VUE_APP_PRODUCT_SERVICE_URL value: "http://product-service:3002/" resources: requests: cpu: 1m memory: 200Mi limits: cpu: 1000m memory: 512Mi --- apiVersion: v1 kind: Service metadata: name: store-front spec: ports: - port: 80 targetPort: 8080 selector: app: store-front type: LoadBalancer
For a breakdown of YAML manifest files, see Deployments and YAML manifests.
Deploy the application using the
kubectl applycommand and specify the name of your YAML manifest:
kubectl apply -f aks-store-quickstart.yaml
The following example output shows the deployments and services:
deployment.apps/rabbitmq created service/rabbitmq created deployment.apps/order-service created service/order-service created deployment.apps/product-service created service/product-service created deployment.apps/store-front created service/store-front created
Test the application
When the application runs, a Kubernetes service exposes the application front end to the internet. This process can take a few minutes to complete.
Check the status of the deployed pods using the
kubectl get podscommand. Make all pods are
Check for a public IP address for the store-front application. Monitor progress using the
kubectl get servicecommand with the
kubectl get service store-front --watch
The EXTERNAL-IP output for the
store-frontservice initially shows as pending:
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE store-front LoadBalancer 10.0.100.10 <pending> 80:30025/TCP 4h4m
Once the EXTERNAL-IP address changes from pending to an actual public IP address, use
CTRL-Cto stop the
The following example output shows a valid public IP address assigned to the service:
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE store-front LoadBalancer 10.0.100.10 184.108.40.206 80:30025/TCP 4h5m
Open a web browser to the external IP address of your service to see the Azure Store app in action.
Delete the cluster
If you don't plan on going through the following tutorials, clean up unnecessary resources to avoid Azure charges.
In the Azure portal, navigate to your AKS cluster resource group.
Select Delete resource group.
Enter the name of the resource group to delete, and then select Delete > Delete.
The AKS cluster was created with a system-assigned managed identity. This identity is managed by the platform and doesn't require removal.
In this quickstart, you deployed a Kubernetes cluster and deployed a simple multi-container application to it.
To learn more about AKS and walk through a complete code-to-deployment example, continue to the Kubernetes cluster tutorial.
