Salesforce Microsoft Graph connector

  • Článek

The Salesforce Microsoft Graph connector, allows your organization to index contacts, opportunities, leads, cases, and accounts objects in your Salesforce instance. After you configure the connector and index content from Salesforce, end users can search for those items from any Microsoft Search and Microsoft 365 Copilot client.

This article is for anyone who configures, runs, and monitors a Salesforce Microsoft Graph connector. It supplements the general setup process and shows instructions that apply only to the Salesforce Microsoft Graph connector. This article also includes information about Limitations.

Important

The Salesforce Microsoft Graph connector currently supports Summer '19 or later.

Before you get started

To connect to your Salesforce instance, you need your Salesforce instance URL, the client ID, and the client secret for OAuth authentication. The following steps explain how you or your Salesforce administrator can get this information from your Salesforce account:

  • Log in to your Salesforce instance and go to Setup

  • Navigate to Apps -> App Manager.

  • Select New connected app.

  • Complete the API section as follows:

    • Select the checkbox for Enable Oauth settings.

    • Specify the Callback URL as: For M365 Enterprise: https://gcs.office.com/v1.0/admin/oauth/callback, for M365 Government: https://gcsgcc.office.com/v1.0/admin/oauth/callback

    • Select these required OAuth scopes.

      • Access and manage your data (API).

      • Perform requests on your behalf at any time (refresh_token, offline_access).

    • Select the checkbox for Require secret for web server flow.

    • Save the app.

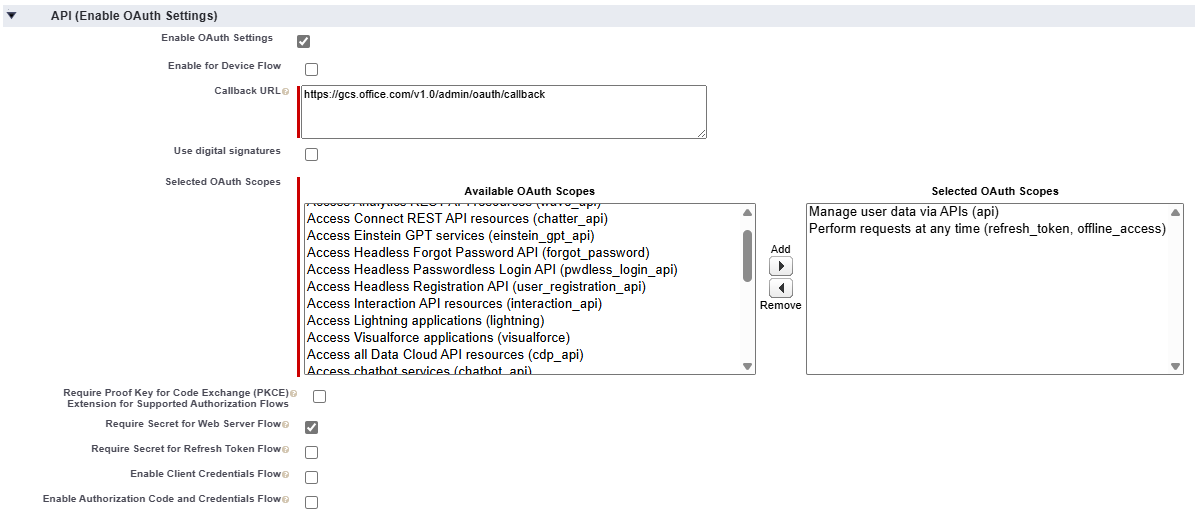

      API section in Salesforce instance after admin has entered all required configurations listed above.

  • Copy the consumer key and the consumer secret. This information is used as the client ID and the client secret when you configure the connection settings for your Salesforce Microsoft Graph connector in the Microsoft 365 admin portal.

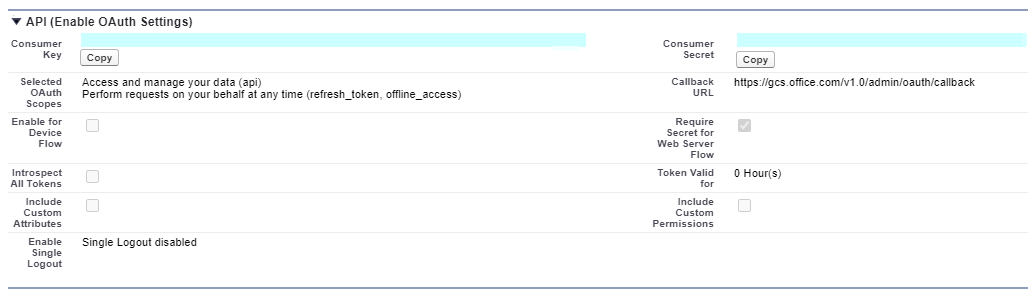

    Results returned by API section in Salesforce instance after admin has submitted all required configurations. Consumer Key is at top of left column and Consumer Secret is at top of right column.

  • Before closing your Salesforce instance, follow these steps to ensure that refresh tokens don't expire:

    • Go to Apps -> App Manager.
    • Find the app you created and select the drop-down on the right. Select Manage.
    • Select edit policies.
    • For the refresh token policy, select Refresh token is valid until revoked.

    Select the Refresh Token Policy named "Refresh token is valid until revoked ".

You can now use the Microsoft 365 Admin Center to complete the rest of the setup process for your Microsoft Graph connector.

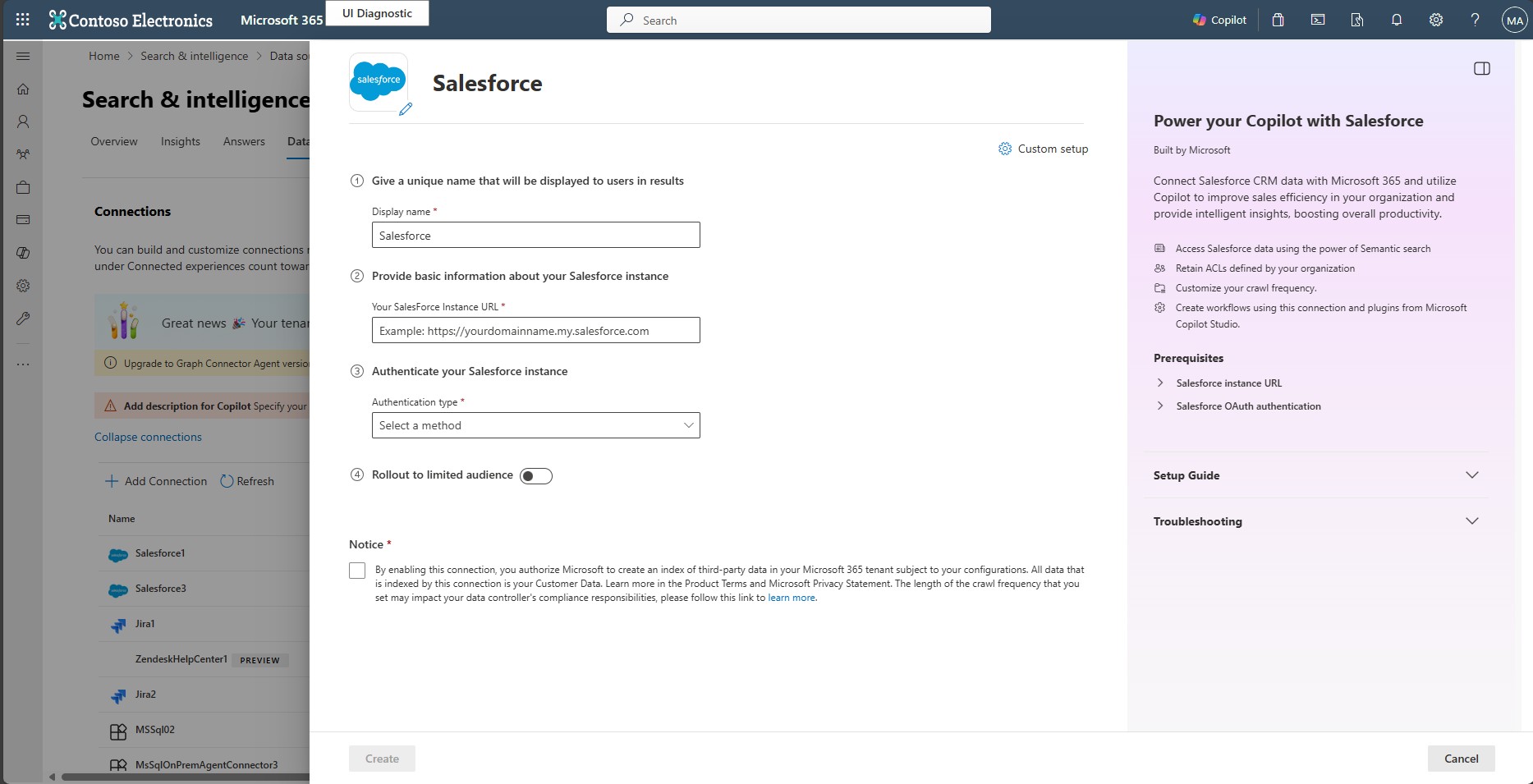

Step 1: Add a connector in the Microsoft 365 admin center

Add Salesforce connector

Follow the general setup instructions.

Step 2: Name the connection

Follow the general setup instructions.

Step 3: Configure the connection settings

For the Instance URL, use https://[domain].my.salesforce.com where the domain would be the Salesforce domain for your organization.

Enter the client ID and client Secret you obtained from your Salesforce instance and select Sign in.

The first time you've attempted to sign in with these settings, you'll get a pop-up asking you to log in to Salesforce with your admin username and password. The screenshot below shows the popup. Enter your credentials and select "Log In".

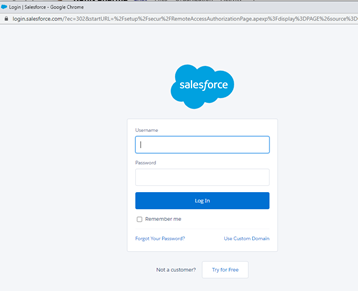

Login pop up asking for Username and password.

Note

If the pop-up does not appear, it might be getting blocked in your browser, so you must allow pop-ups and redirects.

Check that the connection was successful by searching for a green banner that says "connection successful" as shown in the screenshot below.

Screenshot of successful login. The green banner that says "Connection successful" is located under the field for your Salesforce Instance URL

Step 4: Select properties

Select the Salesforce objects that you want the connector to crawl and include in search results. If Contact is selected, Account is automatically selected as well.

Note

If a field has field level security (FLS) set for a profile, the connector won't ingest that field for any profiles in that Salesforce org. As a result, users won't be able to search for values for those fields or show up in the results.

Filter data

You may further choose to filter the Salesforce content that are indexed in two ways:

  • Specify the item modified time period. This option will only index the Salesforce content that are created or modified in the time period selected on a rolling basis based on current crawl.
  • Enter the Salesforce query (SOQL) specifying what you want to index using the WHERE clause.

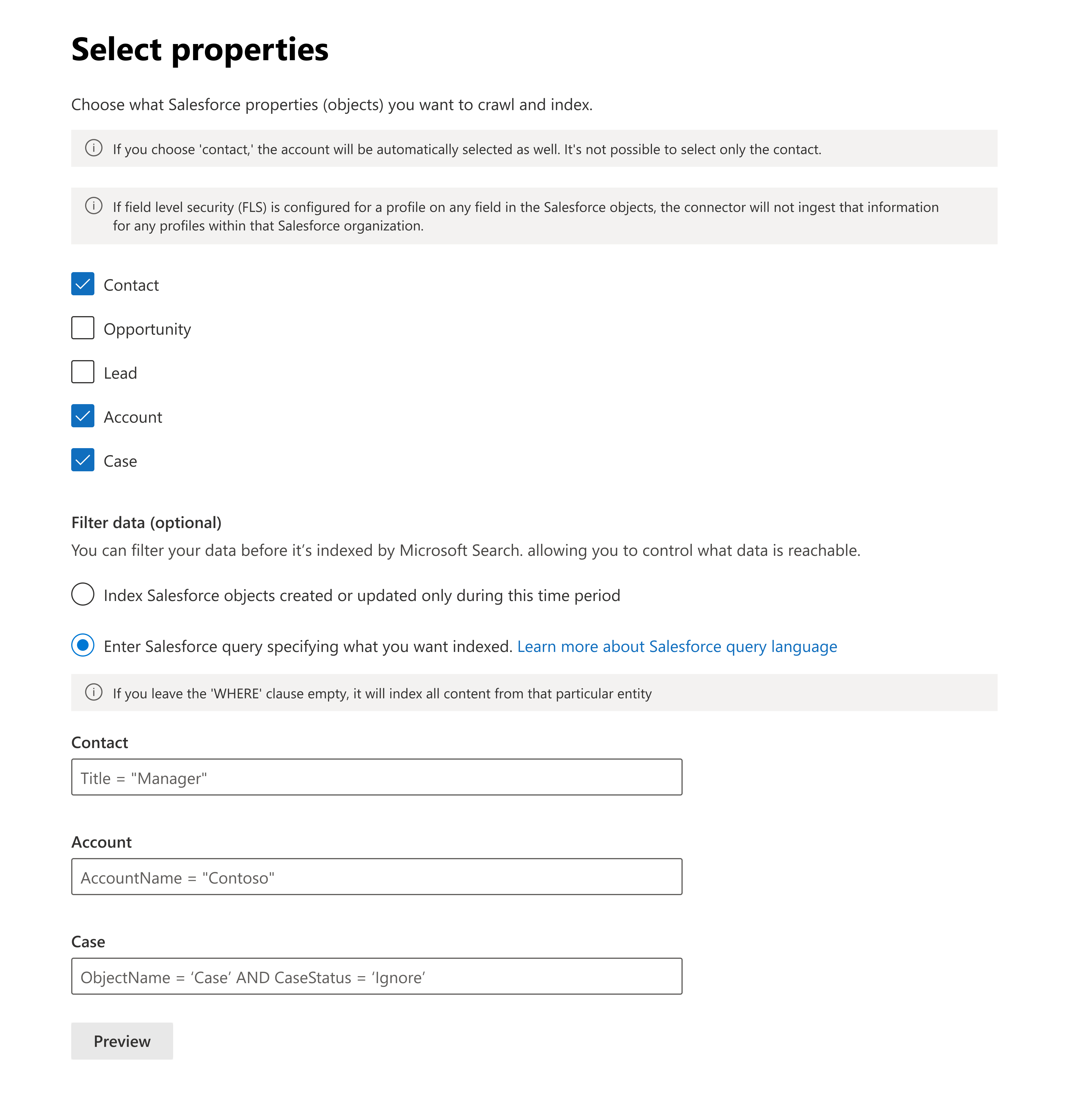

Screenshot of filtering options in the Salesforce connector

Tip

You may leave the WHERE clause empty if you want to index all the content of the particular entity

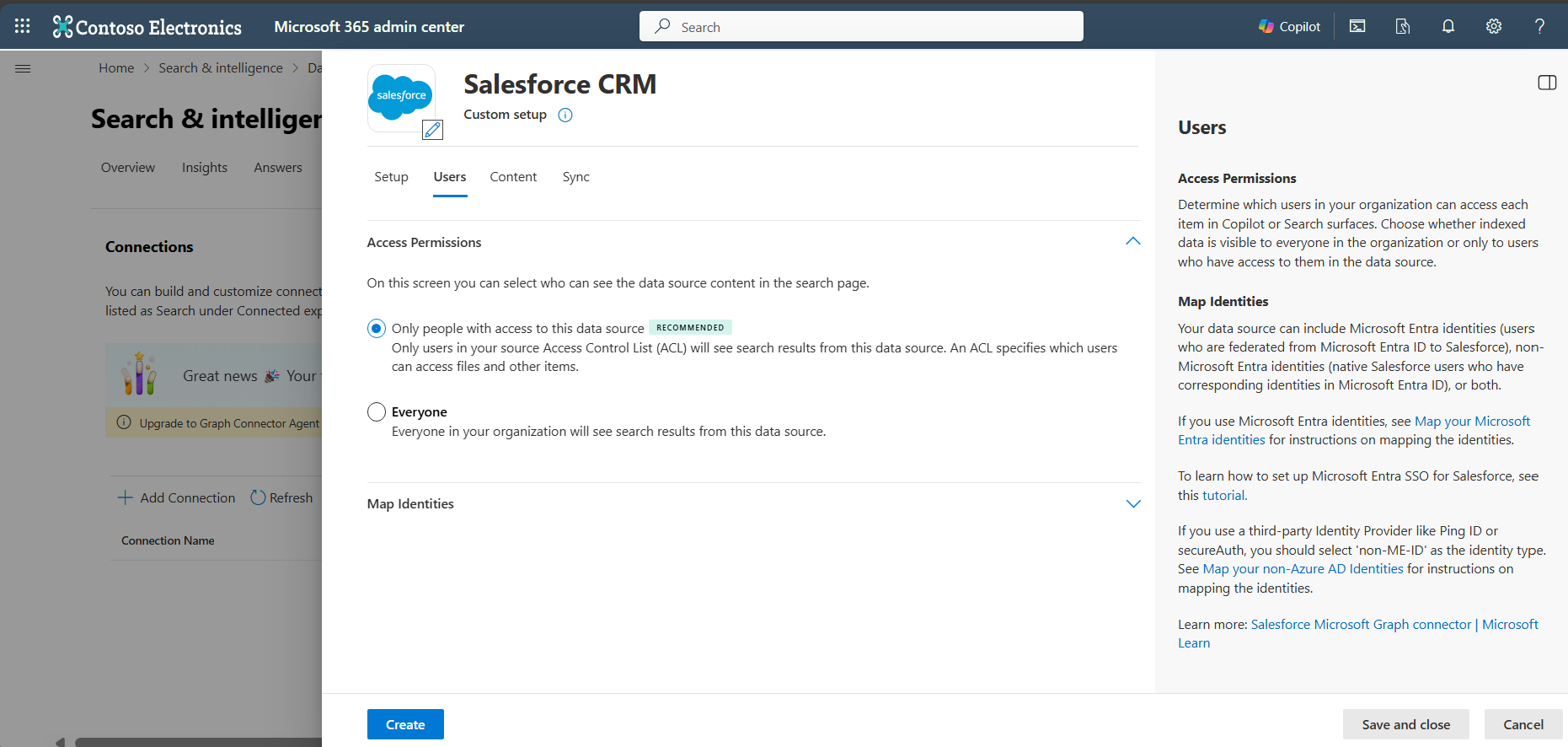

Step 5: Manage search permissions

You'll need to choose which users see search results from this data source. If you allow only certain Microsoft Entra ID or non-Azure AD users to see the search results, make sure you map the identities.

Step 5.a: Select permissions

You can choose to ingest Access Control Lists (ACLs) from your Salesforce instance or allow everyone in your organization to see search results from this data source. ACLs can include Microsoft Entra identities (users who are federated from Microsoft Entra ID to Salesforce), non-Azure AD identities (native Salesforce users who have corresponding identities in Microsoft Entra ID), or both.

Note

If you use a third-party Identity Provider like Ping ID or secureAuth, you should select "non-AAD" as the identity type.

Select permissions screen that has been completed by an admin. The admin has selected the "Only people with access to this data source" option and has also selected "AAD" from a drop down menu of identity types.

If you chose to ingest an ACL from your Salesforce instance and selected "non-AAD" for the identity type, see Map your non-Azure AD Identities for instructions on mapping the identities.

Step 5.b: Map Microsoft Entra identities

If you chose to ingest an ACL from your Salesforce instance and selected "AAD" for the identity type, see Map your Microsoft Entra identities for instructions on mapping the identities. To learn how to set up Microsoft Entra SSO for Salesforce, see this tutorial.

Apply user mapping to sync your Salesforce identities to Microsoft Entra identities

In this video, you can see the process to authenticate to your Salesforce instance, sync your non-Microsoft Entra identities to your Microsoft Entra identities, and apply the proper security trimmings to your Salesforce items.

Step 6: Assign property labels

You can assign a source property to each label by choosing from a menu of options. While this step is not mandatory, having some property labels improves the search relevance and ensures better search results for end users. By default, some of the Labels like "Title," "URL," "CreatedBy," and "LastModifiedBy" have already been assigned source properties.

The list of properties that you select here, can impact how you can filter, search, and view your results in Microsoft 365 Copilot.

Source property Label Description
Authors authors Name of people who participated/collaborated on the item in the data source.
CreatedBy createdBy Name of the person who created the item in the data source.
CreatedDate createdDateTime Date and time that the item was created in the data source.
Url url The target URL of the item in the data source.
LastModifiedBy lastModifiedBy Name of the person who most recently edited the item in the data source.
LastModifiedDateTime lastModifiedDateTime Date and time the item was last modified in the data source.
Name title The title of the item that you want to show in search and other experiences.

Step 7: Manage schema

You can select what source properties should be indexed so that they show up in search results. The connection wizard by default selects a search schema based on a set of source properties. You can modify it by selecting the check boxes for each property and attribute in the search schema page. Search schema attributes include Search, Query, Retrieve, and Refine. Refine allows you to define the properties that can be later used as custom refiners or filters in the search experience.

Select the schema for each source property. The options are Query, Search, Retrieve, and Refine.

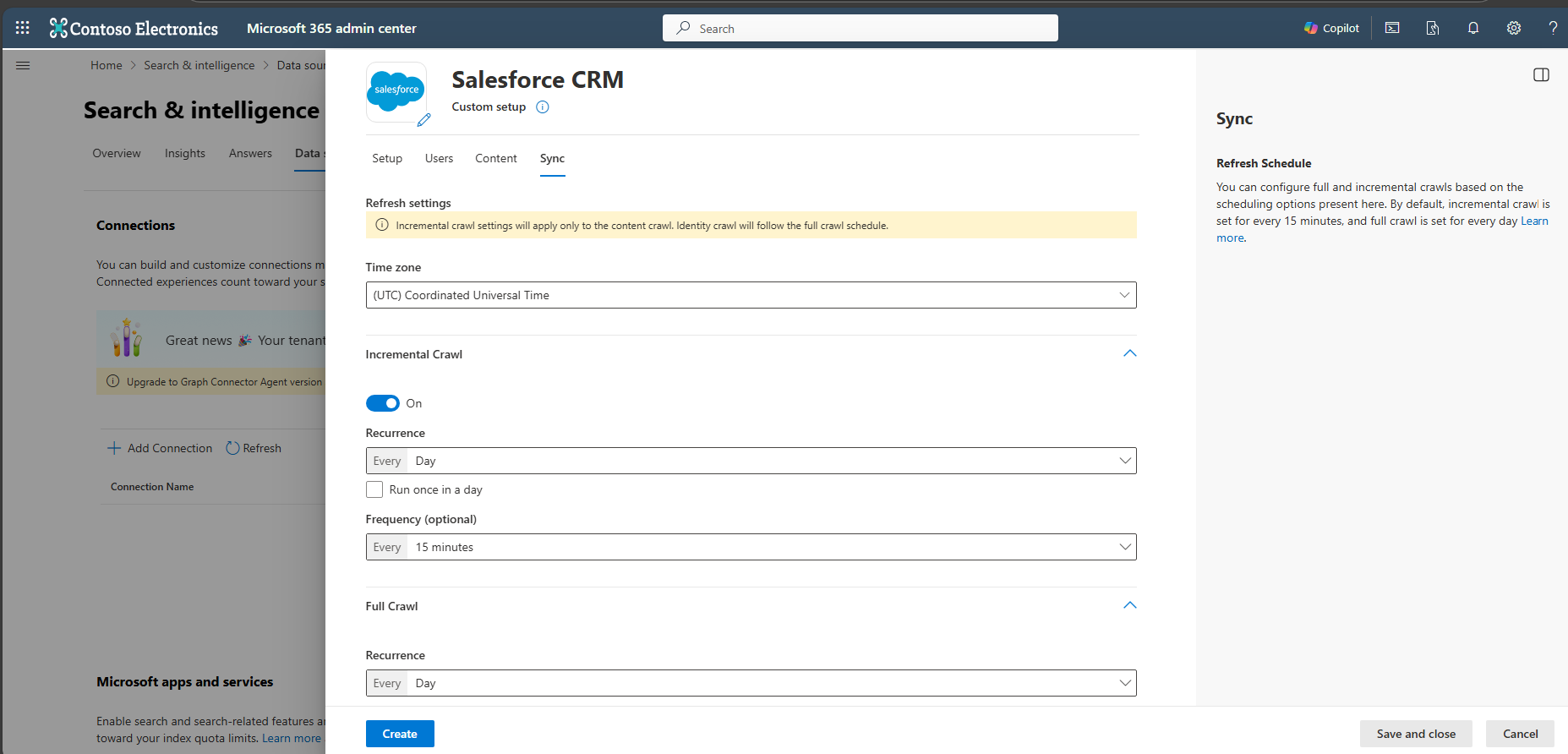

Step 8: Set the refresh schedule

The Salesforce connector only supports refresh schedules for full crawls currently.

Important

A full crawl finds deleted objects and users that were previously synced to the Microsoft Search index.

The recommended schedule is one week for a full crawl.

Step 9: Review connection

Follow the general setup instructions.

Tip

Default result type

  • The Salesforce connector automatically registers a result type once the connector is published. The result type uses a dynamically generated result layout based on the fields selected in step 3.
  • You can manage the result type by navigating to Result types in the Microsoft 365 admin center. The default result type is named "ConnectionIdDefault". For example, if your connection ID is Salesforce, your result layout is named: "SalesforceDefault".
  • Also, you can choose to create your own result type if needed.

Limitations

  • The Salesforce Microsoft Graph connector doesn't currently support Apex-based, territory-based sharing and sharing using personal groups from Salesforce.
  • There's a known bug in the Salesforce API the connector uses, where the private org-wide defaults for leads aren't honored currently.
  • If a field has field level security (FLS) set for a profile, the connector won't ingest that field for any profiles in that Salesforce org. As a result, users won't be able to search for values for those fields or show up in the results.
  • In the manage schema screen these common standard property names are listed once, the options are Query, Search, Retrieve, and Refine, and apply to all or none.
    • Name
    • Url
    • Description
    • Fax
    • Phone
    • MobilePhone
    • Email
    • Type
    • Title
    • AccountId
    • AccountName
    • AccountUrl
    • AccountOwner
    • AccountOwnerUrl
    • Owner
    • OwnerUrl
    • CreatedBy
    • CreatedByUrl
    • LastModifiedBy
    • LastModifiedByUrl
    • LastModifiedDate
    • ObjectName

Troubleshooting

After publishing your connection, you can review the status under the Data Sources tab in the admin center. To learn how to make updates and deletions, see Manage your connector.

You can find troubleshooting steps for commonly seen issues here.

If you have issues or want to provide feedback, contact Microsoft Graph | Support.
