How to: Configure projects to target platforms

  • Článek

Applies to: yesVisual Studio noVisual Studio for Mac

Note

This article applies to Visual Studio 2017. If you're looking for the latest Visual Studio documentation, see Visual Studio documentation. We recommend upgrading to the latest version of Visual Studio. Download it here

Visual Studio enables you to set up your application builds to target different platforms, including 64-bit platforms. For more information on 64-bit platform support in Visual Studio, see 64-bit applications.

Target platforms with the Configuration Manager

The Configuration Manager provides a way for you to quickly add a new platform to target with your project. If you select one of the platforms included with Visual Studio, the properties for your project are modified to build your project for the selected platform.

To configure a project to target a 64-bit platform

  1. On the menu bar, choose Build > Configuration Manager.

  2. In the Active solution platform list, choose a 64-bit platform for the solution to target, and then choose the Close button.

    1. If the platform that you want doesn't appear in the Active solution platform list, choose New.

      The New Solution Platform dialog box appears.

    2. In the Type or select the new platform list, choose x64.

      Note

      If you give your configuration a new name, you may have to modify the settings in the Project Designer to target the correct platform.

    3. If you want to copy the settings from a current platform configuration, choose it, and then choose the OK button.

The properties for all projects in your solution that target the 64-bit platform are updated, and the next build of the project will be optimized for 64-bit platforms.

Note

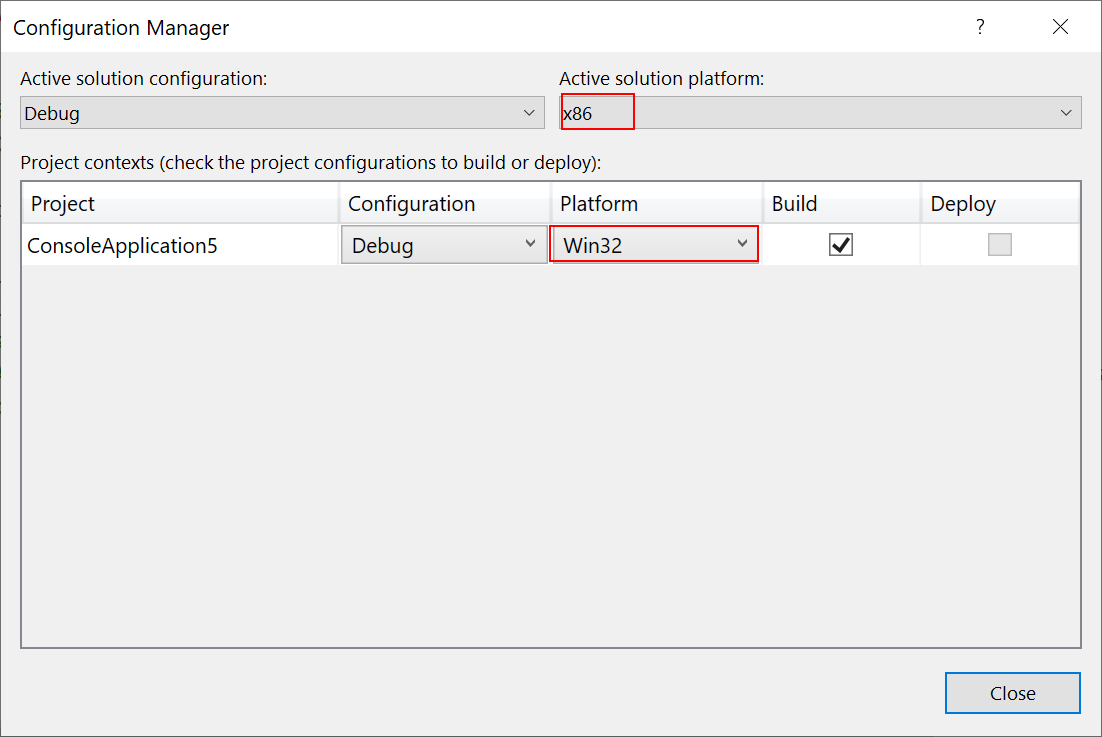

The Win32 platform name is used for C++ projects, and it means x86. Visual Studio considers both project-level platforms and solution-level platforms, and the project platforms come from the language-specific project systems. C++ projects use Win32 and x64, but the solution platforms use x86 and x64. When you choose x86 as the solution configuration, Visual Studio selects the Win32 platform for C++ projects. To see both project-level platform and solution-level platform settings, open Configuration Manager and note the two platform settings. The solution-level platform is shown in the Active solution platform dropdown, and the table shows the project-level platform for each project. Screenshot showing solution platform and project platform

Target platforms in the Project Designer

The Project Designer also provides a way to target different platforms with your project. If selecting one of the platforms included in the list in the New Solution Platform dialog box does not work for your solution, you can create a custom configuration name and modify the settings in the Project Designer to target the correct platform.

Performing this task varies based on the programming language you are using. See the following links for more information:

Manually editing the project file

Sometimes, you need to manually edit the project file for some custom configuration. An example is when you have conditions that can't be specified in the IDE, such as a reference that is different for two different platforms, as in the following example.

Example: Referencing x86 and x64 assemblies and DLLs

You might have a .NET assembly or DLL that has both x86 and x64 versions. To set up your project to use these references, first add the reference, and then open the project file and edit it to add an ItemGroup with a condition that references both the configuration, and the target platform. For example, suppose the binary you are referencing is ClassLibrary1 and there are different paths for Debug and Release configurations, as well as x86 and x64 versions. Then, use four ItemGroup elements with all combinations of settings, as follows:

<Project Sdk="Microsoft.NET.Sdk">

  <PropertyGroup>
    <OutputType>Exe</OutputType>
    <TargetFramework>netcoreapp2.0</TargetFramework>
    <Platforms>AnyCPU;x64;x86</Platforms>
  </PropertyGroup>

  <ItemGroup Condition=" '$(Configuration)|$(Platform)' == 'Debug|x64'">
    <Reference Include="ClassLibrary1">
      <HintPath>..\..\ClassLibrary1\ClassLibrary1\bin\x64\Debug\netstandard2.0\ClassLibrary1.dll</HintPath>
    </Reference>
  </ItemGroup>

  <ItemGroup Condition=" '$(Configuration)|$(Platform)' == 'Release|x64'">
    <Reference Include="ClassLibrary1">
      <HintPath>..\..\ClassLibrary1\ClassLibrary1\bin\x64\Release\netstandard2.0\ClassLibrary1.dll</HintPath>
    </Reference>
  </ItemGroup>

  <ItemGroup Condition=" '$(Configuration)|$(Platform)' == 'Debug|x86'">
    <Reference Include="ClassLibrary1">
      <HintPath>..\..\ClassLibrary1\ClassLibrary1\bin\x86\Debug\netstandard2.0\ClassLibrary1.dll</HintPath>
    </Reference>
  </ItemGroup>

  <ItemGroup Condition=" '$(Configuration)|$(Platform)' == 'Release|x86'">
    <Reference Include="ClassLibrary1">
      <HintPath>..\..\ClassLibrary1\ClassLibrary1\bin\x86\Release\netstandard2.0\ClassLibrary1.dll</HintPath>
    </Reference>
  </ItemGroup>
</Project>

Note

In Visual Studio 2017, you need to unload the project before you can edit the project file. To unload the project, right-click on the project node, and choose Unload project. When done editing, save your changes and reload the project by right-clicking the project node and choosing Reload project.

For more information about the project file, see MSBuild project file schema reference.
