CDC Flow Components

Applies to: SQL Server SSIS Integration Runtime in Azure Data Factory

Important

CDC Flow Components, including CDC Control Task, CDC Source and CDC Splitter, are deprecated. For details, refer to the announcement.

The Change Data Capture Components by Attunity for Microsoft SQL Server 2019 Integration Services (SSIS) help SSIS developers work with CDC and reduce the complexity of CDC packages.

The SSIS CDC components are designed to work with the SQL Server CDC feature where the source tables are either the same SQL Server database or an Oracle database (when using the Oracle CDC Service for SQL Server). Partitioned tables are supported.

The components include Control and Data Flow components that streamline the experience of reading and processing change data in SSIS packages. The components can be added to the component library in Microsoft SQL Server, but are installed separately.

The following are the Change Data Capture Components by Attunity:

CDC Control Flow Component:

CDC Control Task

CDC Data Flow Components:

CDC Source

CDC Splitter

Installation

This section describes the installation procedures for the CDC Components for Microsoft SQL Server 2019 Integration Services (SSIS).

The CDC Components for SSIS are packaged with the Microsoft Change Data Capture Designer and Service for Oracle by Attunity for SQL Server. This download is part of the SQL Server Feature Pack. Download components of the Feature Pack from the SQL Server 2016 Feature Pack web page.

Version Support

SQL Server version support

The CDC components for SSIS are supported on all the supported versions of Microsoft SQL Server. Currently, the supported versions of SQL Server include SQL Server 2012 through SQL Server 2017.

Operating system version support

The CDC components for SSIS are supported on the following operating systems and platforms:

  • Windows 8 and 8.1
  • Windows 10
  • Windows Server 2012 and 2012 R2
  • Windows Server 2016

Running the Installation Program

Before you run the installation wizard, be sure that the SQL Server SQL Server Data Tools is closed. Then follow the directions in the installation wizard.

Restart SSIS Service

After you install the CDC components, you must restart the SSIS service to be sure that the components work correctly when developing packages in the SQL SQL Server Data Tools.

A message is displayed after you install the components. Click Yes when prompted.

Uninstalling the Microsoft CDC Components

You uninstall the CDC source, CDC splitter, or CDC Control task, by using the uninstall wizard. If you are using the SQL Server SQL Server Data Tools for package development, make sure the SQL Server Data Tools is closed before running the uninstall wizard.

Benefits

The CDC Components for SQL Server Integration Services components allow SSIS developers to easily build SSIS packages that process change data. These components enhance the ability of SSIS developers to deal with CDC and reduce the complexity of CDC packages.

The SSIS CDC components are used to provide the change data in a way that is easy to further process it for replication, loading a data warehouse, updating slowly changing dimensions for OLAP, auditing changes, or for additional possible uses. The type of further processing used is determined by the SSIS developer.

The SSIS CDC components are designed to work with the SQL Server CDC feature with change tables that are in the same SQL Server database.

Getting Started with the Change Data Capture Components

A typical CDC package processes changes to a group of tables. The basic control flow part of this type of CDC package is shown in the following figure. This package is called a trickle-feed processing package.

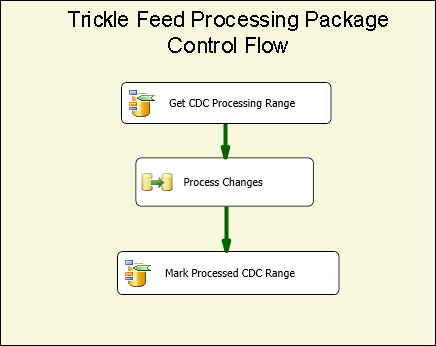

Trickle Feed Processing Package Control Flow

This SQL Server Integration Services Control Flow contains two CDC Control Tasks and the Data Flow task. The first task called Get CDC Processing Range establishes the LSN range for the changes that are processed in the data-flow task called Process Changes. This range is established based on what was processed during the last package run and was saved in a persistent store.

For more information about using the CDC Control Task, see CDC Control Task and CDC Control Task Editor.

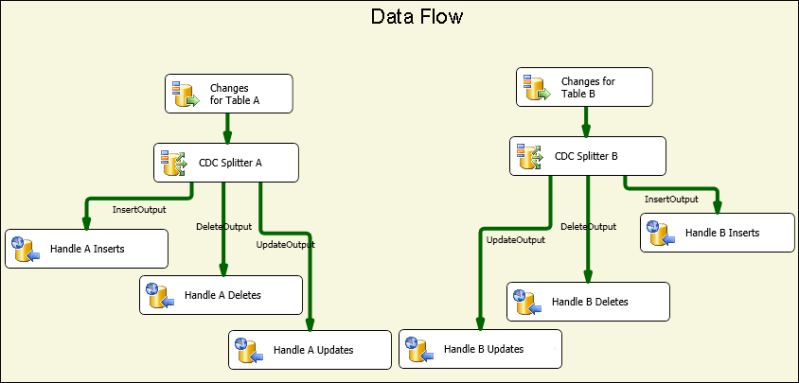

The following figure shows the Process Changes data flow, which conceptually shows how the changes are processes.

Process Changes Data Flow

The steps illustrated in this figure are:

  • Changes for Table X is a CDC source that reads changes made to table X that were made in the CDC processing range determined in the parent control flow.

  • CDC Splitter X is used to split the changes into inserts, deletes, and updates. In this scenario, it is assumed that the CDC Source is configured to produce Net changes so that different change types can be processed in parallel.

  • The specific changes are then further processed downstream. In this illustration, the changes are inserted into tables using multiple ODBC Destinations but in actual cases the processing may be different.

For more information about the CDC Source, see:

CDC Source

CDC Source Editor (Connection Manager Page)

CDC Source Editor (Columns Page)

CDC Source Editor (Error Output Page)

For more information about the CDC Splitter, see:

CDC Splitter

One of the basic issues that require attention when building CDC packages is how the change processing interacts with the initial loading (or initial processing) of the data.

The CDC components support three distinct initial loading and change processing scenarios:

  • Initial loading done with a database snapshot. In this case, change processing starts with the LSN of the snapshot event.

  • Initial loading from a quiescent database. In this case, no changes are made during initial loading so the current LSN is sampled at sometime during the initial load and change processing starts with that LSN.

  • Initial loading from an active database. In this case, as the initial load is in progress, changes are made to the database and there is no single LSN from which change processing can be precisely started. In this case, the initial load package developer can sample the source database current LSN before and after the initial load. Then, when processing changes, care should be taken when processing changes made in parallel to the initial load as some of the processed changes are already seen in the initial load (for example, an Insert change may fail with a duplicate key error because the inserted row was read by the initial load process).

The following figure shows an SSIS package that could handle the first two scenarios:

SSIS package handling first two scenarios

The following figure shows an SSIS package that could handle the third scenario:

SSIS package handling third scenario

Following the initial load package, a trickle-feed update package is run repeatedly according to a schedule to process changes as they become available for consumption.

Passing the state of the CDC processing from the initial load package to the trickle feed package and between different tasks within each package occurs by means of a special SSIS package string variable. The value of this variable is referred to as the CDC State, which reflects the current state of CDC processing for the groups of tables being handled by the initial load and trickle-feed packages.

The value of the CDC State variable needs to be maintained in persistent storage. It should be read before starting CDC processing and should be saved with the current state after processing completed. The task of loading and storing of the CDC state can be handled by the SSIS developer but the CDC Control component can automate this task by maintaining the CDC State value in a database table.

Security Considerations

This section lists some security considerations related to the use of the CDC components in SSIS.

Access Authorization to Change Data

Trickle-feed update packages need access to SQL Server CDC functions. Such access is granted, by default, to members of the db_owner fixed database role. Because the db_owner is a powerful role, when defining capture instances within SQL Server it is recommended to associate a gating security role to each capture instance that allows the SSIS CDC package to use a much more restricted user for processing the changes.

Access to CDC Database Current LSN

The CDC Control task operations for marking the start LSN for change processing must be able to find the CDC Database current LSN. The components find the LSN by using the procedure sp_replincrementlsn from the master database. Execute permission on this procedure must be given to the login used for connecting to the SQL Server CDC database.

Access to CDC States Table

The CDC States table is used for automatically persisting CDC States that need to be updatable by the login used for connecting to the SQL Server CDC database. As this table is created by the SSIS developer, set the SQL Server system administrator as a user who is authorized to create SQL Server databases and perform administrative and maintenance tasks. In addition, a SQL Server system administrator who works with CDC enabled databases must be knowledgeable about SQL Server CDC technology and implementation.

Grouping Tables for CDC Processing

Database projects range in size from several tables to many thousands of tables. When designing initial load and CDC packages, it is beneficial to group tables in much smaller groups for easier management and efficiency. This section lists various considerations that impact the sorting of tables into small groups, where the tables in each are initially loaded and then updated as a group.

The CDC patterns supported by the CDC components assume that this grouping is already determined. Each group defines a separate CDC context that is maintained separately from other groups. For each group, initial-load and trickle-feed update packages are created. Trickle-feed updates are scheduled for periodic runs based on the rate of change processing constraints (for example, CPU and IO consumption, impact on other systems) and the desired latency.

Tables are grouped based on the following considerations:

  1. According to the target database. All tables that are written to different target databases or undergo different processing should be assigned to different CDC groups.

  2. Tables that are related with referential integrity constraints should be assigned to the same group to avoid referential integrity problems at the target.

  3. Tables for which higher latency can be tolerated can be grouped so they can be processed less frequently and reduce overall system load.

  4. Tables for which there is a higher rate of change should be in smaller groups, and tables with a low rate of change can be grouped in larger groups.

The following two packages are created for each CDC group:

  • An Initial Load package, which reads the entire range of data from the source tables and applies it to the target tables.

  • A trickle-feed update package that reads changes made to the source tables and applies the changes to the target tables. This package should be executed on a regularly scheduled basis.

CDC State

Each CDC group has a state associated with it, which is represented by a string with a specific format. For more information, see CDC Control Task. The following table shows the possible CDC state values.

State Description
0-(INITIAL) The state that exists before any packages are run on the current CDC group. This is also the state when the CDC state is empty.

For more information about CDC Control task operations, see CDC Control Task.
1-ILSTART (Initial-Load-Started) This is the state that exists when the initial load package starts. This occurs after the MarkInitialLoadStart operation call to the CDC Control task.

For more information about CDC Control task operations, see CDC Control Task.
2- ILEND (Initial-Load-Ended) This is the state that exists when the initial load package ends successfully. This occurs after the MarkInitialLoadEnd operation call to the CDC Control task.

For more information about CDC Control task operations, see CDC Control Task.
3-ILUPDATE (Initial Load Update) This is the state that exists after the first run of the Update package after the initial load while still processing the initial processing range. This occurs after the GetProcessingRange operation call to the CDC control task.

If using the _$reprocessing column, it is set to 1 to indicate that the package may be reprocessing rows already at the target.

For more information about CDC Control task operations, see CDC Control Task.
4-TFEND (Trickle-Feed-Update-Ended) This is the state expected for regular CDC runs. It indicates that the previous run completed successfully and that a new run with a new processing range can be started.
5-TFSTART (Trickle-Feed-Update-Started) This is the state that exists on subsequent runs of the Update package after the GetProcessingRange operation call to the CDC control task.

This indicates that a regular CDC run is started, but is not finished or has not yet finished, cleanly (MarkProcessedRange).

For more information about CDC Control task operations, see CDC Control Task.
6-TFREDO (Reprocessing-Trickle-Feed-Updates) This is the state on a GetProcessingRange that occurs after TFSTART. This indicates that the previous run did not complete successfully.

If using the __$reprocessing column, it is set to 1 to indicate that the package may be reprocessing rows already at the target.
7-ERROR The CDC group is in an ERROR state.

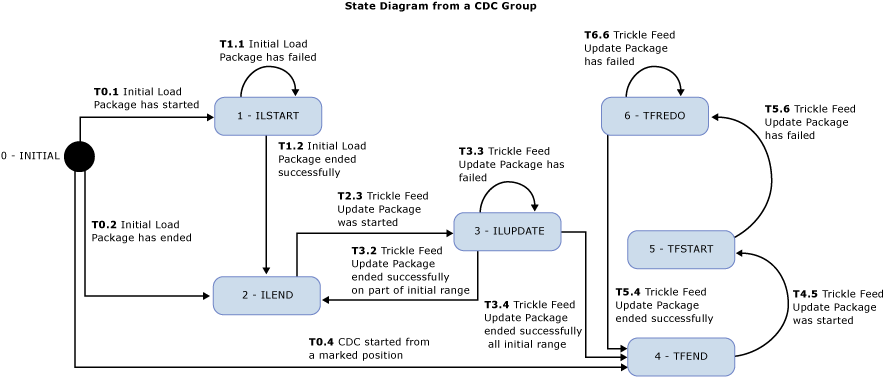

Here is the state diagram for the CDC components. An ERROR state is reached when a state is reached that is not expected. The expected states are illustrated in the following diagram. However the diagram does not show the ERROR state.

For example, at the end of an initial load package, when trying to set the state to ILEND, if the state is TFSTART then the CDC group is in an error state and the Trickle-Feed Update package does not run (the Initial Load package does run).

State Diagram

Once the Initial Load package runs successfully, the Trickle-Feed Update package runs repeatedly under a predetermined schedule to process changes to the source tables. Each run of the Trickle-Feed Update package is a CDC run.
