Database Mail Configuration Objects

Applies to: SQL Server

Database Mail has two configuration objects: The database configuration objects provide a way for you to configure the settings that Database mail should use when sending an email from your database application or SQL Server Agent.

  • Database Mail accounts

  • Database Mail profiles

Database Mail Configuration Object Relationship

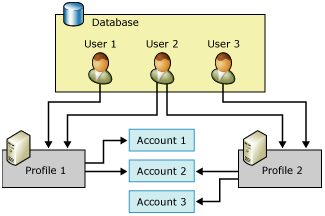

The illustration shows two profiles, three accounts, and three users. User 1 has access to Profile 1, which uses Account 1 and Account 2. User 3 has access to Profile 2, which uses Account 2 and Account 3. User 2 has access to both Profile 1 and Profile 2.

Relationship of users, profiles, and accounts

Database Mail Account

A Database Mail account contains the information that Microsoft SQL Server uses to send e-mail messages to an SMTP server. Each account contains information for one e-mail server.

A Database Mail supports three methods of authentication to communicate with an SMTP server:

  • Windows Authentication: Database Mail uses the credentials of the SQL Server Database Engine Windows service account for authentication on the SMTP server.

  • Basic Authentication: Database Mail uses the username and password specified to authenticate on the SMTP server.

  • Note that basic authentication for Exchange Online is being deprecated. For more information, see Basic Authentication and Exchange Online.

  • Anonymous Authentication: The SMTP server does not require any authentication. Database Mail will not use any credentials to authenticate on the SMTP server.

Account information is stored in the msdb database. Each account consists of the following information:

  • The name of the account.

  • A description of the account.

  • The e-mail address of the account.

  • The display name for the account.

  • The e-mail address to use as the reply-to information for the account.

  • The name of the e-mail server.

  • The type of the e-mail server. For Microsoft SQL Server, this is always Simple Mail Transfer Protocol(SMTP).

  • The port number of the e-mail server.

  • A bit column indicating whether the connection to the SMTP mail server is made using Transport Layer Security (TLS), previously known as Secure Sockets Layer (SSL).

  • A bit column indicating whether the connection to the SMTP server is made using the credentials configured for the SQL Server Database Engine.

  • The user name to use for authentication to the e-mail server, if the e-mail server requires authentication.

  • The password to use for authentication to the e-mail server, if the e-mail server requires authentication.

The Database Mail Configuration Wizard provides a convenient way to create and manage accounts. You can also use the configuration stored procedures in msdb to create and manage accounts.

Database Mail Profile

A Database Mail profile is an ordered collection of related Database Mail accounts. Applications that send e-mail using Database Mail specify profiles, instead of using accounts directly. Separating information about the individual e-mail servers from the objects that the application uses improves flexibility and reliability: profiles provide automatic failover, so that if one e-mail server is unresponsive, Database Mail can automatically send mail to another e-mail server. Database administrators can add, remove, or reconfigure accounts without requiring changes to application code or job steps.

Profiles also help database administrators control access to e-mail. Membership in the DatabaseMailUserRole is required to send Database Mail. Profiles provide additional flexibility for administrators to control who sends mail and which accounts are used.

A profile may be public or private.

Public profiles are available for all members of the DatabaseMailUserRole database role in the msdb database. They allow all members of the DatabaseMailUserRole role to send e-mail using the profile.

Private profiles are defined for security principals in the msdb database. They allow only specified database users, roles, and members of the sysadmin fixed server role to send e-mail using the profile. By default, a profile is private, and allows access only to members of the sysadmin fixed server role. To use a private profile, sysadmin must grant users permission to use the profile. Additionally, EXECUTE permission on the sp_send_dbmail stored procedure is only granted to members of the DatabaseMailUserRole. A system administrator must add the user to the DatabaseMailUserRole database role for the user to send e-mail messages.

Profiles improve reliability in cases where an e-mail server becomes unreachable or unable to process messages. Each account in the profile has a sequence number. The sequence number determines the order in which Database Mail uses accounts in the profile. For a new e-mail message, Database Mail uses the last account that sent a message successfully, or the account that has the lowest sequence number if no message has yet been sent. Should that account fail, Database Mail uses the account with the next highest sequence number, and so on until either Database Mail sends the message successfully, or the account with the highest sequence number fails. If the account with the highest sequence number fails, the Database Mail pauses attempts to send the mail for the amount of time configured in the AccountRetryDelay parameter of sysmail_configure_sp, then starts the process of attempting to send the mail again, starting with the lowest sequence number. Use the AccountRetryAttempts parameter of sysmail_configure_sp, to configure the number of times that the external mail process attempts to send the e-mail message using each account in the specified profile.

If more than one account exists with the same sequence number, Database Mail only uses one of those accounts for a given e-mail message. In this case, Database Mail makes no guarantees as to which of the accounts is used for that sequence number or that the same account is used from message to message.

Database Mail Configuration Tasks

The following table describes the Database Mail configuration tasks.

Configuration Task Topic Link
Describes how to create a Database Mail accounts Create a Database Mail Account
Describes how to Create Database Mail profiles Create a Database Mail Profile
Describes how to Configure Database mail Configure Database Mail
Describes how to create a Database Mail configuration script using templates

Additional Database Configuration Tasks (System Stored Procedures)

Database Mail configuration stored procedures are located in the msdb database.

The following tables list the stored procedures used for configuring and managing Database Mail.

Database Mail Settings

Name Description
sysmail_configure_sp (Transact-SQL) Changes configuration settings for Database Mail.
sysmail_help_configure_sp (Transact-SQL) Displays configuration settings for Database Mail.

Accounts and Profiles

Name Description
sysmail_add_profileaccount_sp (Transact-SQL) Adds a mail account to a Database Mail profile.
sysmail_delete_account_sp (Transact-SQL) Deletes a Database Mail account.
sysmail_delete_profile_sp (Transact-SQL) Deletes a Database Mail profile.
sysmail_delete_profileaccount_sp (Transact-SQL) Removes an account from a Database Mail profile.
sysmail_help_account_sp (Transact-SQL) Lists information about Database Mail accounts.
sysmail_help_profile_sp (Transact-SQL) Lists information about one or more Database Mail profiles.
sysmail_help_profileaccount_sp (Transact-SQL) Lists the accounts associated with one or more Database Mail profiles.
sysmail_update_account_sp (Transact-SQL) Updates the information in an existing Database Mail account.
sysmail_update_profile_sp (Transact-SQL) Changes the description or name of a Database Mail profile.
sysmail_update_profileaccount_sp (Transact-SQL) Updates the sequence number of an account within a Database Mail profile.

Security

Name Description
sysmail_add_principalprofile_sp (Transact-SQL) Grants permission for a database principal to use a Database Mail profile.
sysmail_delete_principalprofile_sp (Transact-SQL) Removes permission for a database user to use a public or private Database Mail profile.
sysmail_help_principalprofile_sp (Transact-SQL) Lists Database Mail profile information for a given database user.
sysmail_update_principalprofile_sp (Transact-SQL) Updates the permission information for a given database user.

System State

Name Description
sysmail_start_sp (Transact-SQL) Starts the Database Mail external program and the associated SQL Service Broker queue.
sysmail_stop_sp (Transact-SQL) Stops the Database Mail external program and the associated SQL Service Broker queue.
sysmail_help_status_sp (Transact-SQL) Indicates if Database Mail is started.

Additional References
