Set up IP ingress restrictions in Azure Container Apps

Azure Container Apps allows you to limit inbound traffic to your container app by configuring IP ingress restrictions.

There are two types of restrictions:

  • Allow: Allow inbound traffic only from address ranges you specify in allow rules.
  • Deny: Deny all inbound traffic from address ranges you specify in deny rules.

When you define no IP restriction rules, all inbound traffic is allowed.

IP restrictions rules contain the following properties:

Property Value Description
name string The name of the rule.
description string A description of the rule.
ipAddressRange IP address range in CIDR format The IP address range in CIDR notation.
action Allow or Deny The action to take for the rule.

The ipAddressRange parameter accepts IPv4 addresses. Define each IPv4 address block in Classless Inter-Domain Routing (CIDR) notation.

Note

All rules must be the same type. You can't combine allow rules and deny rules.

Manage IP ingress restrictions

You can manage IP access restrictions rules through the Azure portal or Azure CLI.

Add rules

  1. In the Azure portal, go to your container app.

  2. In the left menu, select Networking > Ingress.

  3. Under IP Restrictions, you can choose to allow or deny traffic from the specified IP address ranges. In this example, select Allow traffic from IPs configured below, deny all other traffic.

  4. Select Add to create the rule.

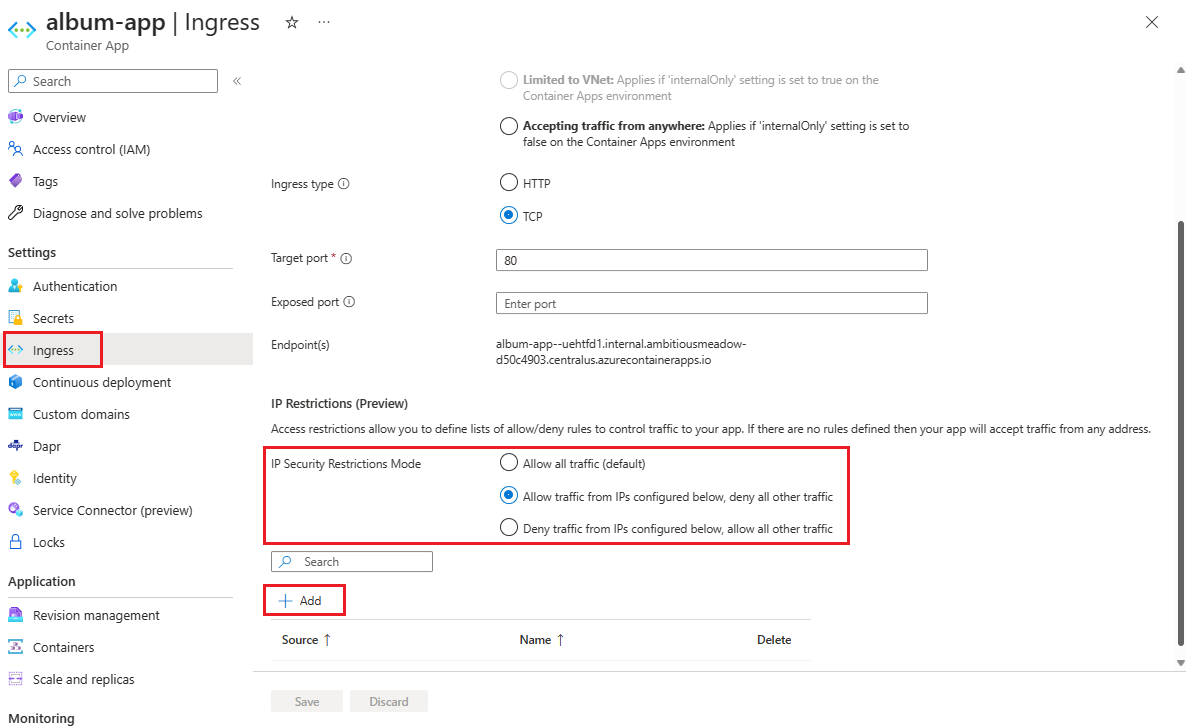

    Screenshot of IP restriction settings on container app Ingress page.

  5. Enter values in the following fields:

    Field Description
    IPv4 address or range Enter the IP address or range of IP addresses in CIDR notation. For example, to allow access from a single IP address, use the following format: 10.200.10.2/32.
    Name Enter a name for the rule.
    Description Enter a description for the rule.

  6. Select Add.

  7. Repeat steps 4-6 to add more rules.

  8. When you finish adding rules, select Save.

Update a rule

  1. In the Azure portal, go to your container app.
  2. In the left menu, select Networking > Ingress.
  3. Select the rule you want to update.
  4. Change the rule settings.
  5. Select Save to save the updates.
  6. On the Ingress page, select Save to save your updated rules.

Delete a rule

  1. In the Azure portal, go to your container app.
  2. In the left menu, select Networking > Ingress.
  3. Select the delete icon next to the rule you want to delete.
  4. Select Save.

You can manage IP Access Restrictions using the az containerapp ingress access-restriction command group. This command group has the options to:

  • set: Create or update a rule.
  • remove: Delete a rule.
  • list: List all rules.

Create or update rules

You can create or update IP restrictions using the az containerapp ingress access-restriction set command.

The az containerapp ingress access-restriction set command group uses the following parameters.

Argument Values Description
--rule-name (required) String Specifies the name of the access restriction rule.
--description String Specifies a description for the access restriction rule.
--action (required) Allow, Deny Specifies whether to allow or deny access from the specified IP address range.
--ip-address (required) IP address or range of IP addresses in CIDR notation Specifies the IP address range to allow or deny.

Add more rules by repeating the command with a different --rule-name and ---ip-address values.

Create allow rules

The following example az containerapp access-restriction set command creates a rule to restrict inbound access to an IP address range. You must delete any existing deny rules before you can add any allow rules.

Replace the values in the following example with your own values.

az containerapp ingress access-restriction set \
   --name <CONTAINER_APP_NAME> \
   --resource-group <RESOURCE_GROUP> \
   --rule-name "my allow rule" \
   --description "example of rule allowing access" \
   --ip-address 192.168.0.1/28 \
   --action Allow

You can add to the allow rules by repeating the command with a different --ip-address and --rule-name values.

Create deny rules

The following example of the az containerapp access-restriction set command creates an access rule to deny inbound traffic from a specified IP range. You must delete any existing allow rules before you can add deny rules.

Replace the placeholders in the following example with your own values.

az containerapp ingress access-restriction set \
  --name <CONTAINER_APP_NAME> \
  --resource-group <RESOURCE_GROUP> \
  --rule-name "my deny rule" \
  --description "example of rule denying access" \
  --ip-address 192.168.0.100/28 \
  --action Deny

You can add to the deny rules by repeating the command with a different --ip-address and --rule-name values. If you use a rule name that already exists, the existing rule is updated.

Update a rule

You can update a rule using the az containerapp ingress access-restriction set command. You can change the IP address range and the rule description, but not the rule name or action.

The --action parameter is required, but you can't change the action from Allow to Deny or vice versa. If you omit the --description parameter, the description is deleted.

The following example updates the ip address range.

az containerapp ingress access-restriction set \
  --name <CONTAINER_APP_NAME> \
  --resource-group <RESOURCE_GROUP> \
  --rule-name "my deny rule" \
  --ip-address 192.168.0.1/24 \
  --description "example of rule denying access" \
  --action Deny

Remove access restrictions

The following example az containerapp ingress access-restriction remove command removes a rule.

az containerapp ingress access-restriction remove \
  --name <CONTAINER_APP_NAME> \
  --resource-group <RESOURCE_GROUP> \
  --rule-name "<your rule name>"

List access restrictions

The following example az containerapp ingress access-restriction list command lists the IP restriction rules for the container app.

az containerapp ingress access-restriction list \
  --name <CONTAINER_APP_NAME> \
  --resource-group <RESOURCE_GROUP>

Troubleshooting

Use the following information to help you troubleshoot IP-related issues in your container app.

Access denied

An RBAC: Access Denied message returned to the client indicates the client is blocked by IP restrictions from the container app. To fix this issue, make sure the client IP address requesting access is allowed based on either the allow or deny rules.

If using an address range, make sure the blocked IP falls within an allowed range.

Next step

Configure Ingress
