Cost-based optimizer

  • Artikel

Spark SQL can use a cost-based optimizer (CBO) to improve query plans. This is especially useful for queries with multiple joins. For this to work it is critical to collect table and column statistics and keep them up to date.

Collect statistics

To get the full benefit of the CBO it is important to collect both column statistics and table statistics. You can use the ANALYZE TABLE command to manually collect statistics.

Tip

To keep the statistics up-to-date, run ANALYZE TABLE after writing to the table.

Use ANALYZE

Important

Predictive optimization with ANALYZE is in Public Preview. It includes intelligent statistics collection during writes. Use this form to sign up for the Public Preview.

Predictive optimization automatically runs ANALYZE, a command for collecting statistics, on Unity Catalog managed tables. Databricks recommends enabling predictive optimization for all Unity Catalog managed tables to simplify data maintenance and reduce storage costs. See ANALYZE TABLE.

Verify query plans

There are several ways to verify the query plan.

EXPLAIN command

To check if the plan uses statistics, use the SQL commands

  • Databricks Runtime 7.x and above: EXPLAIN

If statistics are missing then the query plan might not be optimal.

== Optimized Logical Plan ==
Aggregate [s_store_sk], [s_store_sk, count(1) AS count(1)L], Statistics(sizeInBytes=20.0 B, rowCount=1, hints=none)
+- Project [s_store_sk], Statistics(sizeInBytes=18.5 MB, rowCount=1.62E+6, hints=none)
   +- Join Inner, (d_date_sk = ss_sold_date_sk), Statistics(sizeInBytes=30.8 MB, rowCount=1.62E+6, hints=none)
      :- Project [ss_sold_date_sk, s_store_sk], Statistics(sizeInBytes=39.1 GB, rowCount=2.63E+9, hints=none)
      :  +- Join Inner, (s_store_sk = ss_store_sk), Statistics(sizeInBytes=48.9 GB, rowCount=2.63E+9, hints=none)
      :     :- Project [ss_store_sk, ss_sold_date_sk], Statistics(sizeInBytes=39.1 GB, rowCount=2.63E+9, hints=none)
      :     :  +- Filter (isnotnull(ss_store_sk) && isnotnull(ss_sold_date_sk)), Statistics(sizeInBytes=39.1 GB, rowCount=2.63E+9, hints=none)
      :     :     +- Relation[ss_store_sk,ss_sold_date_sk] parquet, Statistics(sizeInBytes=134.6 GB, rowCount=2.88E+9, hints=none)
      :     +- Project [s_store_sk], Statistics(sizeInBytes=11.7 KB, rowCount=1.00E+3, hints=none)
      :        +- Filter isnotnull(s_store_sk), Statistics(sizeInBytes=11.7 KB, rowCount=1.00E+3, hints=none)
      :           +- Relation[s_store_sk] parquet, Statistics(sizeInBytes=88.0 KB, rowCount=1.00E+3, hints=none)
      +- Project [d_date_sk], Statistics(sizeInBytes=12.0 B, rowCount=1, hints=none)
         +- Filter ((((isnotnull(d_year) && isnotnull(d_date)) && (d_year = 2000)) && (d_date = 2000-12-31)) && isnotnull(d_date_sk)), Statistics(sizeInBytes=38.0 B, rowCount=1, hints=none)
            +- Relation[d_date_sk,d_date,d_year] parquet, Statistics(sizeInBytes=1786.7 KB, rowCount=7.30E+4, hints=none)

Important

The rowCount statistic is especially important for queries with multiple joins. If rowCount is missing, it means there is not enough information to calculate it (that is, some required columns do not have statistics).

Spark SQL UI

Use the Spark SQL UI page to see the executed plan and accuracy of the statistics.

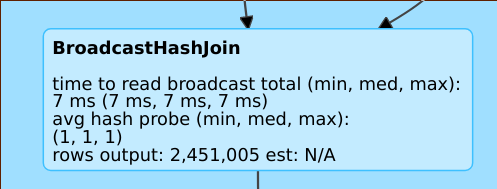

Missing estimate

A line such as rows output: 2,451,005 est: N/A means that this operator produces approximately 2M rows and there were no statistics available.

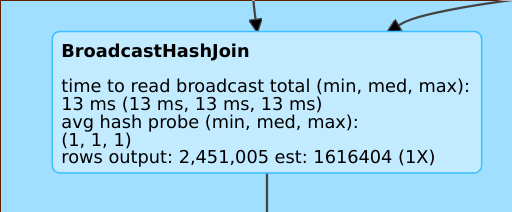

Good estimate

A line such as rows output: 2,451,005 est: 1616404 (1X) means that this operator produces approx. 2M rows, while the estimate was approx. 1.6M and the estimation error factor was 1.

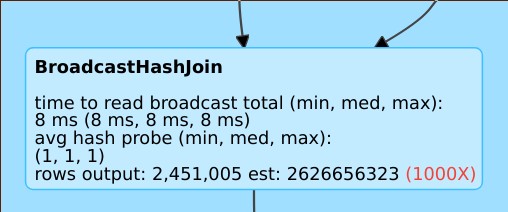

Bad estimate

A line such as rows output: 2,451,005 est: 2626656323 means that this operator produces approximately 2M rows while the estimate was 2B rows, so the estimation error factor was 1000.

Disable the Cost-Based Optimizer

The CBO is enabled by default. You disable the CBO by changing the spark.sql.cbo.enabled flag.

spark.conf.set("spark.sql.cbo.enabled", false)
