Tutorial: Write a C# user-defined function for Azure Stream Analytics job (Preview)

Artikel
02/26/2024

Important

.Net Standard user-defined functions for Azure Stream Analytics will be retired on 30th September 2024. After that date, it will not be possible to use the feature. Please transition to JavaScript user-defined functions for Azure Stream Analytics.

C# user-defined functions (UDFs) created in Visual Studio allow you to extend the Azure Stream Analytics query language with your own functions. You can reuse existing code (including DLLs) and use mathematical or complex logic with C#. There are three ways to implement UDFs:

CodeBehind files in a Stream Analytics project
UDFs from a local C# project
UDFs from an existing package from a storage account.

This tutorial uses the CodeBehind method to implement a basic C# function. The UDF feature for Stream Analytics jobs is currently in preview and shouldn't be used in production workloads.

In this tutorial, you learn how to:

Create a C# user defined function using CodeBehind.
Test your Stream Analytics job locally.
Publish your job to Azure.

Prerequisites

Before you start, make sure you've completed the following prerequisites:

If you don't have an Azure subscription, create a free account.
Install Stream Analytics tools for Visual Studio and the Azure development or Data Storage and Processing workloads.
Take a look at the existing Stream Analytics Edge development guide if you're building an IoT Edge job.

Create a container in your Azure Storage Account

The container you create is used to store the compiled C# package. If you create an Edge job, this storage account is also used to deploy the package to your IoT Edge device. Use a dedicated container for each Stream Analytics job. Reusing the same container for multiple Stream Analytics Edge jobs isn't supported. If you already have a storage account with existing containers, you may use them. If not, you need to create a new container.

Create a Stream Analytics project in Visual Studio

Start Visual Studio.
Select File > New > Project.

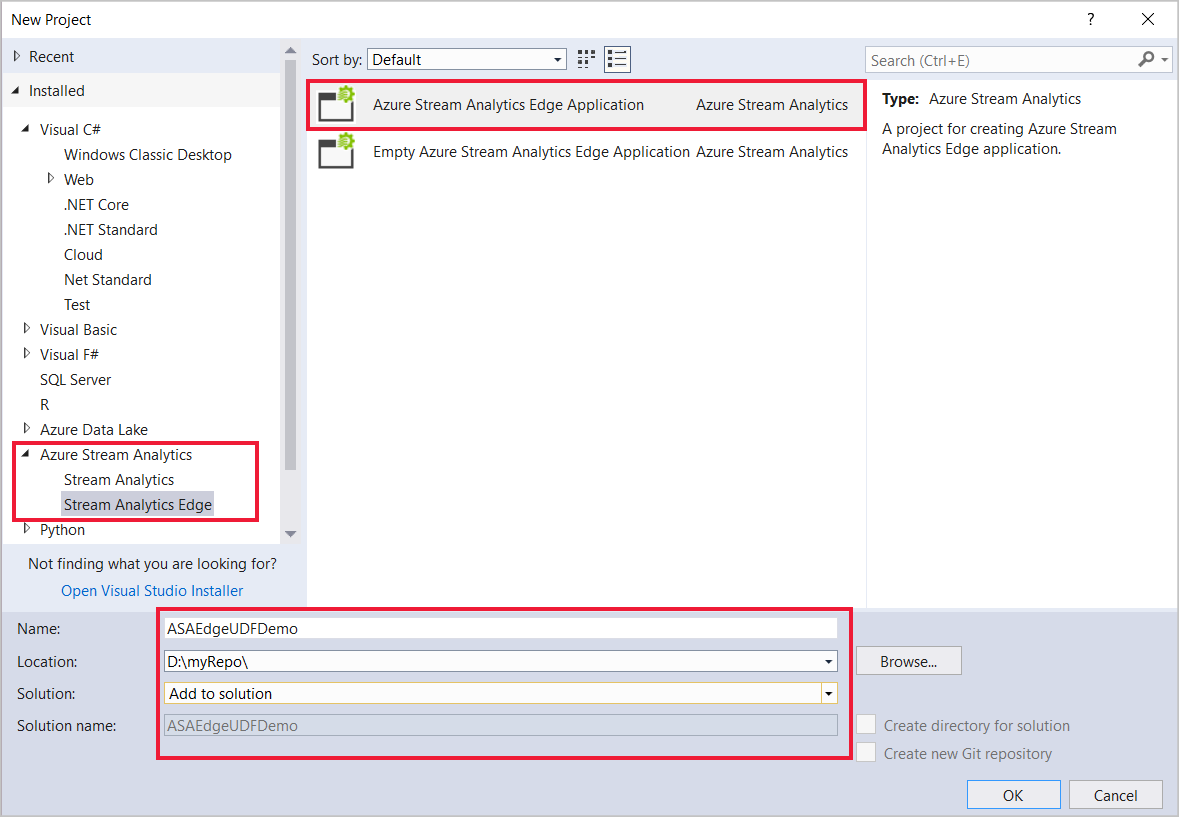

In the templates list on the left, select Stream Analytics, and then select Azure Stream Analytics Edge Application or Azure Stream Analytics Application.
Input the project Name, Location, and Solution name, and select OK.

Configure assembly package path

Open Visual Studio and navigate to the Solution Explorer.
Double-click the job configuration file, JobConfig.json.

Expand the User-Defined Code Configuration section, and fill out the configuration with the following suggested values:

Setting	Suggested Value
Global Storage Settings Resource	Choose data source from current account
Global Storage Settings Subscription	< your subscription >
Global Storage Settings Storage Account	< your storage account >
Custom Code Storage Settings Resource	Choose data source from current account
Custom Code Storage Settings Storage Account	< your storage account >
Custom Code Storage Settings Container	< your storage container >

Write a C# UDF with CodeBehind

A CodeBehind file is a C# file associated with a single ASA query script. Visual Studio tools automatically zips the CodeBehind file and upload it to your Azure storage account upon submission. All classes must be defined as public and all objects must be defined as static public.

In Solution Explorer, expand Script.asql to find the Script.asaql.cs CodeBehind file.

Replace the code with the following sample:

    using System;
    using System.Collections.Generic;
    using System.IO;
    using System.Linq;
    using System.Text;

    namespace ASAEdgeUDFDemo
    {
        public class Class1
        {
            // Public static function
            public static Int64 SquareFunction(Int64 a)
            {
                return a * a;
            }
        }
    }

Implement the UDF

In Solution Explorer, open the Script.asaql file.

Replace the existing query with the following query:

    SELECT machine.temperature, udf.ASAEdgeUDFDemo_Class1_SquareFunction(try_cast(machine.temperature as bigint))
    INTO Output
    FROM Input

Local testing

Download the temperature simulator sample data file.

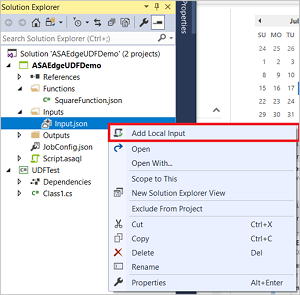

In Solution Explorer, expand Inputs, right-click Input.json, and select Add Local Input.

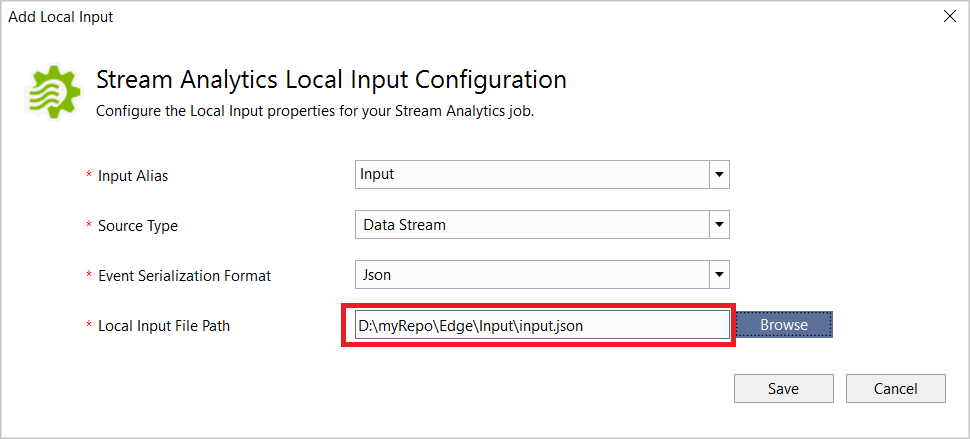

Specify the local input file path for the sample data you downloaded and Save.

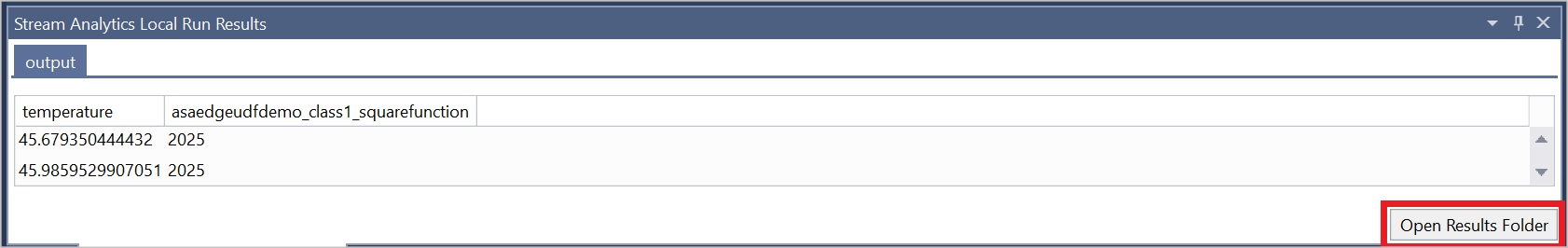

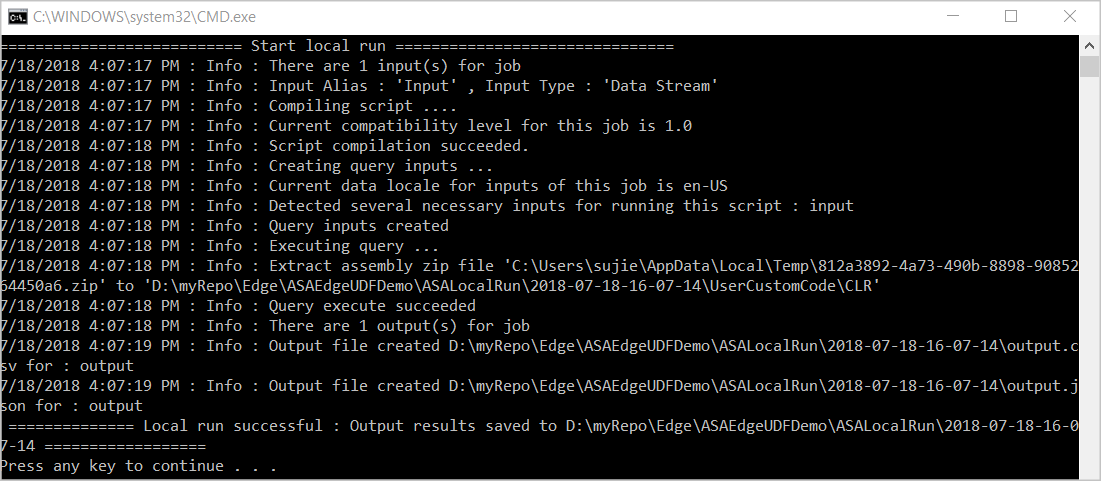

Click Run Locally in the script editor. Once the local run has successfully saved the output results, press any key to see the results in table format.
You can also select Open Results Folder to see the raw files in JSON and CSV format.

Debug a UDF

You can debug your C# UDF locally the same way you debug standard C# code.

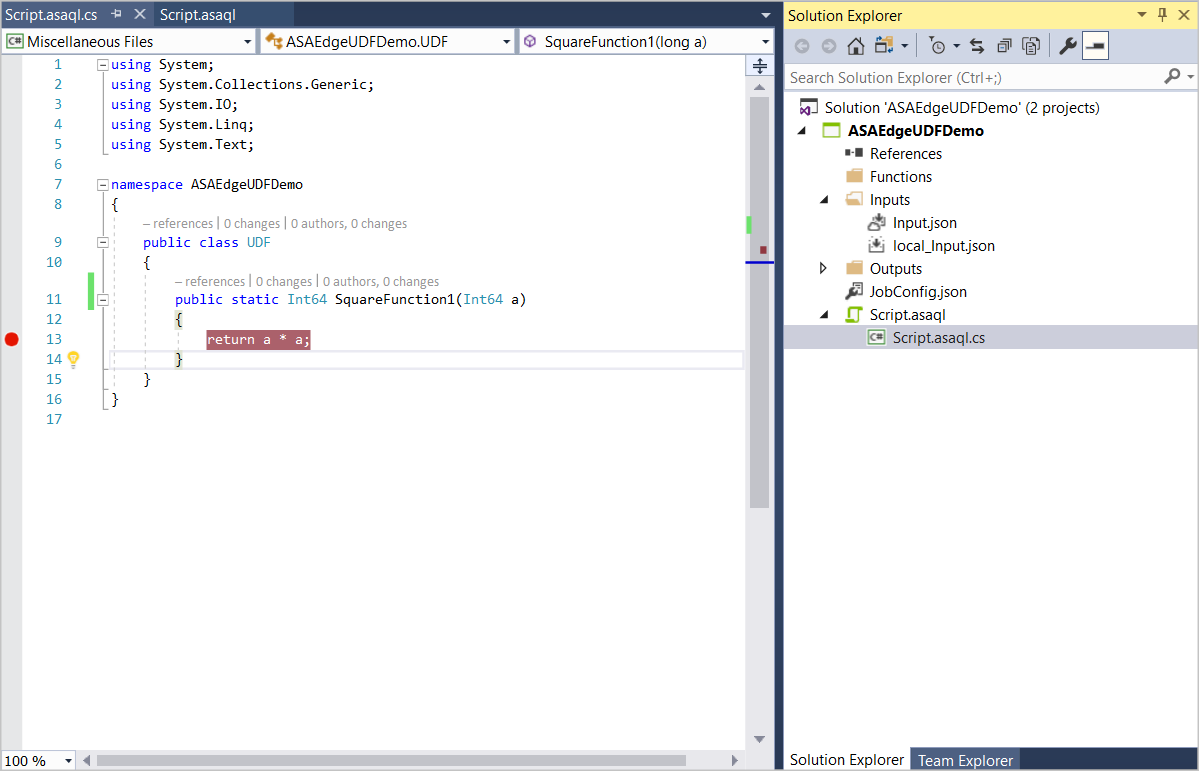

Add breakpoints in your C# function.

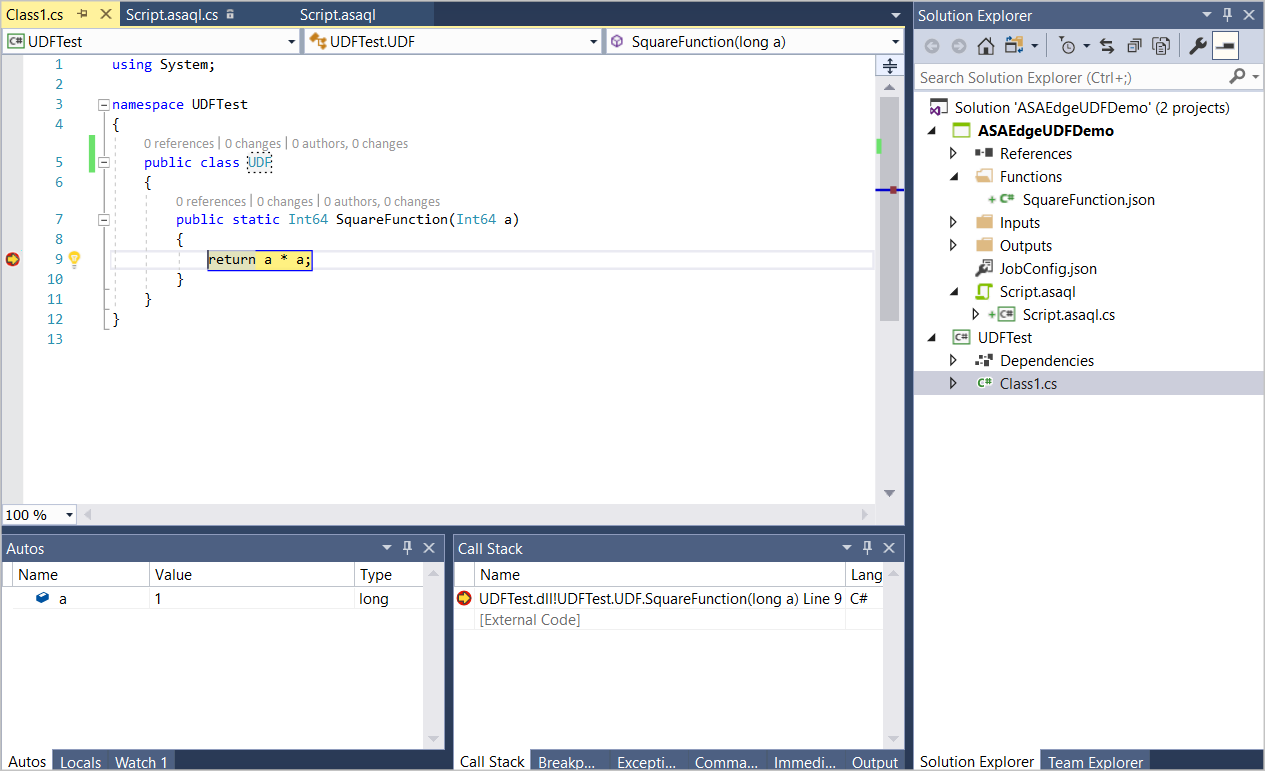

Press F5 to start debugging. The program stops at your breakpoints as expected.

Publish your job to Azure

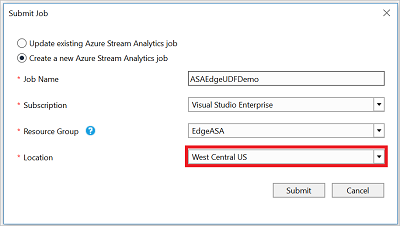

Once you've tested your query locally, select Submit to Azure in the script editor to publish the job to Azure.

Submit your Stream Analytics Edge job to Azure from Visual Studio

Deploy to IoT Edge devices

If you chose to build a Stream Analytics Edge job, it can now be deployed as an IoT Edge module. Follow the IoT Edge quickstart to create an IoT Hub, register an IoT Edge device, and install and start the IoT Edge runtime on your device. Then follow the deploy the job tutorial to deploy your Stream Analytics job as an IoT Edge module.

Next steps

In this tutorial, you created a simple C# user-defined function using CodeBehind, published your job to Azure, and deployed the job to Azure or IoT Edge device.

To learn more about the different ways to use C# user-defined functions for Stream Analytics jobs, continue to this article:

Write C# functions for Azure Stream Analytics
