Create a virtual network peering - Resource Manager, different subscriptions and Microsoft Entra tenants

Artikel
07/01/2024

In this tutorial, you learn to create a virtual network peering between virtual networks created through Resource Manager. The virtual networks exist in different subscriptions that might belong to different Microsoft Entra tenants. Peering two virtual networks enables resources in different virtual networks to communicate with each other with the same bandwidth and latency as though the resources were in the same virtual network. Learn more about Virtual network peering.

Depending on whether, the virtual networks are in the same, or different subscriptions the steps to create a virtual network peering are different. Steps to peer networks created with the classic deployment model are different. For more information about deployment models, see Azure deployment model.

Learn how to create a virtual network peering in other scenarios by selecting the scenario from the following table:

Azure deployment model	Azure subscription
Both Resource Manager	Same
One Resource Manager, one classic	Same
One Resource Manager, one classic	Different

A virtual network peering can't be created between two virtual networks deployed through the classic deployment model. If you need to connect virtual networks that were both created through the classic deployment model, you can use an Azure VPN Gateway to connect the virtual networks.

This tutorial peers virtual networks in the same region. You can also peer virtual networks in different supported regions. Familiarize yourself with the peering requirements and constraints before peering virtual networks.

Prerequisites

An Azure account or accounts with two active subscriptions. Create an account for free.
An Azure account with permissions in both subscriptions or an account in each subscription with the proper permissions to create a virtual network peering. For a list of permissions, see Virtual network peering permissions.
- To separate the duty of managing the network belonging to each tenant, add the user from each tenant as a guest in the opposite tenant and assign them the Network Contributor role to the virtual network. This procedure applies if the virtual networks are in different subscriptions and Active Directory tenants.
- To establish a network peering when you don't intend to separate the duty of managing the network belonging to each tenant, add the user from tenant A as a guest in the opposite tenant. Then, assign them the Network Contributor role to initiate and connect the network peering from each subscription. With these permissions, the user is able to establish the network peering from each subscription.
- For more information about guest users, see Add Microsoft Entra B2B collaboration users in the Azure portal.
- Each user must accept the guest user invitation from the opposite Microsoft Entra tenant.
Sign-in to the Azure portal.

An Azure account or accounts with two active subscriptions. Create an account for free.
An Azure account with permissions in both subscriptions or an account in each subscription with the proper permissions to create a virtual network peering. For a list of permissions, see Virtual network peering permissions.
- To separate the duty of managing the network belonging to each tenant, add the user from each tenant as a guest in the opposite tenant and assign them the Network Contributor role to the virtual network. This procedure applies if the virtual networks are in different subscriptions and Active Directory tenants.
- To establish a network peering when you don't intend to separate the duty of managing the network belonging to each tenant, add the user from tenant A as a guest in the opposite tenant. Then, assign them the Network Contributor role to initiate and connect the network peering from each subscription. With these permissions, the user is able to establish the network peering from each subscription.
- For more information about guest users, see Add Microsoft Entra B2B collaboration users in the Azure portal.
- Each user must accept the guest user invitation from the opposite Microsoft Entra tenant.
Azure PowerShell installed locally or Azure Cloud Shell.
Sign in to Azure PowerShell and select the subscription with which you want to use this feature. For more information, see Sign in with Azure PowerShell.
Ensure your Az.Network module is 4.3.0 or later. To verify the installed module, use the command Get-InstalledModule -Name "Az.Network". If the module requires an update, use the command Update-Module -Name Az.Network if necessary.

If you choose to install and use PowerShell locally, this article requires the Azure PowerShell module version 5.4.1 or later. Run Get-Module -ListAvailable Az to find the installed version. If you need to upgrade, see Install Azure PowerShell module. If you're running PowerShell locally, you also need to run Connect-AzAccount to create a connection with Azure.

In the following steps, learn how to peer virtual networks in different subscriptions and Microsoft Entra tenants.

You can use the same account that has permissions in both subscriptions or you can use separate accounts for each subscription to set up the peering. An account with permissions in both subscriptions can complete all of the steps without signing out and signing in to portal and assigning permissions.

The following resources and account examples are used in the steps in this article:

User account	Resource group	Subscription	Virtual network
user-1	test-rg	subscription-1	vnet-1
user-2	test-rg-2	subscription-2	vnet-2

Create virtual network - vnet-1

Note

If you are using a single account to complete the steps, you can skip the steps for logging out of the portal and assigning another user permissions to the virtual networks.

The following procedure creates a virtual network with a resource subnet.

In the portal, search for and select Virtual networks.
On the Virtual networks page, select + Create.

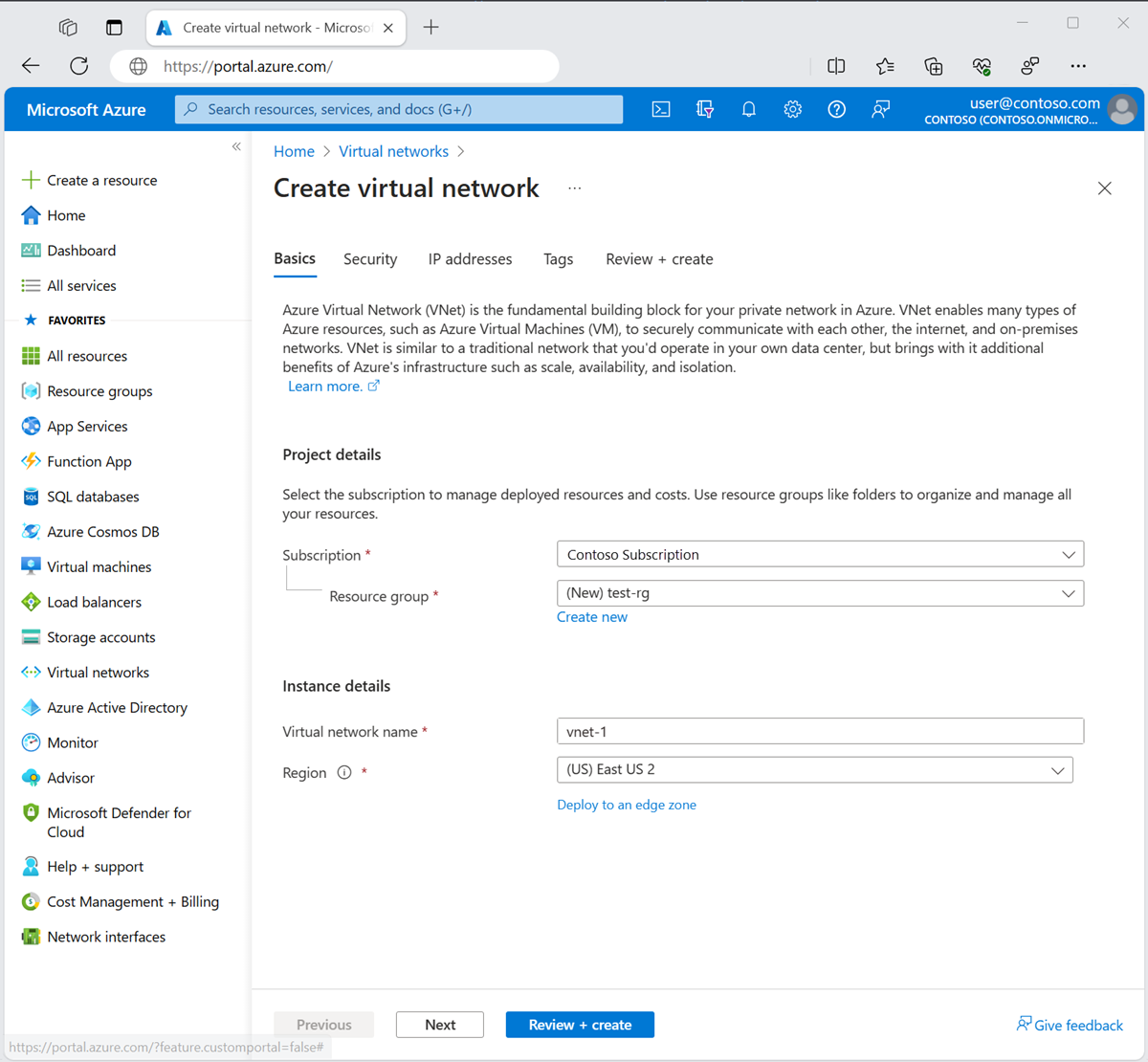

On the Basics tab of Create virtual network, enter or select the following information:

Setting	Value
Project details
Subscription	Select your subscription.
Resource group	Select Create new. Enter test-rg in Name. Select OK.
Instance details
Name	Enter vnet-1.
Region	Select East US 2.

Select Next to proceed to the Security tab.
Select Next to proceed to the IP Addresses tab.

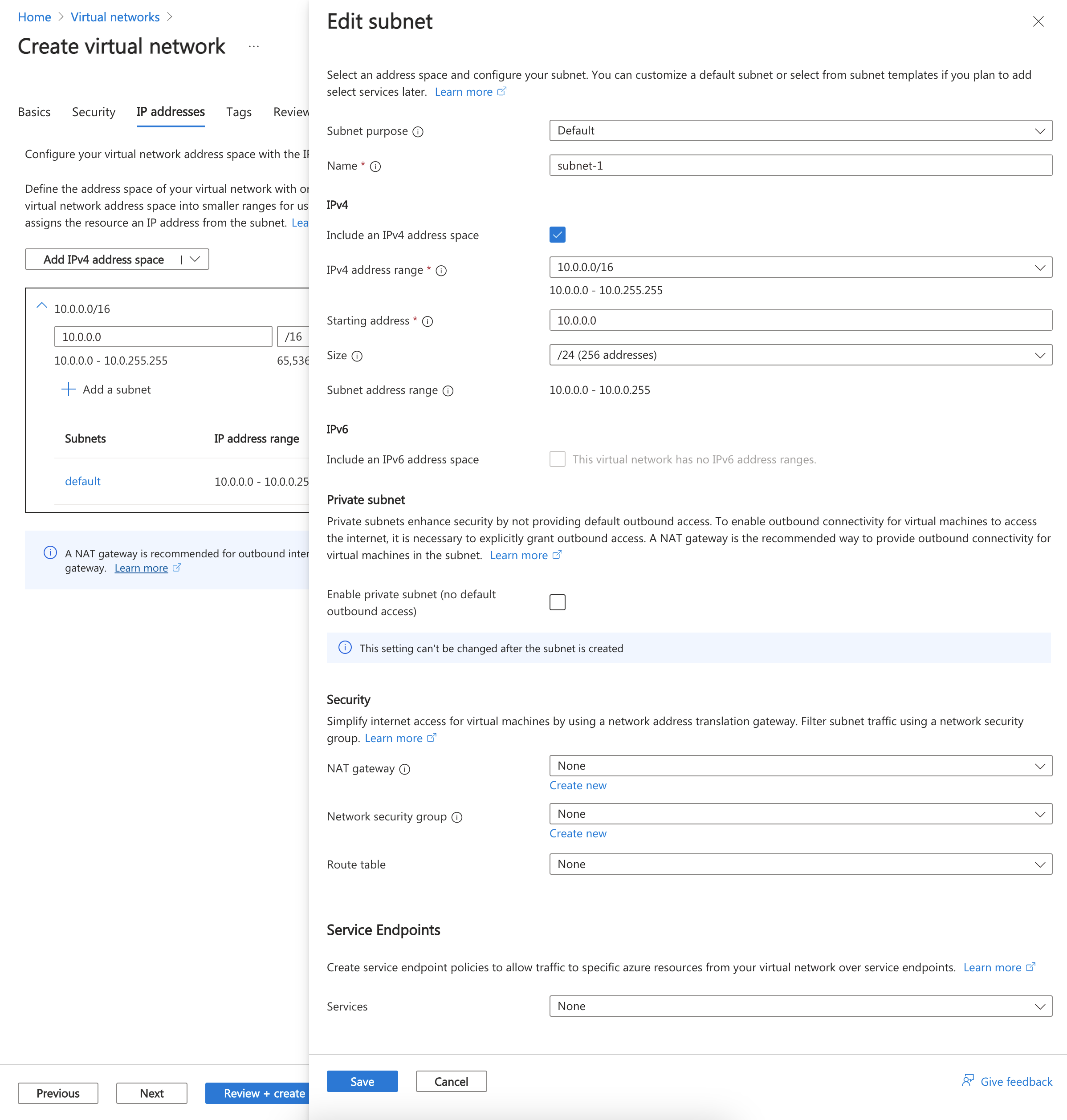

In the address space box in Subnets, select the default subnet.
In Edit subnet, enter or select the following information:

Setting Value

Subnet purpose Leave the default Default.

Name Enter subnet-1.
Leave the rest of the settings as their defaults. Select Save.
Select Save.
Select Review + create at the bottom of the screen, and when validation passes, select Create.

Setting	Value
Subnet purpose	Leave the default Default.
Name	Enter subnet-1.

Use Connect-AzAccount to sign in to subscription-1.

Connect-AzAccount

If you're using one account for both subscriptions, sign in to that account and change the subscription context to subscription-1 with Set-AzContext.

Set-AzContext -Subscription subscription-1

Create a resource group - test-rg

An Azure resource group is a logical container where Azure resources are deployed and managed.

Create a resource group with New-AzResourceGroup:

$rsg = @{
    Name = 'test-rg'
    Location = 'eastus2'
}
New-AzResourceGroup @rsg

Create the virtual network

Create a virtual network with New-AzVirtualNetwork. This example creates a subnet-1 virtual network named vnet-1 in the West US 3 location:

$vnet = @{
    Name = 'vnet-1'
    ResourceGroupName = 'test-rg'
    Location = 'eastus2'
    AddressPrefix = '10.0.0.0/16'
}
$virtualNetwork = New-AzVirtualNetwork @vnet

Add a subnet

Azure deploys resources to a subnet within a virtual network, so you need to create a subnet. Create a subnet configuration named subnet-1 with Add-AzVirtualNetworkSubnetConfig:

$subnet = @{
    Name = 'subnet-1'
    VirtualNetwork = $virtualNetwork
    AddressPrefix = '10.0.0.0/24'
}
$subnetConfig = Add-AzVirtualNetworkSubnetConfig @subnet

Associate the subnet to the virtual network

You can write the subnet configuration to the virtual network with Set-AzVirtualNetwork. This command creates the subnet:

$virtualNetwork | Set-AzVirtualNetwork

Use az sign-in to sign in to subscription-1.

az login

If you're using one account for both subscriptions, sign in to that account and change the subscription context to subscription-1 with az account set.

az account set --subscription "subscription-1"

Create a resource group - test-rg

An Azure resource group is a logical container where Azure resources are deployed and managed.

Create a resource group with az group create:

az group create \
    --name test-rg \
    --location eastus2

Create the virtual network

Create a virtual network and subnet with az network vnet create. This example creates a subnet-1 virtual network named vnet-1 in the West US 3 location.

az network vnet create \
    --resource-group test-rg\
    --location eastus2 \
    --name vnet-1 \
    --address-prefixes 10.0.0.0/16 \
    --subnet-name subnet-1 \
    --subnet-prefixes 10.0.0.0/24

Assign permissions for user-2

A user account in the other subscription that you want to peer with must be added to the network you previously created. If you're using a single account for both subscriptions, you can skip this section.

Remain signed in to the portal as user-1.
In the search box a the top of the portal, enter Virtual network. Select Virtual networks in the search results.
Select vnet-1.
Select Access control (IAM).
Select + Add -> Add role assignment.
In Add role assignment in the Role tab, select Network Contributor.
Select Next.
In the Members tab, select + Select members.
In Select members in the search box, enter user-2.
Select Select.
Select Review + assign.
Select Review + assign.

Use Get-AzVirtualNetwork to obtain the resource ID for vnet-1. Assign user-2 from subscription-2 to vnet-1 with New-AzRoleAssignment.

Use Get-AzADUser to obtain the object ID for user-2.

user-2 is used in this example for the user account. Replace this value with the display name for the user from subscription-2 that you wish to assign permissions to vnet-1. You can skip this step if you're using the same account for both subscriptions.

$id = @{
    Name = 'vnet-1'
    ResourceGroupName = 'test-rg'
}
$vnet = Get-AzVirtualNetwork @id

$obj = Get-AzADUser -DisplayName 'user-2'

$role = @{
    ObjectId = $obj.id
    RoleDefinitionName = 'Network Contributor'
    Scope = $vnet.id
}
New-AzRoleAssignment @role

Use az network vnet show to obtain the resource ID for vnet-1. Assign user-2 from subscription-2 to vnet-1 with az role assignment create.

Use az ad user list to obtain the object ID for user-2.

az ad user list --display-name user-2

[
  {
    "businessPhones": [],
    "displayName": "user-2",
    "givenName": null,
    "id": "16d51293-ec4b-43b1-b54b-3422c108321a",
    "jobTitle": null,
    "mail": "user-2@fabrikam.com",
    "mobilePhone": null,
    "officeLocation": null,
    "preferredLanguage": null,
    "surname": null,
    "userPrincipalName": "user-2_fabrikam.com#EXT#@contoso.onmicrosoft.com"
  }
]

Make note of the object ID of user-2 in field id. In this example, its 16d51293-ec4b-43b1-b54b-3422c108321a.

vnetid=$(az network vnet show \
    --name vnet-1 \
    --resource-group test-rg \
    --query id \
    --output tsv)

az role assignment create \
      --assignee 16d51293-ec4b-43b1-b54b-3422c108321a \
      --role "Network Contributor" \
      --scope $vnetid

Replace the example guid in --assignee with the real object ID for user-2.

Obtain resource ID of vnet-1

Remain signed in to the portal as user-1.
In the search box a the top of the portal, enter Virtual network. Select Virtual networks in the search results.
Select vnet-1.
In Settings, select Properties.
Copy the information in the Resource ID field and save for the later steps. The resource ID is similar to the following example: /subscriptions/<Subscription Id>/resourceGroups/test-rg/providers/Microsoft.Network/virtualNetworks/vnet-1.
Sign out of the portal as user-1.

The resource ID of vnet-1 is required to set up the peering connection from vnet-2 to vnet-1. Use Get-AzVirtualNetwork to obtain the resource ID for vnet-1.

$id = @{
    Name = 'vnet-1'
    ResourceGroupName = 'test-rg'
}
$vnetA = Get-AzVirtualNetwork @id

$vnetA.id

The resource ID of vnet-1 is required to set up the peering connection from vnet-2 to vnet-1. Use az network vnet show to obtain the resource ID for vnet-1.

vnetidA=$(az network vnet show \
    --name vnet-1 \
    --resource-group test-rg \
    --query id \
    --output tsv)

echo $vnetidA

Create virtual network - vnet-2

In this section, you sign in as user-2 and create a virtual network for the peering connection to vnet-1.

Create a second virtual network with the following values by repeating the steps in the previous section.

Setting	Value
Subscription	subscription-2
Resource group	test-rg-2
Name	vnet-2
Address space	10.1.0.0/16
Subnet name	subnet-1
Subnet address range	10.1.0.0/24

Use Connect-AzAccount to sign in to subscription-2.

Connect-AzAccount

If you're using one account for both subscriptions, sign in to that account and change the subscription context to subscription-2 with Set-AzContext.

Set-AzContext -Subscription subscription-2

Create a resource group - test-rg-2

An Azure resource group is a logical container where Azure resources are deployed and managed.

Create a resource group with New-AzResourceGroup:

$rsg = @{
    Name = 'test-rg-2'
    Location = 'eastus2'
}
New-AzResourceGroup @rsg

Create the virtual network

Create a virtual network with New-AzVirtualNetwork. This example creates a subnet-1 virtual network named vnet-2 in the West US 3 location:

$vnet = @{
    Name = 'vnet-2'
    ResourceGroupName = 'test-rg-2'
    Location = 'eastus2'
    AddressPrefix = '10.1.0.0/16'
}
$virtualNetwork = New-AzVirtualNetwork @vnet

Add a subnet

Azure deploys resources to a subnet within a virtual network, so you need to create a subnet. Create a subnet configuration named subnet-1 with Add-AzVirtualNetworkSubnetConfig:

$subnet = @{
    Name = 'subnet-1'
    VirtualNetwork = $virtualNetwork
    AddressPrefix = '10.1.0.0/24'
}
$subnetConfig = Add-AzVirtualNetworkSubnetConfig @subnet

Associate the subnet to the virtual network

You can write the subnet configuration to the virtual network with Set-AzVirtualNetwork. This command creates the subnet:

$virtualNetwork | Set-AzVirtualNetwork

Use az sign-in to sign in to subscription-1.

az login

If you're using one account for both subscriptions, sign in to that account and change the subscription context to subscription-2 with az account set.

az account set --subscription "subscription-2"

Create a resource group - test-rg-2

An Azure resource group is a logical container where Azure resources are deployed and managed.

Create a resource group with az group create:

az group create \
    --name test-rg-2 \
    --location eastus2

Create the virtual network

Create a virtual network and subnet with az network vnet create. This example creates a subnet-1 virtual network named vnet-2 in the West US 3 location.

az network vnet create \
    --resource-group test-rg-2\
    --location eastus2 \
    --name vnet-2 \
    --address-prefixes 10.1.0.0/16 \
    --subnet-name subnet-1 \
    --subnet-prefixes 10.1.0.0/24

Assign permissions for user-1

Remain signed in to the portal as user-2.
In the search box a the top of the portal, enter Virtual network. Select Virtual networks in the search results.
Select vnet-2.
Select Access control (IAM).
Select + Add -> Add role assignment.
In Add role assignment in the Role tab, select Network Contributor.
Select Next.
In the Members tab, select + Select members.
In Select members in the search box, enter user-1.
Select Select.
Select Review + assign.
Select Review + assign.

Use Get-AzVirtualNetwork to obtain the resource ID for vnet-1. Assign user-1 from subscription-1 to vnet-2 with New-AzRoleAssignment.

Use Get-AzADUser to obtain the object ID for user-1.

user-1 is used in this example for the user account. Replace this value with the display name for the user from subscription-1 that you wish to assign permissions to vnet-2. You can skip this step if you're using the same account for both subscriptions.

$id = @{
    Name = 'vnet-2'
    ResourceGroupName = 'test-rg-2'
}
$vnet = Get-AzVirtualNetwork @id

$obj = Get-AzADUser -DisplayName 'user-1'

$role = @{
    ObjectId = $obj.id
    RoleDefinitionName = 'Network Contributor'
    Scope = $vnet.id
}
New-AzRoleAssignment @role

Use az network vnet show to obtain the resource ID for vnet-2. Assign user-1 from subscription-1 to vnet-2 with az role assignment create.

Use az ad user list to obtain the object ID for user-1.

az ad user list --display-name user-1

[
  {
    "businessPhones": [],
    "displayName": "user-1",
    "givenName": null,
    "id": "ee0645cc-e439-4ffc-b956-79577e473969",
    "jobTitle": null,
    "mail": "user-1@contoso.com",
    "mobilePhone": null,
    "officeLocation": null,
    "preferredLanguage": null,
    "surname": null,
    "userPrincipalName": "user-1_contoso.com#EXT#@fabrikam.onmicrosoft.com"
  }
]

Make note of the object ID of user-1 in field id. In this example, it's ee0645cc-e439-4ffc-b956-79577e473969.

vnetid=$(az network vnet show \
    --name vnet-2 \
    --resource-group test-rg-2 \
    --query id \
    --output tsv)

az role assignment create \
      --assignee ee0645cc-e439-4ffc-b956-79577e473969 \
      --role "Network Contributor" \
      --scope $vnetid

Obtain resource ID of vnet-2

The resource ID of vnet-2 is required to set up the peering connection from vnet-1 to vnet-2. Use the following steps to obtain the resource ID of vnet-2.

Remain signed in to the portal as user-2.
In the search box a the top of the portal, enter Virtual network. Select Virtual networks in the search results.
Select vnet-2.
In Settings, select Properties.
Copy the information in the Resource ID field and save for the later steps. The resource ID is similar to the following example: /subscriptions/<Subscription Id>/resourceGroups/test-rg-2/providers/Microsoft.Network/virtualNetworks/vnet-2.
Sign out of the portal as user-2.

The resource ID of vnet-2 is required to set up the peering connection from vnet-1 to vnet-2. Use Get-AzVirtualNetwork to obtain the resource ID for vnet-2.

$id = @{
    Name = 'vnet-2'
    ResourceGroupName = 'test-rg-2'
}
$vnetB = Get-AzVirtualNetwork @id

$vnetB.id

The resource ID of vnet-2 is required to set up the peering connection from vnet-1 to vnet-2. Use az network vnet show to obtain the resource ID for vnet-2.

vnetidB=$(az network vnet show \
    --name vnet-2 \
    --resource-group test-rg-2 \
    --query id \
    --output tsv)

echo $vnetidB

Create peering connection - vnet-1 to vnet-2

You need the Resource ID for vnet-2 from the previous steps to set up the peering connection.

Sign in to the Azure portal as user-1. If you're using one account for both subscriptions, change to subscription-1 in the portal.
In the search box a the top of the portal, enter Virtual network. Select Virtual networks in the search results.
Select vnet-1.
Select Peerings.
Select + Add.

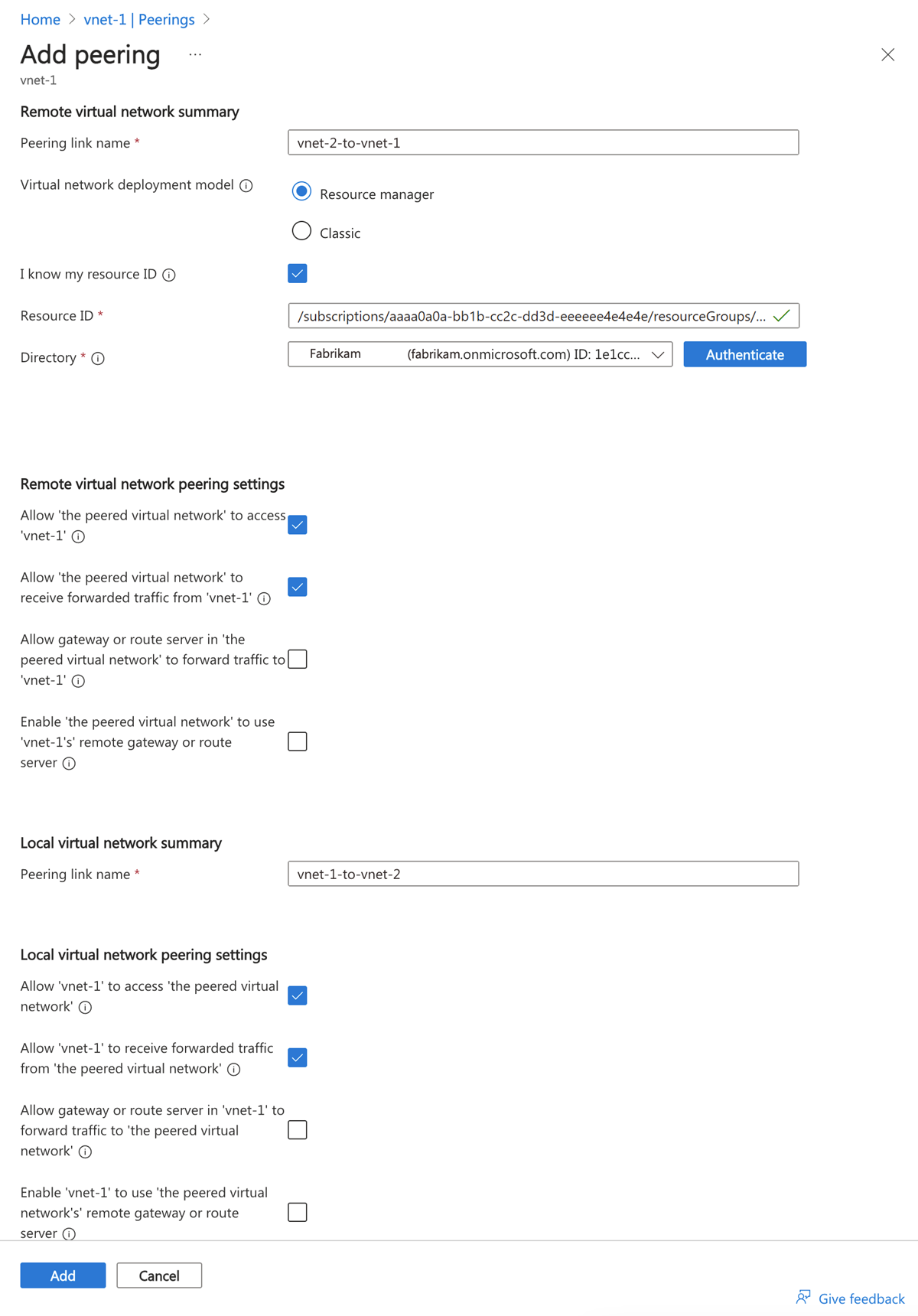

Enter or select the following information in Add peering:

Setting	Value
Remote virtual network summary
Peering link name	vnet-2-to-vnet-1
Virtual network deployment model	Resource Manager
I know my resource ID	Select the box
Resource ID	Enter the Resource ID for vnet-2
Directory	Select the Microsoft Entra ID directory that corresponds with vnet-2 and user-2
Remote virtual network peering settings
Allow 'the peered virtual network' to access 'vnet-1'	Leave the default of Enabled
Allow 'the peered virtual network' to receive forwarded traffic from 'vnet-1'	Select the box
Local virtual network summary
Peering link name	vnet-1-to-vnet-2
Local virtual network peering settings
Allow 'vnet-1' to access 'the peered virtual network'	Leave the default of Enabled
Allow 'vnet-1' to receive forwarded traffic from 'the peered virtual network'	Select the box

Select Add.
Sign out of the portal as user-1.

Use Connect-AzAccount to sign in to subscription-1.

Connect-AzAccount

If you're using one account for both subscriptions, sign in to that account and change the subscription context to subscription-1 with Set-AzContext.

Set-AzContext -Subscription subscription-1

Authenticate to subscription-2 so that the peering can be set up.

Use Connect-AzAccount to sign in to subscription-2.

Connect-AzAccount

Change to subscription-1 (optional)

You might have to switch back to subscription-1 to continue with the actions in subscription-1.

Change context to subscription-1.

Set-AzContext -Subscription subscription-1

Create peering connection

Use Add-AzVirtualNetworkPeering to create a peering connection between vnet-1 and vnet-2.

$netA = @{
    Name = 'vnet-1'
    ResourceGroupName = 'test-rg'
}
$vnetA = Get-AzVirtualNetwork @netA

$peer = @{
    Name = 'vnet-1-to-vnet-2'
    VirtualNetwork = $vnetA
    RemoteVirtualNetworkId = '/subscriptions/<subscription-2-Id>/resourceGroups/test-rg-2/providers/Microsoft.Network/virtualNetworks/vnet-2'
}
Add-AzVirtualNetworkPeering @peer

Use Get-AzVirtualNetworkPeering to obtain the status of the peering connections from vnet-1 to vnet-2.

$status = @{
    ResourceGroupName =  'test-rg'
    VirtualNetworkName = 'vnet-1'
}
Get-AzVirtualNetworkPeering @status | Format-Table VirtualNetworkName, PeeringState

PS /home/azureuser> Get-AzVirtualNetworkPeering @status | Format-Table VirtualNetworkName, PeeringState

VirtualNetworkName PeeringState
------------------ ------------
vnet-1            Initiated

Use az sign-in to sign in to subscription-1.

az login

If you're using one account for both subscriptions, sign in to that account and change the subscription context to subscription-1 with az account set.

az account set --subscription "subscription-1"

Authenticate to subscription-2 so that the peering can be set up.

Use az sign-in to sign in to subscription-2.

az login

Change to subscription-1 (optional)

You might have to switch back to subscription-1 to continue with the actions in subscription-1.

Change context to subscription-1.

az account set --subscription "subscription-1"

Create peering connection

Use az network vnet peering create to create a peering connection between vnet-1 and vnet-2.

az network vnet peering create \
    --name vnet-1-to-vnet-2 \
    --resource-group test-rg \
    --vnet-name vnet-1 \
    --remote-vnet /subscriptions/<subscription-2-Id>/resourceGroups/test-rg-2/providers/Microsoft.Network/VirtualNetworks/vnet-2 \
    --allow-vnet-access

Use az network vnet peering list to obtain the status of the peering connections from vnet-1 to vnet-2.

az network vnet peering list \
    --resource-group test-rg \
    --vnet-name vnet-1 \
    --output table

The peering connection shows in Peerings in a Initiated state. To complete the peer, a corresponding connection must be set up in vnet-2.

Create peering connection - vnet-2 to vnet-1

You need the Resource IDs for vnet-1 from the previous steps to set up the peering connection.

Sign in to the Azure portal as user-2. If you're using one account for both subscriptions, change to subscription-2 in the portal.
In the search box a the top of the portal, enter Virtual network. Select Virtual networks in the search results.
Select vnet-2.
Select Peerings.
Select + Add.

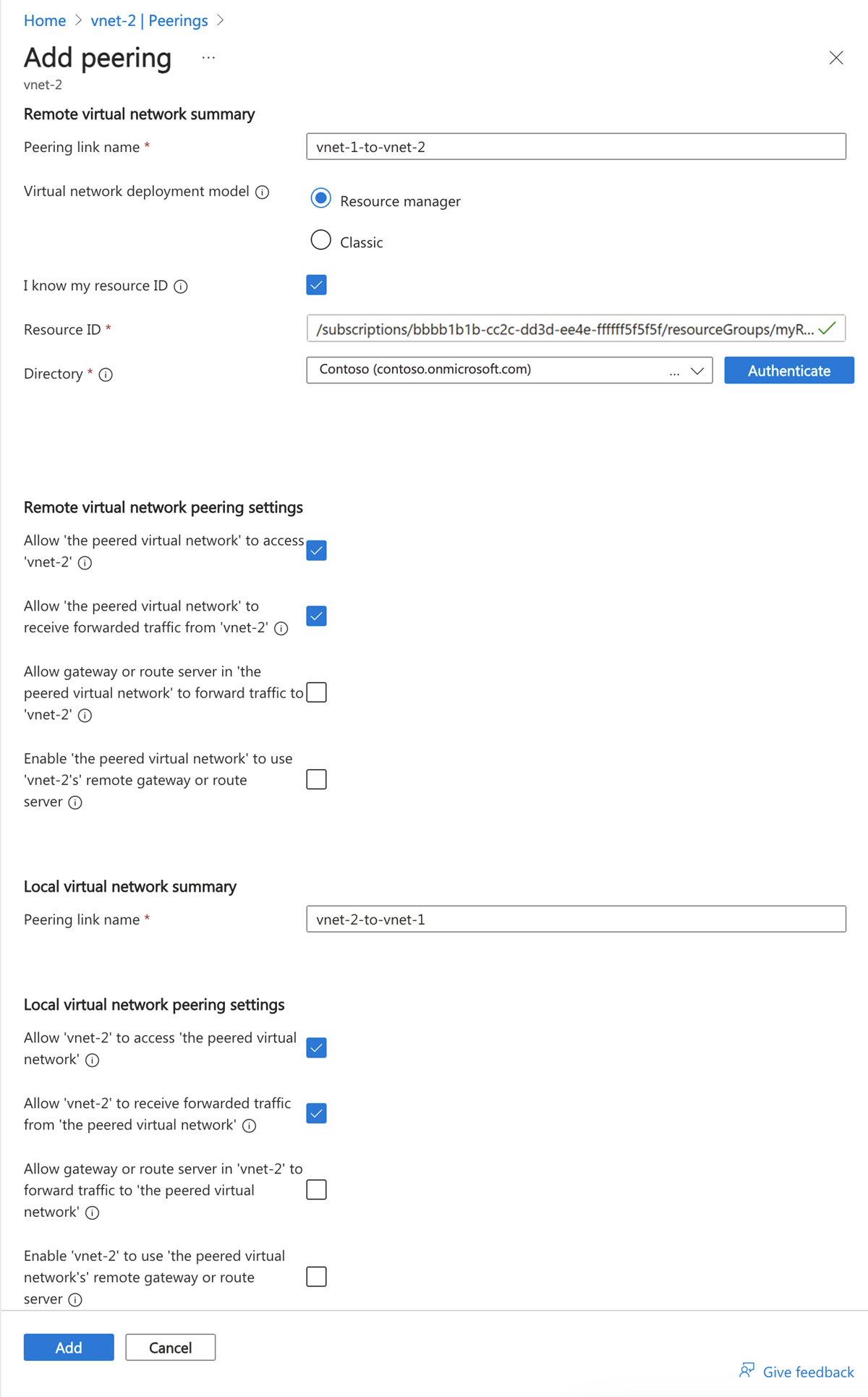

Enter or select the following information in Add peering:

Setting	Value
Remote virtual network summary
Peering link name	vnet-1-to-vnet-2
Virtual network deployment model	Resource Manager
I know my resource ID	Select the box
Resource ID	Enter the Resource ID for vnet-2
Directory	Select the Microsoft Entra ID directory that corresponds with vnet-1 and user-1
Remote virtual network peering settings
Allow 'the peered virtual network' to access 'vnet-1'	Leave the default of Enabled
Allow 'the peered virtual network' to receive forwarded traffic from 'vnet-1'	Select the box
Local virtual network summary
Peering link name	vnet-1-to-vnet-2
Local virtual network peering settings
Allow 'vnet-1' to access 'the peered virtual network'	Leave the default of Enabled
Allow 'vnet-1' to receive forwarded traffic from 'the peered virtual network'	Select the box

Select Add.
In the pull-down box, select the Directory that corresponds with vnet-1 and user-1.
Select Authenticate.
Select Add.

Use Connect-AzAccount to sign in to subscription-2.

Connect-AzAccount

If you're using one account for both subscriptions, sign in to that account and change the subscription context to subscription-2 with Set-AzContext.

Set-AzContext -Subscription subscription-2

Authenticate to subscription-1 so that the peering can be set up.

Use Connect-AzAccount to sign in to subscription-1.

Connect-AzAccount

Change to subscription-2 (optional)

You might have to switch back to subscription-2 to continue with the actions in subscription-2.

Change context to subscription-2.

Set-AzContext -Subscription subscription-2

Create peering connection

Use Add-AzVirtualNetworkPeering to create a peering connection between vnet-2 and vnet-1.

$netB = @{
    Name = 'vnet-2'
    ResourceGroupName = 'test-rg-2'
}
$vnetB = Get-AzVirtualNetwork @netB

$peer = @{
    Name = 'vnet-2-to-vnet-1'
    VirtualNetwork = $vnetB
    RemoteVirtualNetworkId = '/subscriptions/<subscription-1-Id>/resourceGroups/test-rg/providers/Microsoft.Network/virtualNetworks/vnet-1'
}
Add-AzVirtualNetworkPeering @peer

User Get-AzVirtualNetworkPeering to obtain the status of the peering connections from vnet-2 to vnet-1.

$status = @{
    ResourceGroupName =  'test-rg-2'
    VirtualNetworkName = 'vnet-2'
}
Get-AzVirtualNetworkPeering @status | Format-Table VirtualNetworkName, PeeringState

PS /home/azureuser> Get-AzVirtualNetworkPeering @status | Format-Table VirtualNetworkName, PeeringState

VirtualNetworkName PeeringState
------------------ ------------
vnet-2            Connected

Use az sign-in to sign in to subscription-2.

az login

If you're using one account for both subscriptions, sign in to that account and change the subscription context to subscription-2 with az account set.

az account set --subscription "subscription-2"

Authenticate to subscription-1 so that the peering can be set up.

Use az sign-in to sign in to subscription-1.

az login

Change to subscription-2 (optional)

You might have to switch back to subscription-2 to continue with the actions in subscription-2.

Change context to subscription-2.

az account set --subscription "subscription-2"

Create peering connection

Use az network vnet peering create to create a peering connection between vnet-2 and vnet-1.

az network vnet peering create \
    --name vnet-2-to-vnet-1 \
    --resource-group test-rg-2 \
    --vnet-name vnet-2 \
    --remote-vnet /subscriptions/<subscription-1-Id>/resourceGroups/test-rg/providers/Microsoft.Network/VirtualNetworks/vnet-1 \
    --allow-vnet-access

Use az network vnet peering list to obtain the status of the peering connections from vnet-2 to vnet-1.

az network vnet peering list \
    --resource-group test-rg-2 \
    --vnet-name vnet-2 \
    --output table

The peering is successfully established after you see Connected in the Peering status column for both virtual networks in the peering. Any Azure resources you create in either virtual network are now able to communicate with each other through their IP addresses. If you're using Azure name resolution for the virtual networks, the resources in the virtual networks aren't able to resolve names across the virtual networks. If you want to resolve names across virtual networks in a peering, you must create your own DNS (Domain Name System) server or use Azure DNS.

Important

If you update the address space in one of the members of the peer, you must resync the connection to reflect the address space changes. For more information, see Update the address space for a peered virtual network using the Azure portal

For more information about using your own DNS for name resolution, see, Name resolution using your own DNS server.

For more information about Azure DNS, see What is Azure DNS?.

Next steps

Thoroughly familiarize yourself with important virtual network peering constraints and behaviors before creating a virtual network peering for production use.
Learn about all virtual network peering settings.
Learn how to create a hub and spoke network topology with virtual network peering.

Del via

Create a virtual network peering - Resource Manager, different subscriptions and Microsoft Entra tenants

Prerequisites

Create virtual network - vnet-1

Create a resource group - test-rg

Create the virtual network

Add a subnet

Associate the subnet to the virtual network

Create a resource group - test-rg

Create the virtual network

Assign permissions for user-2

Obtain resource ID of vnet-1

Create virtual network - vnet-2

Create a resource group - test-rg-2

Create the virtual network

Add a subnet

Associate the subnet to the virtual network

Create a resource group - test-rg-2

Create the virtual network

Assign permissions for user-1

Obtain resource ID of vnet-2

Create peering connection - vnet-1 to vnet-2

Change to subscription-1 (optional)

Create peering connection

Change to subscription-1 (optional)

Create peering connection

Create peering connection - vnet-2 to vnet-1

Change to subscription-2 (optional)

Create peering connection

Change to subscription-2 (optional)

Create peering connection

Next steps

Feedback

Yderligere ressourcer
