PenLineJoin Enum
Definition
Important
Some information relates to prerelease product that may be substantially modified before it’s released. Microsoft makes no warranties, express or implied, with respect to the information provided here.
Describes the shape that joins two lines or segments.
public enum class PenLineJoin
public enum PenLineJoin
type PenLineJoin =
Public Enum PenLineJoin
- Inheritance
Fields
Bevel | 1 | Beveled vertices. |
Miter | 0 | Regular angular vertices. |
Round | 2 | Rounded vertices. |
Examples
The following example shows several different joints used at the vertices of a shape.
<Canvas Height="400" Width="400">
<Polyline
Points="10,110 60,10 110,110"
Stroke="Black"
StrokeThickness="4" />
<Polyline
Points="10,110 110,110 110,10"
Stroke="Black"
StrokeThickness="4"
Canvas.Left="150" />
</Canvas>

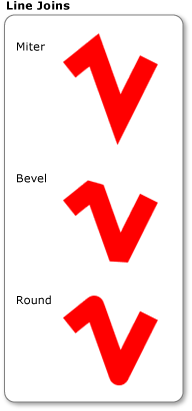

The following illustration shows the different line joins.
