Transform data using Hadoop Pig activity in Azure Data Factory or Synapse Analytics

  • Άρθρο

APPLIES TO: Azure Data Factory Azure Synapse Analytics

Tip

Try out Data Factory in Microsoft Fabric, an all-in-one analytics solution for enterprises. Microsoft Fabric covers everything from data movement to data science, real-time analytics, business intelligence, and reporting. Learn how to start a new trial for free!

The HDInsight Pig activity in a Data Factory pipeline executes Pig queries on your own or on-demand HDInsight cluster. This article builds on the data transformation activities article, which presents a general overview of data transformation and the supported transformation activities.

To learn more, read through the introduction to Azure Data Factory or Synapse Analytics and do the Tutorial: transform data before reading this article.

Add an HDInsight Pig activity to a pipeline with UI

To use an HDInsight Pig activity to a pipeline, complete the following steps:

  1. Search for Pig in the pipeline Activities pane, and drag a Pig activity to the pipeline canvas.

  2. Select the new Pig activity on the canvas if it is not already selected.

  3. Select the HDI Cluster tab to select or create a new linked service to an HDInsight cluster that will be used to execute the MapReduce activity.

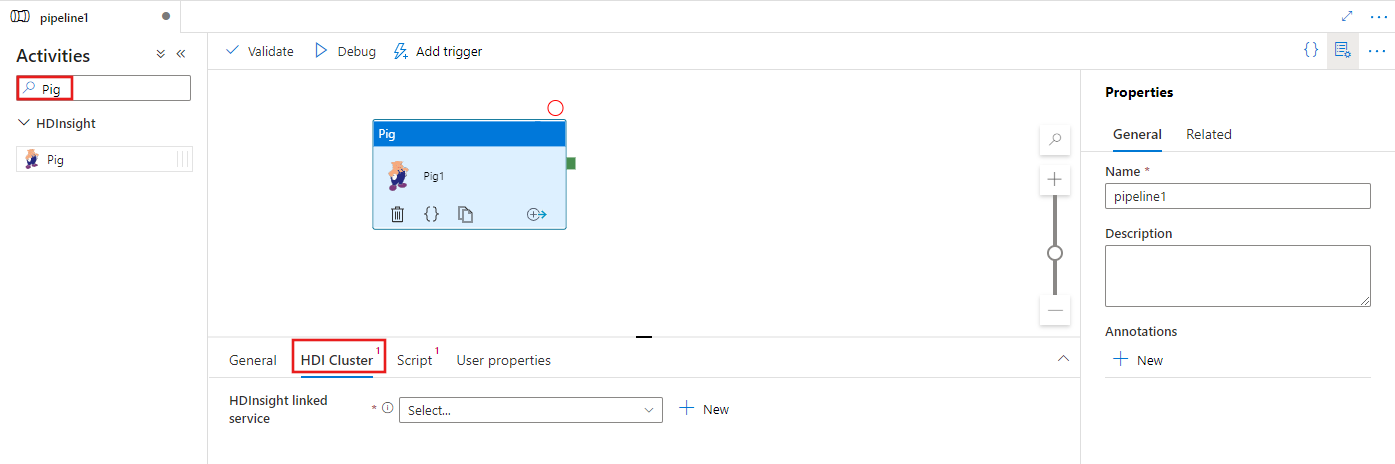

    Shows the UI for a Pig activity.

  4. Select the Script tab to select or create a new script linked service to an Azure Storage location where your script will be hosted. Specify a class name to be executed there, and a file path within the storage location. You can also configure advanced details including debugging configuration, and arguments and parameters to be passed to the script.

    Shows the UI for the Script tab for a Pig activity.

Syntax

{
    "name": "Pig Activity",
    "description": "description",
    "type": "HDInsightPig",
    "linkedServiceName": {
        "referenceName": "MyHDInsightLinkedService",
        "type": "LinkedServiceReference"
    },
    "typeProperties": {
        "scriptLinkedService": {
            "referenceName": "MyAzureStorageLinkedService",
            "type": "LinkedServiceReference"
        },
        "scriptPath": "MyAzureStorage\\PigScripts\\MyPigSript.pig",
        "getDebugInfo": "Failure",
        "arguments": [
            "SampleHadoopJobArgument1"
        ],
        "defines": {
            "param1": "param1Value"
        }
    }
}

Syntax details

Property Description Required
name Name of the activity Yes
description Text describing what the activity is used for No
type For Hive Activity, the activity type is HDinsightPig Yes
linkedServiceName Reference to the HDInsight cluster registered as a linked service. To learn about this linked service, see Compute linked services article. Yes
scriptLinkedService Reference to an Azure Storage Linked Service used to store the Pig script to be executed. Only Azure Blob Storage and ADLS Gen2 linked services are supported here. If you don't specify this Linked Service, the Azure Storage Linked Service defined in the HDInsight Linked Service is used. No
scriptPath Provide the path to the script file stored in the Azure Storage referred by scriptLinkedService. The file name is case-sensitive. No
getDebugInfo Specifies when the log files are copied to the Azure Storage used by HDInsight cluster (or) specified by scriptLinkedService. Allowed values: None, Always, or Failure. Default value: None. No
arguments Specifies an array of arguments for a Hadoop job. The arguments are passed as command-line arguments to each task. No
defines Specify parameters as key/value pairs for referencing within the Pig script. No
