Register calls and meetings bot for Microsoft Teams

  • Article

A bot that participates in audio or video calls and online meetings is a regular Microsoft Teams bot with the following extra features used to register the bot:

  • There's a new version of app manifest (previously called Teams app manifest) with two additional settings, supportsCalling and supportsVideo. These settings are included in the app manifest.
  • Microsoft Graph permissions must be configured for your bot's Microsoft App ID.
  • The Graph calls and online meetings APIs permissions require tenant admin consent.

New app manifest settings

Calls and online meetings bots have the following two additional settings in the manifest.json that enable audio or video for your bot in Teams.

  • bots[0].supportsCalling. If present and set to true, Teams allows your bot to participate in calls and online meetings.
  • bots[0].supportsVideo. If present and set to true, Teams knows that your bot supports video.

If you want your IDE to properly validate the manifest.json schema for your calls and meetings bot for these values, you can change the $schema attribute as follows:

"$schema": "https://developer.microsoft.com/json-schemas/teams/v1.11/MicrosoftTeams.schema.json",

The next section enables you to create a new bot or add calling capabilities to your existing bot.

Create new bot or add calling capabilities

For information on creating bots, see create a bot for Teams.

To create a new bot for Teams:

  1. Use this link to create a new bot, https://dev.botframework.com/bots/new. Alternately, if you select the Create a bot button in the Bot Framework portal, you create your bot in Microsoft Azure, for which you must have an Azure account.

  2. Add the Teams channel.

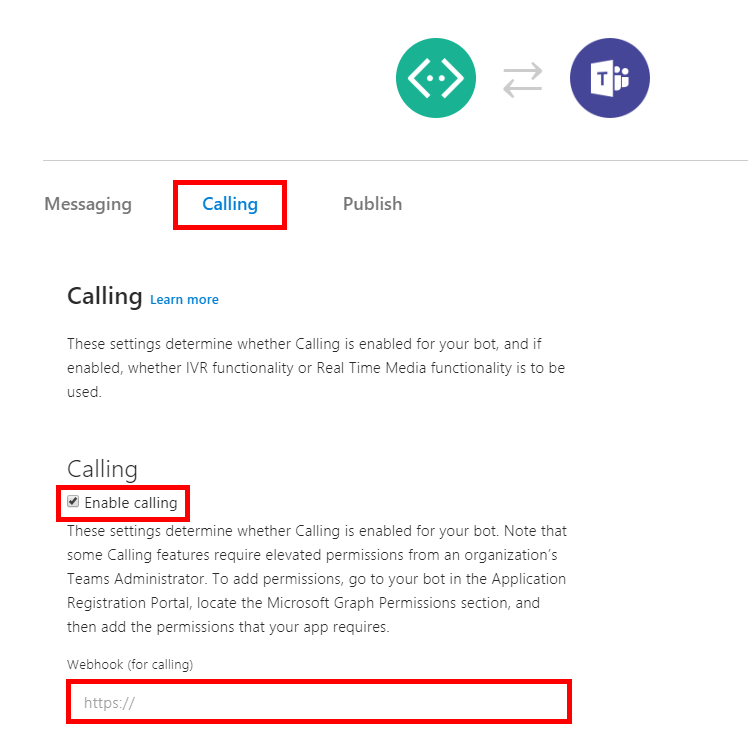

  3. Select the Calling tab on the Teams channel page. Select Enable calling, and then update Webhook (for calling) with your HTTPS URL where you receive incoming notifications, for example https://contoso.com/teamsapp/api/calling. For more information, see configuring channels.

    Configure Teams channel information

The next section provides a list of application permissions supported for calls and online meetings.

Add Graph permissions

The Graph provides granular permissions to control the access that apps have to resources. You decide which permissions for Graph your app requests. The Graph calling APIs support Resource-specific consent (RSC) permissions and application permissions.

RSC permissions for calls

RSC is an authorization framework built by Teams and Microsoft identity platform that allows for granting scoped access to an app. Through RSC, an authorized user can give an app access to the data of a specific instance of a resource type.

If a chat has a meeting or a call associated with it, then the relevant RSC permissions apply to those resources as well.

The following table provides RSC application permissions for calls:

Permission name Action
Calls.AccessMedia.Chat Access media streams in calls associated with this chat or meeting.
Calls.JoinGroupCalls.Chat Join calls associated with this chat or meeting.

Application permissions for calls

The application permissions for calls are used by apps that run without a signed-in user present. A tenant administrator must grant consent to application permissions.

The following table provides a list of application permissions for calls:

Permission Display string Description Admin consent required
Calls.Initiate.All Initiate outgoing 1:1 calls from the app preview. Allows the app to place outbound calls to a single user and transfer calls to users in your organization’s directory, without a signed-in user. Yes
Calls.InitiateGroupCall.All Initiate outgoing 1:1 and group calls from the app preview. Allows the app to place outbound calls to a single user, multiple users, transfer calls and add participants to meetings in your organization, without a signed-in user. Yes
Calls.JoinGroupCall.All Join group calls and meetings as an app preview. Allows the app to join group calls and scheduled meetings in your organization, without a signed-in user. The app is joined with the privileges of a directory user to meetings in your tenant. Yes
Calls.JoinGroupCallasGuest.All Join group calls and meetings as a guest preview. Allows the app to anonymously join group calls and scheduled meetings in your organization, without a signed-in user. The app is joined as a guest to meetings in your tenant. Yes
Calls.AccessMedia.All Access media streams in a call as an app preview. Allows the app to get direct access to media streams in a call, without a signed-in user. Yes

Important

You cannot use the Media Access API to record or otherwise persist media content from calls or meetings that your application accesses or derive data from that media content record or recording. You must first call the updateRecordingStatus API to indicate that recording has begun, and receive a success reply from that API. If your application begins recording any meeting or call, it must end the recording before calling the updateRecordingStatus API to indicate that the recording has ended.

Application permissions for online meetings

The following table provides a list of application permissions for online meetings:

Permission Display string Description Admin consent required
OnlineMeetings.Read.All Read online meeting details from the app preview Allows the app to read online meeting details in your organization, without a signed-in user. Yes
OnlineMeetings.ReadWrite.All Read and create online meetings from the app preview on behalf of a user Allows the app to create online meetings in your organization on behalf of a user, without a signed-in user. Yes

Assign permissions

You must configure the application permissions for your bot in advance by using the Microsoft Azure portal if you prefer to use the Azure Active Directory (Azure AD) v1 endpoint.

For apps using the Azure AD v1 endpoint, a tenant administrator can consent to the application permissions using the Microsoft Azure portal when your app is installed in their organization. Alternately, you can provide a sign-up experience in your app through which administrators can consent to the permissions you configured. Once administrator consent is recorded by Microsoft Entra ID, your app can request tokens without having to request consent again.

You can rely on an administrator to grant the permissions your app needs at the Microsoft Azure portal. A better option is to provide a sign-up experience for administrators by using the Azure AD v2 /adminconsent endpoint. For more information, see instructions on constructing an Admin consent URL.

Note

To construct the tenant Admin consent URL, a configured redirect URI or a reply URL in the app registration portal is required. To add reply URLs for your bot, access your bot registration, choose Advanced Options > Edit Application Manifest. Add your redirect URL to the replyUrls collection.

Important

Anytime you make a change to your application's permissions, you must also repeat the Admin consent process. Changes made in the app registration portal are not reflected until the consent has been reapplied by the tenant's administrator.

Code sample

Sample name Description .NET
Calling and meeting bot The sample app demonstrates how Bot can create call, join meeting and transfer call. View
Realtime meeting events The sample app demonstrates how Bot can receive real-time meeting events. View

Step-by-step guide

Follow the step-by-step guide to set up Teams calling and meeting bot.

Next step

Incoming call notifications
