Logs Ingestion API in Azure Monitor

  • Article

The Logs Ingestion API in Azure Monitor lets you send data to a Log Analytics workspace using either a REST API call or client libraries. The API allows you to send data to supported Azure tables or to custom tables that you create. You can also extend the schema of Azure tables with custom columns to accept additional data.

Basic operation

Data can be sent to the Logs Ingestion API from any application that can make a REST API call. This may be a custom application that you create, or it may be an application or agent that understands how to send data to the API. It specifies a data collection rule (DCR) that includes the target table and workspace and the credentials of an app registration with access to the specified DCR. It sends the data to an endpoint specified by the DCR, or to a data collection endpoint (DCE) if you're using private link.

The data sent by your application to the API must be formatted in JSON and match the structure expected by the DCR. It doesn't necessarily need to match the structure of the target table because the DCR can include a transformation to convert the data to match the table's structure. You can modify the target table and workspace by modifying the DCR without any change to the API call or source data.

Diagram that shows an overview of logs ingestion API.

Configuration

The following table describes each component in Azure that you must configure before you can use the Logs Ingestion API.

Note

For a PowerShell script that automates the configuration of these components, see Sample code to send data to Azure Monitor using Logs ingestion API.

Component Function
App registration and secret The application registration is used to authenticate the API call. It must be granted permission to the DCR described below. The API call includes the Application (client) ID and Directory (tenant) ID of the application and the Value of an application secret.

See Create a Microsoft Entra application and service principal that can access resources and Create a new application secret.
Data collection endpoint (DCE) The DCE is only required if private link is being used. It provides an endpoint for the application to send to. A single DCE can support multiple DCRs, so you can use an existing DCE if you already have one in the same region as your Log Analytics workspace. If you aren't using private link, then you can use the DCR endpoint.

See Create a data collection endpoint.
Table in Log Analytics workspace The table in the Log Analytics workspace must exist before you can send data to it. You can use one of the supported Azure tables or create a custom table using any of the available methods. If you use the Azure portal to create the table, then the DCR is created for you, including a transformation if it's required. With any other method, you need to create the DCR manually as described in the next section.

See Create a custom table.
Data collection rule (DCR) Azure Monitor uses the Data collection rule (DCR) to understand the structure of the incoming data and what to do with it. If the structure of the table and the incoming data don't match, the DCR can include a transformation to convert the source data to match the target table. You can also use the transformation to filter source data and perform any other calculations or conversions.

If you create a custom table using the Azure portal, the DCR and the transformation are created for you based on sample data that you provide. If you use an existing table or create a custom table using another method, then you must manually create the DCR using details in the following section.

Once your DCR is created, you must grant access to it for the application that you created in the first step. From the Monitor menu in the Azure portal, select Data Collection rules and then the DCR that you created. Select Access Control (IAM) for the DCR and then select Add role assignment to add the Monitoring Metrics Publisher role.

Manually create DCR

If you're sending data to a table that already exists, then you must create the DCR manually. Start with the Sample DCR for Logs Ingestion API and modify the following parameters in the template. Then use any of the methods described in Create and edit data collection rules (DCRs) in Azure Monitor to create the DCR.

Parameter Description
region Region to create your DCR. This must match the region of the DCE and the Log Analytics workspace.
dataCollectionEndpointId Resource ID of your DCE.
streamDeclarations Change the column list to the columns in your incoming data. You don't need to change the name of the stream since this just needs to match the streams name in dataFlows.
workspaceResourceId Resource ID of your Log Analytics workspace. You don't need to change the name since this just needs to match the destinations name in dataFlows.
transformKql KQL query to be applied to the incoming data. If the schema of the incoming data matches the schema of the table, then you can use source for the transformation which will pass on the incoming data unchanged. Otherwise, use a query that will transform the data to match the table schema.
outputStream Name of the table to send the data. For a custom table, add the prefix Custom-<table-name>. For a built-in table, add the prefix Microsoft-<table-name>.

Client libraries

In addition to making a REST API call, you can use the following client libraries to send data to the Logs ingestion API. The libraries require the same components described in Configuration. For examples using each of these libraries, see Sample code to send data to Azure Monitor using Logs ingestion API.

REST API call

To send data to Azure Monitor with a REST API call, make a POST call over HTTP. Details required for this call are described in this section.

Endpoint URI

The endpoint URI uses the following format, where the Data Collection Endpoint and DCR Immutable ID identify the DCE and DCR. The immutable ID is generated for the DCR when it's created. You can retrieve it from the Overview page for the DCR in the Azure portal.

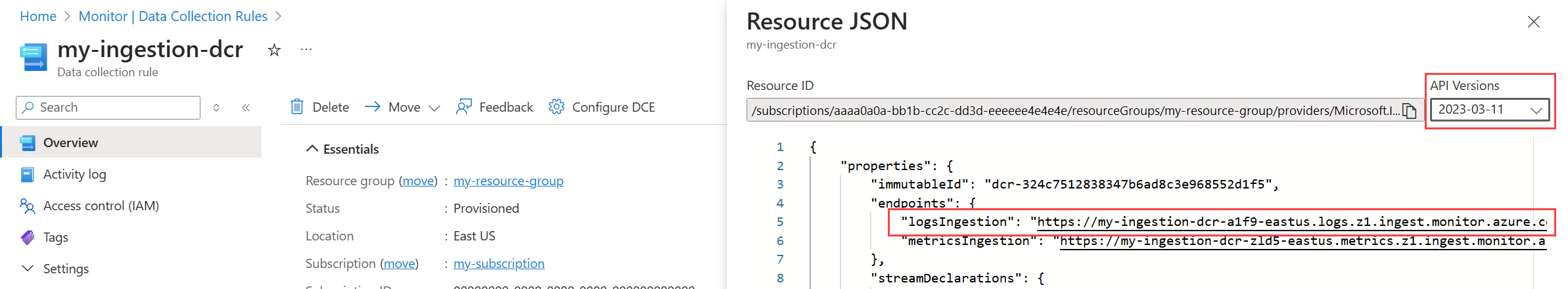

Screenshot of a data collection rule showing the immutable ID.

Stream Name refers to the stream in the DCR that should handle the custom data.

{Data Collection Endpoint URI}/dataCollectionRules/{DCR Immutable ID}/streams/{Stream Name}?api-version=2023-01-01

For example:

https://my-dce-5kyl.eastus-1.ingest.monitor.azure.com/dataCollectionRules/dcr-000a00a000a00000a000000aa000a0aa/streams/Custom-MyTable?api-version=2023-01-01

Headers

The following table describes that headers for your API call.

Header Required? Description
Authorization Yes Bearer token obtained through the client credentials flow. Use the token audience value for your cloud:

Azure public cloud - https://monitor.azure.com
Microsoft Azure operated by 21Vianet cloud - https://monitor.azure.cn
Azure US Government cloud - https://monitor.azure.us
Content-Type Yes application/json
Content-Encoding No gzip
x-ms-client-request-id No String-formatted GUID. This is a request ID that can be used by Microsoft for any troubleshooting purposes.

Body

The body of the call includes the custom data to be sent to Azure Monitor. The shape of the data must be a JSON array with item structure that matches the format expected by the stream in the DCR. If it is needed to send a single item within API call, the data should be sent as a single-item array.

For example:

[
{
    "TimeGenerated": "2023-11-14 15:10:02",
    "Column01": "Value01",
    "Column02": "Value02"
}
]

Ensure that the request body is properly encoded in UTF-8 to prevent any issues with data transmission.

Example

See Sample code to send data to Azure Monitor using Logs ingestion API for an example of the API call using PowerShell.

Supported tables

Data sent to the ingestion API can be sent to the following tables:

Tables Description
Custom tables Any custom table that you create in your Log Analytics workspace. The target table must exist before you can send data to it. Custom tables must have the _CL suffix.
Azure tables The following Azure tables are currently supported. Other tables may be added to this list as support for them is implemented.

Note

Column names must start with a letter and can consist of up to 45 alphanumeric characters and underscores (_). _ResourceId, id, _ResourceId, _SubscriptionId, TenantId, Type, UniqueId, and Title are reserved column names. Custom columns you add to an Azure table must have the suffix _CF.

Limits and restrictions

For limits related to the Logs Ingestion API, see Azure Monitor service limits.
