Configure MQTT dataflow endpoints

Important

Azure IoT Operations Preview – enabled by Azure Arc is currently in preview. You shouldn't use this preview software in production environments.

You'll need to deploy a new Azure IoT Operations installation when a generally available release is made available. You won't be able to upgrade a preview installation.

See the Supplemental Terms of Use for Microsoft Azure Previews for legal terms that apply to Azure features that are in beta, preview, or otherwise not yet released into general availability.

MQTT dataflow endpoints are used for MQTT sources and destinations. You can configure the endpoint settings, Transport Layer Security (TLS), authentication, and other settings.

Prerequisites

• An instance of Azure IoT Operations Preview
• A configured dataflow profile

Azure IoT Operations Local MQTT broker

Default endpoint

Azure IoT Operations provides a built-in MQTT broker that you can use with dataflows. When you deploy Azure IoT Operations, an MQTT broker dataflow endpoint named "default" is created with default settings. You can use this endpoint as a source or destination for dataflows. The default endpoint uses the following settings:

• Host: aio-broker:18883 through the default MQTT broker listener
• Authentication: service account token (SAT) through the default BrokerAuthentication resource
• TLS: Enabled
• Trusted CA certificate: The default CA certificate azure-iot-operations-aio-ca-trust-bundle from the default root CA

Important

If any of these default MQTT broker settings change, the dataflow endpoint must be updated to reflect the new settings. For example, if the default MQTT broker listener changes to use a different service name my-mqtt-broker and port 8885, you must update the endpoint to use the new host host: my-mqtt-broker:8885. Same applies to other settings like authentication and TLS.

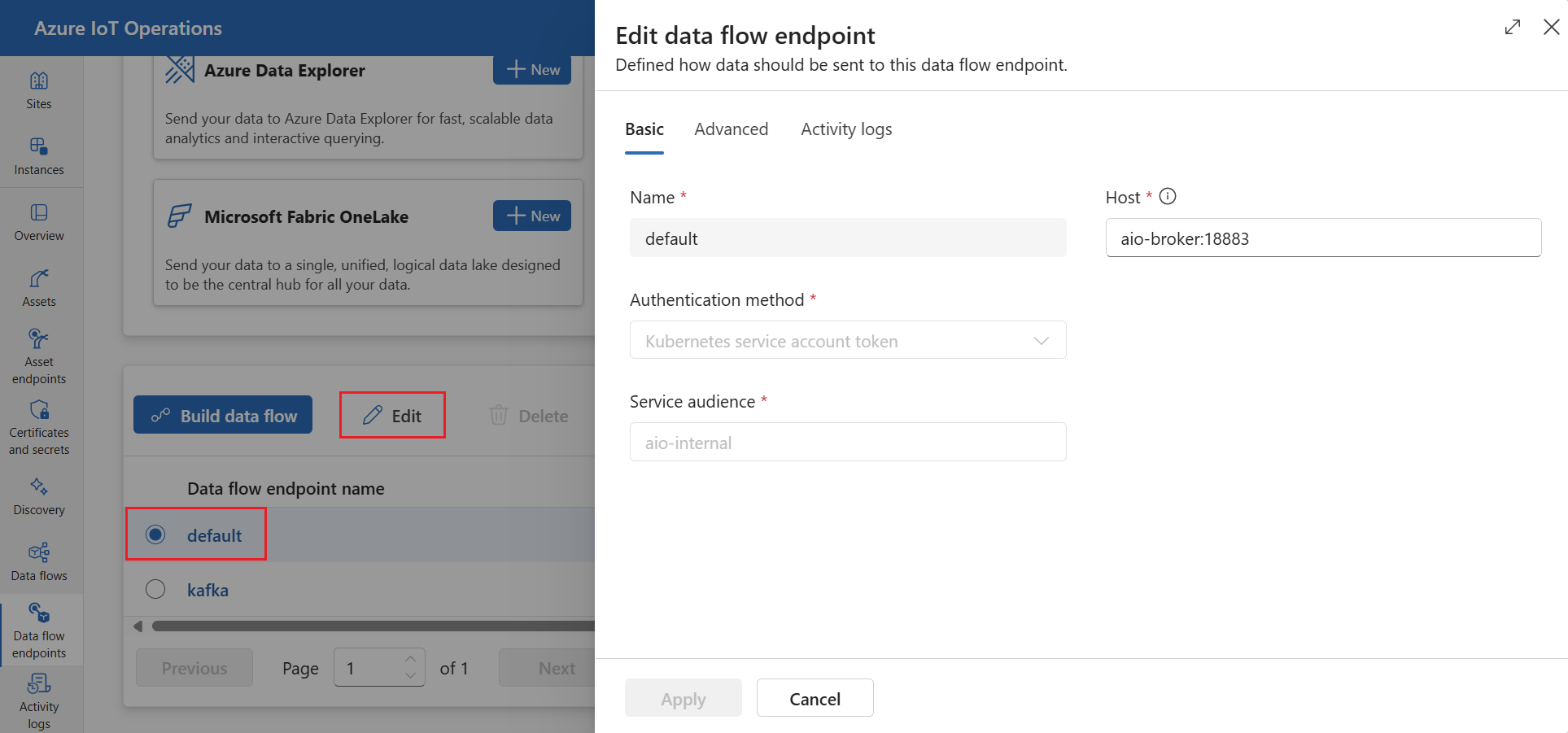

To view or edit the default MQTT broker endpoint settings:

Portal

1. In the operations experience, select the Dataflow endpoints.

2. Select the default endpoint to view or edit the settings.



Kubernetes

You can view the default MQTT broker endpoint settings in the Kubernetes cluster. To view the settings, use the following command:

kubectl get dataflowendpoint default -n azure-iot-operations -o yaml

Bicep

To edit the default endpoint, create a Bicep .bicep file with the following content. Update the settings as needed, and replace the placeholder values like <AIO_INSTANCE_NAME> with your own.

param aioInstanceName string = '<AIO_INSTANCE_NAME>'
param customLocationName string = '<CUSTOM_LOCATION_NAME>'

resource aioInstance 'Microsoft.IoTOperations/instances@2024-08-15-preview' existing = {
  name: aioInstanceName
}
resource customLocation 'Microsoft.ExtendedLocation/customLocations@2021-08-31-preview' existing = {
  name: customLocationName
}
resource defaultMqttBrokerDataflowEndpoint 'Microsoft.IoTOperations/instances/dataflowEndpoints@2024-08-15-preview' existing = {
  parent: aioInstanceName
  name: 'default'
  extendedLocation: {
    name: customLocationName
    type: 'CustomLocation'
  }
  properties: {
    endpointType: 'Mqtt'
    mqttSettings: {
      authentication: {
        method: 'ServiceAccountToken'
        serviceAccountTokenSettings: {
          audience: 'aio-internal'
        }
      }
      host: 'aio-broker:18883'
      tls: {
        mode: 'Enabled'
        trustedCaCertificateConfigMapRef: 'azure-iot-operations-aio-ca-trust-bundle'
      }
    }
  }
}

Then, deploy via Azure CLI.

az stack group create --name MyDeploymentStack --resource-group <RESOURCE_GROUP> --template-file <FILE>.bicep

Create new endpoint

You can also create new local MQTT broker endpoints with custom settings. For example, you can create a new MQTT broker endpoint using a different port, authentication, or other settings.

Portal

1. In the operations experience, select the Dataflow endpoints.

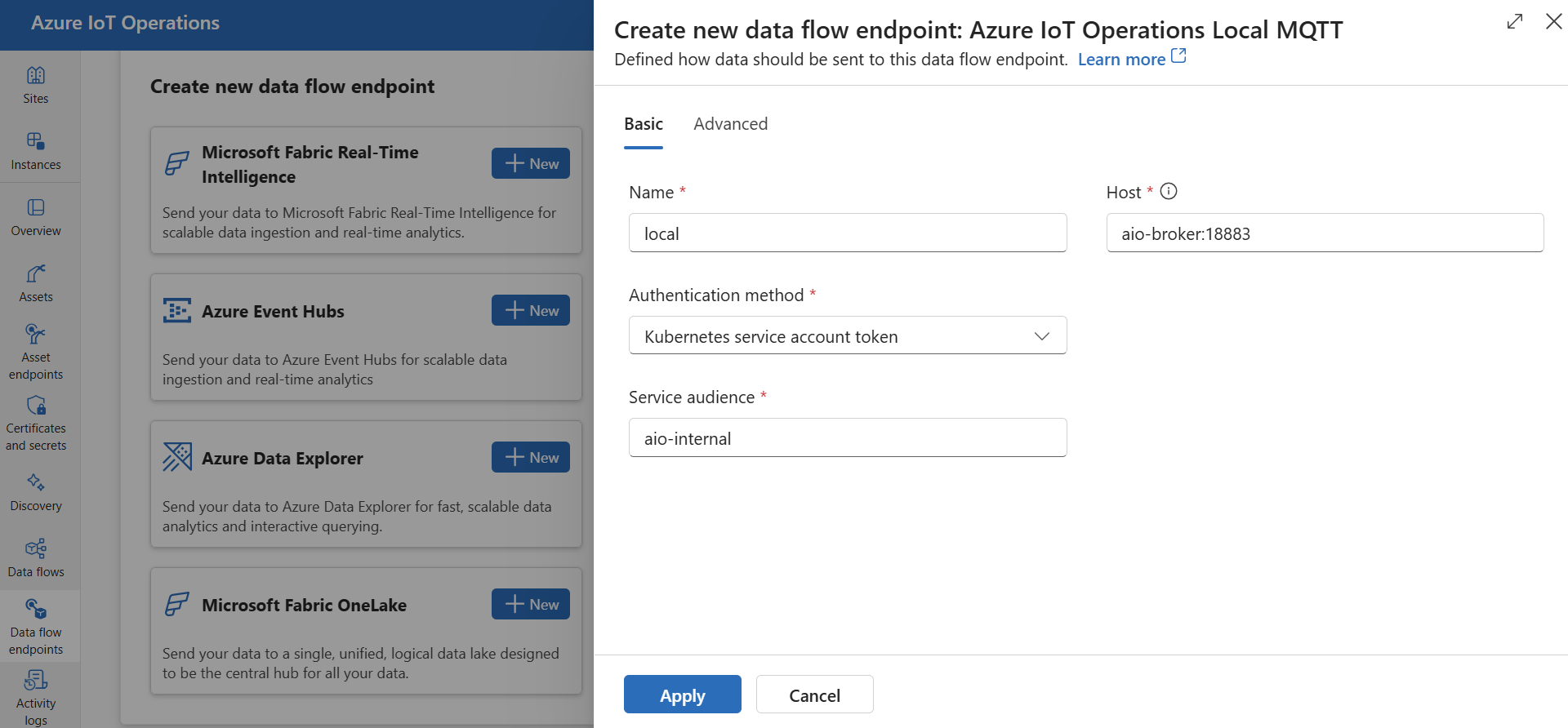

2. Under Create new dataflow endpoint, select Azure IoT Operations Local MQTT > New.



   Enter the following settings for the endpoint:

   Setting	Description
   Name	The name of the dataflow endpoint.
   Host	The hostname and port of the MQTT broker. Use the format <hostname>:<port>
   Authentication method	The method used for authentication. Choose Service account token, or X509 certificate
   Service audience	The audience for the service account token. Required if using Service account token.
   X509 client certificate	The X.509 client certificate used for authentication. Required if using X509 certificate.
   X509 client key	The private key corresponding to the X.509 client certificate. Required if using X509 certificate.
   X509 intermediate certificates	The intermediate certificates for the X.509 client certificate chain. Required if using X509 certificate.

Kubernetes

apiVersion: connectivity.iotoperations.azure.com/v1beta1
kind: DataflowEndpoint
metadata:
  name: <ENDPOINT_NAME>
  namespace: azure-iot-operations
spec:
  endpointType: Mqtt
  mqttSettings:
    host: "<HOSTNAME>:<PORT>"
    tls:
      mode: Enabled
      trustedCaCertificateConfigMapRef: <TRUST_BUNDLE>
    authentication:
      method: ServiceAccountToken
      serviceAccountTokenSettings:
        audience: <SA_AUDIENCE>

Bicep

param aioInstanceName string = '<AIO_INSTANCE_NAME>'
param customLocationName string = '<CUSTOM_LOCATION_NAME>'
param endpointName string = '<ENDPOINT_NAME>'
param aioBrokerHostName string = '<HOSTNAME>:<PORT>'
param trustedCA string = '<TRUST_BUNDLE>'

resource aioInstance 'Microsoft.IoTOperations/instances@2024-08-15-preview' existing = {
  name: aioInstanceName
}
resource customLocation 'Microsoft.ExtendedLocation/customLocations@2021-08-31-preview' existing = {
  name: customLocationName
}
resource MqttBrokerDataflowEndpoint 'Microsoft.IoTOperations/instances/dataflowEndpoints@2024-08-15-preview' = {
  parent: aioInstanceName
  name: endpointName
  extendedLocation: {
    name: customLocationName
    type: 'CustomLocation'
  }
  properties: {
    endpointType: 'Mqtt'
    mqttSettings: {
      authentication: {
        method: 'ServiceAccountToken'
        serviceAccountTokenSettings: {
          audience: '<SA_AUDIENCE>'
        }
      }
      host: aioBrokerHostName
      tls: {
        mode: 'Enabled'
        trustedCaCertificateConfigMapRef: trustedCA
      }
    }
  }
}

Azure Event Grid

Azure Event Grid provides a fully managed MQTT broker that works with Azure IoT Operations dataflows. To configure an Azure Event Grid MQTT broker endpoint, we recommend that you use managed identity for authentication.

Configure Event Grid namespace

If you haven't done so already, create Event Grid namespace first.

Enable MQTT

Once you have an Event Grid namespace, go to Configuration and check:

• Enable MQTT: Select the checkbox.
• Maximum client sessions per authentication name: Set to 3 or more.

The max client sessions option is important so that dataflows can scale up and still be able to connect. To learn more, see Event Grid MQTT multi-session support.

Create a topic space

In order for dataflows to send or receive messages to Event Grid MQTT broker, you need to create at least one topic space in the Event Grid namespace. You can create a topic space in the Event Grid namespace by selecting Topic spaces > New topic space.

To quickly get started and for testing, you can create a topic space with the wildcard topic # as the topic template.

Assign permission to managed identity

Now that the topic space is created, you need to assign the managed identity of the Azure IoT Operations Arc extension to the Event Grid namespace or topic space.

In Azure portal, go to the Arc-connected Kubernetes cluster and select Settings > Extensions. In the extension list, find the name of your Azure IoT Operations extension. Copy the name of the extension.

Then, go to the Event Grid namespace > Access control (IAM) > Add role assignment. Assign the managed identity of the Azure IoT Operations Arc extension with an appropriate role like EventGrid TopicSpaces Publisher or EventGrid TopicSpaces Subscriber. This gives the managed identity the necessary permissions to send or receive messages for all topic spaces in the namespace.

Alternatively, you can assign the role at the topic space level. Go to the topic space > Access control (IAM) > Add role assignment. Assign the managed identity of the Azure IoT Operations Arc extension with an appropriate role like EventGrid TopicSpaces Publisher or EventGrid TopicSpaces Subscriber. This gives the managed identity the necessary permissions to send or receive messages for the specific topic space.

Create dataflow endpoint

Once the Event Grid namespace is configured, you can create a dataflow endpoint for the Event Grid MQTT broker.

Portal

1. In the operations experience, select the Dataflow endpoints tab.

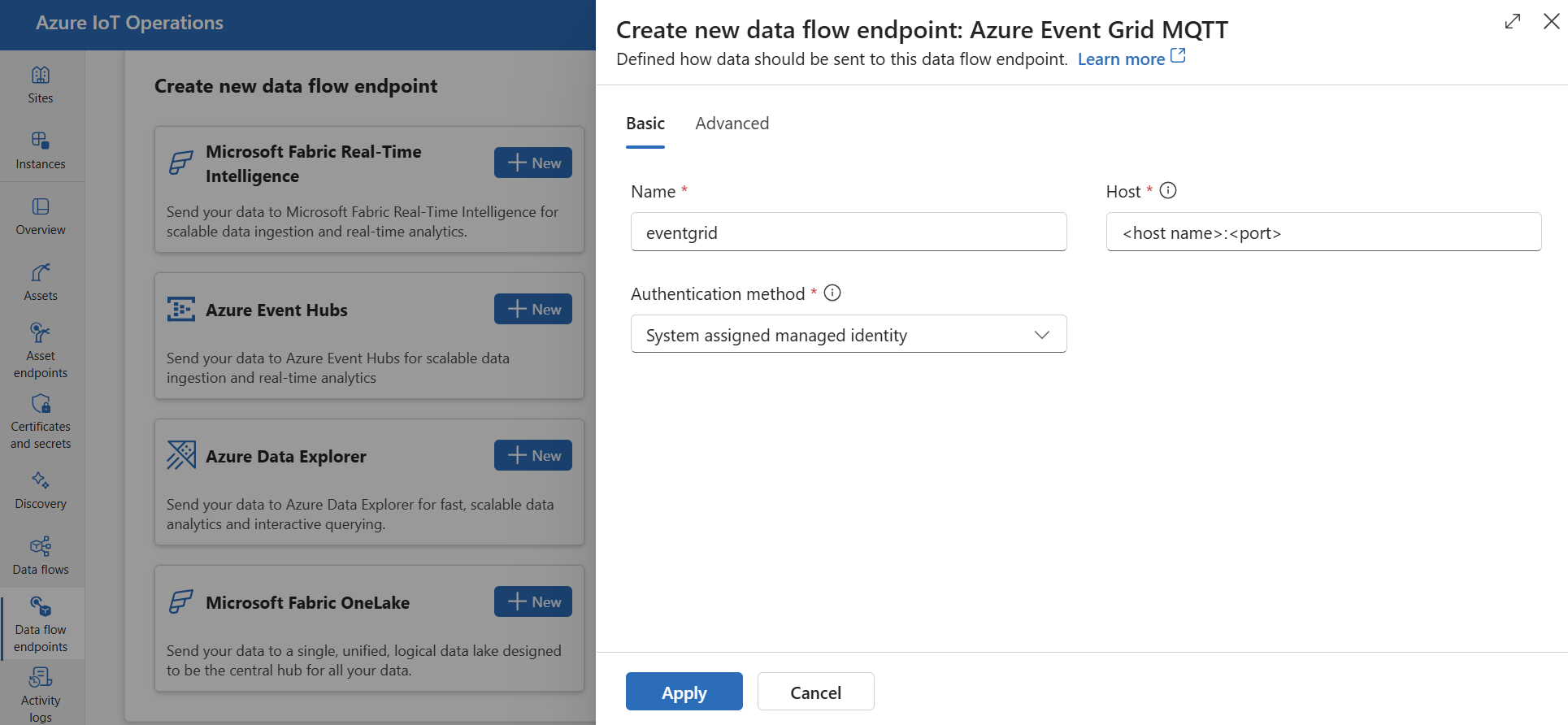

2. Under Create new dataflow endpoint, select Azure Event Grid MQTT > New.



   Enter the following settings for the endpoint:

   Setting	Description
   Name	The name of the dataflow endpoint.
   Host	The hostname and port of the Event Grid MQTT broker. Use the format <NAMESPACE>.<REGION>-1.ts.eventgrid.azure.net:8883
   Authentication method	The method used for authentication. Choose System assigned managed identity

3. Select Apply to provision the endpoint.

Kubernetes

Create a Kubernetes manifest .yaml file with the following content.

apiVersion: connectivity.iotoperations.azure.com/v1beta1
kind: DataflowEndpoint
metadata:
  name: <ENDPOINT_NAME>
  namespace: azure-iot-operations
spec:
  endpointType: Mqtt
  mqttSettings:
    host: <NAMESPACE>.<REGION>-1.ts.eventgrid.azure.net:8883
    authentication:
      method: SystemAssignedManagedIdentity
      systemAssignedManagedIdentitySettings:
        {}
    tls:
      mode: Enabled

Then apply the manifest file to the Kubernetes cluster.

kubectl apply -f <FILE>.yaml

Bicep

Create a Bicep .bicep file with the following content.

param aioInstanceName string = '<AIO_INSTANCE_NAME>'
param customLocationName string = '<CUSTOM_LOCATION_NAME>'
param endpointName string = '<ENDPOINT_NAME>'
param eventGridHostName string = '<EVENTGRID_HOSTNAME>'

resource remoteMqttBrokerDataflowEndpoint 'Microsoft.IoTOperations/instances/dataflowEndpoints@2024-08-15-preview' = {
  parent: aioInstance
  name: endpointName
  extendedLocation: {
    name: customLocationName
    type: 'CustomLocation'
  }
  properties: {
    endpointType: 'Mqtt'
    mqttSettings: {
      authentication: {
        method: 'SystemAssignedManagedIdentity'
        systemAssignedManagedIdentitySettings: {}
      }
      host: eventGridHostName
      tls: {
        mode: 'Enabled'
      }
    }
  }
}

Then, deploy via Azure CLI.

az stack group create --name <DEPLOYMENT_NAME> --resource-group <RESOURCE_GROUP> --template-file <FILE>.bicep

Once the endpoint is created, you can use it in a dataflow to connect to the Event Grid MQTT broker as a source or destination. The MQTT topics are configured in the dataflow.

Use X.509 certificate authentication with Event Grid

We recommended using managed identity for authentication. You can also use X.509 certificate authentication with the Event Grid MQTT broker.

When you use X.509 authentication with an Event Grid MQTT broker, go to the Event Grid namespace > Configuration and check these settings:

• Enable MQTT: Select the checkbox.
• Enable alternative client authentication name sources: Select the checkbox.
• Certificate Subject Name: Select this option in the dropdown list.
• Maximum client sessions per authentication name: Set to 3 or more.

The alternative client authentication and maximum client sessions options allow dataflows to use client certificate subject name for authentication instead of MQTT CONNECT Username. This capability is important so that dataflows can spawn multiple instances and still be able to connect. To learn more, see Event Grid MQTT client certificate authentication and Multi-session support.

Then, follow the steps in X.509 certificate to configure the endpoint with the X.509 certificate settings.

Event Grid shared subscription limitation

Azure Event Grid MQTT broker doesn't support shared subscriptions, which means that you can't set the instanceCount to more than 1 in the dataflow profile if Event Grid is used as a source (where the dataflow subscribes to messages) for a dataflow. In this case, if you set instanceCount greater than 1, the dataflow fails to start.

Other MQTT brokers

For other MQTT brokers, you can configure the endpoint, TLS, authentication, and other settings as needed.

Portal

1. In the operations experience, select the Dataflow endpoints tab.

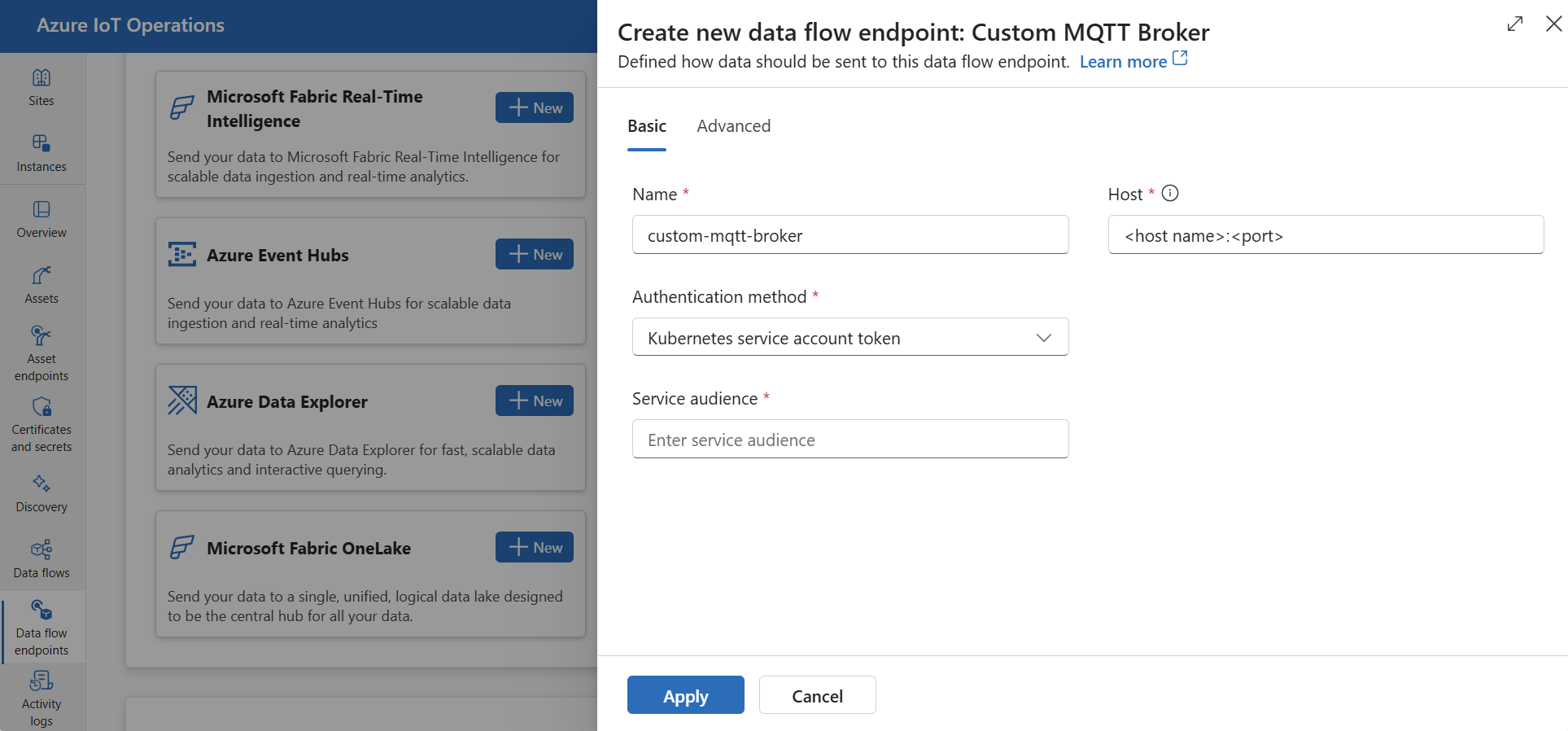

2. Under Create new dataflow endpoint, select Custom MQTT Broker > New.



3. Enter the following settings for the endpoint:

   Setting	Description
   Name	The name of the dataflow endpoint
   Host	The hostname of the MQTT broker endpoint in the format <hostname>.<port>.
   Authentication method	The method used for authentication. Choose System assigned managed identity, User assigned managed identity, or Service account token.
   Service audience	The audience for the service account token. Required if using service account token.
   Client ID	The client ID of the user-assigned managed identity. Required if using User assigned managed identity.
   Tenant ID	The tenant ID of the user-assigned managed identity. Required if using User assigned managed identity.
   Access token secret name	The name of the Kubernetes secret containing the SAS token. Required if using Access token.

4. Select Apply to provision the endpoint.

Kubernetes

spec:
  endpointType: Mqtt
  mqttSettings:
    host: <HOST>:<PORT>
    authentication:
      # See available authentication methods below
    tls:
      mode: Enabled # or Disabled
      trustedCaCertificateConfigMapRef: <YOUR-CA-CERTIFICATE-CONFIG-MAP>

Bicep

mqttSettings: {
  authentication: {
    // See available authentication methods below
  }
  host: 'MQTT-BROKER-HOST>:8883'
  tls: {
    mode: 'Enabled' // or 'Disabled'
    trustedCaCertificateConfigMapRef: '<YOUR CA CERTIFICATE CONFIG MAP>'
  }
}

To customize the MQTT endpoint settings, see the following sections for more information.

Available authentication methods

The following authentication methods are available for MQTT broker dataflow endpoints. For more information about enabling secure settings by configuring an Azure Key Vault and enabling workload identities, see Enable secure settings in Azure IoT Operations Preview deployment.

X.509 certificate

Many MQTT brokers, like Event Grid, support X.509 authentication. Dataflows can present a client X.509 certificate and negotiate the TLS communication.

To use X.509 certificate authentication, you need to create a secret with the certificate and private key. Use the Kubernetes TLS secret containing the public certificate and private key. For example:

kubectl create secret tls my-tls-secret -n azure-iot-operations \
  --cert=path/to/cert/file \
  --key=path/to/key/file

Portal

In the operations experience dataflow endpoint settings page, select the Basic tab then choose Authentication method > X509 certificate.

Enter the following settings for the endpoint:

Setting	Description
X509 client certificate	The X.509 client certificate used for authentication.
X509 intermediate certificates	The intermediate certificates for the X.509 client certificate chain.
X509 client key	The private key corresponding to the X.509 client certificate.

Kubernetes

mqttSettings:
  authentication:
    method: X509Certificate
    x509CertificateSettings:
      secretRef: <YOUR-X509-SECRET-NAME>

Bicep

mqttSettings: {
  authentication: {
    method: 'X509Certificate'
      x509CertificateSettings:
        secretRef: '<YOUR-X509-SECRET-NAME>'
  }
}

System-assigned managed identity

To use system-assigned managed identity for authentication, you don't need to create a secret. The system-assigned managed identity is used to authenticate with the MQTT broker.

Before you configure the endpoint, make sure that the Azure IoT Operations managed identity has the necessary permissions to connect to the MQTT broker. For example, with Azure Event Grid MQTT broker, assign the managed identity to the Event Grid namespace or topic space with an appropriate role.

Then, configure the endpoint with system-assigned managed identity settings. In most cases when using with Event Grid, you can leave the settings empty as shown in the following example. This sets the managed identity audience to the Event Grid common audience https://eventgrid.azure.net.

Portal

In the operations experience dataflow endpoint settings page, select the Basic tab then choose Authentication method > System assigned managed identity.

Kubernetes

mqttSettings:
  authentication:
    method: SystemAssignedManagedIdentity
    systemAssignedManagedIdentitySettings:
      {}

Bicep

mqttSettings: {
  authentication: {
    method: 'SystemAssignedManagedIdentity'
    systemAssignedManagedIdentitySettings: {}
  }
}

If you need to set a different audience, you can specify it in the settings.

Portal

Not supported.

Kubernetes

mqttSettings:
  authentication:
    method: SystemAssignedManagedIdentity
    systemAssignedManagedIdentitySettings:
      audience: https://<AUDIENCE>

Bicep

mqttSettings: {
  authentication: {
    method: 'SystemAssignedManagedIdentity'
    systemAssignedManagedIdentitySettings: {
      audience: 'https://<AUDIENCE>'
    }
  }
}

User-assigned managed identity

To use user-managed identity for authentication, you must first deploy Azure IoT Operations with secure settings enabled. To learn more, see Enable secure settings in Azure IoT Operations Preview deployment.

Then, specify the user-assigned managed identity authentication method along with the client ID, tenant ID, and scope of the managed identity.

Portal

In the operations experience dataflow endpoint settings page, select the Basic tab then choose Authentication method > User assigned managed identity.

Enter the user assigned managed identity client ID, tenant ID, and scope in the appropriate fields.

Kubernetes

mqttSettings:
  authentication:
    method: UserAssignedManagedIdentity
    userAssignedManagedIdentitySettings:
      clientId: <ID>
      tenantId: <ID>
      scope: <SCOPE>

Bicep

mqttSettings: {
  authentication: {
    method: 'UserAssignedManagedIdentity'
    userAssignedManagedIdentitySettings: {
      cliendId: '<ID>'
      tenantId: '<ID>'
      scope: '<SCOPE>'
    }
  }
}

Kubernetes service account token (SAT)

To use Kubernetes service account token (SAT) for authentication, you don't need to create a secret. The SAT is used to authenticate with the MQTT broker.

Portal

In the operations experience dataflow endpoint settings page, select the Basic tab then choose Authentication method > Service account token.

Enter the service audience.

Kubernetes

mqttSettings:
  authentication:
    method: ServiceAccountToken
    serviceAccountTokenSettings:
      audience: <YOUR_SERVICE_ACCOUNT_AUDIENCE>

Bicep

mqttSettings: {
  authentication: {
    method: 'ServiceAccountToken'
    serviceAccountTokenSettings: {
      audience: '<YOUR_SERVICE_ACCOUNT_AUDIENCE>'
    }
  }
}

If the audience isn't specified, the default audience for the Azure IoT Operations MQTT broker is used.

Anonymous

To use anonymous authentication, set the authentication method to Anonymous.

Portal

Not yet supported in the operations experience. See known issues.

Kubernetes

mqttSettings:
  authentication:
    method: Anonymous
    anonymousSettings:
      {}

Bicep

Not yet supported with Bicep. See known issues.

Advanced settings

You can set advanced settings for the MQTT broker dataflow endpoint such as TLS, trusted CA certificate, MQTT messaging settings, and CloudEvents. You can set these settings in the dataflow endpoint Advanced portal tab, within the dataflow endpoint custom resource.

Portal

In the operations experience, select the Advanced tab for the dataflow endpoint.

Setting	Description
Quality of service (QoS)	Defines the level of guarantee for message delivery. Values are 0 (at most once), 1 (at least once). Default is 1.
Keep alive	The keep alive interval (in seconds) is the maximum time that the dataflow client can be idle before sending a PINGREQ message to the broker. The default is 60 seconds.
Maximum in-flight messages	You can set the maximum number of inflight messages that the dataflow MQTT client can have. The default is 100.
Protocol	By default, WebSockets isn't enabled. To use MQTT over WebSockets, set the protocol to WebSockets.
Retain	Specify if the dataflow should keep the retain flag on MQTT messages. The default is Keep.
Session expiry	The session expiry interval (in seconds) is the maximum time that an MQTT session is maintained if the dataflow client disconnects. The default is 3600 seconds.
TLS mode enabled	Indicates whether TLS is enabled for secure communication with the MQTT broker.
Client ID prefix	The client ID is generated by appending the dataflow instance name to the prefix.
Cloud event attributes	For Propagate, CloudEvent properties are passed through for messages that contain the required properties. If the message doesn't contain the required properties, the message is passed through as is. For Create or re-map, CloudEvent properties are passed through for messages that contain the required properties. If the message doesn't contain the required properties, the properties are generated.

Kubernetes

You can set these settings in the dataflow endpoint manifest file.

mqttSettings:
  qos: 1
  retain: Keep
  sessionExpirySeconds: 3600
  keepAliveSeconds: 60
  maxInflightMessages: 100
  protocol: WebSockets
  clientIdPrefix: dataflow
  CloudEventAttributes: Propagate # or CreateOrRemap

Bicep

mqttSettings: {
  qos: 1
  retain: Keep
  sessionExpirySeconds: 3600
  keepAliveSeconds: 60
  maxInflightMessages: 100
  protocol: WebSockets
  clientIdPrefix: 'dataflow'
  CloudEventAttributes: 'Propagate' // or 'CreateOrRemap'
}

TLS settings

TLS mode

To enable or disable TLS for the Kafka endpoint, update the mode setting in the TLS settings.

Portal

In the operations experience dataflow endpoint settings page, select the Advanced tab then use the checkbox next to TLS mode enabled.

Kubernetes

mqttSettings:
  tls:
    mode: Enabled # or Disabled

Bicep

mqttSettings: {
  tls: {
    mode: 'Enabled' // or 'Disabled'
  }
}

The TLS mode can be set to Enabled or Disabled. If the mode is set to Enabled, the dataflow uses a secure connection to the Kafka broker. If the mode is set to Disabled, the dataflow uses an insecure connection to the Kafka broker.

Trusted CA certificate

Configure the trusted CA certificate for the MQTT endpoint to establish a secure connection to the MQTT broker. This setting is important if the MQTT broker uses a self-signed certificate or a certificate signed by a custom CA that isn't trusted by default.

Portal

In the operations experience dataflow endpoint settings page, select the Advanced tab then use the Trusted CA certificate config map field to specify the ConfigMap containing the trusted CA certificate.

Kubernetes

mqttSettings:
  tls:
    trustedCaCertificateConfigMapRef: <YOUR_CA_CERTIFICATE>

Bicep

mqttSettings: {
  tls: {
    trustedCaCertificateConfigMapRef: '<YOUR_CA_CERTIFICATE>'
  }
}

This ConfigMap should contain the CA certificate in PEM format. The ConfigMap must be in the same namespace as the MQTT dataflow resource. For example:

kubectl create configmap client-ca-configmap --from-file root_ca.crt -n azure-iot-operations

---

In the case of Event Grid, its CA certificate is already widely trusted and so you can omit this setting.

Client ID prefix

You can set a client ID prefix for the MQTT client. The client ID is generated by appending the dataflow instance name to the prefix.

Portal

In the operations experience dataflow endpoint settings page, select the Advanced tab then use the Client ID prefix field to specify the prefix.

Kubernetes

mqttSettings:
  clientIdPrefix: <YOUR_PREFIX>

Bicep

mqttSettings: {
  clientIdPrefix: '<YOUR_PREFIX>'
}

QoS

You can set the Quality of Service (QoS) level for the MQTT messages to either 1 or 0. The default is 1.

Portal

In the operations experience dataflow endpoint settings page, select the Advanced tab then use the Quality of service (QoS) field to specify the QoS level.

Kubernetes

mqttSettings:
  qos: 1 # Or 0

Bicep

mqttSettings: {
  qos: 1 // Or 0
}

Retain

Use the retain setting to specify whether the dataflow should keep the retain flag on MQTT messages. The default is Keep.

This setting is useful to ensure that the remote broker has the same message as the local broker, which can be important for Unified Namespace scenarios.

If set to Never, the retain flag is removed from the MQTT messages. This can be useful when you don't want the remote broker to retain any messages or if the remote broker doesn't support retain.

To configure retain settings:

Portal

In the operations experience dataflow endpoint settings page, select the Advanced tab then use the Retain field to specify the retain setting.

Kubernetes

mqttSettings:
  retain: Keep # or Never

Bicep

mqttSettings: {
  retain: Keep // or Never
}

The retain setting only takes effect if the dataflow uses MQTT endpoint as both source and destination. For example, in an MQTT bridge scenario.

Session expiry

You can set the session expiry interval for the dataflow MQTT client. The session expiry interval is the maximum time that an MQTT session is maintained if the dataflow client disconnects. The default is 3600 seconds. To configure the session expiry interval:

Portal

In the operations experience dataflow endpoint settings page, select the Advanced tab then use the Session expiry field to specify the session expiry interval.

Kubernetes

mqttSettings:
  sessionExpirySeconds: 3600

Bicep

mqttSettings: {
  sessionExpirySeconds: 3600
}

MQTT or WebSockets protocol

By default, WebSockets isn't enabled. To use MQTT over WebSockets, set the protocol field to WebSockets.

Portal

In the operations experience dataflow endpoint settings page, select the Advanced tab then use the Protocol field to specify the protocol.

Kubernetes

mqttSettings:
  protocol: WebSockets

Bicep

mqttSettings: {
  protocol: 'WebSockets'
}

Max inflight messages

You can set the maximum number of inflight messages that the dataflow MQTT client can have. The default is 100.

Portal

In the operations experience dataflow endpoint settings page, select the Advanced tab then use the Maximum in-flight messages field to specify the maximum number of inflight messages.

Kubernetes

mqttSettings:
  maxInflightMessages: 100

Bicep

mqttSettings: {
  maxInflightMessages: 100
}

For subscribe when the MQTT endpoint is used as a source, this is the receive maximum. For publish when the MQTT endpoint is used as a destination, this is the maximum number of messages to send before waiting for an acknowledgment.

Keep alive

You can set the keep alive interval for the dataflow MQTT client. The keep alive interval is the maximum time that the dataflow client can be idle before sending a PINGREQ message to the broker. The default is 60 seconds.

Portal

In the operations experience dataflow endpoint settings page, select the Advanced tab then use the Keep alive field to specify the keep alive interval.

Kubernetes

mqttSettings:
  keepAliveSeconds: 60

Bicep

mqttSettings: {
  keepAliveSeconds: 60
}

CloudEvents

CloudEvents are a way to describe event data in a common way. The CloudEvents settings are used to send or receive messages in the CloudEvents format. You can use CloudEvents for event-driven architectures where different services need to communicate with each other in the same or different cloud providers.

The CloudEventAttributes options are Propagate orCreateOrRemap. To configure CloudEvents settings:

Portal

In the operations experience dataflow endpoint settings page, select the Advanced tab then use the Cloud event attributes field to specify the CloudEvents setting.

Kubernetes

mqttSettings:
  CloudEventAttributes: Propagate # or CreateOrRemap

Bicep

mqttSettings: {
  CloudEventAttributes: 'Propagate' // or 'CreateOrRemap'
}

The following sections provide more information about the CloudEvents settings.

Propagate setting

CloudEvent properties are passed through for messages that contain the required properties. If the message doesn't contain the required properties, the message is passed through as is.

Name	Required	Sample value	Output value
specversion	Yes	1.0	Passed through as is
type	Yes	ms.aio.telemetry	Passed through as is
source	Yes	aio://mycluster/myoven	Passed through as is
id	Yes	A234-1234-1234	Passed through as is
subject	No	aio/myoven/telemetry/temperature	Passed through as is
time	No	2018-04-05T17:31:00Z	Passed through as is. It's not restamped.
datacontenttype	No	application/json	Changed to the output data content type after the optional transform stage.
dataschema	No	sr://fabrikam-schemas/123123123234234234234234#1.0.0	If an output data transformation schema is given in the transformation configuration, dataschema is changed to the output schema.

CreateOrRemap setting

CloudEvent properties are passed through for messages that contain the required properties. If the message doesn't contain the required properties, the properties are generated.

Name	Required	Generated value if missing
specversion	Yes	1.0
type	Yes	ms.aio-dataflow.telemetry
source	Yes	aio://<target-name>
id	Yes	Generated UUID in the target client
subject	No	The output topic where the message is sent
time	No	Generated as RFC 3339 in the target client
datacontenttype	No	Changed to the output data content type after the optional transform stage
dataschema	No	Schema defined in the schema registry
