Deploy Azure IoT Operations Preview to an Arc-enabled Kubernetes cluster
Important
Azure IoT Operations Preview – enabled by Azure Arc is currently in preview. You shouldn't use this preview software in production environments.
You'll need to deploy a new Azure IoT Operations installation when a generally available release is made available. You won't be able to upgrade a preview installation.
See the Supplemental Terms of Use for Microsoft Azure Previews for legal terms that apply to Azure features that are in beta, preview, or otherwise not yet released into general availability.
Deploy Azure IoT Operations Preview to a Kubernetes cluster using the Azure CLI. Once you have Azure IoT Operations deployed, then you can manage and deploy other workloads to your cluster.
An Azure IoT Operations deployment describes all of the components and resources that enable the Azure IoT Operations scenario. These components and resources include:
- An Azure IoT Operations instance
- Arc extensions
- Custom locations
- Resource sync rules
- Resources that you can configure in your Azure IoT Operations solution, like assets, MQTT broker, and dataflows.
An Azure IoT Operations instance is one part of a deployment. It's the parent resource that bundles the suite of services that are defined in What is Azure IoT Operations Preview?, like MQ, Akri, and OPC UA connector.
In this article, when we talk about deploying Azure IoT Operations we mean the full set of components that make up a deployment. Once the deployment exists, you can view, manage, and update the instance.
Prerequisites
Cloud resources:
An Azure subscription.
Azure access permissions. At a minimum, have Contributor permissions in your Azure subscription. Depending on the deployment feature flag status you select, you might also need Microsoft/Authorization/roleAssignments/write permissions for the resource group that contains your Arc-enabled Kubernetes cluster. You can make a custom role in Azure role-based access control or assign a built-in role that grants this permission. For more information, see Azure built-in roles for General.
If you don't have role assignment write permissions, you can still deploy Azure IoT Operations by disabling some features. This approach is discussed in more detail in the Deploy section of this article.
In the Azure CLI, use the az role assignment create command to give permissions. For example,
az role assignment create --assignee sp_name --role "Role Based Access Control Administrator" --scope subscriptions/00000000-0000-0000-0000-000000000000/resourceGroups/MyResourceGroup
In the Azure portal, when you assign privileged admin roles to a user or principal, you can restrict access using conditions. For this scenario, select the Allow user to assign all roles condition in the Add role assignment page.
An Azure key vault that has the Permission model set to Vault access policy. You can check this setting in the Access configuration section of an existing key vault. To create a new key vault, use the az keyvault create command:
az keyvault create --enable-rbac-authorization false --name "<KEYVAULT_NAME>" --resource-group "<RESOURCE_GROUP>"
Development resources:
Azure CLI installed on your development machine. For more information, see How to install the Azure CLI. This scenario requires Azure CLI version 2.53.0 or higher. Use
az --version
to check your version andaz upgrade
to update if necessary.The Azure IoT Operations extension for Azure CLI. Use the following command to add the extension or update it to the latest version:
az extension add --upgrade --name azure-iot-ops
A cluster host:
An Azure Arc-enabled Kubernetes cluster. If you don't have one, follow the steps in Prepare your Azure Arc-enabled Kubernetes cluster.
If you deployed Azure IoT Operations to your cluster previously, uninstall those resources before continuing. For more information, see Update Azure IoT Operations.
Azure IoT Operations should work on any CNCF-conformant kubernetes cluster. Currently, Microsoft only supports K3s on Ubuntu Linux and WSL, or AKS Edge Essentials on Windows.
Use the Azure IoT Operations extension for Azure CLI to verify that your cluster host is configured correctly for deployment by using the verify-host command on the cluster host:
az iot ops verify-host
Deploy
Use the Azure portal or Azure CLI to deploy Azure IoT Operations to your Arc-enabled Kubernetes cluster.

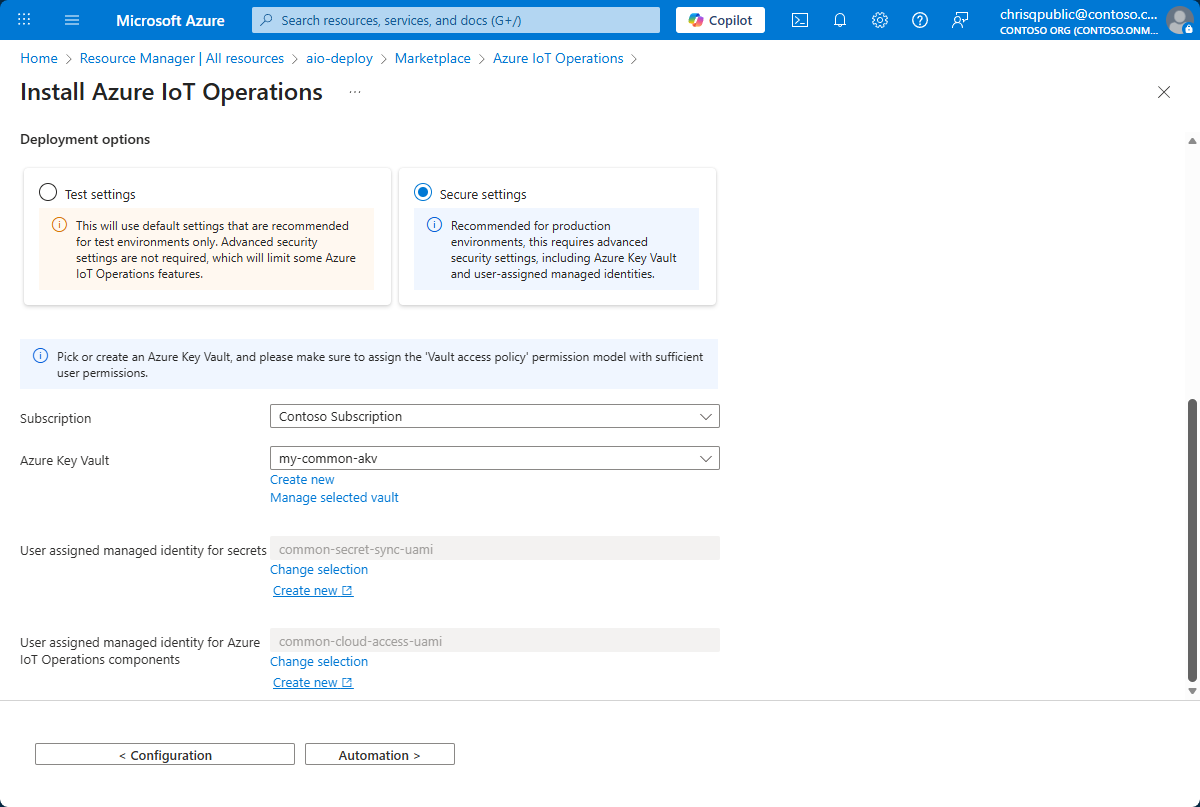

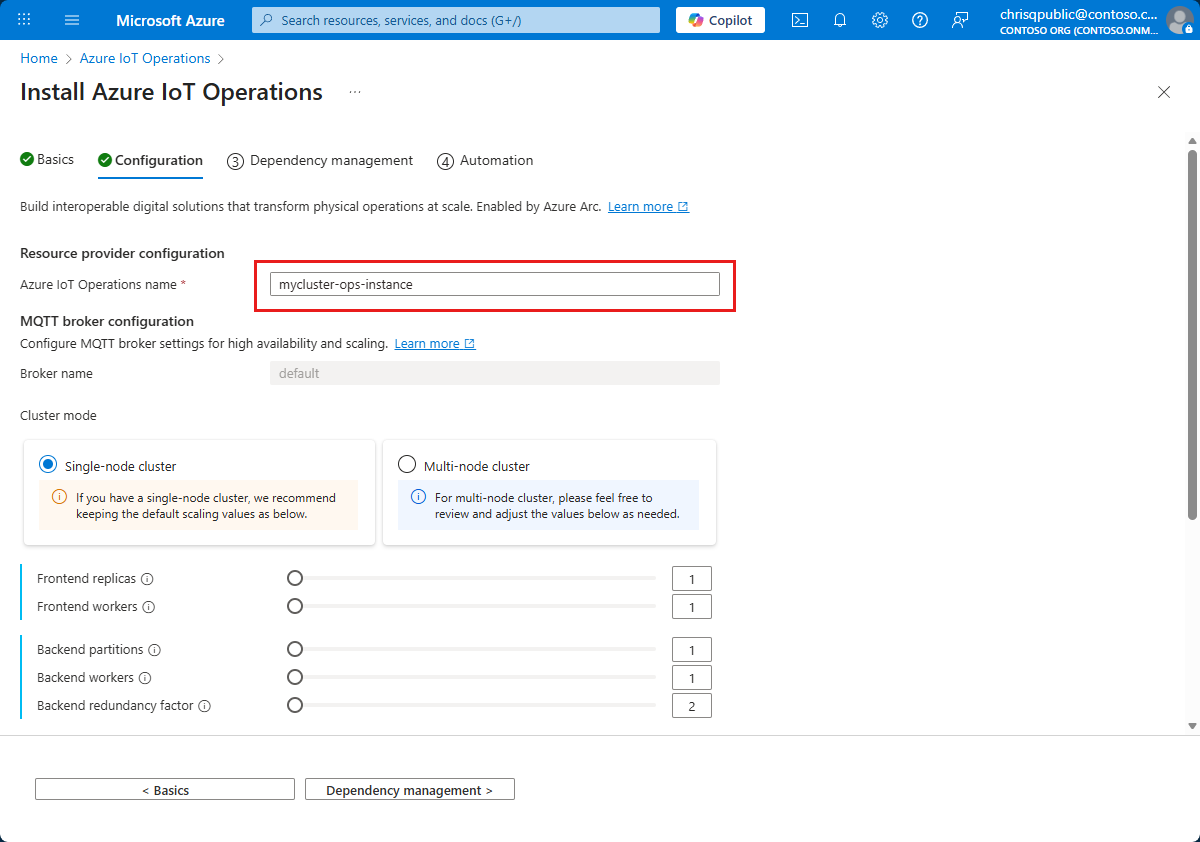

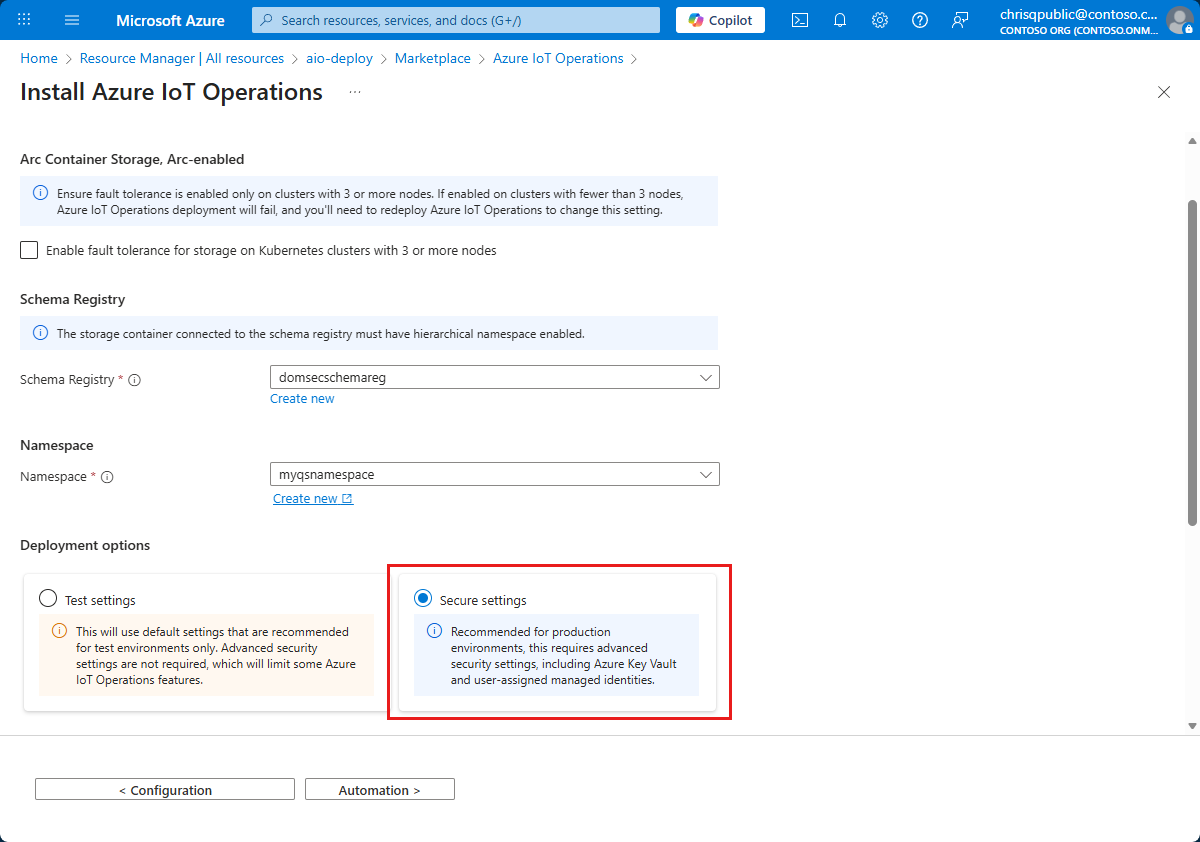

The Azure portal deployment experience is a helper tool that generates a deployment command based on your resources and configuration. The final step is to run an Azure CLI command, so you still need the Azure CLI prerequisites described in the previous section.
Sign in to Azure CLI interactively with a browser even if you already signed in before. If you don't sign in interactively, you might get an error that says Your device is required to be managed to access your resource when you continue to the next step to deploy Azure IoT Operations.
az login
Note
If you're using GitHub Codespaces in a browser,
az login
returns a localhost error in the browser window after logging in. To fix, either:- Open the codespace in VS Code desktop, and then run
az login
in the terminal. This opens a browser window where you can log in to Azure. - Or, after you get the localhost error on the browser, copy the URL from the browser and use
curl <URL>
in a new terminal tab. You should see a JSON response with the message "You have logged into Microsoft Azure!".
- Open the codespace in VS Code desktop, and then run
Deploy Azure IoT Operations to your cluster. Use optional flags to customize the az iot ops init command to fit your scenario.
By default, the
az iot ops init
command takes the following actions, some of which require that the principal signed in to the CLI has elevated permissions:- Set up a service principal and app registration to give your cluster access to the key vault.
- Configure TLS certificates.
- Configure a secrets store on your cluster that connects to the key vault.
- Deploy the Azure IoT Operations resources.
az iot ops init --cluster <CLUSTER_NAME> --resource-group <RESOURCE_GROUP> --kv-id <KEYVAULT_SETTINGS_PROPERTIES_RESOURCE_ID>
Use the optional parameters to customize your deployment, including:
Parameter Value Description --add-insecure-listener
Add an insecure 1883 port config to the default listener. Not for production use. --broker-config-file
Path to JSON file Provide a configuration file for the MQTT broker. For more information, see Advanced MQTT broker config and Configure core MQTT broker settings. --disable-rsync-rules
Disable the resource sync rules on the deployment feature flag if you don't have Microsoft.Authorization/roleAssignment/write permissions in the resource group. --name
String Provide a name for your Azure IoT Operations instance. Otherwise, a default name is assigned. You can view the instanceName
parameter in the command output.--no-progress
Disables the deployment progress display in the terminal. --simulate-plc
Include the OPC PLC simulator that ships with the OPC UA connector. --sp-app-id
,--sp-object-id
,--sp-secret
Service principal app ID, service principal object ID, and service principal secret Include all or some of these parameters to use an existing service principal, app registration, and secret instead of allowing init
to create new ones. For more information, see Configure service principal and Key Vault manually.
While the deployment is in progress, you can watch the resources being applied to your cluster.
If your terminal supports it,
init
displays the deployment progress.Once the Deploy IoT Operations phase begins, the text in the terminal becomes a link to view the deployment progress in the Azure portal.
Otherwise, or if you choose to disable the progress interface with
--no-progress
added to theinit
command, you can use kubectl commands to view the pods on your cluster:kubectl get pods -n azure-iot-operations
It can take several minutes for the deployment to complete. Rerun the
get pods
command to refresh your view.
After the deployment is complete, use az iot ops check to evaluate IoT Operations service deployment for health, configuration, and usability. The check command can help you find problems in your deployment and configuration.
az iot ops check
You can also check the configurations of topic maps, QoS, and message routes by adding the --detail-level 2
parameter for a verbose view.
Manage Azure IoT Operations
After deployment, you can use the Azure CLI and Azure portal to view and manage your Azure IoT Operations instance.
List instances
Use the az iot ops list
command to see all of the Azure IoT Operations instances in your subscription or resource group.
The basic command returns all instances in your subscription.
az iot ops list
To filter the results by resource group, add the --resource-group
parameter.
az iot ops list --resource-group <RESOURCE_GROUP>
View instance
Use the az iot ops show
command to view the properties of an instance.
az iot ops show --name <INSTANCE_NAME> --resource-group <RESOURCE_GROUP>
You can also use the az iot ops show
command to view the resources in your Azure IoT Operations deployment in the Azure CLI. Add the --tree
flag to show a tree view of the deployment that includes the specified Azure IoT Operations instance.
az iot ops show --name <INSTANCE_NAME> --resource-group <RESOURCE_GROUP> --tree
The tree view of a deployment looks like the following example:
MyCluster
├── extensions
│ ├── akvsecretsprovider
│ ├── azure-iot-operations-ltwgs
│ └── azure-iot-operations-platform-ltwgs
└── customLocations
└── MyCluster-cl
├── resourceSyncRules
└── resources
├── MyCluster-ops-init-instance
└── MyCluster-observability
You can run az iot ops check
on your cluster to assess health and configurations of individual Azure IoT Operations components. By default, the command checks MQ but you can specify the service with --ops-service
parameter.
Update instance tags and description
Use the az iot ops update
command to edit the tags and description parameters of your Azure IoT Operations instance. The values provided in the update
command replace any existing tags or description
az iot ops update --name <INSTANCE_NAME> --resource-group <RESOURCE_GROUP> --desc "<INSTANCE_DESCRIPTION>" --tags <TAG_NAME>=<TAG-VALUE> <TAG_NAME>=<TAG-VALUE>
To delete all tags on an instance, set the tags parameter to a null value. For example:
az iot ops update --name <INSTANCE_NAME> --resource-group --tags ""
Uninstall Azure IoT Operations
The Azure CLI and Azure portal offer different options for uninstalling Azure IoT Operations.
If you want to delete an entire Azure IoT Operations deployment, use the Azure CLI.
If you want to delete an Azure IoT Operations instance but keep the related resources in the deployment, use the Azure portal.
Use the az iot ops delete command to delete the entire Azure IoT Operations deployment from a cluster. The delete
command evaluates the Azure IoT Operations related resources on the cluster and presents a tree view of the resources to be deleted. The cluster should be online when you run this command.
The delete
command removes:
- The Azure IoT Operations instance
- Arc extensions
- Custom locations
- Resource sync rules
- Resources that you can configure in your Azure IoT Operations solution, like assets, MQTT broker, and dataflows.
az iot ops delete --cluster <CLUSTER_NAME> --resource-group <RESOURCE_GROUP>
Update Azure IoT Operations
Currently, there's no support for updating an existing Azure IoT Operations deployment. Instead, uninstall and redeploy a new version of Azure IoT Operations.
Use the az iot ops delete command to delete the Azure IoT Operations deployment on your cluster.
az iot ops delete --cluster <CLUSTER_NAME> --resource-group <RESOURCE_GROUP>
Update the CLI extension to get the latest Azure IoT Operations version.
az extension update --name azure-iot-ops
Follow the steps in this article to deploy the newest version of Azure IoT Operations to your cluster.
Tip
Add the
--ensure-latest
flag to theaz iot ops init
command to check that the latest Azure IoT Operations CLI version is installed and raise an error if an upgrade is available.
Next steps
If your components need to connect to Azure endpoints like SQL or Fabric, learn how to Manage secrets for your Azure IoT Operations Preview deployment.
