Configure Azure Blob Storage for Azure OpenAI Batch (classic)

Applies only to: Foundry (classic) portal. This article isn't available for the new Foundry portal. Learn more about the new portal.

Note

Links in this article might open content in the new Microsoft Foundry documentation instead of the Foundry (classic) documentation you're viewing now.

Use Azure Blob Storage for Azure OpenAI Batch input and output files. By using your own storage, you remove the Batch API restrictions on the number of input files. This article shows how to configure storage access once, then create, monitor, and download a batch job without returning to the Azure portal.

Prerequisites

  • An Azure Blob Storage account.
  • An Azure OpenAI resource in a region that supports batch deployments, with a model deployed as Global-Batch or DataZoneBatch. For deployment instructions, see Create a resource and deploy a model.
  • An account that can update the Azure OpenAI resource and assign Azure roles on the storage account.
  • The Cognitive Services OpenAI User or Cognitive Services OpenAI Contributor role on the Azure OpenAI resource.
  • Python 3.9 or later.
  • The Azure CLI.

Understand the workflow

Complete the storage access setup once. The Azure OpenAI resource uses its system-assigned managed identity to read the input blob and write the result blobs. Your user identity creates the input file, uploads it, submits the batch job, monitors the job, and downloads the results.

Use either the Azure CLI or the Azure portal to complete all the steps in the next section. After you finish one setup path, continue with Install the Python packages.

Set up storage access

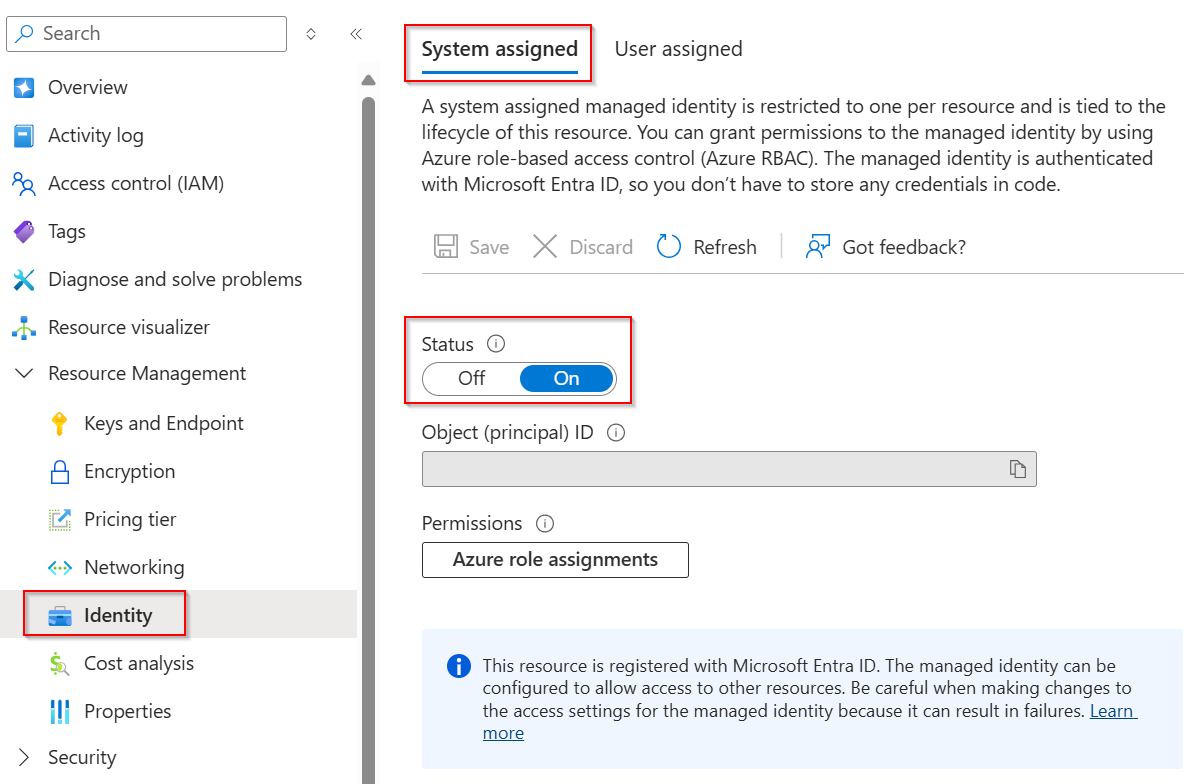

Enable a system-assigned managed identity for the Azure OpenAI resource. Then assign the Storage Blob Data Contributor role to both the resource identity and your user identity at the storage account scope.

Note

Azure OpenAI Batch with Blob Storage currently doesn't support user-assigned managed identities.

Sign in to Azure and set the values that the following commands use:

az login

RESOURCE_GROUP="<resource-group-name>"
AZURE_OPENAI_RESOURCE="<azure-openai-resource-name>"
STORAGE_ACCOUNT="<storage-account-name>"

Enable the system-assigned managed identity and retrieve its principal ID:

az cognitiveservices account identity assign \
  --name "$AZURE_OPENAI_RESOURCE" \
  --resource-group "$RESOURCE_GROUP" \
  --output none

OPENAI_PRINCIPAL_ID=$(az cognitiveservices account show \
  --name "$AZURE_OPENAI_RESOURCE" \
  --resource-group "$RESOURCE_GROUP" \
  --query identity.principalId \
  --output tsv)

echo "Managed identity: $OPENAI_PRINCIPAL_ID"

Managed identity: <principal-id>

Reference: az cognitiveservices account identity assign

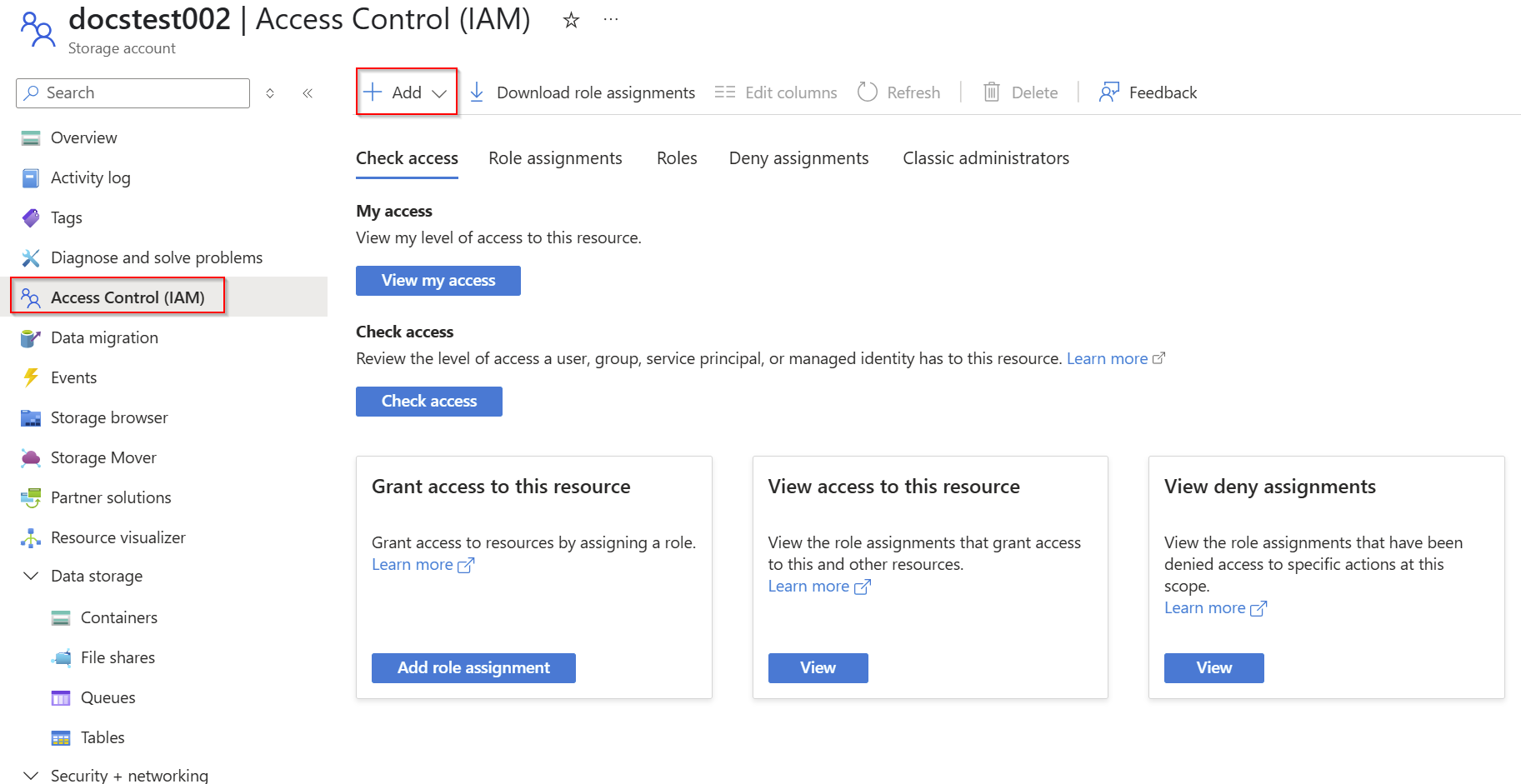

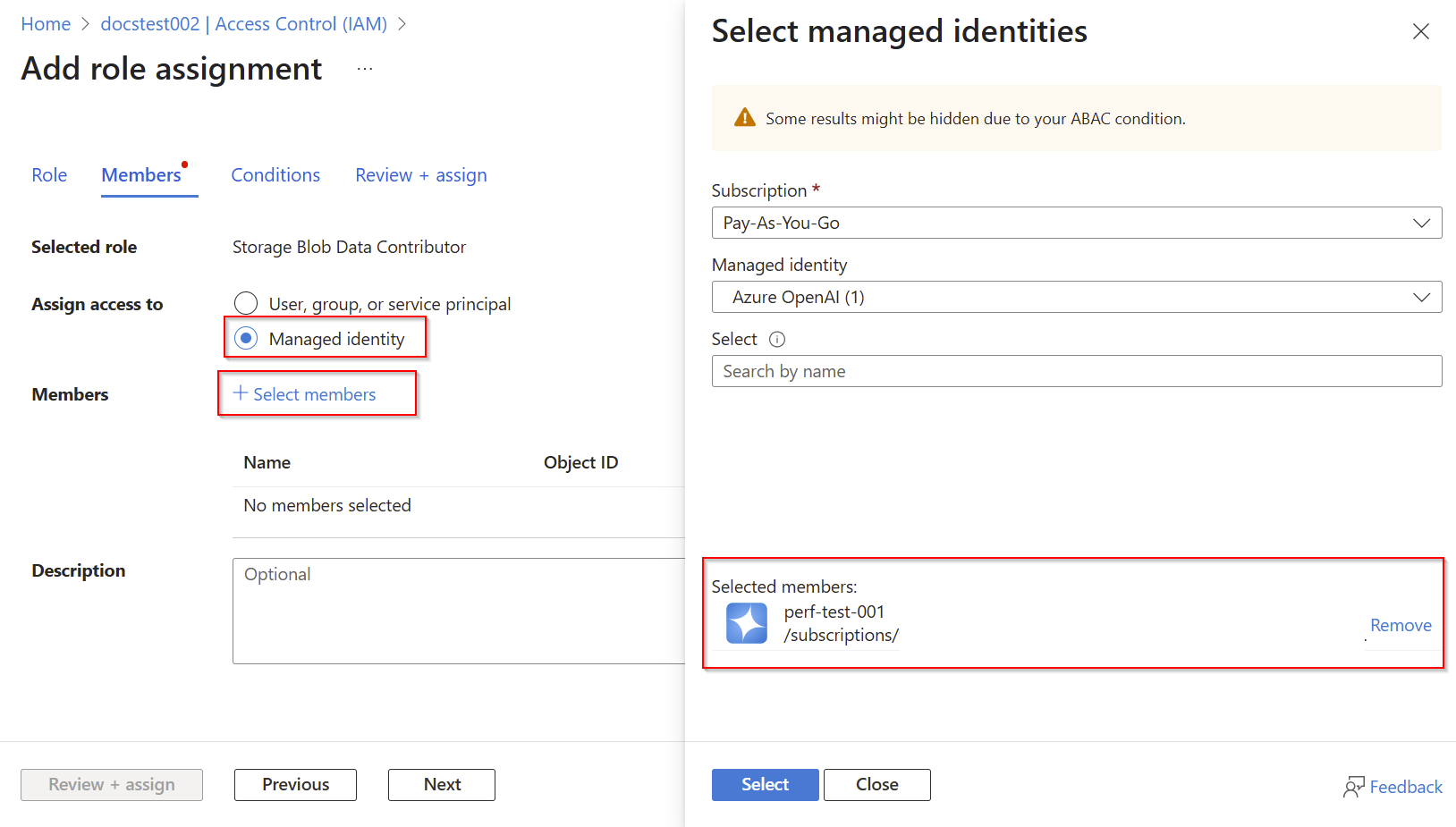

Assign Storage Blob Data Contributor to the resource identity and your signed-in user:

STORAGE_ACCOUNT="<storage-account-name>"
STORAGE_ID=$(az storage account show \
  --name "$STORAGE_ACCOUNT" \
  --query id \
  --output tsv)
USER_ID=$(az ad signed-in-user show --query id --output tsv)

az role assignment create \
  --assignee-object-id "$OPENAI_PRINCIPAL_ID" \
  --assignee-principal-type ServicePrincipal \
  --role "Storage Blob Data Contributor" \
  --scope "$STORAGE_ID" \
  --output none

az role assignment create \
  --assignee-object-id "$USER_ID" \
  --assignee-principal-type User \
  --role "Storage Blob Data Contributor" \
  --scope "$STORAGE_ID" \
  --output none

echo "Storage roles assigned."

Storage roles assigned.

Reference: az role assignment create

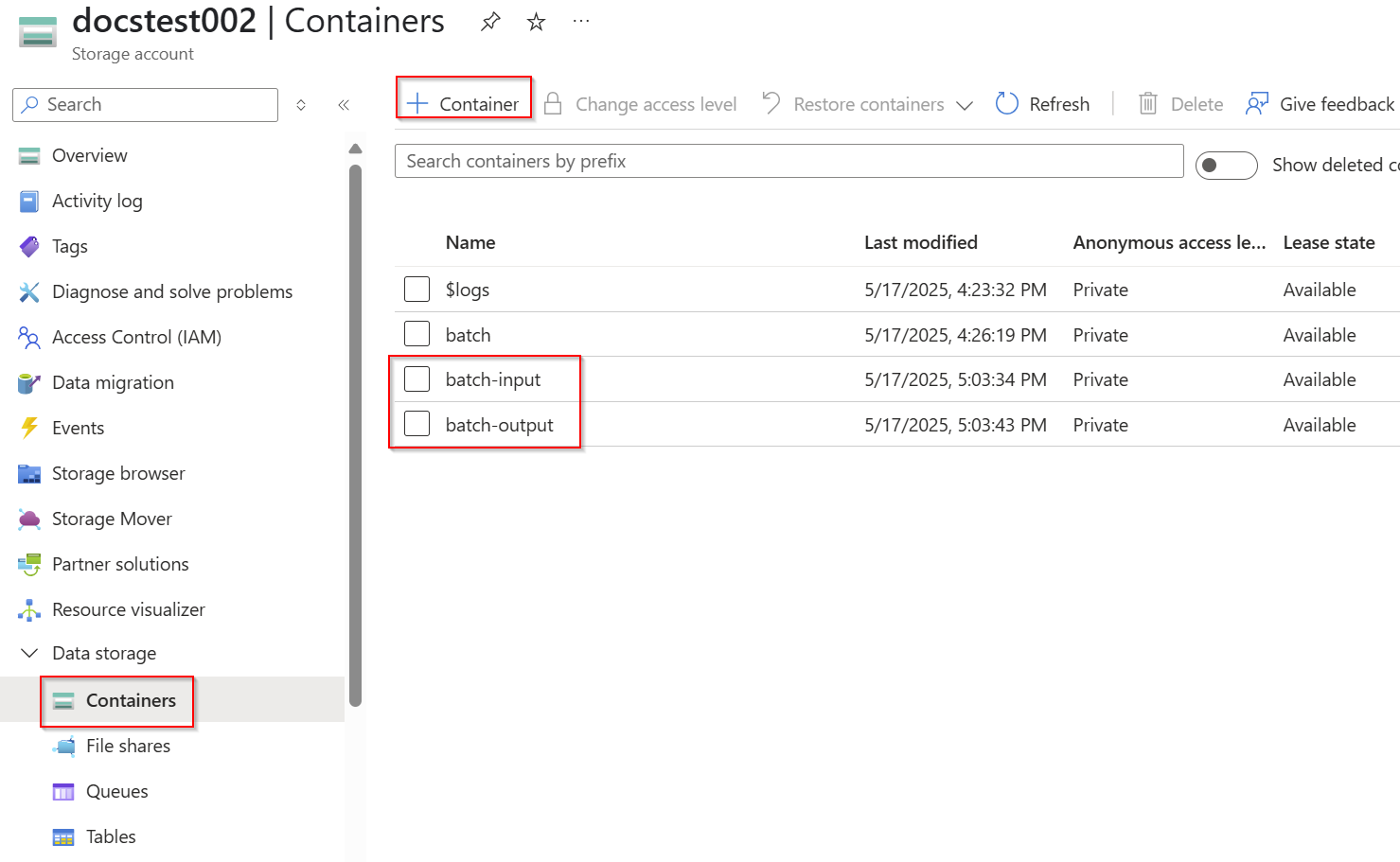

Role assignments can take several minutes to propagate. Create the input and output containers after the assignments take effect:

STORAGE_ACCOUNT="<storage-account-name>"

az storage container create \
  --account-name "$STORAGE_ACCOUNT" \
  --name batch-input \
  --auth-mode login \
  --output none

az storage container create \
  --account-name "$STORAGE_ACCOUNT" \
  --name batch-output \
  --auth-mode login \
  --output none

echo "Created batch-input and batch-output."

Created batch-input and batch-output.

Reference: az storage container create

Install the Python packages

Sign in to Azure to provide a local credential for DefaultAzureCredential:

az login

Then install the OpenAI, Azure Identity, and Azure Blob Storage client libraries:

python -m pip install --upgrade openai azure-identity azure-storage-blob

Create the input file

Create test.jsonl with three chat completion requests. Set BATCH_DEPLOYMENT to the name of your batch model deployment:

import json

BATCH_DEPLOYMENT = "<batch-deployment-name>"
INPUT_FILE = "test.jsonl"
SYSTEM_MESSAGE = "You are an AI assistant that helps people find information."
PROMPTS = [
  "When was Microsoft founded?",
  "When was the first Xbox released?",
  "What is Altair BASIC?",
]

with open(INPUT_FILE, "w", encoding="utf-8") as batch_file:
  for index, prompt in enumerate(PROMPTS):
    request = {
      "custom_id": f"task-{index}",
      "method": "POST",
      "url": "/v1/chat/completions",
      "body": {
        "model": BATCH_DEPLOYMENT,
        "messages": [
          {"role": "system", "content": SYSTEM_MESSAGE},
          {"role": "user", "content": prompt},
        ],
      },
    }
    batch_file.write(json.dumps(request) + "\n")

print(f"Created {INPUT_FILE} with {len(PROMPTS)} requests.")

Created test.jsonl with 3 requests.

Don't modify the input blob after you submit the batch job. The job fails with an input_modified error if the blob changes while the job is running.

Upload the input file

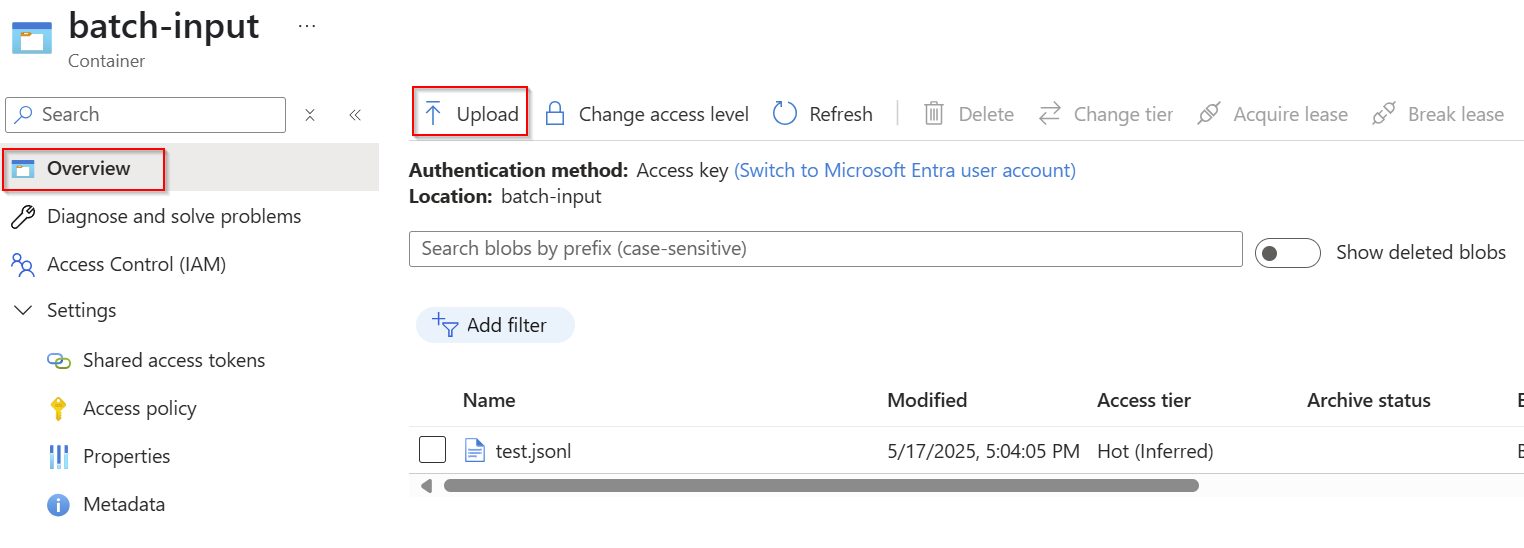

Use your user identity to upload test.jsonl to the batch-input container. Set STORAGE_ACCOUNT to your storage account name:

from azure.identity import DefaultAzureCredential
from azure.storage.blob import BlobClient

STORAGE_ACCOUNT = "<storage-account-name>"
INPUT_CONTAINER = "batch-input"
INPUT_FILE = "test.jsonl"
ACCOUNT_URL = f"https://{STORAGE_ACCOUNT}.blob.core.windows.net"

credential = DefaultAzureCredential()
input_blob = BlobClient(
  account_url=ACCOUNT_URL,
  container_name=INPUT_CONTAINER,
  blob_name=INPUT_FILE,
  credential=credential,
)

with open(INPUT_FILE, "rb") as data:
  input_blob.upload_blob(data, overwrite=True)

print(f"Uploaded: {input_blob.url}")

Uploaded: https://<storage-account-name>.blob.core.windows.net/batch-input/test.jsonl

Reference: BlobClient.upload_blob

Submit the batch job

Submit the input blob and specify the output container. Replace the Azure OpenAI resource and storage account placeholders with your values.

Note

The Blob Storage integration doesn't currently support metadata.

from azure.identity import DefaultAzureCredential, get_bearer_token_provider
from openai import OpenAI
AZURE_OPENAI_BASE_URL = (
  "https://<azure-openai-resource-name>.openai.azure.com/openai/v1/"
)
STORAGE_ACCOUNT = "<storage-account-name>"
INPUT_BLOB_URL = (
  f"https://{STORAGE_ACCOUNT}.blob.core.windows.net/batch-input/test.jsonl"
)
OUTPUT_CONTAINER_URL = (
  f"https://{STORAGE_ACCOUNT}.blob.core.windows.net/batch-output"
)

token_provider = get_bearer_token_provider(
  DefaultAzureCredential(), "https://ai.azure.com/.default"
)
openai = OpenAI(base_url=AZURE_OPENAI_BASE_URL, api_key=token_provider)

batch = openai.batches.create(
  input_file_id=None,
  endpoint="/chat/completions",
  completion_window="24h",
  extra_body={
    "input_blob": INPUT_BLOB_URL,
    "output_folder": {"url": OUTPUT_CONTAINER_URL},
  },
)

print(f"Batch ID: {batch.id}")
print(f"Status: {batch.status}")

Batch ID: <batch-id>
Status: validating

Save the batch ID for the next step.

Reference: Azure OpenAI Batch

Monitor the batch job

Set BATCH_ID to the identifier returned when you submitted the job. The script checks the status every 60 seconds until the job reaches a terminal state:

import time

from azure.identity import DefaultAzureCredential, get_bearer_token_provider
from openai import OpenAI

AZURE_OPENAI_BASE_URL = (
  "https://<azure-openai-resource-name>.openai.azure.com/openai/v1/"
)
BATCH_ID = "<batch-id>"
TERMINAL_STATES = {"completed", "failed", "cancelled", "expired"}

token_provider = get_bearer_token_provider(
  DefaultAzureCredential(), "https://ai.azure.com/.default"
)
openai = OpenAI(base_url=AZURE_OPENAI_BASE_URL, api_key=token_provider)

batch = openai.batches.retrieve(BATCH_ID)
while batch.status not in TERMINAL_STATES:
  print(f"Batch {BATCH_ID}: {batch.status}")
  time.sleep(60)
  batch = openai.batches.retrieve(BATCH_ID)

print(f"Batch {BATCH_ID}: {batch.status}")
if batch.status == "completed":
  print(f"Output blob: {batch.output_blob}")
  print(f"Error blob: {batch.error_blob}")
elif batch.errors:
  for error in batch.errors.data:
    print(f"Error {error.code}: {error.message}")

Batch <batch-id>: validating
Batch <batch-id>: in_progress
Batch <batch-id>: finalizing
Batch <batch-id>: completed
Output blob: https://<storage-account-name>.blob.core.windows.net/batch-output/<batch-output-path>/results.jsonl
Error blob: https://<storage-account-name>.blob.core.windows.net/batch-output/<batch-output-path>/errors.jsonl

Reference: Azure OpenAI Batch status values

Download the results

Copy the output blob URL from the completed batch response. Use your user identity to download the results:

from azure.identity import DefaultAzureCredential
from azure.storage.blob import BlobClient

OUTPUT_BLOB_URL = (
  "https://<storage-account-name>.blob.core.windows.net/"
  "batch-output/<batch-output-path>/results.jsonl"
)
OUTPUT_FILE = "results.jsonl"

credential = DefaultAzureCredential()
output_blob = BlobClient.from_blob_url(
  blob_url=OUTPUT_BLOB_URL,
  credential=credential,
)

with open(OUTPUT_FILE, "wb") as results_file:
  results_file.write(output_blob.download_blob().readall())

print(f"Downloaded: {OUTPUT_FILE}")

Downloaded: results.jsonl

The batch response always includes output_blob and error_blob URLs. A blob is created only when it has content. For example, if every request succeeds, errors.jsonl isn't created.

Reference: BlobClient.download_blob
