Organizational role concepts for trainings in Azure Lab Services

In this article, you learn about the different features and steps for using Azure Lab Services for conducting classes. Azure Lab Services supports educators, such as teachers, professors, training specialists, trainers, and teaching assistants. An educator can quickly and easily create an online lab to provision preconfigured learning environments for the trainees.

Conceptual artwork that shows a teacher and students in a classroom, using Azure Lab Services.

Each trainee can use identical and isolated environments for the training. Educators can apply policies to ensure that the training environments are available to each trainee only when they need them. The environments contain enough resources, such as virtual machines, required for the training.

Mapping organizational roles to permissions

Labs meet the following requirements for conducting training in any virtual environment:

  • Trainees can quickly provision their training environments
  • Every training machine is identical
  • Trainees can't see VMs created by other trainees
  • You can control cost by ensuring that trainees can't get more VMs than they need for the training and also shutdown VMs when they aren't in use
  • You can easily share the training lab with each trainee
  • You can reuse the training lab again and again

Azure Lab Services uses Azure Role-Based Access (Azure RBAC) to manage access to Azure Lab Services. For more information, see the Azure Lab Services built-in roles. Azure RBAC lets you clearly separate roles and responsibilities for creating and managing labs across different teams and people in your organization.

Depending on your organizational structure, responsibilities, and skill level, there might be different options to map these permissions to your roles or personas, such as administrators or educators. These scenarios and diagrams also include students to show where they fit in the process, although they don't require Microsoft Entra permissions.

The following sections give different examples of assigning permissions across an organization. Azure Lab Services enables you to flexibly assign permissions beyond these typical scenarios to match your organizational setup.

Scenario 1: Splitting responsibilities between IT department and educators

In this scenario, the IT department, service providers, or administrators manage the Azure subscriptions. They're responsible for creating the Azure Lab Services lab plan. Then, they grant the permission to create labs in the lab plan. The educator invites students to register and connect to a lab VM.

In your organization, you might further split the administrator activities across teams. For example, one team might be responsible for the configuration of virtual networks for advanced networking (central IT). The creation of the lab plan and other Azure resources might be the responsibility of another team (department IT).

Get started as an administrator with the Quickstart: set up the resources for creating labs.

Get started as an educator with the Tutorial: set up a lab for classroom training.

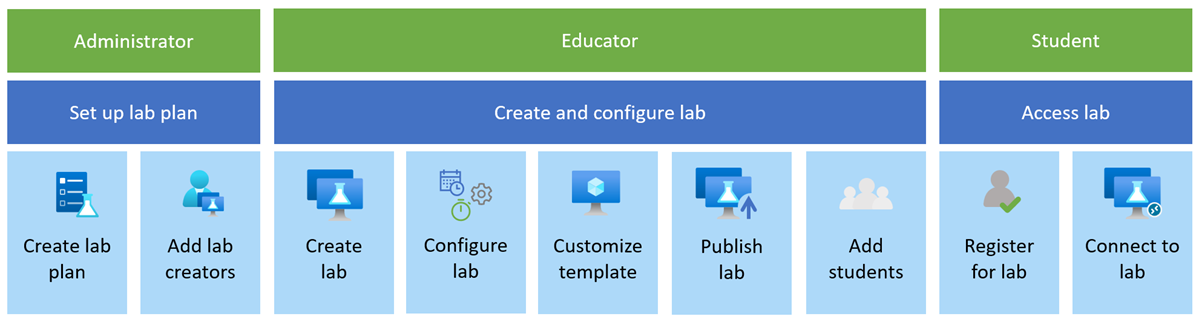

Diagram that shows lab creation steps where admins create the lab plan and educators create the lab.

The following table shows the corresponding mapping of organization roles to Microsoft Entra roles:

Org. role Microsoft Entra role Description
Administrator - Subscription Owner
- Subscription Contributor
Create lab plan in the Azure portal.
Educator Lab Creator Create and manage the labs they created.
Lab Contributor Optionally, assign to an educator to create and manage all labs, when assigned at the resource group level.
Lab Assistant Optionally, assign to other educators to help support lab students. They might reimage, start, stop, and connect lab VMs.
Student Students don't need a Microsoft Entra role. Educators grant students access in the lab configuration. Students are automatically granted access when they use Teams or Canvas.
Others Lab Services Reader Optionally, provide access to see all lab plans and labs without permission to modify.

Scenario 2: The IT department owns the entire lab creation process

In this scenario, the IT department (administrators) creates both the Azure Lab Services lab plan and lab. Optionally, the administrator grants educators permissions to manage lab users and configure lab settings, such as quotas and schedules. This scenario might be useful in cases where educators can't or don't want to set up and customize the lab.

As mentioned in scenario 1, the administrator tasks for creating the lab plan might also be split across administrator teams.

Get started as an administrator with the Quickstart: create and connect to a lab.

Get started as an educator and add students to a lab, or create a lab schedule.

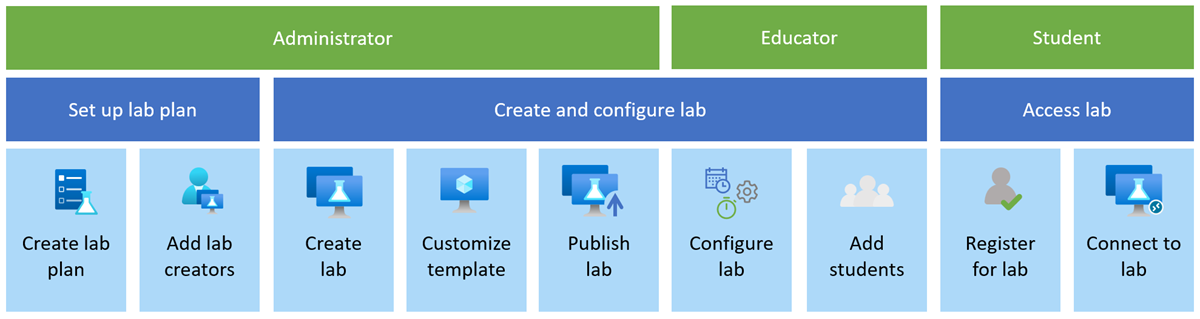

Diagram that shows lab creation steps where admins own the entire process.

The following table shows the corresponding mapping of organization roles to Microsoft Entra roles:

Org. role Microsoft Entra role Description
Administrator - Subscription Owner
- Subscription Contributor
Create lab plan in the Azure portal.
Educator - Lab Assistant Optionally, assign to other educators to help support lab students. They might reimage, start, stop, and connect lab VMs.
Student Students don't need a Microsoft Entra role. Educators grant students access in the lab configuration. Students are automatically granted access when they use Teams or Canvas.
Others Lab Services Reader Optionally, provide access to see all lab plans and labs without permission to modify.

Scenario 3: The educator owns the entire lab creation process

In this scenario, the educator manages their Azure subscription and manages the entire process of creating the Azure Lab Services lab plan and lab. This scenario might be useful in cases where educators are comfortable with creating Azure resources, and creating and customizing labs.

Get started as an administrator with the Quickstart: create and connect to a lab and then add students to a lab, and create a lab schedule.

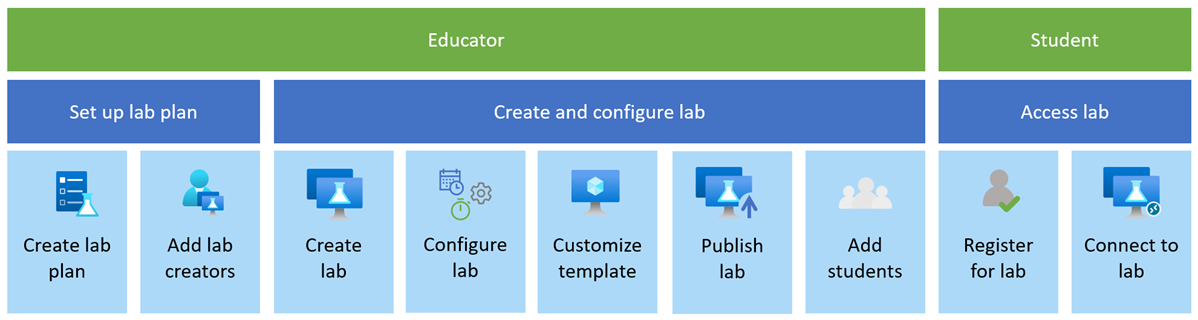

Diagram that shows lab creation steps where educators own the entire process.

The following table shows the corresponding mapping of organization roles to Microsoft Entra roles:

Org. role Microsoft Entra role Description
Educator - Subscription Owner
- Subscription Contributor
Create lab plan in the Azure portal. As an Owner, you can also fully manage all labs.
Lab Assistant Optionally, assign to other educators to help support lab students. They might reimage, start, stop, and connect lab VMs.
Student Students don't need a Microsoft Entra role. Educators grant students access in the lab configuration. Students are automatically granted access when they use Teams or Canvas.
Others Lab Services Reader Optionally, provide access to see all lab plans and labs without permission to modify.
