Create and manage Microsoft Sentinel playbooks

• Applies to:

  Microsoft Sentinel in the Azure portal, Microsoft Sentinel in the Microsoft Defender portal

Playbooks are collections of procedures that can be run from Microsoft Sentinel in response to an entire incident, to an individual alert, or to a specific entity. A playbook can help automate and orchestrate your response, and can be attached to an automation rule to run automatically when specific alerts are generated or when incidents are created or updated. Playbooks can also be run manually on-demand on specific incidents, alerts, or entities.

This article describes how to create and manage Microsoft Sentinel playbooks. You can later attach these playbooks to analytics rules or automation rules, or run them manually on specific incidents, alerts, or entities.

Note

Playbooks in Microsoft Sentinel are based on workflows built in Azure Logic Apps, which means that you get all the power, customizability, and built-in templates of Logic Apps. Additional charges may apply. Visit the Azure Logic Apps pricing page for more details.

Important

Microsoft Sentinel is available as part of the unified security operations platform in the Microsoft Defender portal. Microsoft Sentinel in the Defender portal is now supported for production use. For more information, see Microsoft Sentinel in the Microsoft Defender portal.

Prerequisites

To create and manage playbooks, you need access to Microsoft Sentinel with one of the following Azure roles:

• Logic App Contributor, to edit and manage logic apps
• Logic App operator, to read, enable, and disable logic apps

For more information, see Microsoft Sentinel playbook prerequisites.

We recommend that you read Azure Logic Apps for Microsoft Sentinel playbooks before creating your playbook.

Create a playbook

Follow these steps to create a new playbook in Microsoft Sentinel:

1. For Microsoft Sentinel in the Azure portal, select the Configuration > Automation page. For Microsoft Sentinel in the Defender portal, select Microsoft Sentinel > Configuration > Automation.

   Azure portal



   Defender portal

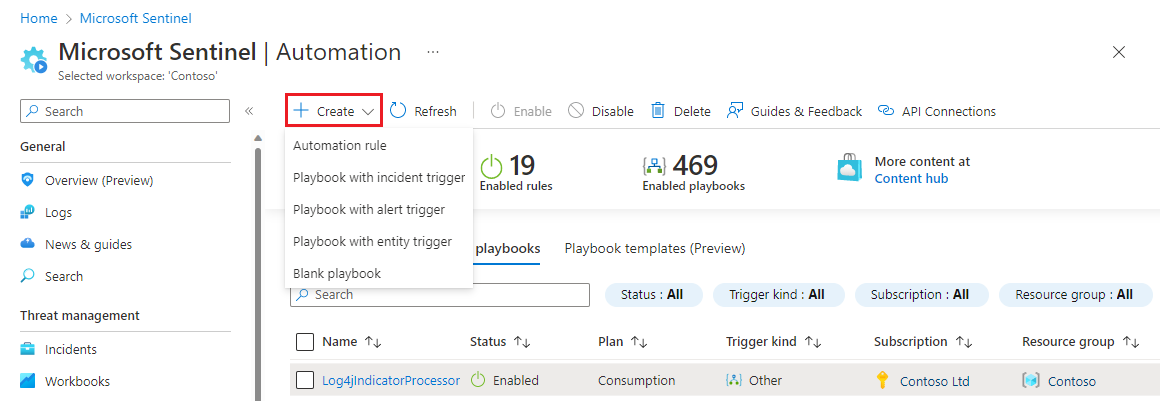

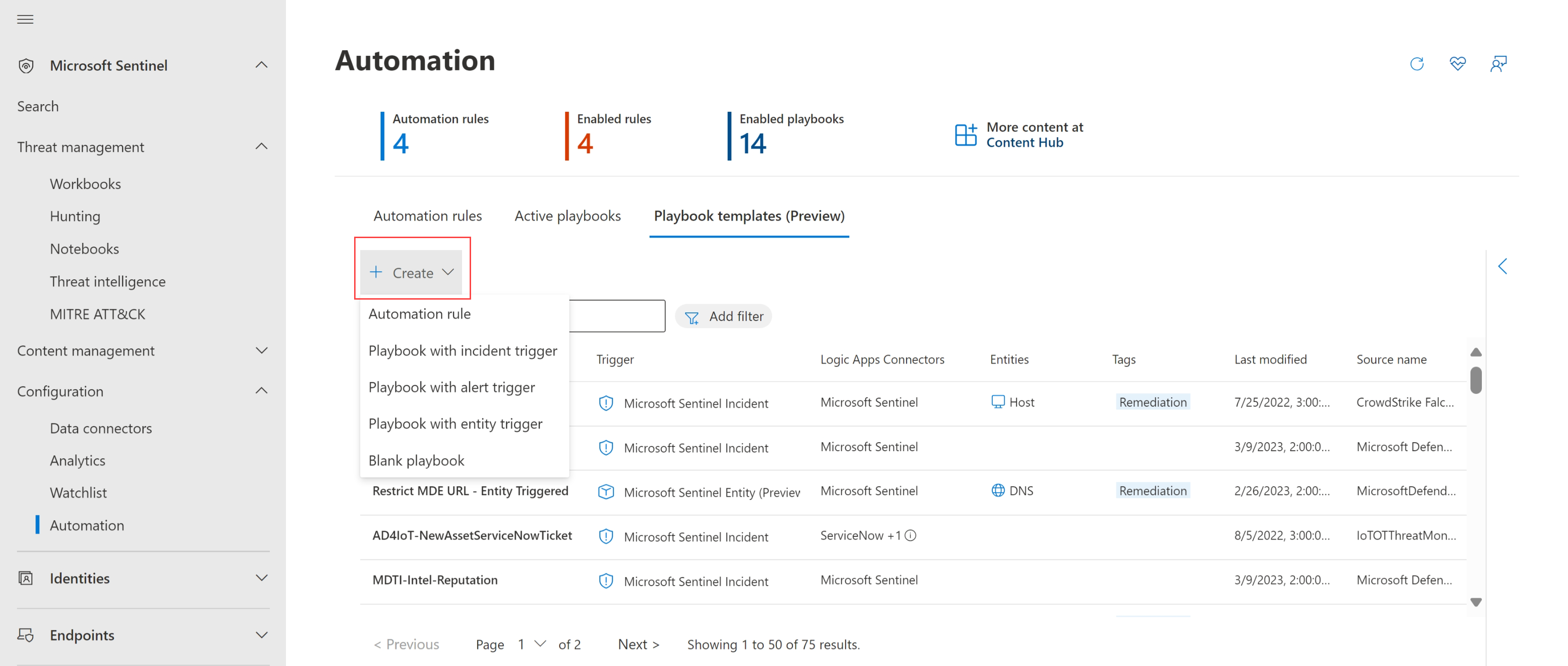

2. From the top menu, select Create, and then select one of the following options:

   1. If you're creating a Standard playbook, select Blank playbook and then follow the steps for the Standard logic app type.

   2. If you're creating a Consumption playbook, select one of the following options, depending on the trigger you want to use, and then follow the steps in the Logic Apps Consumption tab below:

      • Playbook with incident trigger
      • Playbook with alert trigger
      • Playbook with entity trigger

   For more information, see Supported logic app types and Supported triggers and actions in Microsoft Sentinel playbooks.

Prepare your playbook's Logic App

Select one of the following tabs for details about how to create a logic app for your playbook, depending on whether you're using a Consumption or Standard workflow. For more information, see Supported logic app types.

Consumption

The Create playbook wizard appears after selecting the trigger you want to use, including an incident, alert, or entity trigger. For example:

Do the following to create your playbook:

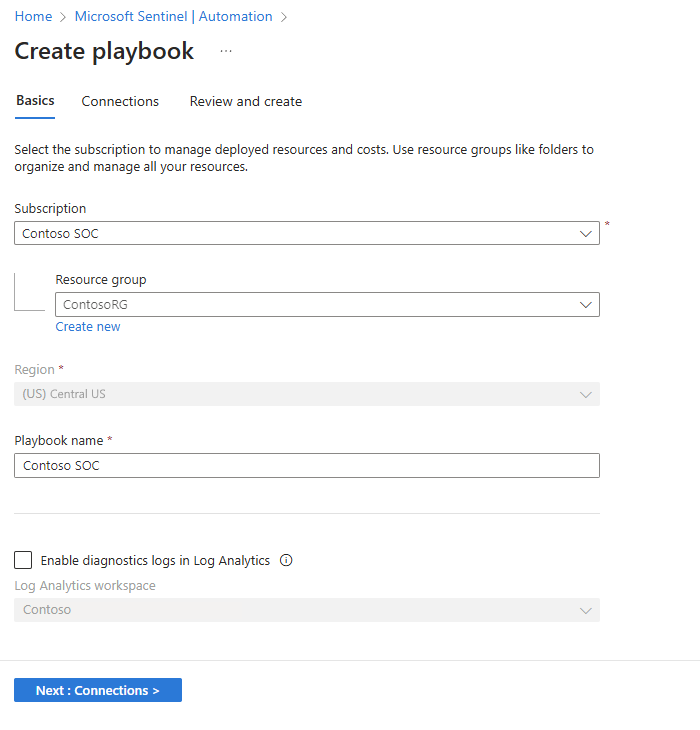

1. In the Basics tab:

   1. Select the Subscription, Resource group, and Region of your choosing from their respective drop-down lists. The selected region is where your Logic App information is stored.

   2. Enter a name for your playbook under Playbook name.

   3. If you want to monitor this playbook's activity for diagnostic purposes, select the Enable diagnostics logs in Log Analytics check box, and select your Log Analytics workspace from the drop-down list.

   4. If your playbooks need access to protected resources that are inside or connected to an Azure virtual network, you might need to use an integration service environment (ISE). If so, select the Associate with integration service environment check box, and select the relevant ISE from the drop-down list.

   5. Select Next : Connections >.

2. In the Connections tab, we recommend leaving the default values, configuring Logic Apps to connect to Microsoft Sentinel with managed identity. For more information, see Authenticate playbooks to Microsoft Sentinel.

   Select Next : Review and create > to continue.

3. In the Review and create tab, review the configuration choices you made, and select Create and continue to designer.

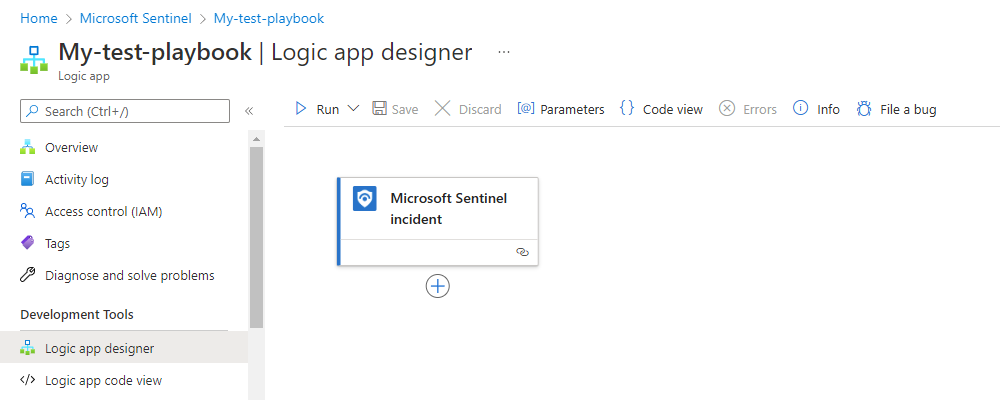

   Your playbook will take a few minutes to be created and deployed, after which you see the message "Your deployment is complete" and you're taken to your new playbook's Logic App Designer. The trigger you chose at the beginning is automatically added as the first step, and you can continue designing the workflow from there.



4. If you chose the Microsoft Sentinel entity trigger, select the type of entity you want this playbook to receive as an input.



Standard

Since playbooks based on the Standard workflow don't support playbook templates, you need to first create your logic app, then create your playbook, and finally choose the trigger for your playbook.

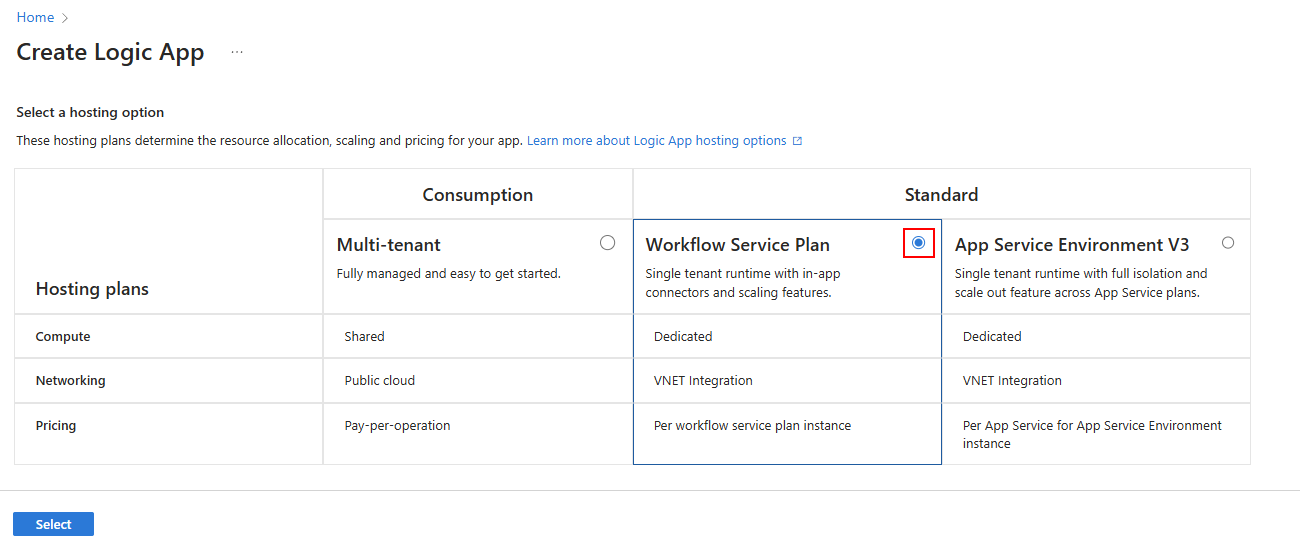

After selecting the Blank playbook option, a new browser tab opens with the Create Logic App wizard. For example:

Create a logic app

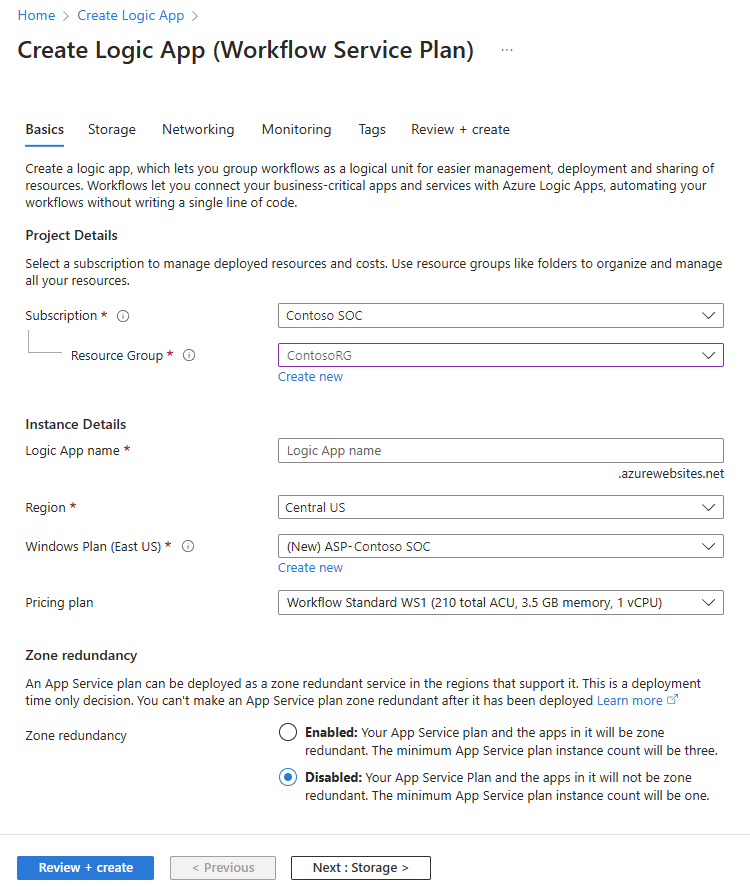

1. In the Basics tab, enter the following details:

   1. Select the Subscription and Resource Group of your choosing from their respective drop-down lists.
   2. Enter a name for your Logic App. For Publish, select Workflow. Select the Region where you wish to deploy the logic app.
   3. For Plan type, select Standard.
   4. Select Next : Hosting >.

2. In the Hosting tab:

   1. For Storage type, select Azure Storage, and select or create a Storage account.
   2. Select a Windows Plan.

3. In the Monitoring tab:

   1. If you want to enable performance monitoring in Azure Monitor for this application, leave the toggle on Yes. Otherwise, toggle it to No.

      Note

      This monitoring is not required for Microsoft Sentinel and will cost you extra.

   2. Optionally, select Next : Tags > to apply tags to this Logic App for resource categorization and billing purposes. Otherwise, select Review + create.

4. In the Review + create tab, review the configuration choices you made, and select Create.

   Your playbook takes a few minutes to be created and deployed, during which you see some deployment messages. At the end of the process you're taken to the final deployment screen, where you see the message: "Your deployment is complete."

5. Select Go to resource. You're taken to the main page of your new Logic App.

   Unlike with classic Consumption playbooks, you're not done yet. Now you must create a workflow.

Create a workflow for your playbook

1. From your Logic App's details page, select Workflows > + Add. It might take a few moments for the + Add button to become active.

2. In the New workflow pane that appears:

   1. Enter a meaningful name for your workflow.
   2. Under State type, select Stateful. Microsoft Sentinel doesn't support the use of stateless workflows as playbooks.
   3. Select Create.

   Your workflow is saved and appears in the list of workflows in your Logic App.

3. Select the new workflow to proceed and access your workflow details page. Here you can see all the information about your workflow, including a record of all the times it runs.

4. From the workflow details page, select Designer.

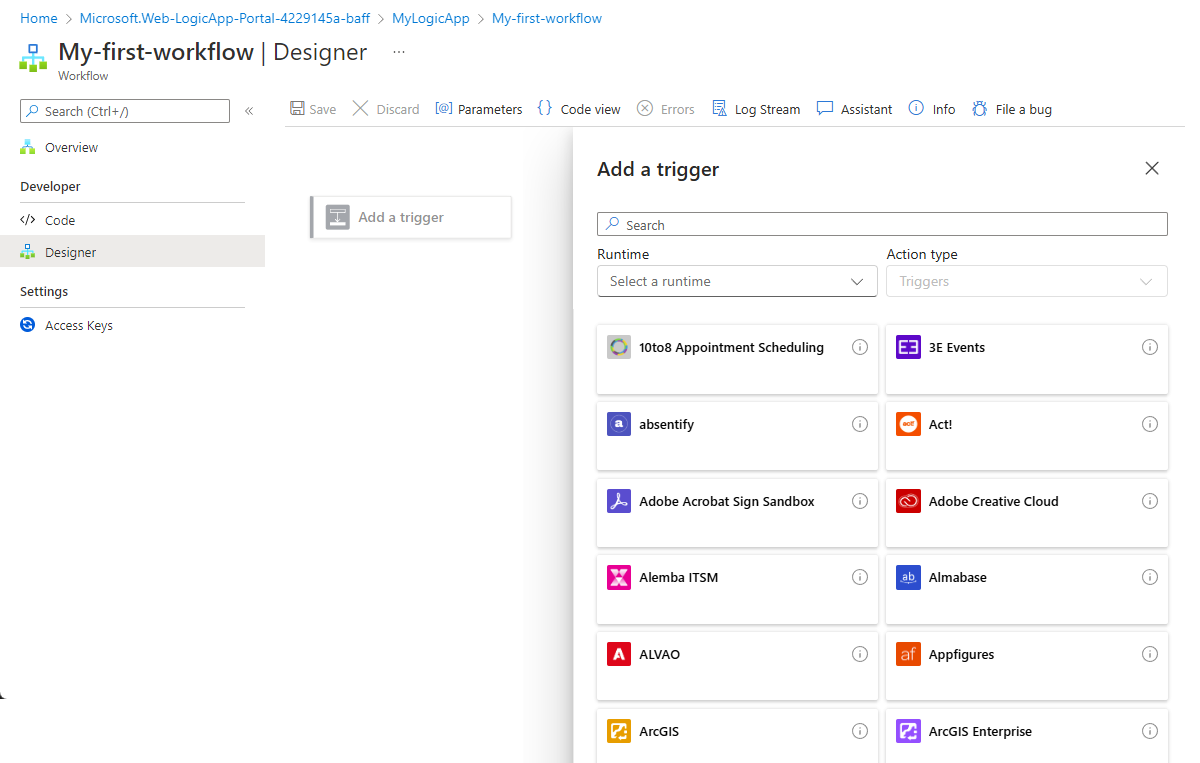

5. The Designer page opens and you're prompted to add a trigger and continue designing the workflow. For example:



Add your trigger

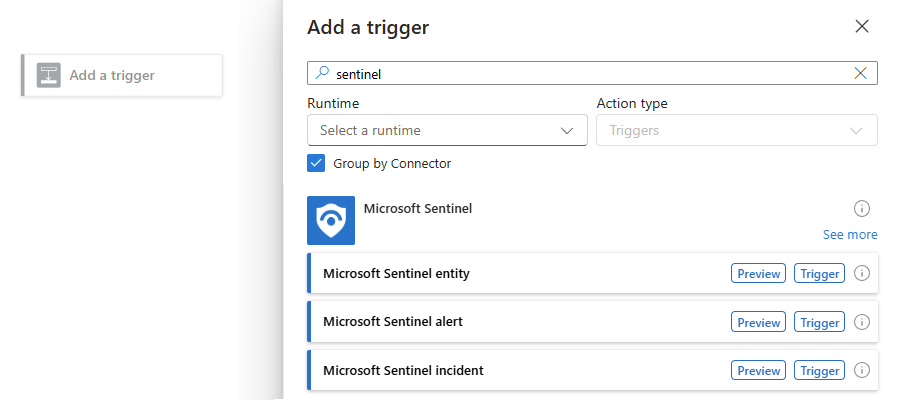

1. In the Designer page, select the Azure tab and enter Sentinel in the Search box. The Triggers tab shows the triggers supported by Microsoft Sentinel, including:

   • Microsoft Sentinel alert
   • Microsoft Sentinel entity
   • Microsoft Sentinel incident

   For example:

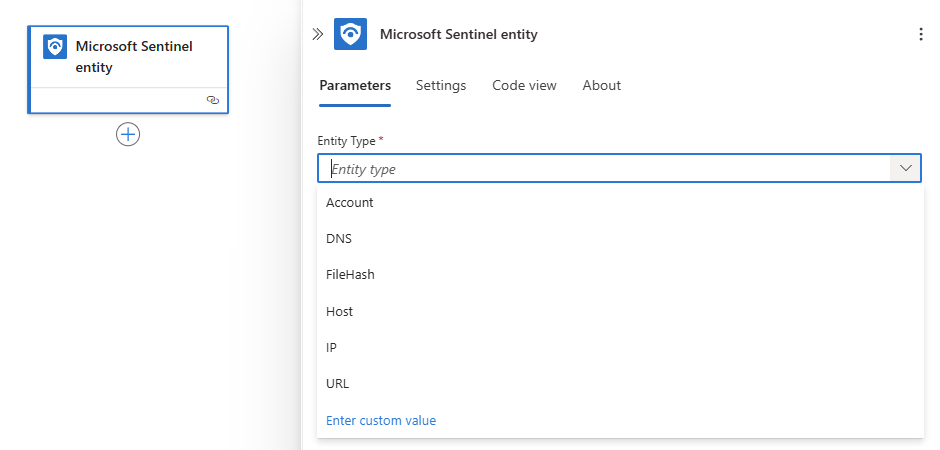

2. If you choose the Microsoft Sentinel entity trigger, select the type of entity you want this playbook to receive as an input. For example:



For more information, see Supported triggers and actions in Microsoft Sentinel playbooks.

Add actions to your playbook

Now that you have a logic app, define what happens when you call the playbook. Add actions, logical conditions, loops, or switch case conditions, all by selecting New step. This selection opens a new frame in the designer, where you can choose a system or an application to interact with or a condition to set. Enter the name of the system or application in the search bar at the top of the frame, and then choose from the available results.

In every one of these steps, clicking on any field displays a panel with the following menus:

• Dynamic content: Add references to the attributes of the alert or incident that was passed to the playbook, including the values and attributes of all the mapped entities and custom details contained in the alert or incident. For examples of using dynamic content, see:

  • Use entity playbooks with no incident ID
  • Work with custom details

• Expression: Choose from a large library of functions to add more logic to your steps.

For more information, see Supported triggers and actions in Microsoft Sentinel playbooks.

Authentication prompts

When you choose a trigger, or any subsequent action, you're prompted to authenticate to whichever resource provider you are interacting with. In this case, the provider is Microsoft Sentinel, and there are a few authentication options. For more information, see:

• Authenticate playbooks to Microsoft Sentinel
• Supported triggers and actions in Microsoft Sentinel playbooks

Dynamic content: Use entity playbooks with no incident ID

Playbooks created with the entity trigger often use the Incident ARM ID field, such as to update an incident after taking action on the entity.

If such a playbook is triggered in a context unconnected to an incident, such as when threat hunting, there's no incident whose ID can populate this field. In this case, the field is populated with a null value.

As a result, the playbook might fail to run to completion. To prevent this failure, we recommend that you create a condition that checks for a value in the incident ID field before taking any actions on it, and prescribe a different set of actions if the field has a null value - that is, if the playbook isn't being run from an incident.

Do the following steps:

1. Before the first action that refers to the Incident ARM ID field, add a Condition step.

2. On the side, select the Choose a value field to enter the Add dynamic content dialog.

3. Select Incident ARM ID (Optional), and the is not equal to operator.

4. Select Choose a value again to enter the Add dynamic content dialog.

5. Select the Expression tab and null function.

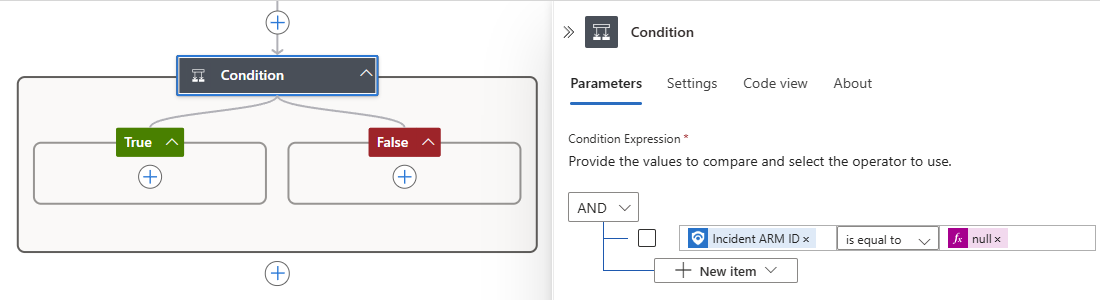

For example:

Dynamic content: Work with custom details

The Alert custom details dynamic field, available in the incident trigger, is an array of JSON objects, each of which represents a custom detail of an alert. Custom details are key-value pairs that allow you to surface information from events in the alert so they can be represented, tracked, and analyzed as part of the incident.

Since this field in the alert is customizable, its schema depends on the type of event being surfaced. Supply data from an instance of this event to generate the schema that determines how the custom details field is parsed.

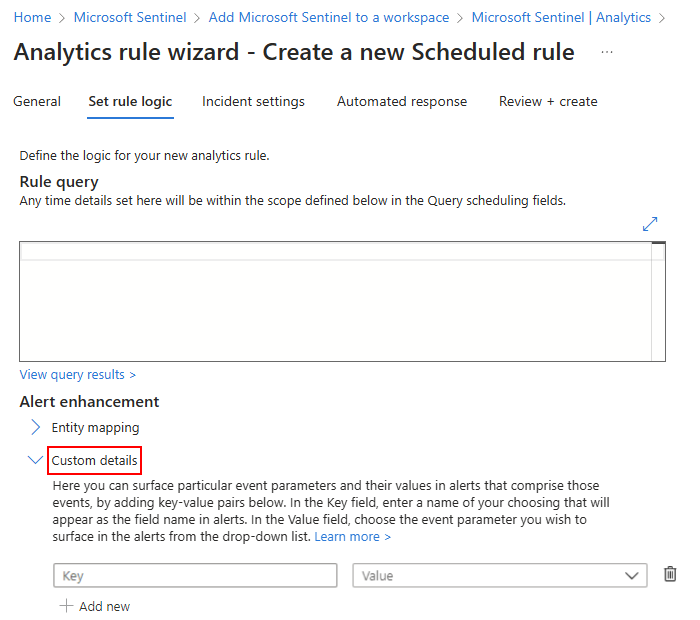

For example:

In these key-value pairs:

• The key, in the left column, represents the custom fields you create.
• The value, in the right column, represents the fields from the event data that populate the custom fields.

Supply the following JSON code to generate the schema. The code shows the key names as arrays, and the values as items in the arrays. Values are shown as the actual values, not the column that contains the values.

{ "FirstCustomField": [ "1", "2" ], "SecondCustomField": [ "a", "b" ] }

To use custom fields for incident triggers:

1. Add a new step using the Parse JSON built-in action. Enter 'parse json' in the Search field to find it if you need to.

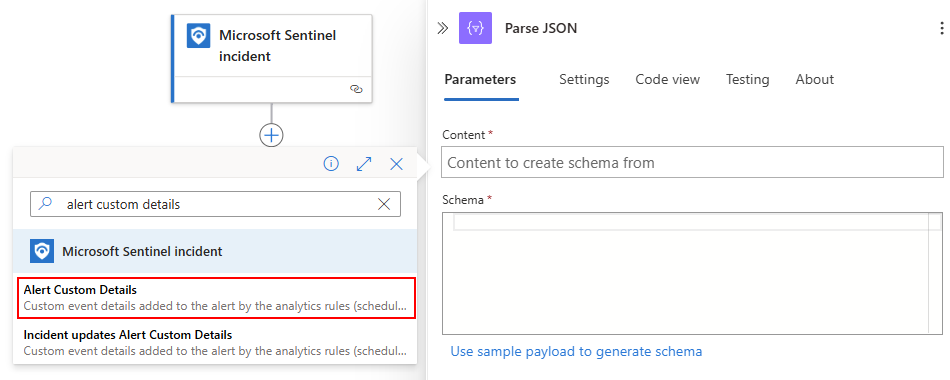

2. Find and select Alert Custom Details in the Dynamic content list, under the incident trigger. For example:



   This creates a For each loop, since an incident contains an array of alerts.

3. Select the Use sample payload to generate schema link. For example:



4. Supply a sample payload. For example, you can find a sample payload by looking in Log Analytics for another instance of this alert and copying the custom details object, found under Extended Properties. Access Log Analytics data either in the Logs page in the Azure portal or the Advanced hunting page in the Defender portal. In the screenshot below, we used the JSON code shown above.

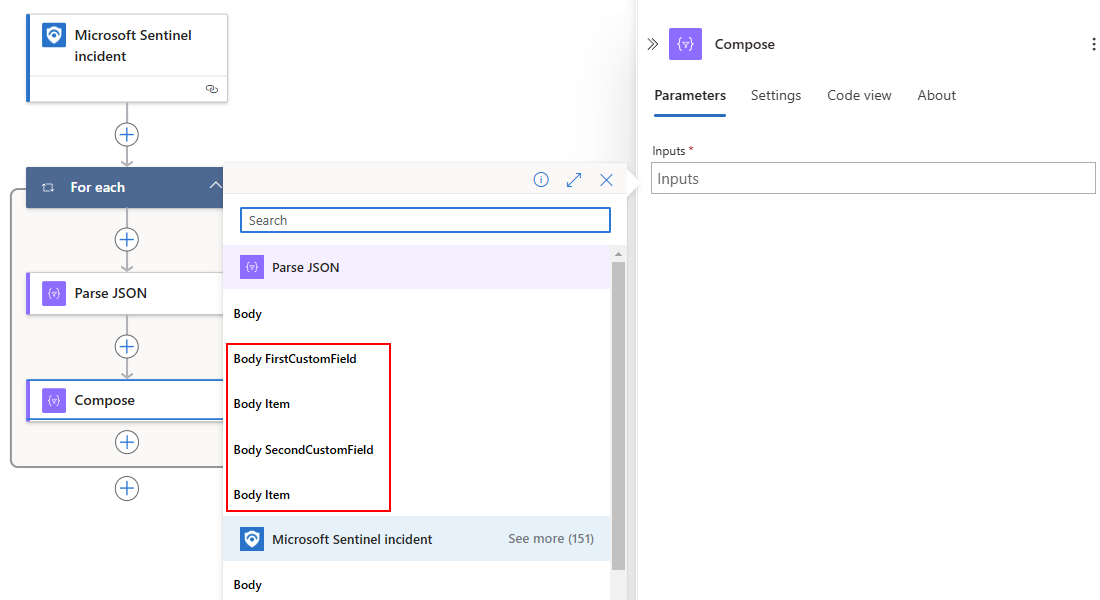

The custom fields are ready to be used as dynamic fields of type Array. For example, the following screenshot shows an array and its items, both in the schema and in the list that appears under Dynamic content, that we described in this section:

Manage your playbooks

Select the Automation > Active playbooks tab to view all the playbooks you have access to, filtered by your subscription view.

After onboarding to the unified security operations platform, by default the Active playbooks tab shows a predefined filter with onboarded workspace's subscription. In the Azure portal, edit the subscriptions you're showing from the Directory + subscription menu in the global Azure page header.

While the Active playbooks tab displays all the active playbooks available across any selected subscriptions, by default a playbook can be used only within the subscription to which it belongs, unless you specifically grant Microsoft Sentinel permissions to the playbook's resource group.

The Active playbooks tab shows your playbooks with the following details:

Column name	Description
Status	Indicates if the playbook is enabled or disabled.
Plan	Indicates whether the playbook uses the Standard or Consumption Azure Logic Apps resource type. Playbooks of the Standard type use the LogicApp/Workflow naming convention, which reflects how a Standard playbook represents a workflow that exists alongside other workflows in a single Logic App. For more information, see Azure Logic Apps for Microsoft Sentinel playbooks.
Trigger kind	Indicates the Azure Logic Apps trigger that starts this playbook: - Microsoft Sentinel Incident/Alert/Entity: The playbook is started with one of the Sentinel triggers, including incident, alert, or entity - Using Microsoft Sentinel Action: The playbook is started with a non-Microsoft Sentinel trigger but uses a Microsoft Sentinel action - Other: The playbook doesn't include any Microsoft Sentinel components - Not initialized: The playbook was created, but contains no components, neither triggers no actions.

Select a playbook to open its Azure Logic Apps page, which shows more details about the playbook. On the Azure Logic Apps page:

• View a log of all times the playbook ran
• View run results, including successes and failures and other details
• If you have the relevant permissions, open the workflow designer in Azure Logic Apps to edit the playbook directly

Related content

Once you created your playbook, attach it to rules to be triggered by events in your environment, or run your playbooks manually on specific incidents, alerts, or entities.

For more information, see:

• Automate and run Microsoft Sentinel playbooks
• Authenticate playbooks to Microsoft Sentinel
• Use a Microsoft Sentinel playbook to stop potentially compromised users
