Configure OData in a copy activity

  • Article

This article outlines how to use the copy activity in a data pipeline to copy data from and to OData.

Supported configuration

For the configuration of each tab under the copy activity, go to the following sections respectively.

General

For General tab configuration, go to General.

Source

The following properties are supported for OData under the Source tab of a copy activity.

Screenshot showing source tab.

The following three properties are required:

  • Data store type: Select External.
  • Connection: Select an OData connection from the connection list. If no connection exists, then create a new OData connection by selecting New.
  • Path: Select the path to the OData resource. Or you can select Edit to enter the path manually.

Under Advanced, you can specify the following fields:

  • Use query: You can choose Path or Query as your use query. The following list describes the configuration of each setting.

    • Path: Read data from the specified path if you select this button.

    • Query: OData query options for filtering data. Example: "$select=Name,Description&$top=5".

      Note

      The OData connector copies data from the combined URL: [URL specified in the connection]/[path specified]?[query specified in copy activity source]. For more information, go to OData URL components.

  • Request timeout: Timeout for the HTTP request to get a response. Format is in timespan. This value is the timeout to get a response, not the timeout to read response data. The default value is 00:05:00.

  • Additional columns: Add additional data columns to store source files' relative path or static value. Expression is supported for the latter.

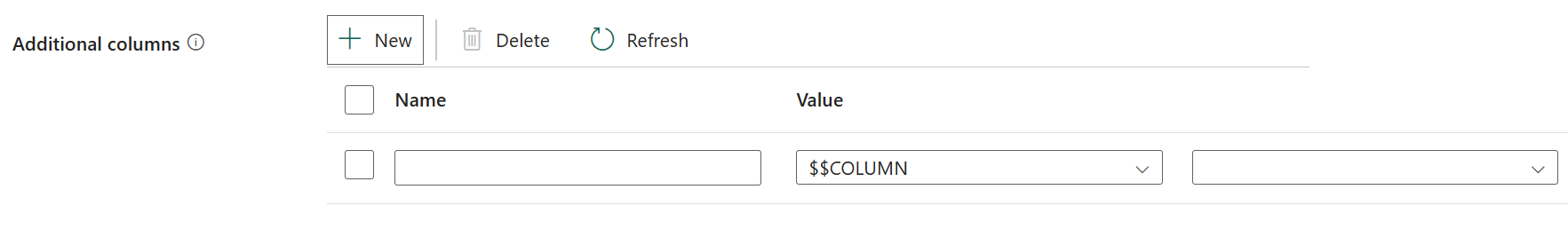

    Screenshot showing additional columns.

Mapping

For the Mapping tab configuration, go to Configure your mappings under mapping tab.

Settings

For the Settings tab configuration, go to Configure your other settings under settings tab.

Table summary

The following table contains more information about the copy activity in OData.

Source

Name Description Value Required JSON script property
Data store type Your data store type. External Yes /
Connection Your connection to the source data store. <your connection> Yes connection
Path The path to the OData resource. <the path to the OData resource> Yes path
Use query You can choose Path or Query as your use query. • Path
• Query		 No query
Request timeout Timeout for the HTTP request to get a response. Format is in timespan. This value is the timeout to get a response, not the timeout to read response data. The default value is 00:05:00. timespan No requestTimeout
Additional columns Add additional data columns to store source files' relative path or static value. Expression is supported for the latter. - Name
- Value		 No additionalColumns:
- name
- value
