Layers in Azure Maps Power BI visual

There are two types of layers available in an Azure Maps Power BI visual. The first type focuses on rendering data that is passed into the Fields pane of the visual and consist of the following layers, let's call these data rendering layers.

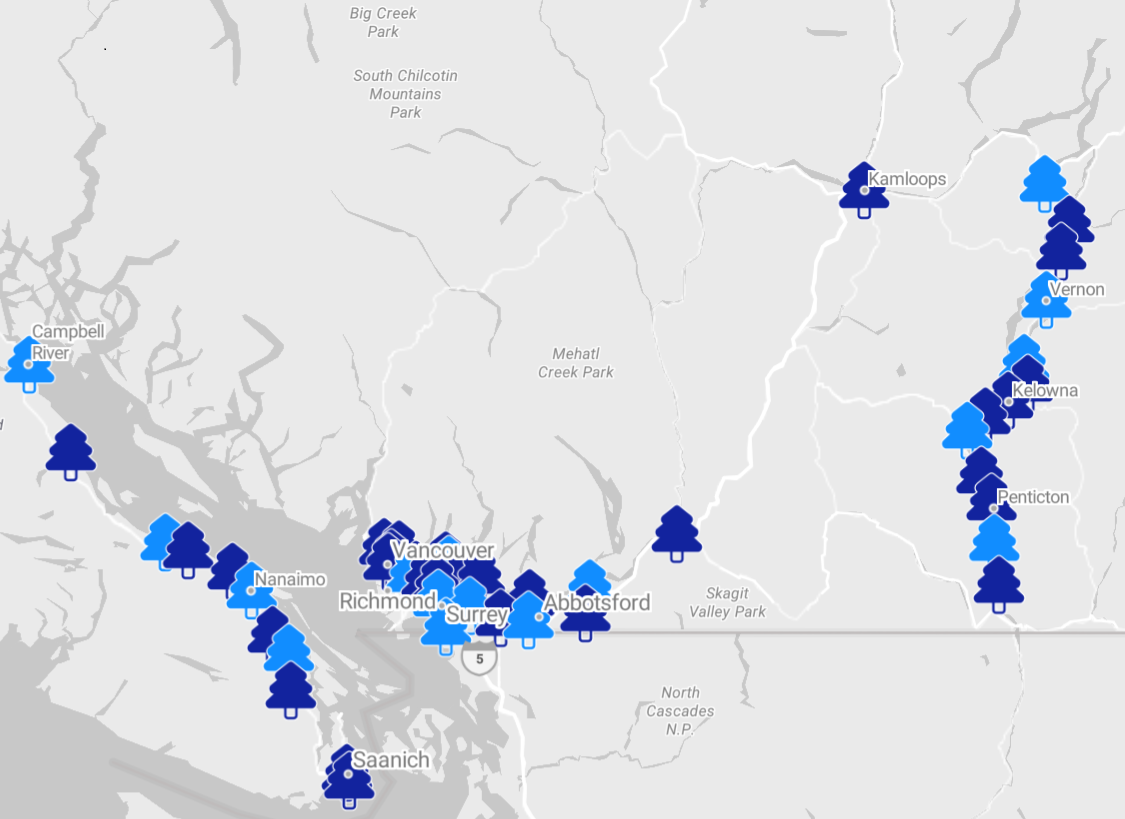

Bubble layer

Renders points as scaled circles on the map.

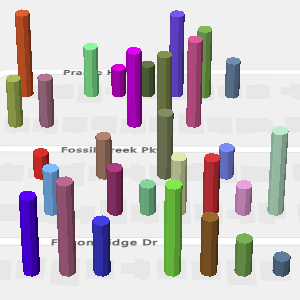

3D column layer

Renders points as 3D columns on the map.

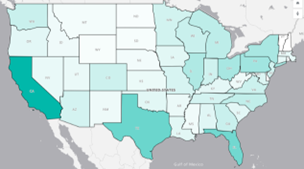

Filled map layer

Provides a visual display to shows differences in values across a geography or region.

Heat map layer

Shows data "hot spots" on a map.

The second type of layer connects addition external sources of data to map to provide more context and consists of the following layers.

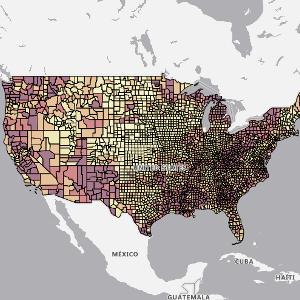

Reference layer

Overlay an uploaded GeoJSON file on top of the map.

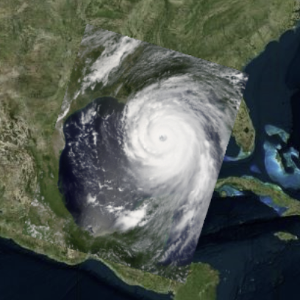

Tile layer

Overlay a custom tile layer on top of the map.

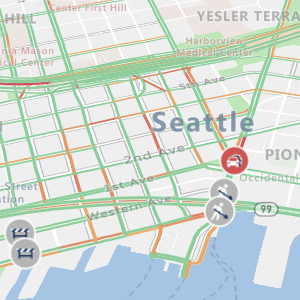

Traffic layer

Overlay real-time traffic information on the map.

All the data rendering layers and the Tile layer, have options for min and max zoom levels that are used to specify a zoom level range these layers should be displayed at. These options allow one type of rendering layer to be used at one zoom level and a transition to another rendering layer at another zoom level.

These layers can also be positioned relative to other layers in the map. When multiple data rendering layers are used, the order in which they're added to the map determines their relative layering order when they have the same Layer position value.

General layer settings

The general layer section of the Format pane are common settings that apply to the layers that are connected to the Power BI dataset in the Fields pane (Bubble layer, 3D column layer).

Setting	Description
Unselected transparency	The transparency of shapes that aren't selected, when one or more shapes are selected.
Show zeros	(Deprecated) Specifies if points that have a size value of zero should be shown on the map using the minimum radius.
Show negatives	(Deprecated) Specifies if absolute value of negative size values should be plotted.
Min data value	The minimum value of the input data to scale against. Good for clipping outliers.
Max data value	The maximum value of the input data to scale against. Good for clipping outliers.

Note

General layer settings retirement

The Show zeros and Show negatives Power BI Visual General layer settings were deprecated starting in the September 2023 release of Power BI. You can no longer create new reports using these settings, but existing reports will continue to work. It is recomended that you upgrade existing reports. To upgrade to the new range scaling property, select the desired option in the Range scaling drop-down list:

For more information on the range scaling option, see Range scaling in the properties table of the Add a bubble layer article.
