Configure TLS policy on a Front Door custom domain

Applies to: ✔️ Front Door Standard ✔️ Front Door Premium

Azure Front Door Standard and Premium offer two mechanisms for controlling TLS policy. You can use either a predefined policy or a custom policy per your own needs. If you use Azure Front Door (classic) and Microsoft CDN (classic), you'll continue to use the minimum TLS 1.2 version.

• Azure Front Door offers several predefined TLS policies. You can configure your AFD with any of these policies to get the appropriate level of security. These predefined policies are configured keeping in mind the best practices and recommendations from the Microsoft Security team. We recommend that you use the newest TLS policies to ensure the best TLS security.

• If a TLS policy needs to be configured for your own business and security requirements, you can use a Custom TLS policy. With a custom TLS policy, you have complete control over the minimum TLS protocol version to support, and the supported cipher suites.

In this article, you learn how to configure TLS policy on a Front Door custom domain.

Prerequisites

• A Front Door. For more information, see Quickstart: Create a Front Door using the Azure portal.
• A custom domain. If you don't have a custom domain, you must first purchase one from a domain provider. For more information, see Buy a custom domain name.
• If you're using Azure to host your DNS domains, you must delegate the domain provider's domain name system (DNS) to an Azure DNS. For more information, see Delegate a domain to Azure DNS. Otherwise, if you're using a domain provider to handle your DNS domain, see Create a CNAME DNS record.

Configure TLS policy

1. Go to your Azure Front Door profile that you want to configure the TLS policy for.

2. Under Settings, select Domains . Then select + Add to add a new domain.

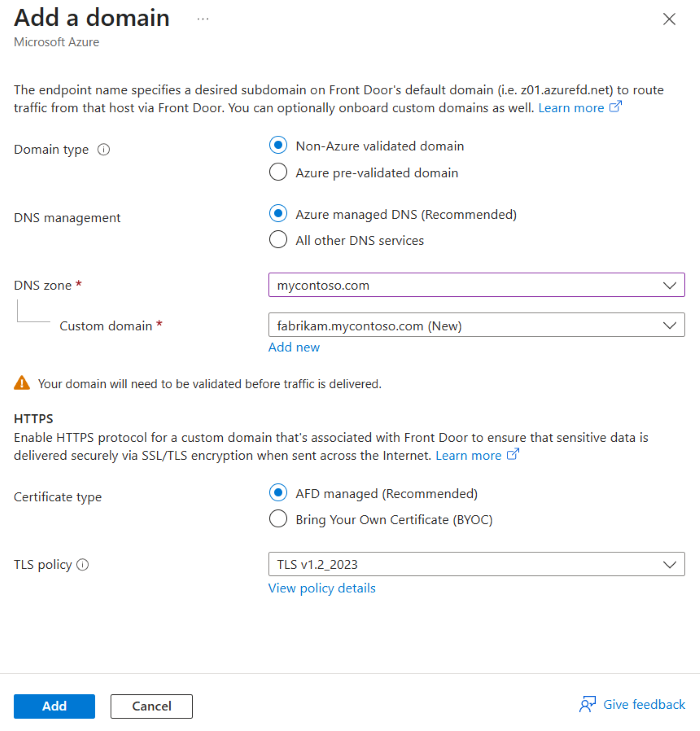

3. On the Add a domain page, follow the instructions in Configure a custom domain on Azure Front Door and Configure HTTPS on an Azure Front Door custom domain to configure the domain.

4. For TLS policy, select the predefined policy from the dropdown list or Custom to customize the cipher suites per your needs.

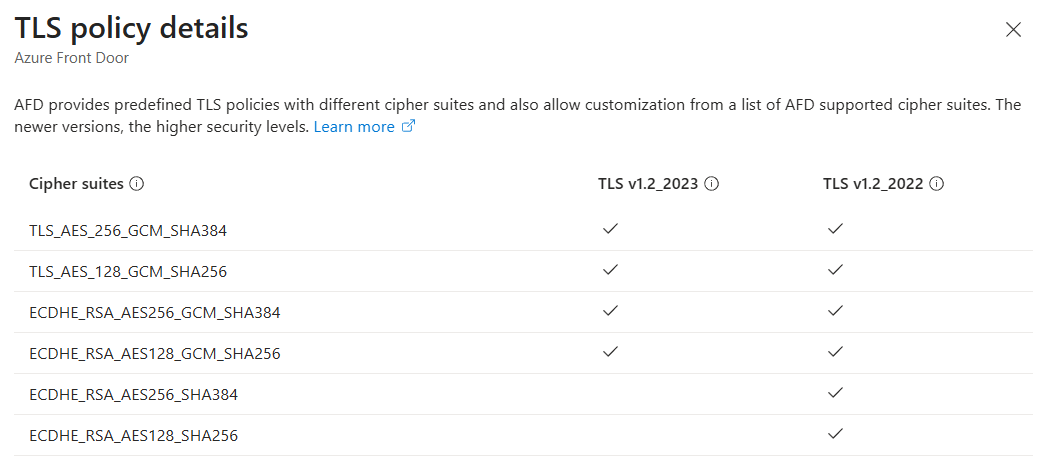

   You can view the supported cipher suites by selecting View policy details.

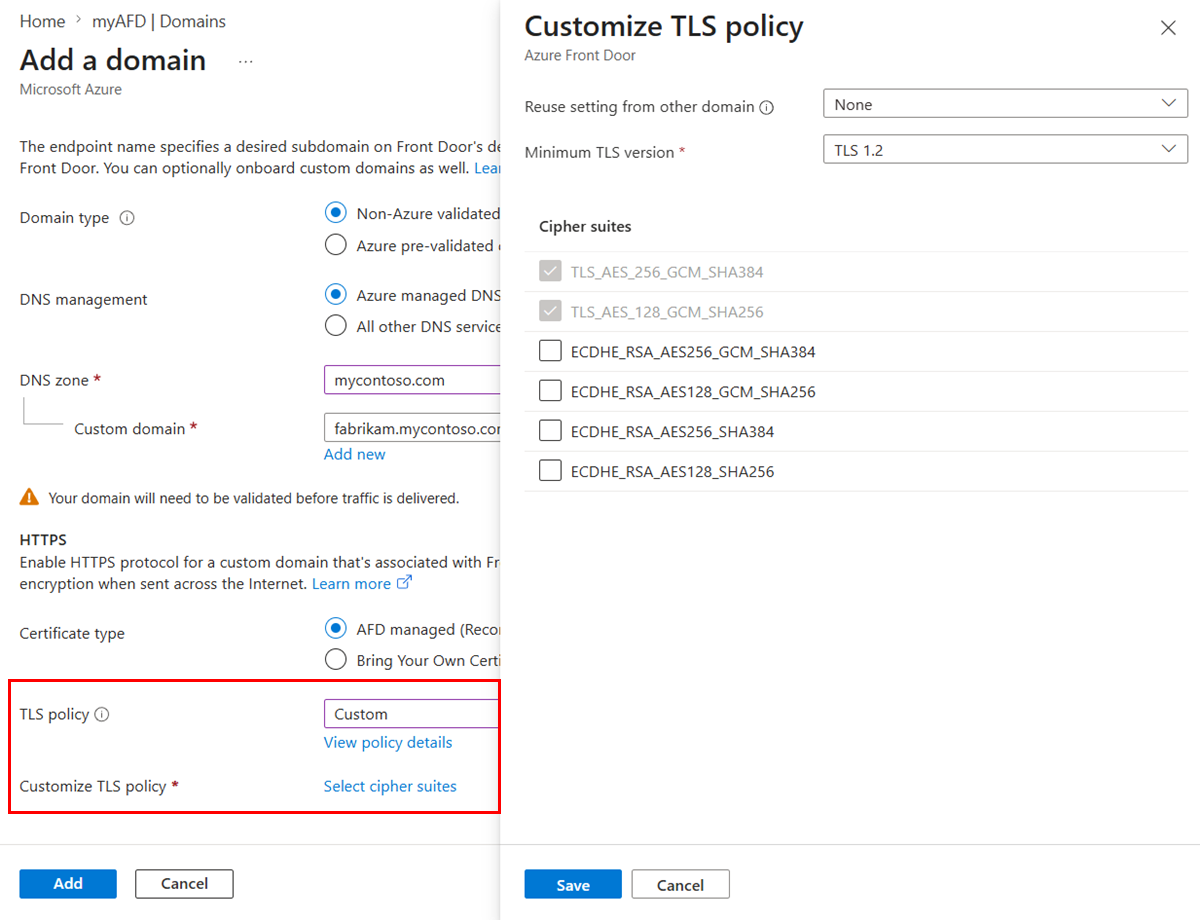

   When you select Custom, you can choose the Minimum TLS version and the corresponding cipher suites by selecting Select cipher suites.



   Note

   You can reuse the custom TLS policy setting from other domains in the portal by selecting the domain in Reuse setting from other domain.

5. Select Add to add the domain.

Verify TLS policy configurations

View the supported cipher suite of your domain via www.ssllabs.com/ssltest or use the sslscan tool.
