GradientBrush.SpreadMethod Property

Reference

Definition

Namespace:: System.Windows.Media

Assembly:: PresentationCore.dll

Important

Some information relates to prerelease product that may be substantially modified before it’s released. Microsoft makes no warranties, express or implied, with respect to the information provided here.

Gets or sets the type of spread method that specifies how to draw a gradient that starts or ends inside the bounds of the object to be painted.

public:
 property System::Windows::Media::GradientSpreadMethod SpreadMethod { System::Windows::Media::GradientSpreadMethod get(); void set(System::Windows::Media::GradientSpreadMethod value); };

public System.Windows.Media.GradientSpreadMethod SpreadMethod { get; set; }

member this.SpreadMethod : System.Windows.Media.GradientSpreadMethod with get, set

Public Property SpreadMethod As GradientSpreadMethod

Property Value

GradientSpreadMethod

The type of spread method used to paint the gradient. The default is Pad.

Examples

The following example applies different SpreadMethod settings to several LinearGradientBrush and RadialGradientBrush objects.

<Page
  xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
  xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
  Title="Gradient Spread Methods">
  <StackPanel>

    <!-- The following three examples show the different gradient spread methods
         applied to linear gradient brushes. -->
    <Rectangle Width="150" Height="75" Stroke="Black">
      <Rectangle.Fill>

        <!-- Pad -->
        <LinearGradientBrush StartPoint="0.3,0.5" EndPoint="0.7,0.5" SpreadMethod="Pad">
          <GradientStop Color="White" Offset="0" />
          <GradientStop Color="#333333" Offset="1" />
        </LinearGradientBrush>
      </Rectangle.Fill>
    </Rectangle>

    <Rectangle Width="150" Height="75" Stroke="Black">
      <Rectangle.Fill>

        <!-- Reflect -->
        <LinearGradientBrush StartPoint="0.3,0.5" EndPoint="0.7,0.5" SpreadMethod="Reflect">
          <GradientStop Color="White" Offset="0" />
          <GradientStop Color="#333333" Offset="1" />
        </LinearGradientBrush>
      </Rectangle.Fill>
    </Rectangle>

    <Rectangle Width="150" Height="75" Stroke="Black">
      <Rectangle.Fill>

        <!-- Repeat -->
        <LinearGradientBrush StartPoint="0.3,0.5" EndPoint="0.7,0.5" SpreadMethod="Repeat">
          <GradientStop Color="White" Offset="0" />
          <GradientStop Color="#333333" Offset="1" />
        </LinearGradientBrush>
      </Rectangle.Fill>
    </Rectangle>

    <!-- The following three examples show the different gradient spread methods
         applied to radial gradient brushes. -->
    <Rectangle Width="150" Height="75" Stroke="Black">
      <Rectangle.Fill>

        <!-- Pad -->
        <RadialGradientBrush Center="0.5,0.5" RadiusX="0.3" RadiusY="0.3" SpreadMethod="Pad">
          <GradientStop Color="White" Offset="0" />
          <GradientStop Color="#333333" Offset="1" />
        </RadialGradientBrush>
      </Rectangle.Fill>
    </Rectangle>

    <Rectangle Width="150" Height="75" Stroke="Black">
      <Rectangle.Fill>

        <!-- Reflect -->
        <RadialGradientBrush Center="0.5,0.5" RadiusX="0.3" RadiusY="0.3" SpreadMethod="Reflect">
          <GradientStop Color="White" Offset="0" />
          <GradientStop Color="#333333" Offset="1" />
        </RadialGradientBrush>
      </Rectangle.Fill>
    </Rectangle>

    <Rectangle Width="150" Height="75" Stroke="Black">
      <Rectangle.Fill>

        <!-- Repeat -->
        <RadialGradientBrush Center="0.5,0.5" RadiusX="0.3" RadiusY="0.3" SpreadMethod="Repeat">
          <GradientStop Color="White" Offset="0" />
          <GradientStop Color="#333333" Offset="1" />
        </RadialGradientBrush>
      </Rectangle.Fill>
    </Rectangle>

  </StackPanel>
</Page>

Remarks

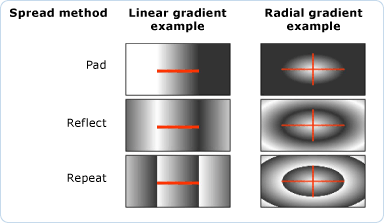

The following illustration shows the available spread methods and their effect on LinearGradientBrush and RadialGradientBrush. The red line indicates the gradient space. A LinearGradientBrush defines its gradient space with its StartPoint and EndPoint properties. A RadialGradientBrush defines its gradient space with its Center, RadiusX, and RadiusY properties.

Different GradientSpread settings Gradient spread methods

Dependency Property Information


Identifier field	SpreadMethodProperty
Metadata properties set to `true`	None
