How to enable concurrent users in Azure Virtual Desktop and allow multiple users to connect to the same virtual machine simultaneously.

Question

How to enable concurrent users in Azure Virtual Desktop and allow multiple users to connect to the same virtual machine simultaneously.

Pramod Singh Tariyal 90

Hello Team

As per my current setup, I've AVD setup with host pool having windows 11 and connected windows 11 with microsoft entra id.

Accepted answer

0 additional answers

Your answer

Answer 1

Marcin Policht 49,640 MVP Volunteer Moderator

To enable concurrent users in Azure Virtual Desktop (AVD) and allow multiple users to connect to the same virtual machine (VM) simultaneously, you need to use a pooled host pool (rather than a personal desktop). In a pooled setup, multiple users share session hosts running Windows 10/11 Enterprise multi-session or Windows Server. Assign users via application groups. Also, use load balancing (e.g., breadth-first or depth-first) to optimize session distribution across hosts.

More at https://learn.microsoft.com/en-us/answers/questions/1160088/azure-virtual-desktop-os

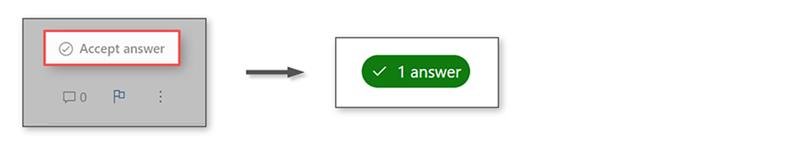

If the above response helps answer your question, remember to "Accept Answer" so that others in the community facing similar issues can easily find the solution. Your contribution is highly appreciated.

hth

Marcin

Pramod Singh Tariyal 90 Reputation points

2025-03-22T13:21:26.59+00:00

Hello marcin

As I can see, my current Host pool type is "Personal" and my VM is Windows (Windows 11 Pro) not Enterprise multi-session. So Do I need to create new host pool or I can modify this one and create new multi-session windows 11 and add that to host pool?
Pramod Singh Tariyal 90 Reputation points

2025-03-22T13:21:39.78+00:00

Hello marcin

As I can see, my current Host pool type is "Personal" and my VM is Windows (Windows 11 Pro) not Enterprise multi-session. So Do I need to create new host pool or I can modify this one and create new multi-session windows 11 and add that to host pool?
Marcin Policht 49,640 Reputation points MVP Volunteer Moderator

2025-03-22T13:48:22.6+00:00
You cannot modify an existing Personal host pool to support multiple concurrent users. Instead, you need to create a new pooled host pool that consists of Windows 11 Enterprise multi-session VMs. At a high level, these is the sequence of steps:

Create a new Host pool

In Azure Virtual Desktop, create a new Pooled host pool.

Choose Breadth-first load balancing for distributing users evenly across VMs.

Deploy Windows 11 Enterprise multi-session

Select Windows 11 Enterprise multi-session as the OS when creating session hosts.

Ensure the VM size has enough CPU and RAM for multiple users.

Assign users to the new Host pool

Add users to the Desktop application group in the new host pool.

After setting this up, users will be able to connect to the same VM concurrently.

If the above response helps answer your question, remember to "Accept Answer" so that others in the community facing similar issues can easily find the solution. Your contribution is highly appreciated.

hth

Marcin
Marcin Policht 49,640 Reputation points MVP Volunteer Moderator

2025-03-22T13:49:31.8066667+00:00
You cannot modify an existing Personal host pool to support multiple concurrent users. Instead, you need to create a new pooled host pool that consists of Windows 11 Enterprise multi-session VMs. At a high level, these is the sequence of steps:

Create a new Host pool

In Azure Virtual Desktop, create a new Pooled host pool.

Choose Breadth-first load balancing for distributing users evenly across VMs.

Deploy Windows 11 Enterprise multi-session

Select Windows 11 Enterprise multi-session as the OS when creating session hosts.

Ensure the VM size has enough CPU and RAM for multiple users.

Assign users to the new Host pool

Add users to the Desktop application group in the new host pool.

After setting this up, users will be able to connect to the same VM concurrently.

If the above response helps answer your question, remember to "Accept Answer" so that others in the community facing similar issues can easily find the solution. Your contribution is highly appreciated.

hth

MarcinYou cannot modify an existing Personal host pool to support multiple concurrent users. Instead, you need to create a new pooled host pool that consists of Windows 11 Enterprise multi-session VMs. At a high level, these is the sequence of steps:

Create a new Host pool

In Azure Virtual Desktop, create a new Pooled host pool.

Choose Breadth-first load balancing for distributing users evenly across VMs.

Deploy Windows 11 Enterprise multi-session

Select Windows 11 Enterprise multi-session as the OS when creating session hosts.

Ensure the VM size has enough CPU and RAM for multiple users.

Assign users to the new Host pool

Add users to the Desktop application group in the new host pool.

After setting this up, users will be able to connect to the same VM concurrently.

If the above response helps answer your question, remember to "Accept Answer" so that others in the community facing similar issues can easily find the solution. Your contribution is highly appreciated.

hth

Marcin

Pramod Singh Tariyal 90

Actually I tried creating new hostpool but got this QuotaExceeded error.

{
    "status": "Failed",
    "error": {
        "code": "InvalidTemplateDeployment",
        "message": "The template deployment 'vmCreation-linkedTemplate-f8fc819a-e2da-4a4f-b33c-7ebdb80c308f' is not valid according to the validation procedure. The tracking id is '545f7e65-fcfb-43d8-8e62-1e75e143d60e'. See inner errors for details.",
        "details": [
            {
                "code": "QuotaExceeded",
                "message": "Operation could not be completed as it results in exceeding approved standardDASv5Family Cores quota. Additional details - Deployment Model: Resource Manager, Location: uksouth, Current Limit: 0, Current Usage: 0, Additional Required: 2, (Minimum) New Limit Required: 2. Setup Alerts when Quota reaches threshold. Learn more at https://aka.ms/quotamonitoringalerting . Submit a request for Quota increase at https://aka.ms/ProdportalCRP/#blade/Microsoft_Azure_Capacity/UsageAndQuota.ReactView/Parameters/%7B%22subscriptionId%22:%224fb4e216-1a81-4e68-9082-51ff3e6a3b6c%22,%22command%22:%22openQuotaApprovalBlade%22,%22quotas%22:[%7B%22location%22:%22uksouth%22,%22providerId%22:%22Microsoft.Compute%22,%22resourceName%22:%22standardDASv5Family%22,%22quotaRequest%22:%7B%22properties%22:%7B%22limit%22:2,%22unit%22:%22Count%22,%22name%22:%7B%22value%22:%22standardDASv5Family%22%7D%7D%7D%7D]%7D by specifying parameters listed in the ‘Details’ section for deployment to succeed. Please read more about quota limits at https://docs.microsoft.com/en-us/azure/azure-supportability/per-vm-quota-requests"
            }
        ]
    }
}

Marcin Policht 49,640 Reputation points MVP Volunteer Moderator

2025-03-22T15:29:49.8366667+00:00
The error message indicates that your deployment is failing because you have exceeded the quota for Standard DASv5 Family Cores in the UK South region. Your current quota for this VM size is 0, meaning no cores are allocated for this SKU in your subscription.

To fix this, use a different SKU or

Check your current quotas

Go to the Azure Portal

Navigate to Subscriptions > Select your subscription > Usage + quotas

Search for "DASv5" under Compute to confirm the limit

Request a quota increase

Follow the link from the error message or go to:
Azure Quota Increase Request

Select "Compute", choose Standard DASv5 Family, and request an increase (e.g., 2 cores).

Wait for approval (can take a few hours to a day).

Deploy in a different region (optional)

If increasing the quota is not an option, you can deploy your VM in another region where you have available quota.

If the above response helps answer your question, remember to "Accept Answer" so that others in the community facing similar issues can easily find the solution. Your contribution is highly appreciated.

hth

Marcin
Pramod Singh Tariyal 90 Reputation points

2025-03-22T15:42:43.46+00:00

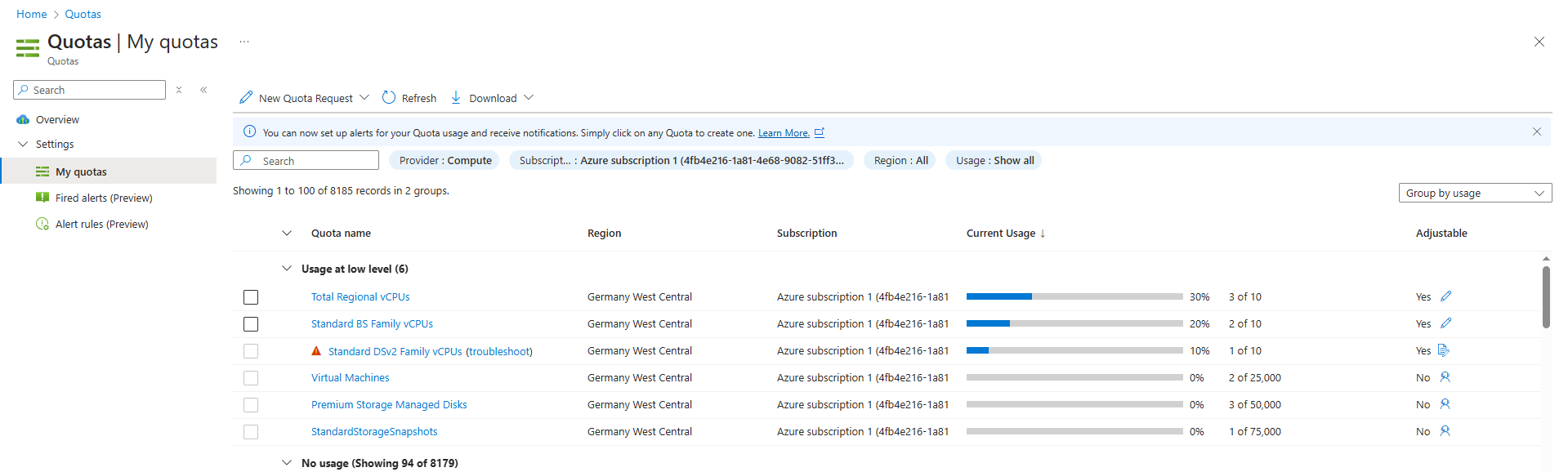

When I check quota in my azure portal then I see this as per below screenshot where it doesn't say that it's used 100% then how can my quota be used as full.
Pramod Singh Tariyal 90 Reputation points

2025-03-22T15:54:04.68+00:00

I have tried changing vm size as well, tried changing region also but got the same error

Pramod Singh Tariyal 90

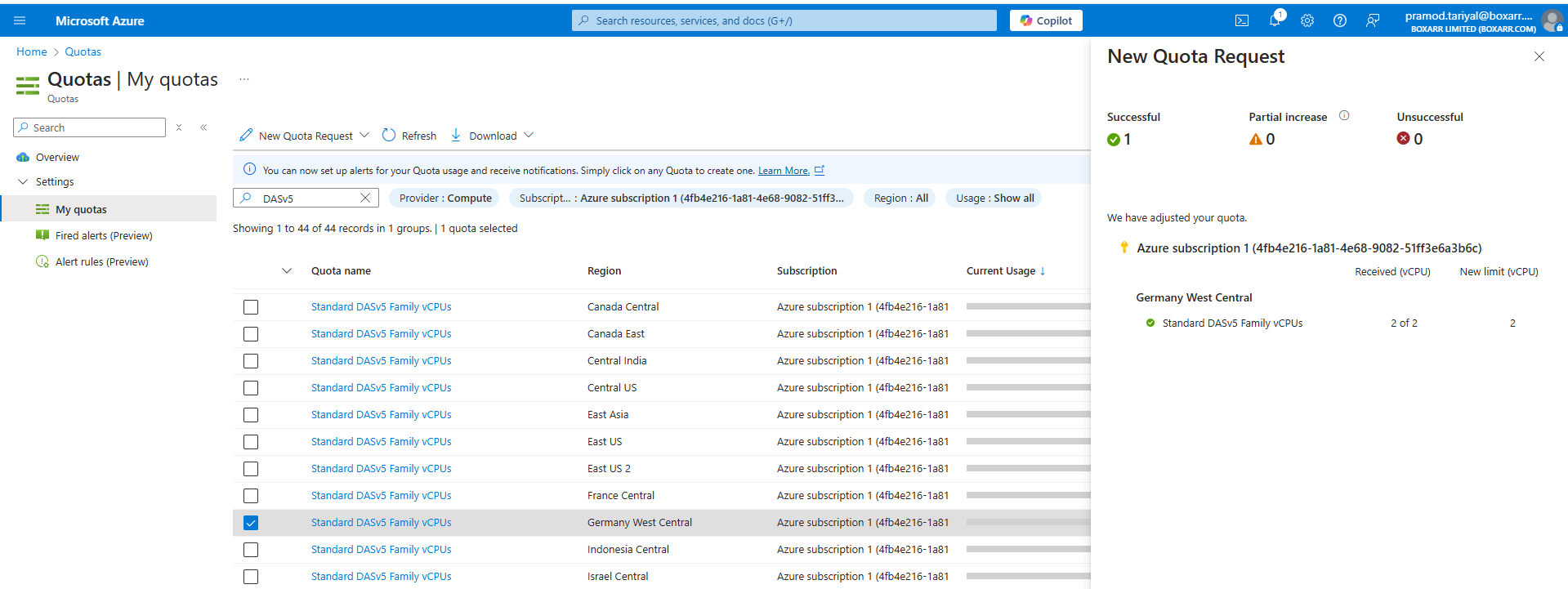

I increased the quota

User's image

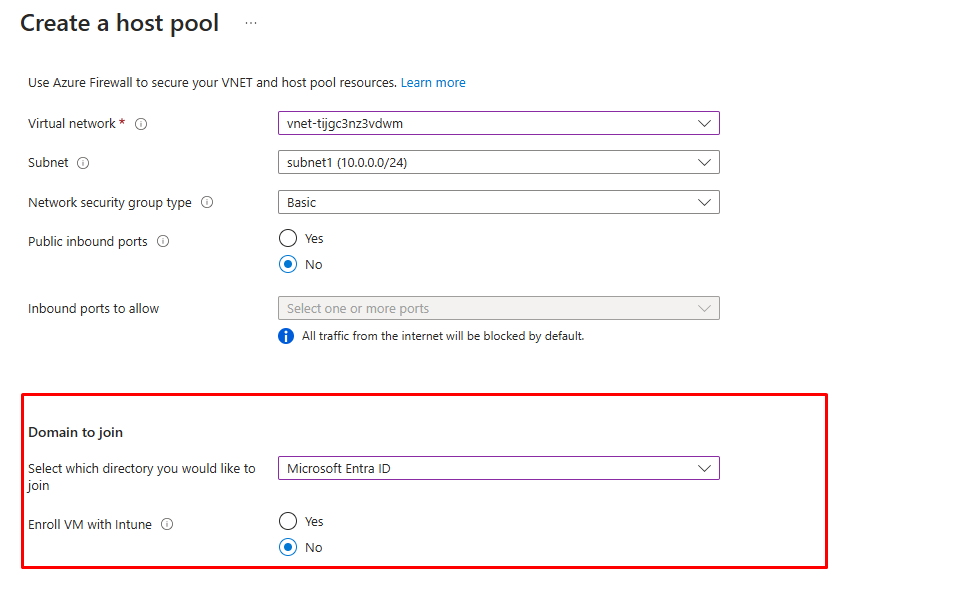

but now I tried to create host pool and I don't have active directory, I use microsoft entra ID which I used as a option to create host pool

User's image

but at the end I got below error to create my deployment

{

"status": "Failed",

"error": {

    "code": "DeploymentFailed",

    "message": "At least one resource deployment operation failed. Please list deployment operations for details. Please see https://aka.ms/arm-deployment-operations for usage details.",

    "details": [

        {

            "code": "Conflict",

            "message": "{\r\n  \"status\": \"Failed\",\r\n  \"error\": {\r\n    \"code\": \"ResourceDeploymentFailure\",\r\n    \"message\": \"The resource write operation failed to complete successfully, because it reached terminal provisioning state 'Failed'.\",\r\n    \"details\": [\r\n      {\r\n        \"code\": \"VMExtensionProvisioningError\",\r\n        \"message\": \"VM has reported a failure when processing extension 'AADLoginForWindows' (publisher 'Microsoft.Azure.ActiveDirectory' and type 'AADLoginForWindows'). Error message: 'AAD Join failed with status code: -2145648526. Device successfully unjoined from Azure AD.'. More information on troubleshooting is available at https://aka.ms/vmextensionwindowstroubleshoot. \"\r\n      }\r\n    ]\r\n  }\r\n}"

        }

    ]

}

}

Pramod Singh Tariyal 90

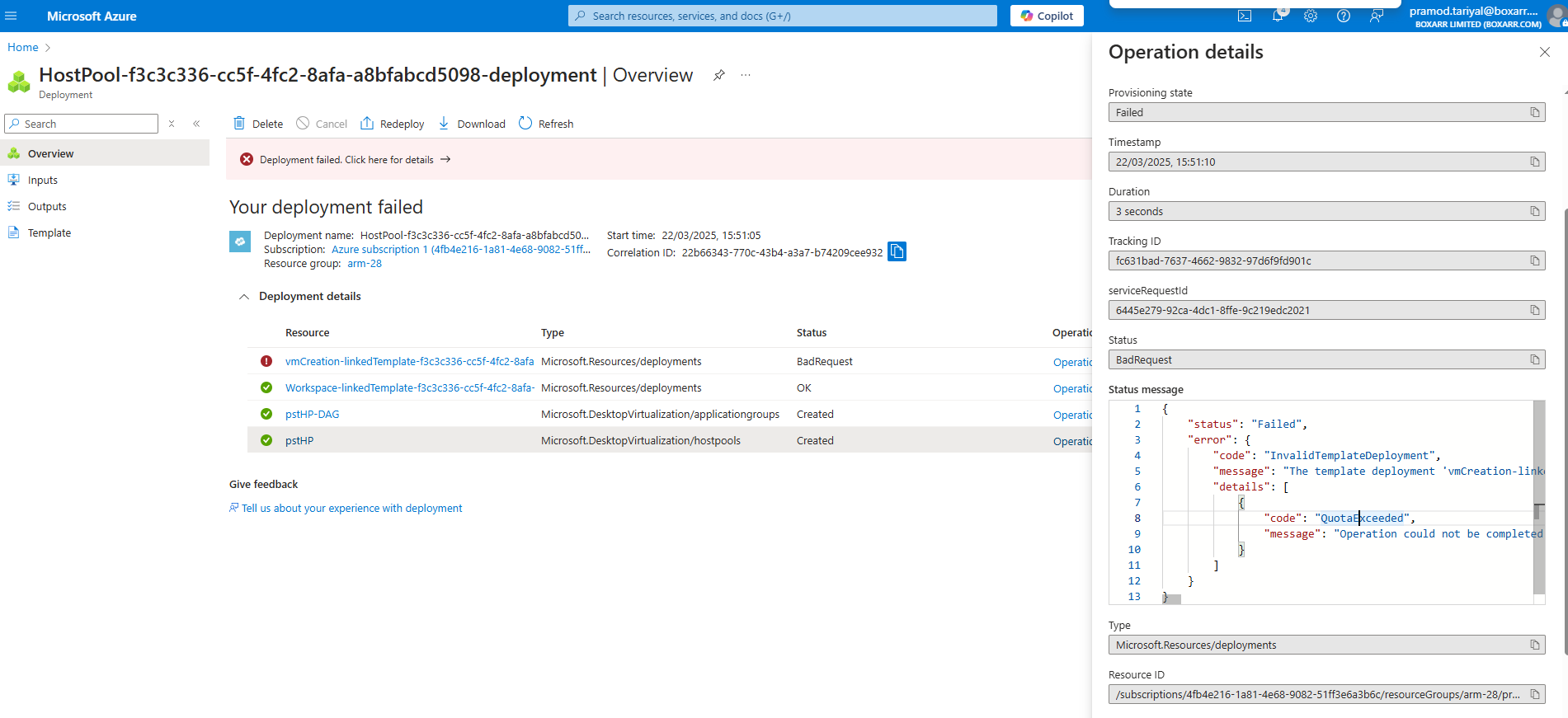

Now I tried to create again but It's saying quota limited. When I have deleted my host pool which I tried to create then how it consumed my quota?

{
    "status": "Failed",
    "error": {
        "code": "InvalidTemplateDeployment",
        "message": "The template deployment 'vmCreation-linkedTemplate-f3c3c336-cc5f-4fc2-8afa-a8bfabcd5121' is not valid according to the validation procedure. The tracking id is 'e1f6cf2b-24f2-471f-ac56-a72100ce43bd'. See inner errors for details.",
        "details": [
            {
                "code": "QuotaExceeded",
                "message": "Operation could not be completed as it results in exceeding approved standardDASv5Family Cores quota. Additional details - Deployment Model: Resource Manager, Location: GermanyWestCentral, Current Limit: 2, Current Usage: 2, Additional Required: 2, (Minimum) New Limit Required: 4. Setup Alerts when Quota reaches threshold. Learn more at https://aka.ms/quotamonitoringalerting . Submit a request for Quota increase at https://aka.ms/ProdportalCRP/#blade/Microsoft_Azure_Capacity/UsageAndQuota.ReactView/Parameters/%7B%22subscriptionId%22:%224fb4e216-1a81-4e68-9082-51ff3e6a3b6c%22,%22command%22:%22openQuotaApprovalBlade%22,%22quotas%22:[%7B%22location%22:%22GermanyWestCentral%22,%22providerId%22:%22Microsoft.Compute%22,%22resourceName%22:%22standardDASv5Family%22,%22quotaRequest%22:%7B%22properties%22:%7B%22limit%22:4,%22unit%22:%22Count%22,%22name%22:%7B%22value%22:%22standardDASv5Family%22%7D%7D%7D%7D]%7D by specifying parameters listed in the ‘Details’ section for deployment to succeed. Please read more about quota limits at https://docs.microsoft.com/en-us/azure/azure-supportability/per-vm-quota-requests"
            }
        ]
    }
}

Marcin Policht 49,640 Reputation points MVP Volunteer Moderator

2025-03-22T20:10:25.9866667+00:00

Confirmed - delete the original deployment first and make sure that deprovisioning completes.

This should be working (i.e. the procedure you're following is correct). If you run into the same issue, try the suggestions available at https://learn.microsoft.com/en-us/answers/questions/1184031/azure-virtual-desktop-deployment-error-message-aad

If the above response helps answer your question, remember to "Accept Answer" so that others in the community facing similar issues can easily find the solution. Your contribution is highly appreciated.

hth

Marcin
Mounika Reddy Anumandla 6,570 Reputation points Microsoft External Staff Moderator

2025-03-24T01:22:24.98+00:00

Hi Pramod Singh Tariyal,

Just checking in to see if you had a chance to review the response provided by Marcin Policht to your question.

If the information is helpful, please click "Accept Answer" and "Upvote it."
Pramod Singh Tariyal 90 Reputation points

2025-03-24T08:39:33.5166667+00:00

Hello Mounika

I'll test today and would update my comment if it works
Pramod Singh Tariyal 90 Reputation points

2025-03-24T10:15:57.3933333+00:00

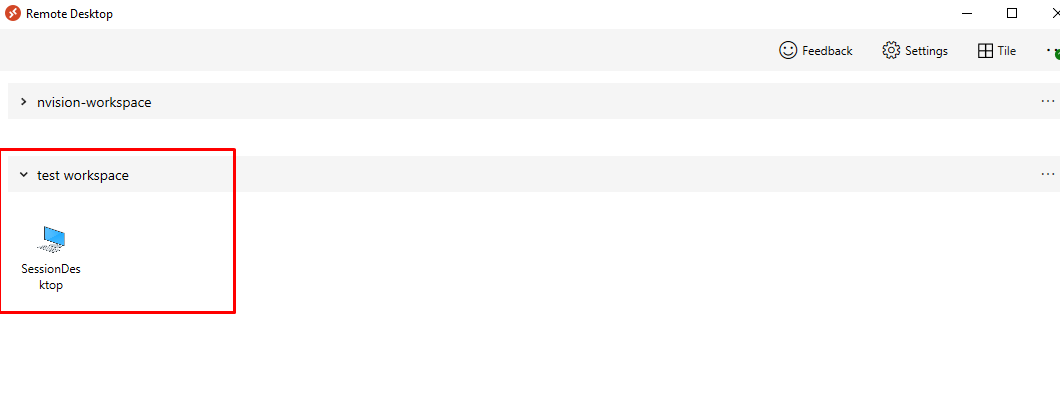

I created new host pool as suggested by @Marcin Policht . In application group, I added users but while taking the remote desktop session, I can take session with a user name which I used while creating a hostpool but not with the users I added in application group. i'm using windows 11 multi session OS when I tool a remote session using a user boxarr which I used while creating a host pool, I can take session but when someone else tried the same session from his end using the same boxarr user I got disconnected.
Pramod Singh Tariyal 90 Reputation points

2025-03-24T10:29:36.73+00:00

Do I need to create a user inside my windows 11 machine or what? at this time I'm used my Azure users and added them in application group. but I can login in my SessionDesktop using boxarr user which I used while creating hostpool.
Pramod Singh Tariyal 90 Reputation points

2025-03-24T10:50:01.5866667+00:00

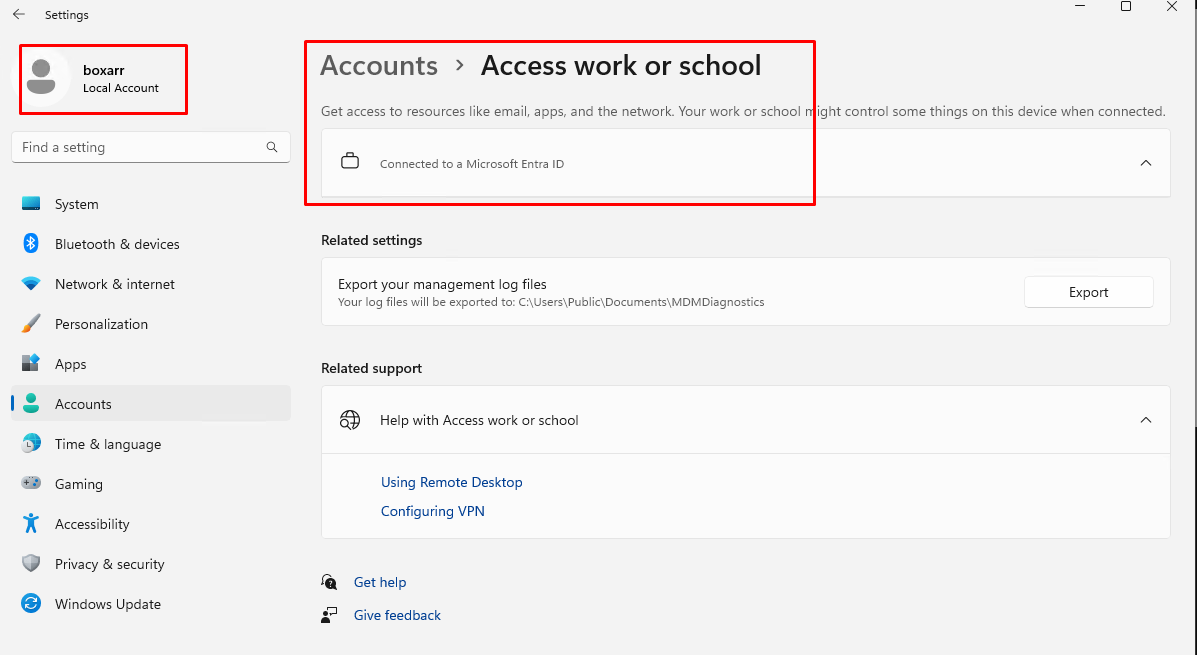

My windows 11 is already connected with entra id

You can check below status also

PS C:\Users\boxarr> dsregcmd /status

+----------------------------------------------------------------------+

| Device State |

+----------------------------------------------------------------------+

AzureAdJoined : YES EnterpriseJoined : NO DomainJoined : NO Virtual Desktop : NOT SET Device Name : pst-0

+----------------------------------------------------------------------+

| Device Details |

+----------------------------------------------------------------------+

DeviceId : 6ff563e7-3efa-4d79-a904-b570202606d7 Thumbprint : 7EA4730D169ED8FC21509E6805C6F23491AE7C74

DeviceCertificateValidity : [ 2025-03-22 19:19:26.000 UTC -- 2035-03-22 19:49:26.000 UTC ]

KeyContainerId : 7f716a1d-dca0-4ec7-9e12-59c0cd8482ea KeyProvider : Microsoft Platform Crypto Provider TpmProtected : YES DeviceAuthStatus : SUCCESS
Marcin Policht 49,640 Reputation points MVP Volunteer Moderator

2025-03-24T11:54:58.8533333+00:00

Use the following as a guide:

https://github.com/MicrosoftLearning/AZ-140-Configuring-and-Operating-Microsoft-Azure-Virtual-Desktop/blob/master/Instructions/Labs_EntraID/01_LAB_14_01_Deploy_host_pools_and_session_hosts_with_Entra_ID_Azure_portal.md

https://github.com/MicrosoftLearning/AZ-140-Configuring-and-Operating-Microsoft-Azure-Virtual-Desktop/blob/master/Instructions/Labs_EntraID/04_LAB_32_02_Connect_to_host_pools_and_session_hosts_with_Entra_ID.md

If the above response helps answer your question, remember to "Accept Answer" so that others in the community facing similar issues can easily find the solution. Your contribution is highly appreciated.

hth

Marcin
Pramod Singh Tariyal 90 Reputation points

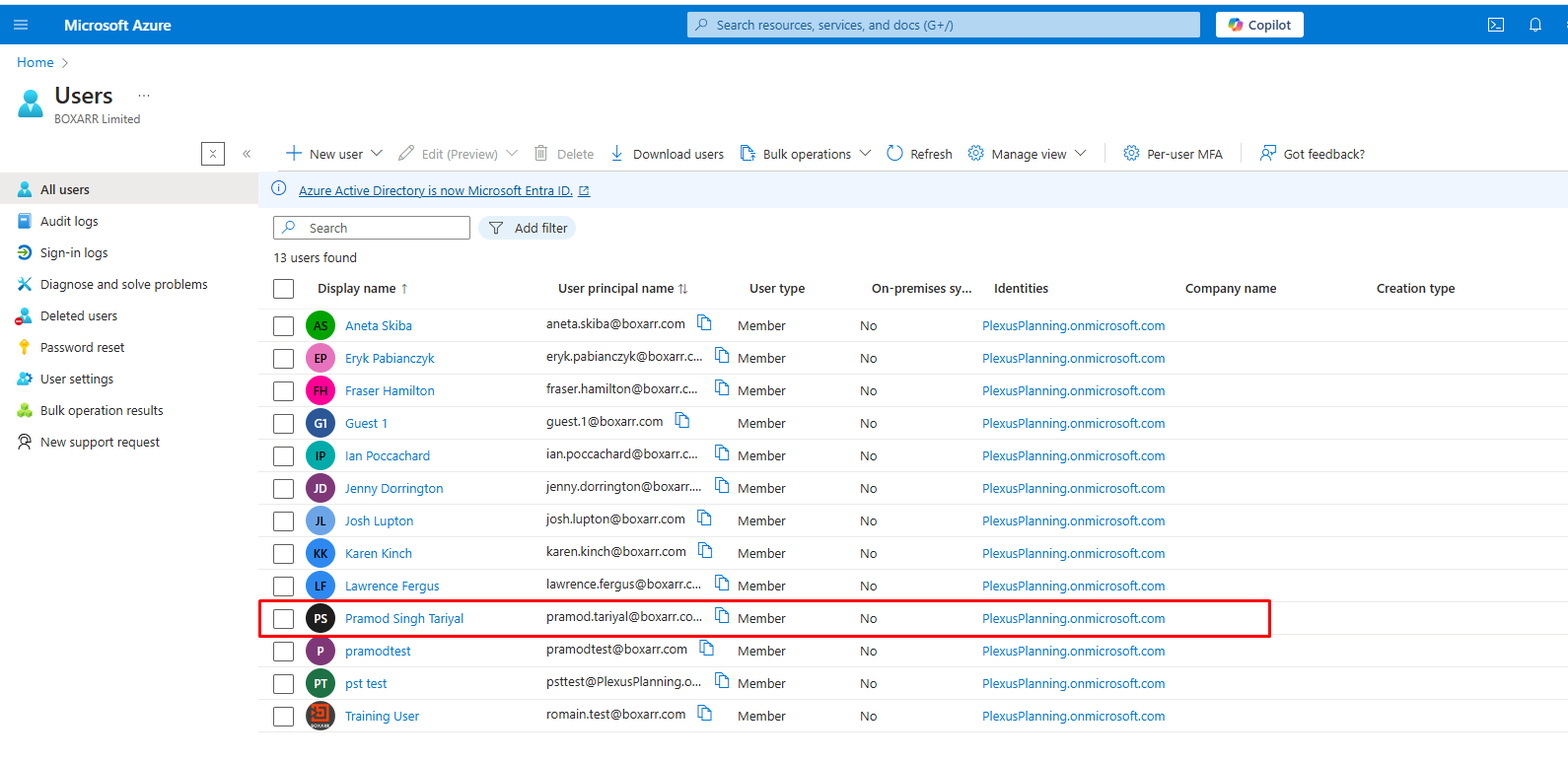

2025-03-24T12:07:36.9766667+00:00

How to perform this action as per your article?

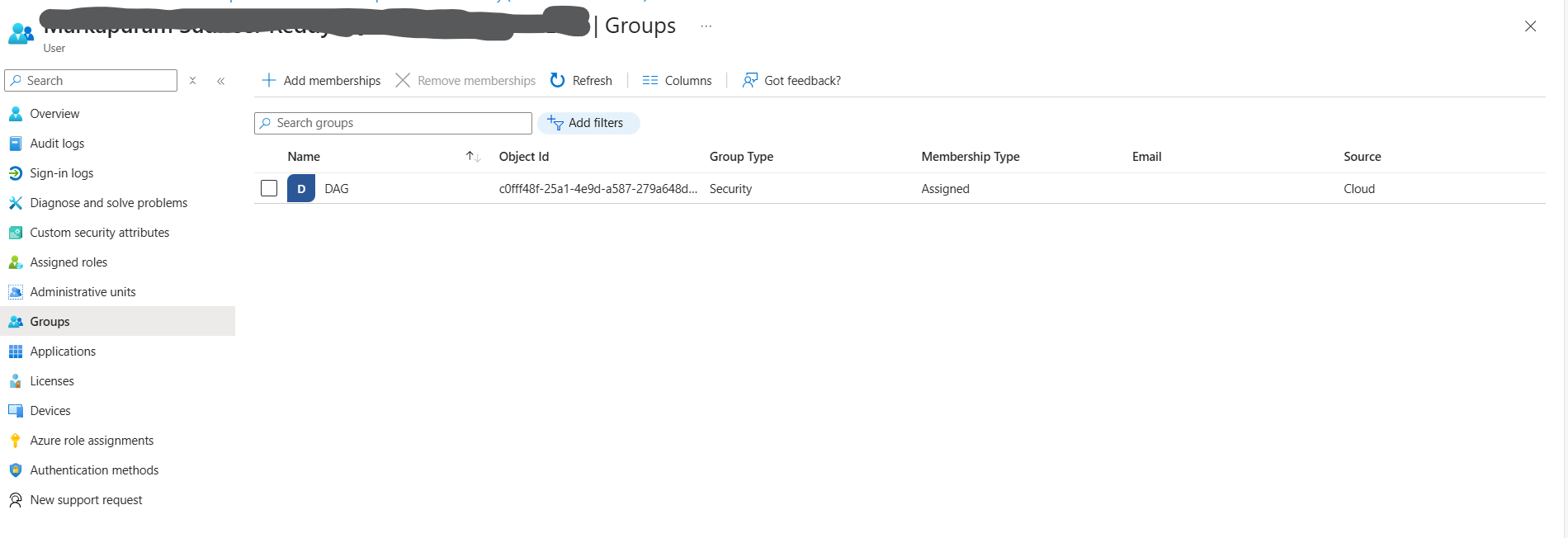

I'm on that user's page under group section but there is no option to perform this
Markapuram Sudheer Reddy 2,050 Reputation points Microsoft External Staff Moderator

2025-03-24T21:51:00.85+00:00

Hi Pramod Singh Tariyal,

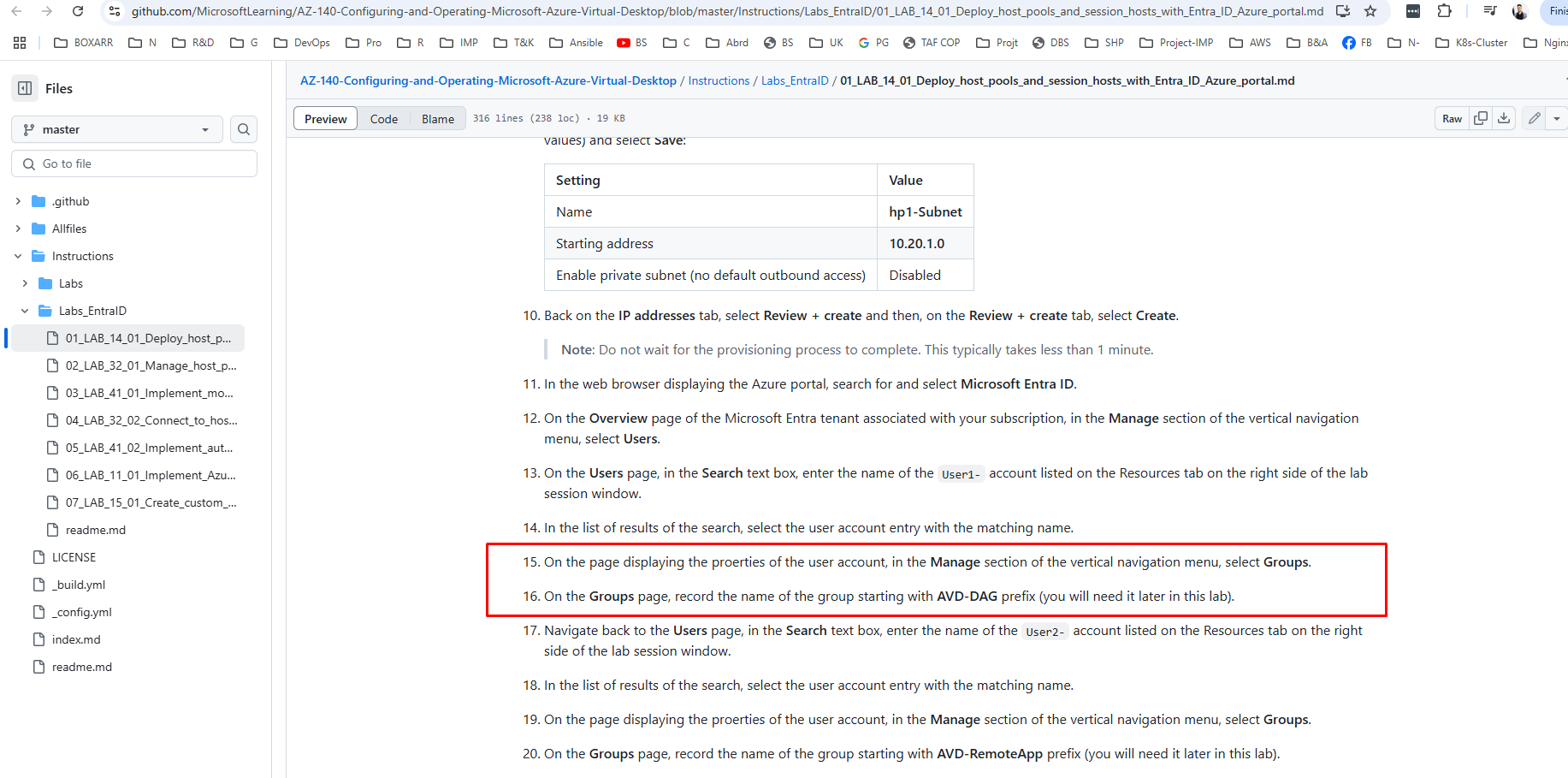

"If we observe, point-15 from the document, the Manage section is not visible in the user profile navigation menu; instead, the Groups option is directly accessible."

Ensure that the respective group has been created in Microsoft Entra ID. Microsoft Entra ID > Groups > All groups > New Group and check under user profile of Groups tab.

If you have any queries, please do let us know, we will help you.
Marcin Policht 49,640 Reputation points MVP Volunteer Moderator

2025-03-24T22:34:15.3233333+00:00

Yep - make sure to create an Entra ID group - follow https://learn.microsoft.com/en-us/entra/fundamentals/how-to-manage-groups

If the above response helps answer your question, remember to "Accept Answer" so that others in the community facing similar issues can easily find the solution. Your contribution is highly appreciated.

hth

Marcin
Pramod Singh Tariyal 90 Reputation points

2025-03-25T08:58:42.2633333+00:00

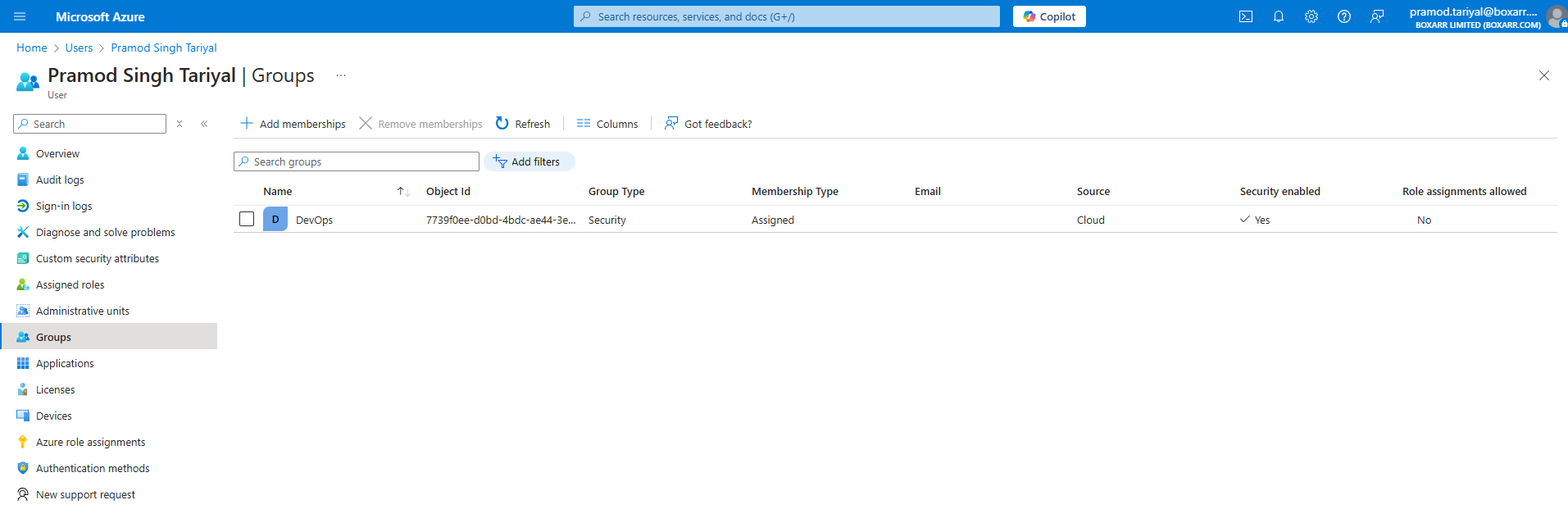

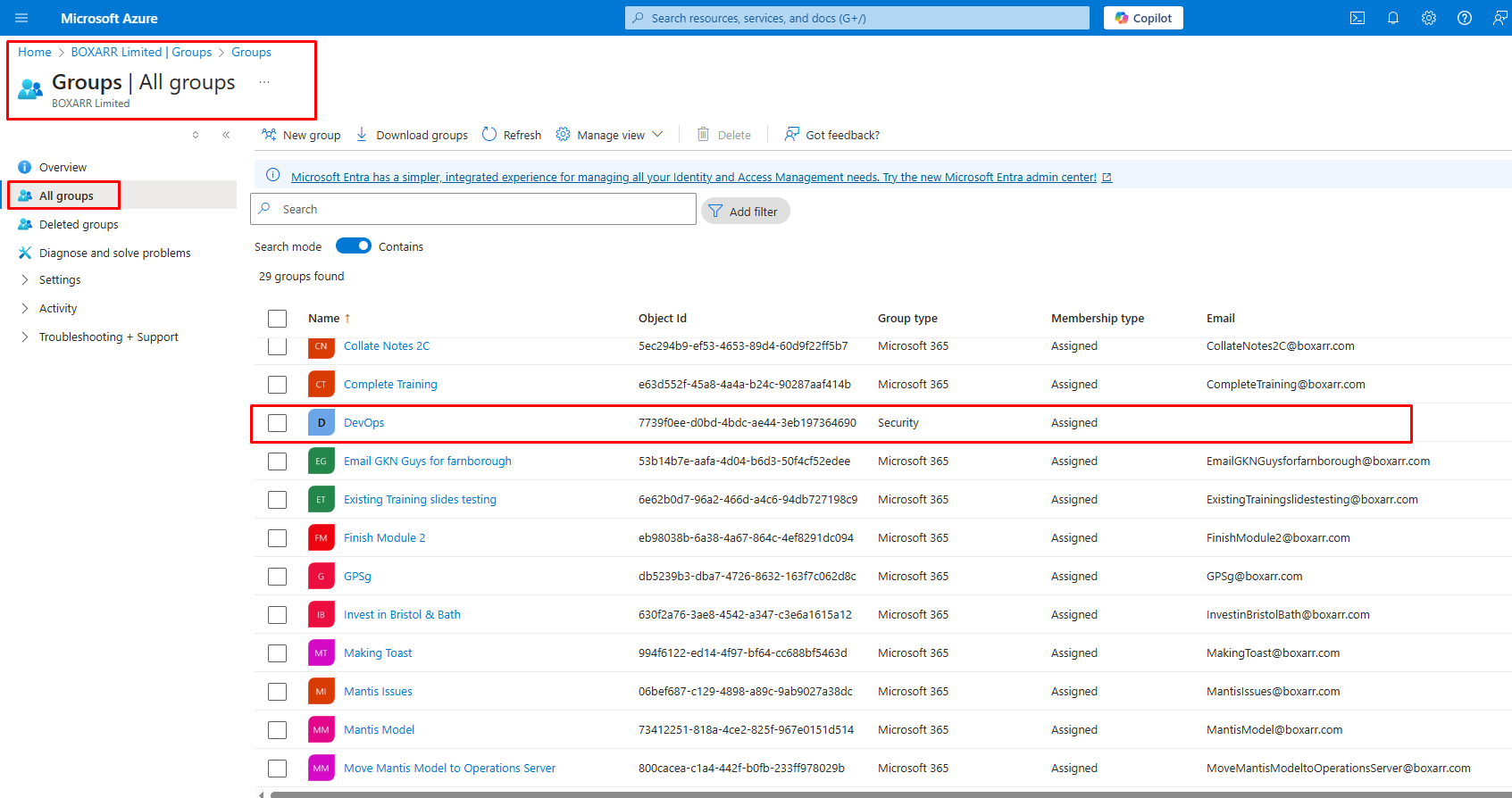

As you can see, under my microsoft entra id, the group is already created and 2 users are added in that group but the thing is those users are not able to take remote session desktop. we can only login with a user which we created while creating host pool which is called boxarr user and we are using windows 10 multi session window with pooled but still only 1 person can take session at a time.
Pramod Singh Tariyal 90 Reputation points

2025-03-25T09:00:21.1866667+00:00

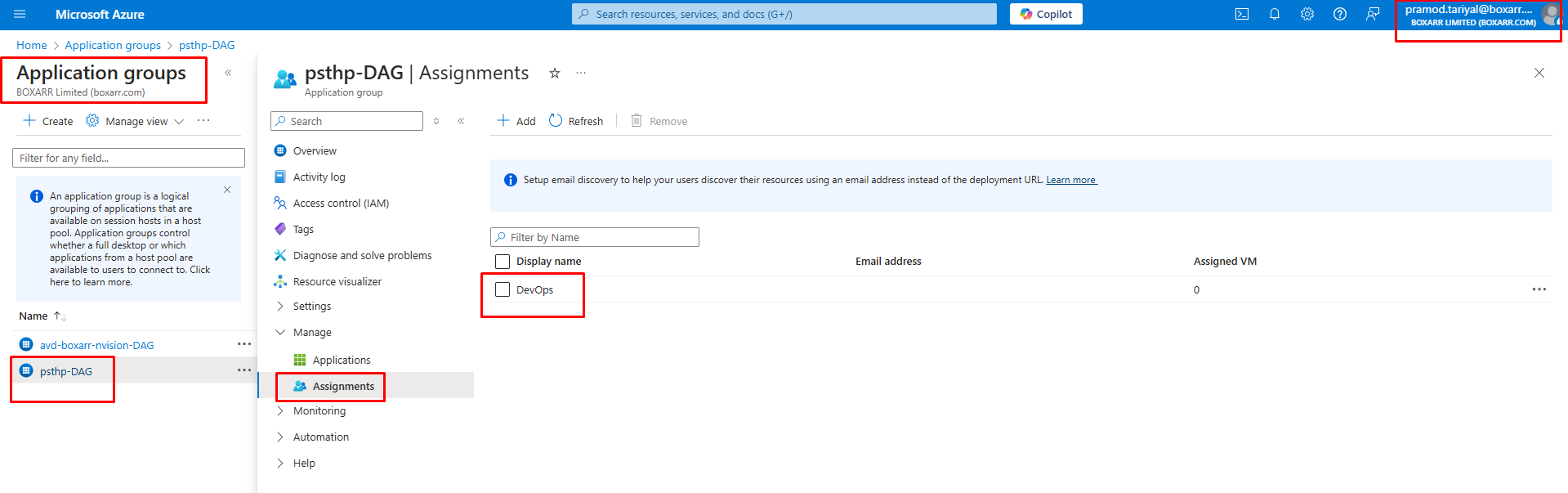

and you can see that this group is assigned to application group.
Pramod Singh Tariyal 90 Reputation points

2025-03-25T09:10:18.5233333+00:00

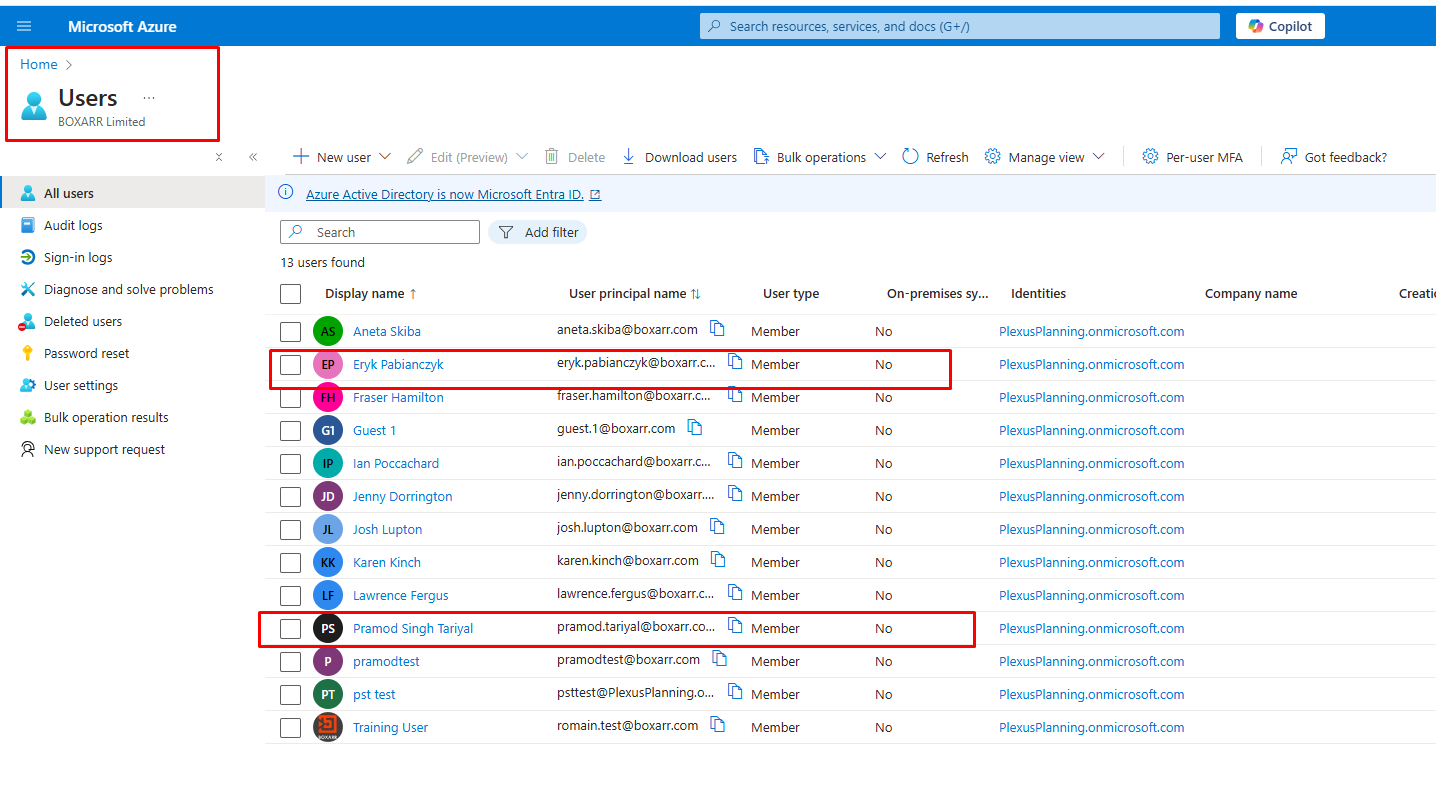

In that devops group there are 2 users Pramod and Eryk but they can't login into this windows 10 multi session OS.

What I did that I created a local user in this windows 10 called Pummy so now boxarr and pummy users can take remote session at the same time but why Pramod and eryk which are devops engineer and added in devops groups can't?
Pramod Singh Tariyal 90 Reputation points

2025-03-25T10:59:53.2666667+00:00

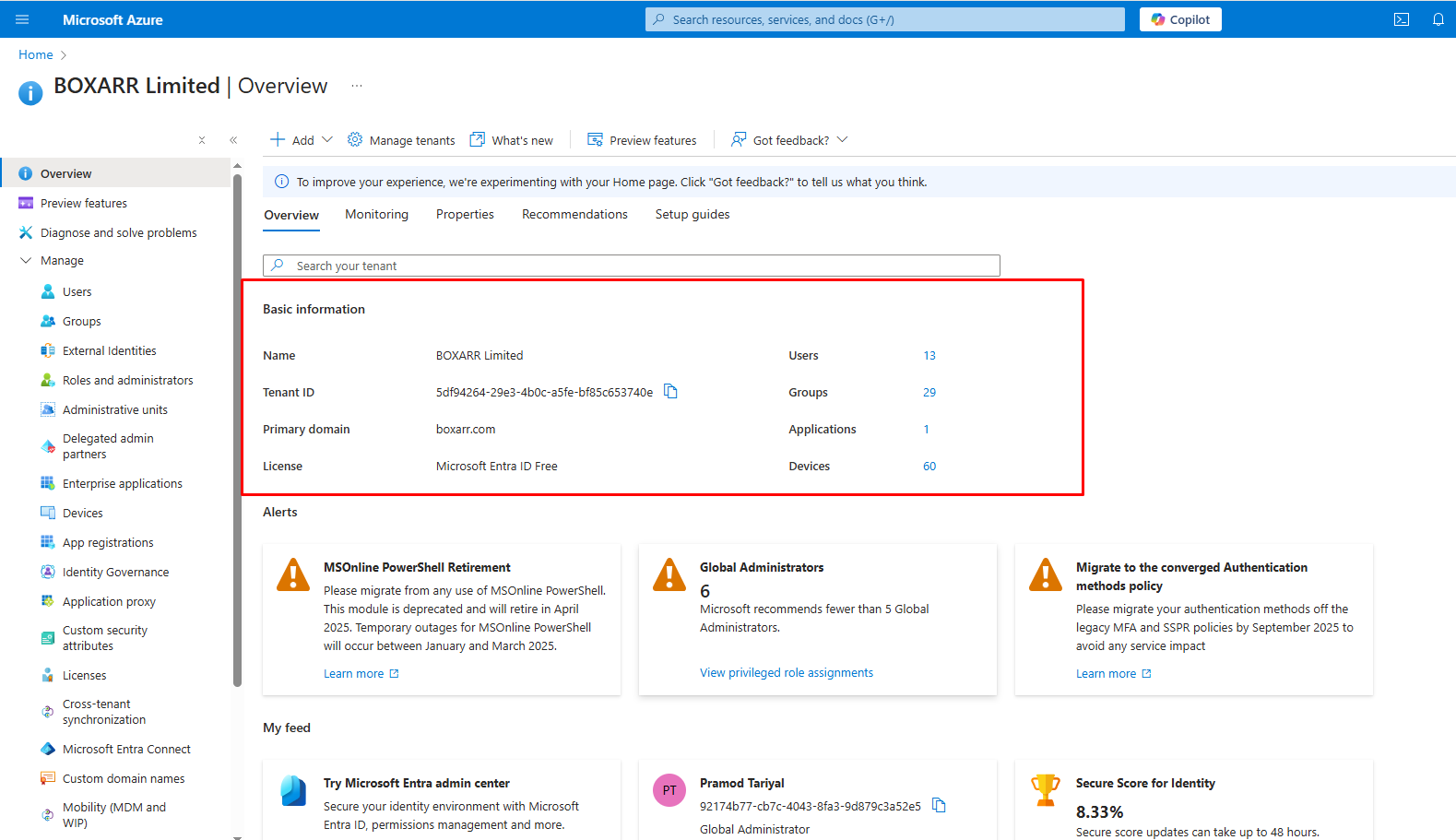

Why My entra id users can't login to host pool machine?

Microsoft entra id
Marcin Policht 49,640 Reputation points MVP Volunteer Moderator

2025-03-25T15:31:15.4433333+00:00

This is becoming difficult to follow. Pls mark this question as answered and raise a new one describing your current configuration.

If the above response helps answer your question, remember to "Accept Answer" so that others in the community facing similar issues can easily find the solution. Your contribution is highly appreciated.

hth

Marcin
Pramod Singh Tariyal 90 Reputation points

2025-03-25T15:45:41.48+00:00

Sure marcin, I've created a new thread. I've pasted a link below.

https://learn.microsoft.com/en-us/answers/questions/2238713/how-to-enable-concurrent-users-in-azure-virtual-de
Marcin Policht 49,640 Reputation points MVP Volunteer Moderator

2025-03-25T15:50:47.04+00:00

Appreciated. Pls mark this question as answered.

If the above response helps answer your question, remember to "Accept Answer" so that others in the community facing similar issues can easily find the solution. Your contribution is highly appreciated.

hth

Marcin
Pramod Singh Tariyal 90 Reputation points

2025-03-25T16:07:19.0633333+00:00

I'm not getting option to Accept answer to close this thread.
Markapuram Sudheer Reddy 2,050 Reputation points Microsoft External Staff Moderator

2025-03-25T17:48:39.6533333+00:00

Hi Pramod Singh Tariyal,

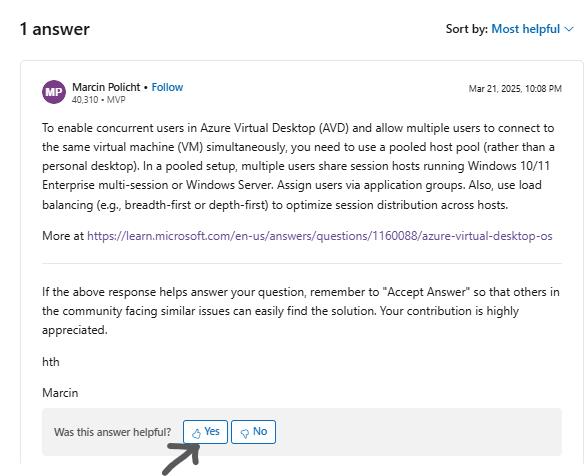

Based on your discussion above with Marcin Policht, could you please accept the answer posted by Marcin Policht by clicking on "Yes" option to help increase visibility of this question for other members of the Microsoft Q&A community. Thank you for helping to improve Microsoft Q&A!

Thank You.
